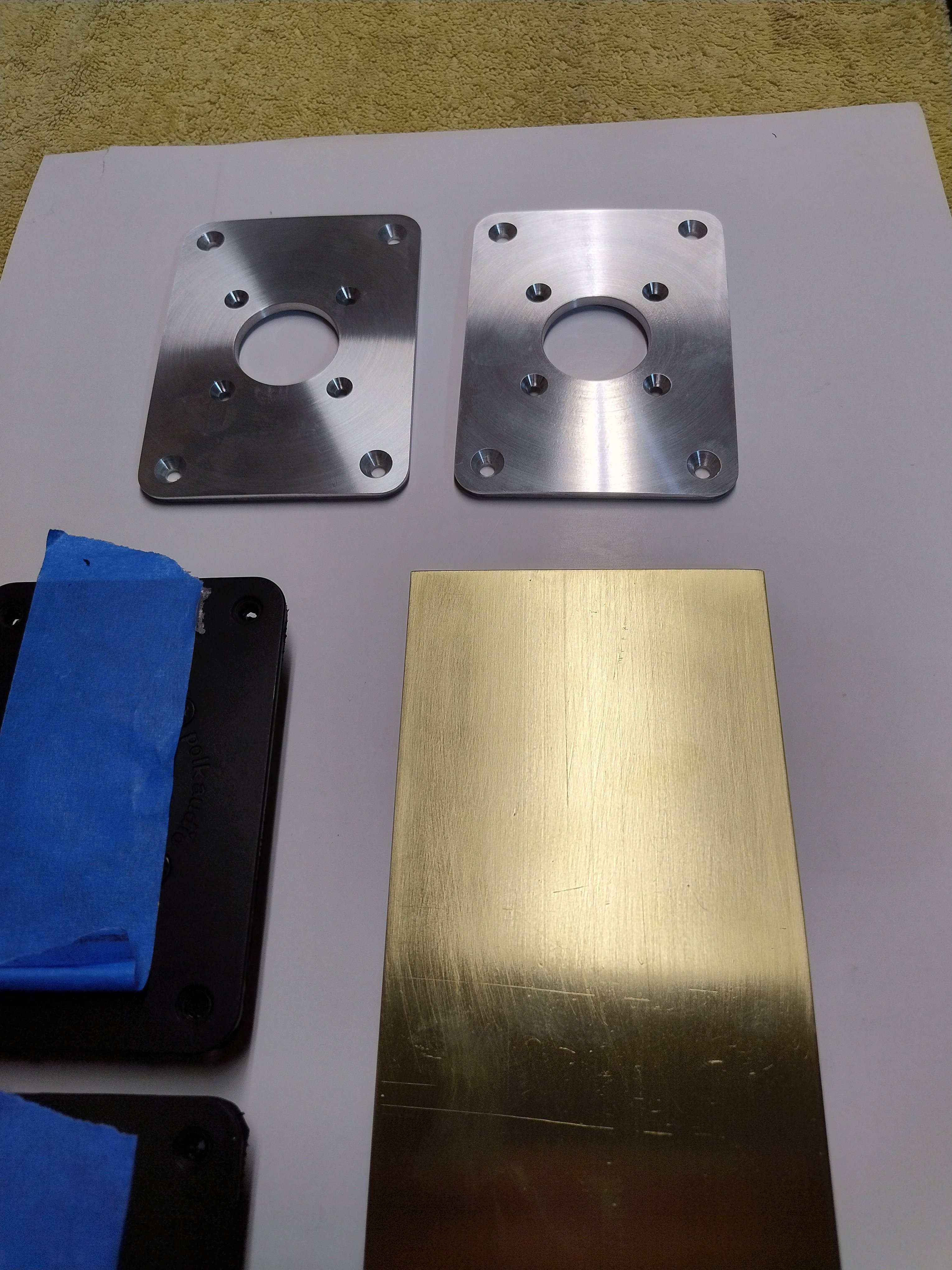

Billet RD-0194/8 tweeter plate design.

12345679»

Comments

  • xschop
    xschop Posts: 5,466
    It's that time of year, shop is thawed and I have a time window in a couple weeks to make another batch of these, so need a head's up. Already have a couple SRS owners on the list.

    They will be $55 ea. with a flat $12 shipping fee anywhere US-48 and AK.

    Just PM/chime in.
    Don't take experimental gene therapies from known eugenicists.
    · Share on FacebookShare on Twitter
  • xschop
    xschop Posts: 5,466
    edited April 19
    xschop wrote: »
    xschop wrote: »
    Last tidbit detail. I machined the coil lead channels to accommodate any common 1/2" wide electrical tape.(White tape used as reference) Simply snip 1.25" lengths for each side and place over wire lead while slightly overlapping silk dome fabric.....





    Bump for those asking about the swap procedure...

    Everyone FYI, don't forget the two small strips of electrical tape before bolting the magnet and diaphragm to the plate.

    Very simple. Just need two small pieces electrical tape over the dome leads to insulate from the alloy plate. Re-use your factory RDO magnet screws as they are metric.
    Don't take experimental gene therapies from known eugenicists.
    · Share on FacebookShare on Twitter
  • xschop
    xschop Posts: 5,466

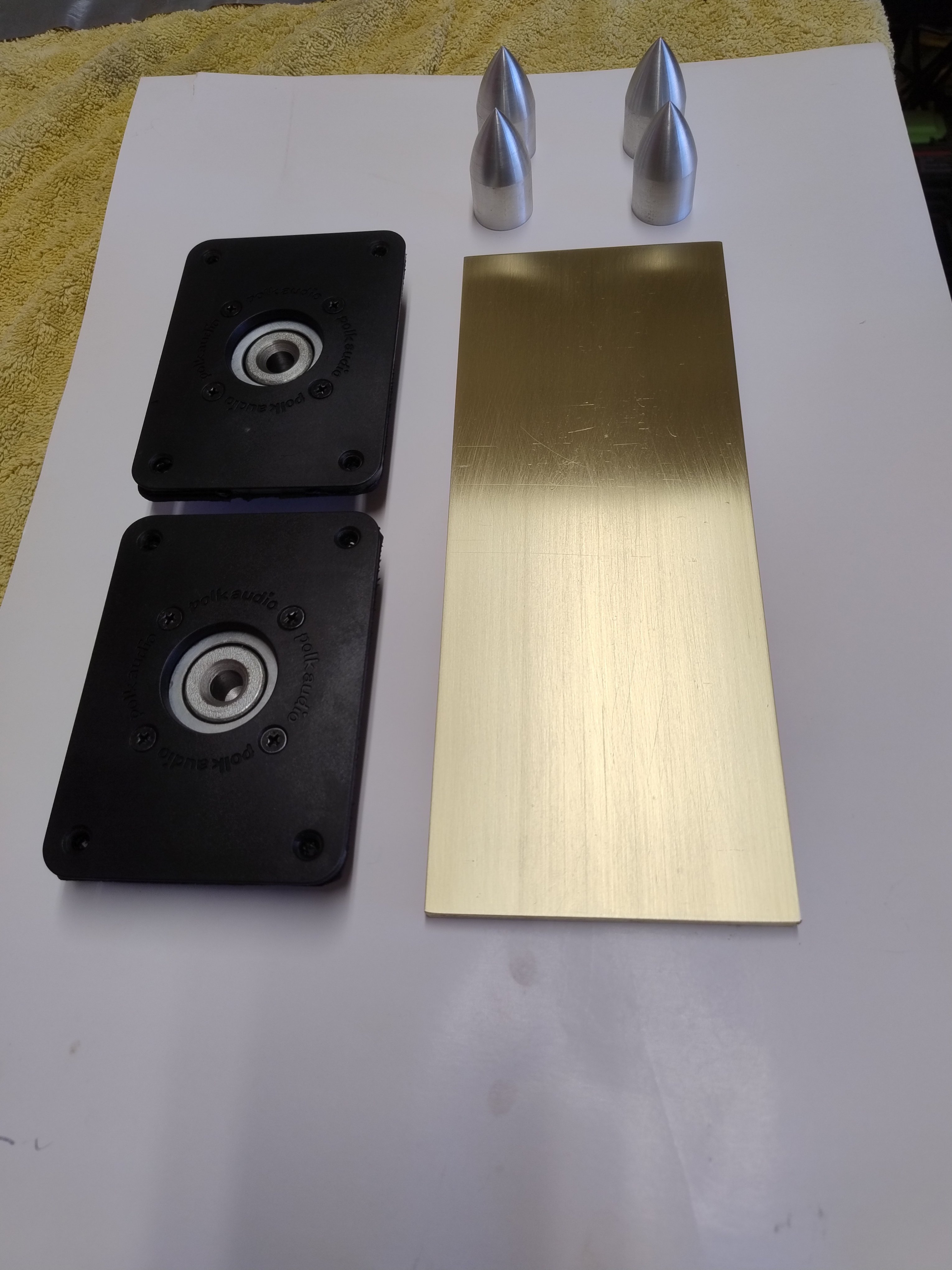

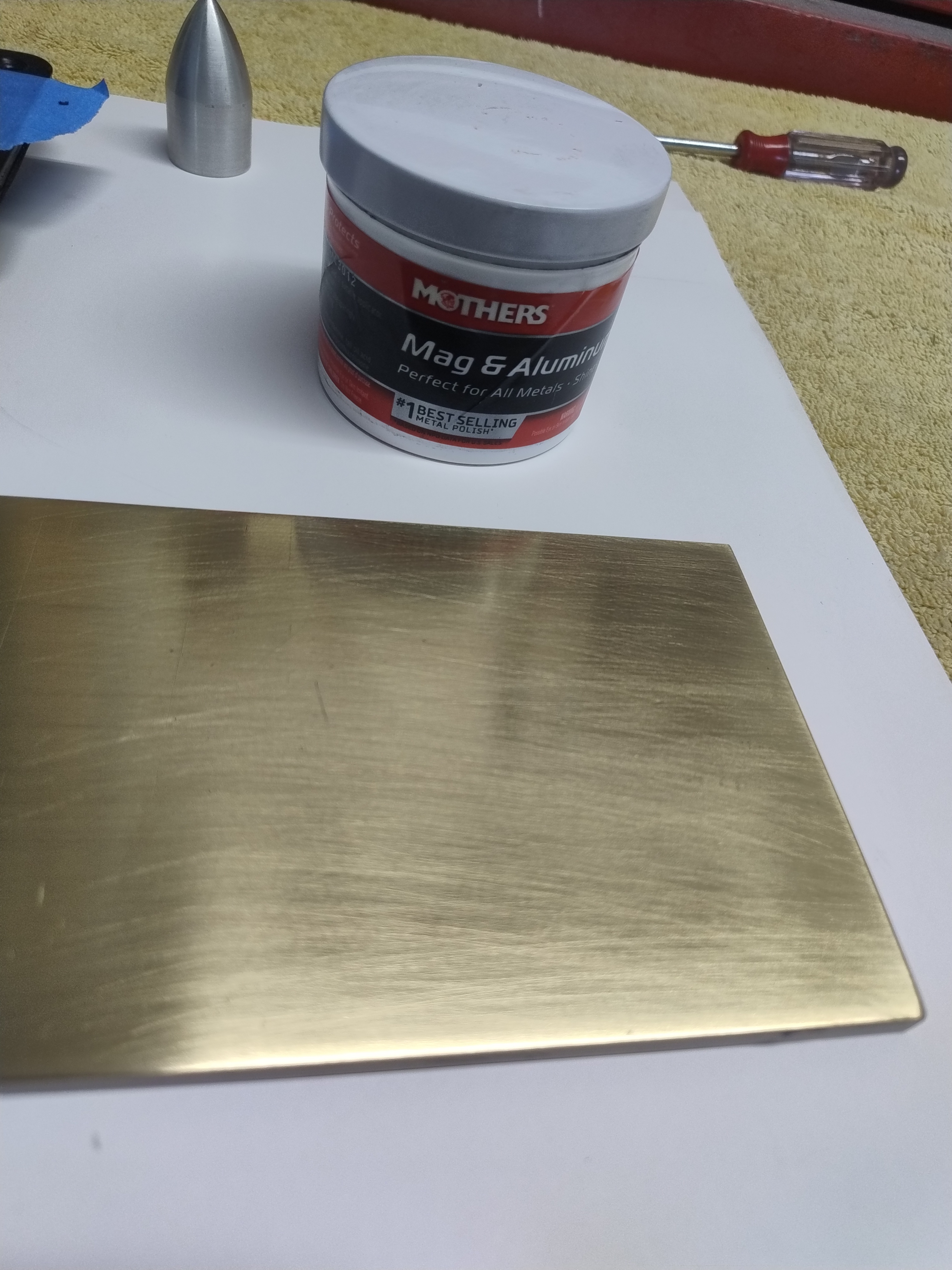

    Been almost a month since I cleaned this machinable brass plate and brushed it. Looks promising, hasn't oxidized...



    Don't take experimental gene therapies from known eugenicists.
    · Share on FacebookShare on Twitter
  • pitdogg2
    pitdogg2 Posts: 27,423
    Touch it....


    😎
    · Share on FacebookShare on Twitter
  • Toolfan66
    Toolfan66 Posts: 18,226
    pitdogg2 wrote: »
    Touch it....


    😎

    I bet you say that to all the guys!!!! 🤣
    · Share on FacebookShare on Twitter
  • xschop
    xschop Posts: 5,466
    pitdogg2 wrote: »
    Touch it....


    😎

    TMI
    Don't take experimental gene therapies from known eugenicists.
    · Share on FacebookShare on Twitter
  • xschop
    xschop Posts: 5,466
    edited April 19


    I got some 3/8" & 1" stock for matching phase plugs and grill pegs (nipples to pitdogg lol) on the way too.

    Hey Larry, what size stock did you start with to make your alloy bottom CRS+ part?
    Post edited by xschop on
