  • mhardy6647
    mhardy6647 Posts: 33,804
    edited June 2012
    Building a GM70 amp is a scary proposition. One of the local gurus is building/has built one - he knows how to deal with the lethal voltages (and currents) involved - HV high enough that regular old hookup wire isn't adequate, nor are regular old resistors. Stuff like that just makes me edgy.
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    It's a lot of voltage to throw around, that's for sure. I would never consider building one myself, but well designed ones can be very safe.
    Jake
    · Share on FacebookShare on Twitter
  • mhardy6647
    mhardy6647 Posts: 33,804
    edited June 2012
    zingo wrote: »
    ... but well designed ones can be very safe.
    I think the promotional brochure for the RMS Titanic said the same thing.

    ;-)
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    805 tubes scare me the most as they have the same high voltages, but a top plate cap which exposes the element. :eek:

    It is pretty awesome to see almost 100w PP out of two tubes though...
    Jake
    · Share on FacebookShare on Twitter
  • organ
    organ Posts: 4,969
    edited June 2012
    Probably a good idea to use a dedicated 20 amp line for those GM70 amps lol. Wonder if they'll trip the breaker on a standard line that's shared with other components?
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    I've read those monos are $5k which is a great deal. For about $1k, that same company make an SE EL34 (or 6L6) integrated with external power supply. Uses 6N1P input tubes and looks like a nice little amp.
    Jake
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    I've read those monos are $5k which is a great deal. For about $1k, that same company make an SE EL34 (or 6L6) integrated with external power supply. Uses 6N1P input tubes and looks like a nice little amp.
    Jake
    · Share on FacebookShare on Twitter
  • txcoastal1
    txcoastal1 Posts: 13,287
    edited June 2012
    http://en.unisonresearch.com/3146/simply-italy/

    Zingo this little 12W gem is what Russman used on the LSiM 705 at LSAF

    It beat out Raven Audio's integrated 35w in a late night shoot out by a mile

    Alot of bang for your buck IMHO
    2-channel: Modwright KWI-200 Integrated, Dynaudio C1-II Signatures
    Desktop rig: LSi7, Polk 110sub, Dayens Ampino amp, W4S DAC/pre, Sonos, JRiver
    Gear on standby: Melody 101 tube pre, Unison Research Simply Italy Integrated
    Gone to new homes: (Matt Polk's)Threshold Stasis SA12e monoblocks, Pass XA30.5 amp, Usher MD2 speakers, Dynaudio C4 platinum speakers, Modwright LS100 (voltz), Simaudio 780D DAC

    erat interfectorem cesar et **** dictatorem dicere a
    · Share on FacebookShare on Twitter
  • organ
    organ Posts: 4,969
    edited June 2012
    Jake,
    Pretty neat. I'm not sure why they decided to go with the 6N1P driver tube though. There is only one type from Russia. So no tube rolling for the driver.
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    organ wrote: »
    I'm not sure why they decided to go with the 6N1P driver tube though. There is only one type from Russia. So no tube rolling for the driver.

    It may accept a 6922/ECC88/6DJ8/6N23P as those variants use a lower heater current than the 6N1P, but who knows. As far as 6N1Ps go, I probably have about 5 quad of them currently in my garage, so plenty of tube rolling with various years and factories. :cool:

    Jake
    · Share on FacebookShare on Twitter
  • organ
    organ Posts: 4,969
    edited June 2012
    Really? I had no idea they were produced by different factories. I've always thought there was only one. That's good news.
    Some units that use 6N1P will kill the 6922/6DJ8 rather quickly like BAT. But some are more friendly.

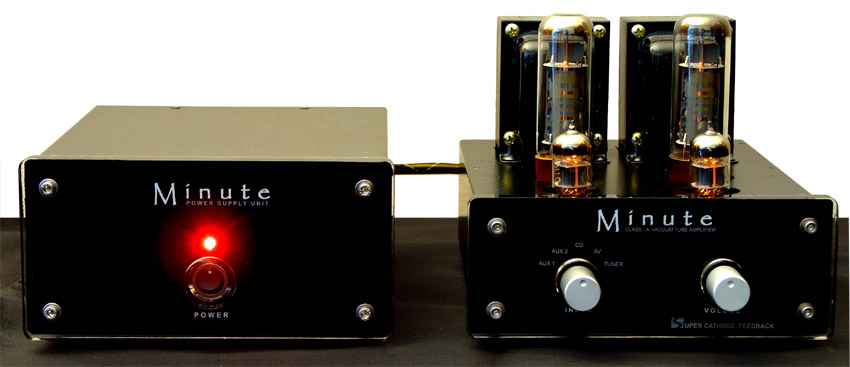

    That Minute gear looks awesome. Must be pretty quiet with that external power supply. You have so many amps to choose from. Which one are you thinking of so far?
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    Thanks for the Unison Research link!
    Jake
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    zingo wrote: »
    As far as 6N1Ps go, I probably have about 5 quad of them currently in my garage, so plenty of tube rolling with various years and factories. :cool:

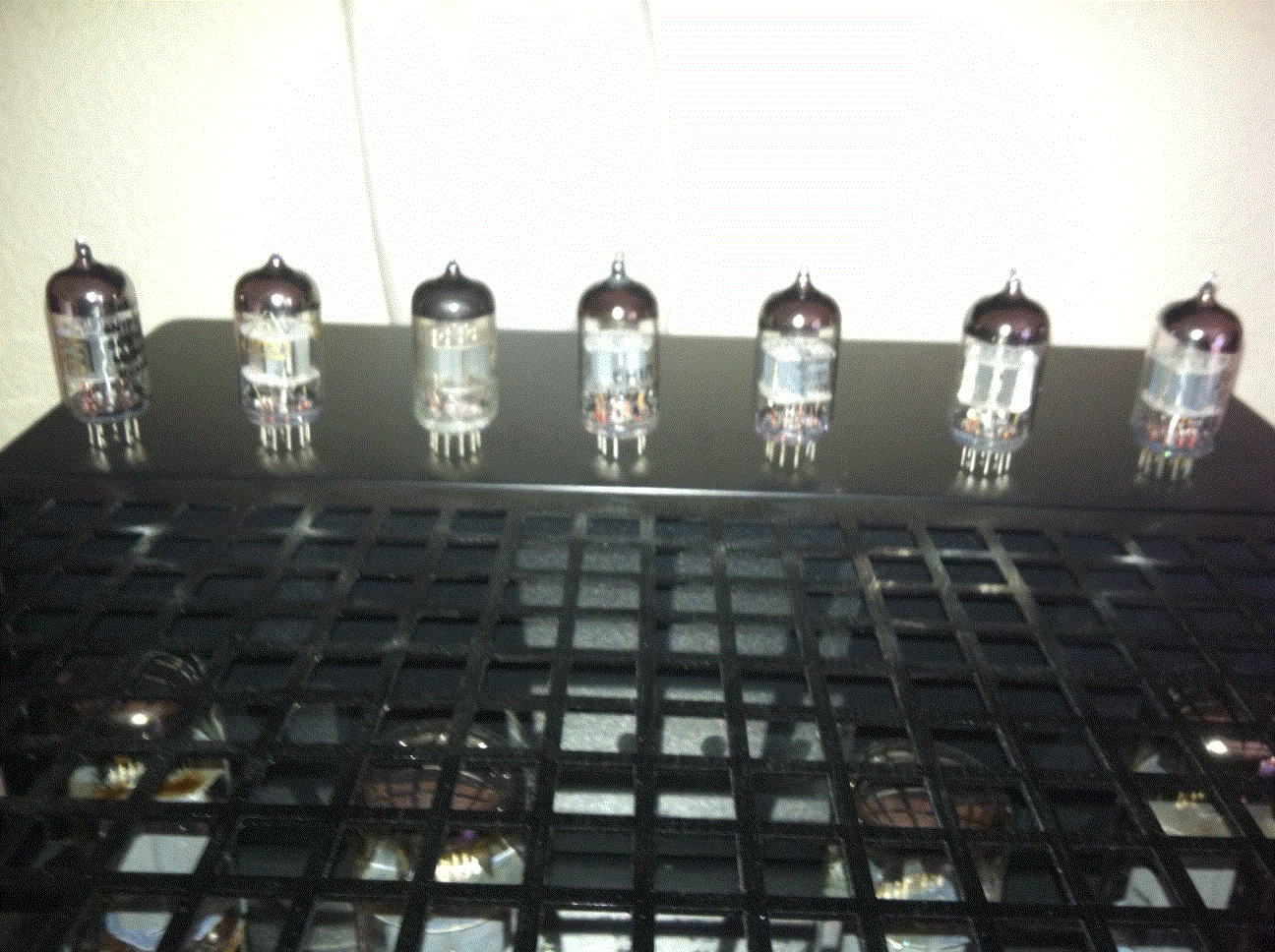

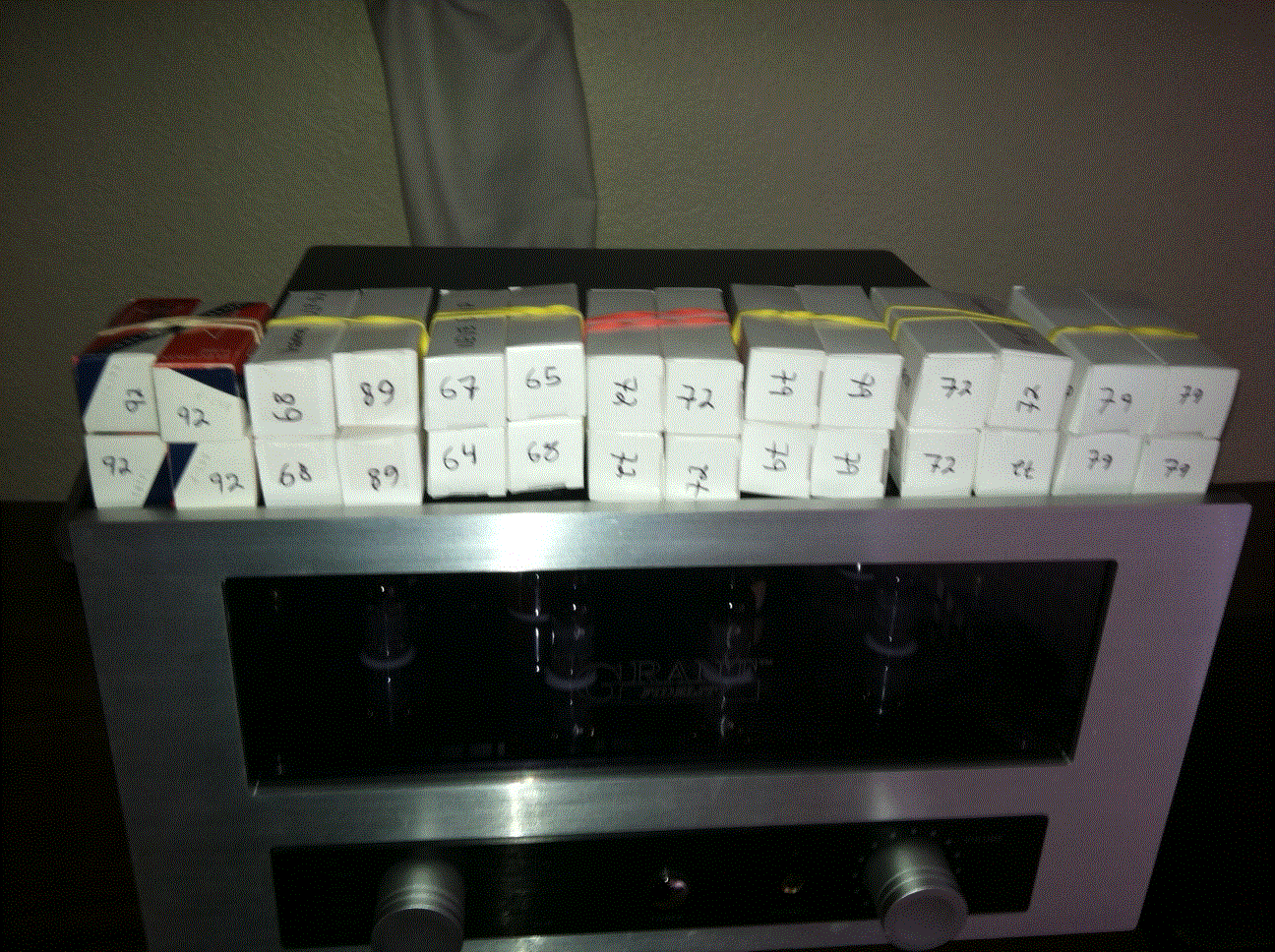

    Sorry for misleading you, I have 7 quads of them. :cheesygrin: Date ranges from '64-'92, Voskhod, Orzep, and Nevz plants, some with EV designation or CCCP stamps, chrome and steel pins, different plate configurations and colors, different glass, and different getters. Now, these changes aren't going to sound as dramatic as rolling Chinese verses Russian 12AX7s, but it does provide a lot of variety and options. Every tube pictured belongs to a quad, and all tubes are different in some way to allow hours of rolling pleasure.

    And if you are interested in the the Russian 6N23P (the electrical brother of the 6922), don't even get my started...

    photo (1).gif
    Jake
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    organ wrote: »
    Really? I had no idea they were produced by different factories. I've always thought there was only one. That's good news.
    Some units that use 6N1P will kill the 6922/6DJ8 rather quickly like BAT. But some are more friendly.

    That Minute gear looks awesome. Must be pretty quiet with that external power supply. You have so many amps to choose from. Which one are you thinking of so far?

    I'n heavily considering the Minute amp as it has a headphone circuit as well, but I have a few questions out to the company on a few details. I believe retail is $850, and head-fi has some great reviews on it.
    Jake
    · Share on FacebookShare on Twitter
  • organ
    organ Posts: 4,969
    edited June 2012
    Sounds good. The headphone circuit is also a plus if you're into cans. $850 retail is not bad. Price would probably be much higher if they were made outside of Thailand.

    Ha ha, that's awesome. Looks like you have a lifetime supply of those 6N1P. In the right circuit, the Russian military tubes usually have very long life as well. Thanks for sharing the pics.

    lol about the 6N23P. I still have mine from Russman. One of my favorite box too! The other side of the box say USSR.
    6dj8 001.jpg
    · Share on FacebookShare on Twitter
  • organ
    organ Posts: 4,969
    edited June 2012
    Thought I'd add this to your list. If you want to get very intimate with some nice vocals, this is a great amp (as well as other stuff I've tried from ASL). It's only 3.2w/ch but it's a DHT tube. Also accepts 45 tubes.
    I had the previous generation of the Tulip and sold it when I was short on cash. I'm thinking about trying this new version.
    The only hard part is getting the right robust pre amp to go with it. Or a source with a buffer if you want to use a passive pre because the Tulip has input transformers as well. Pretty cool.
    This pic is taken from their site. More info... http://divertech.com/asltulip.html
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    Those are too funny. I have some very nice quads of 6N23Ps; one being early 80's, chrome pins, thick glass, EV and CCCP designation. Interestingly, their structure is VERY similar to the new Gold Lion 6922s, and they are some of the heaviest tubes of their size I've seen; I got them from Germany and never seen the same ones anywhere else. :cool:
    Jake
    · Share on FacebookShare on Twitter
  • organ
    organ Posts: 4,969
    edited June 2012
    Interesting. Now I know it's not just in my head. I noticed that some Russian tubes (NOS and current production) have very thick glass. I wonder how they compare to the Gold Lion.
    Sounds like you have some rare 6N23P's.
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012

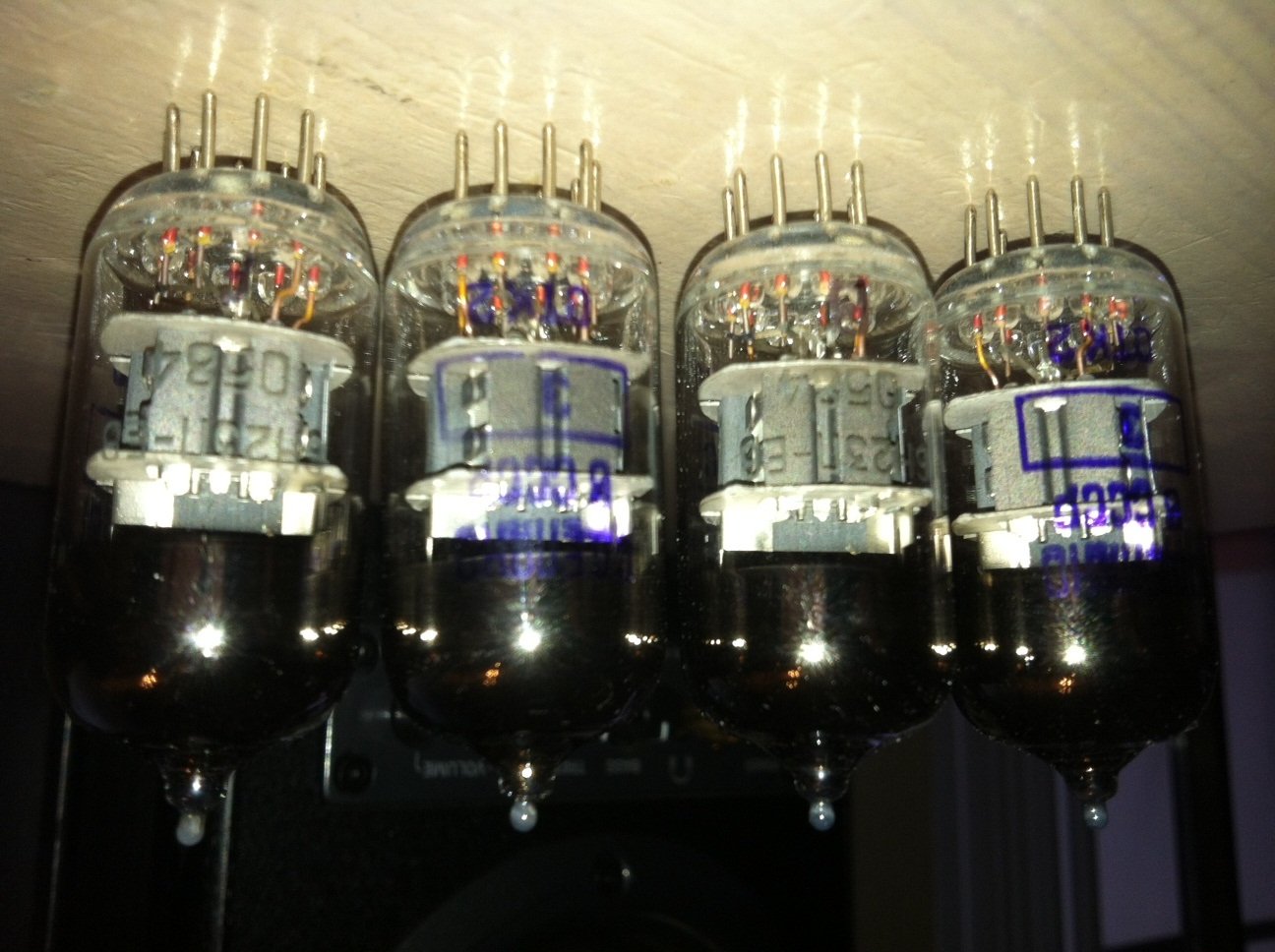

    I think those 6N23P-EV do sound the same as the Gold Lion 6922s, but are very rare and about the same price. I'll snap some pictures...
    Jake
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    Jake
    · Share on FacebookShare on Twitter
  • kcoc321
    kcoc321 Posts: 1,788
    edited June 2012
    Why is not this a stickey yet?

    Love it guys ;)
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    Also got an email today from the guys at Soniphase about a some new, custom woofers they have designed for their bass horns. I'll be calling them tomorrow and test out a pair in my corner horns. He thinks they will be an upgrade from my current woofers, and who's going to argue with the designer? :cool: I'm sure my ears can help me decide...
    Jake
    · Share on FacebookShare on Twitter
  • kcoc321
    kcoc321 Posts: 1,788
    edited June 2012
    wow, that is cool... speaker guys sending you free custom woofers... :)
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    kcoc321 wrote: »
    wow, that is cool... speaker guys sending you free custom woofers... :)

    Well, they won't be free, but I'll probably have the woofers before full implementation in their speaker lines. I'll snap some pictures when I get them.
    Jake
    · Share on FacebookShare on Twitter
  • organ
    organ Posts: 4,969
    edited June 2012
    Sweet! I just love it when I see those older Russian military tubes and see CCCP or USSR stamped on them. Thanks for sharing the pic.
    Interesting about the woofers. Are they letting you keep them?
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    Picking up the woofers this morning. If I like them, he ask that I pay what they cost him; more than fair.
    Jake
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012

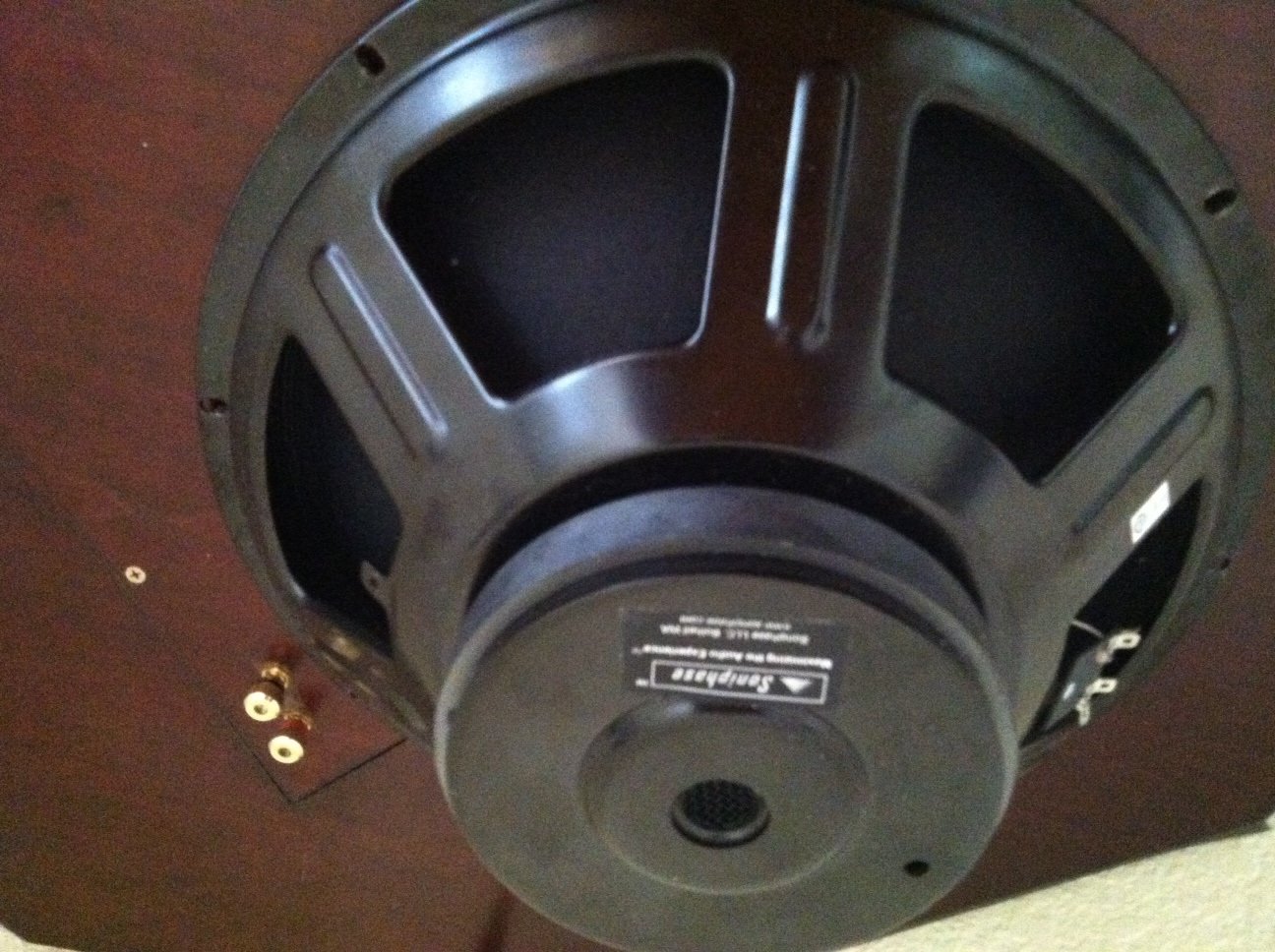

    Woofers are a custom build for a sealed back chamber bass horn. They only have a few hours of tests on them from Soniphase, so I'm excited to break them in and hear how they might be an improvement.

    Jake
    · Share on FacebookShare on Twitter
  • kcoc321
    kcoc321 Posts: 1,788
    edited June 2012
    looks like a champ....
    wonder how much their cost is?
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited June 2012
    I don't think they will be selling the woofers individually; probably just in their speakers and as replacements for current models.
    Jake
    · Share on FacebookShare on Twitter
  • txcoastal1
    txcoastal1 Posts: 13,287
    edited June 2012
    Well get to crankin' Jake

    Enquiring minds want to know

    Cheers
    Ron
    2-channel: Modwright KWI-200 Integrated, Dynaudio C1-II Signatures
    Desktop rig: LSi7, Polk 110sub, Dayens Ampino amp, W4S DAC/pre, Sonos, JRiver
    Gear on standby: Melody 101 tube pre, Unison Research Simply Italy Integrated
    Gone to new homes: (Matt Polk's)Threshold Stasis SA12e monoblocks, Pass XA30.5 amp, Usher MD2 speakers, Dynaudio C4 platinum speakers, Modwright LS100 (voltz), Simaudio 780D DAC

    erat interfectorem cesar et **** dictatorem dicere a
    · Share on FacebookShare on Twitter
