CRS+ RestoMod

xschop
xschop Posts: 5,479
edited May 7 in DIY, Mods & Tweaks
Again, big thanks to @dkfreebird for dropping these off. I've looked for ages for another set to build. I'll post everything that I do to these here. Will work on these over the summer. Thoroughly listened to them bone-stock last weekend. Goal is to get them sounding as dynamic as the SDA-converted RTA-8TLs, yet WAF friendly.

First question for the hive is what speaker grill cloth is best for sound transparency in white?
I'm going to strip and shoot the cabs white with all 100% machined brass parts and fasteners.
Thanks as always.

Already started the grill frame update...







Don't take experimental gene therapies from known eugenicists.
· Share on FacebookShare on Twitter

Comments

  • F1nut
    F1nut Posts: 52,052
    Didn't even let the primer dry before snapping the pic...lol

    That's a good primer.
    Political Correctness'.........defined

    "A doctrine fostered by a delusional, illogical minority and rabidly promoted by an unscrupulous mainstream media, which holds forth the proposition that it is entirely possible to pick up a t-u-r-d by the clean end."

    President of Club Polk

    · Share on FacebookShare on Twitter
  • xschop
    xschop Posts: 5,479
    Will test a satin vs. flat white paint....Honorable mention goes to KSM.
    Don't take experimental gene therapies from known eugenicists.
    · Share on FacebookShare on Twitter
  • xschop
    xschop Posts: 5,479
    edited May 7
    1.25" solid oak dowel
    cross-cut 8 3/16" offset either side puts it angled and centered between front and back weak points...


    This clears all drivers and factory crossover.
    Reason why I cannot use the larger point to point board....


    Power Grab time.




    Post edited by xschop on
    Don't take experimental gene therapies from known eugenicists.
    · Share on FacebookShare on Twitter
  • VR3
    VR3 Posts: 29,578
    Something like this would still fit

    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
    · Share on FacebookShare on Twitter
  • invalid
    invalid Posts: 1,542
    VR3 wrote: »
    Something like this would still fit


    That's awesome, problem solved.
    · Share on FacebookShare on Twitter
  • VR3
    VR3 Posts: 29,578
    Yes, the inductor fits where the old crossover fit
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
    · Share on FacebookShare on Twitter
  • invalid
    invalid Posts: 1,542
    VR3 wrote: »
    Yes, the inductor fits where the old crossover fit

    You are definitely creative and meticulous.
    · Share on FacebookShare on Twitter
  • xschop
    xschop Posts: 5,479

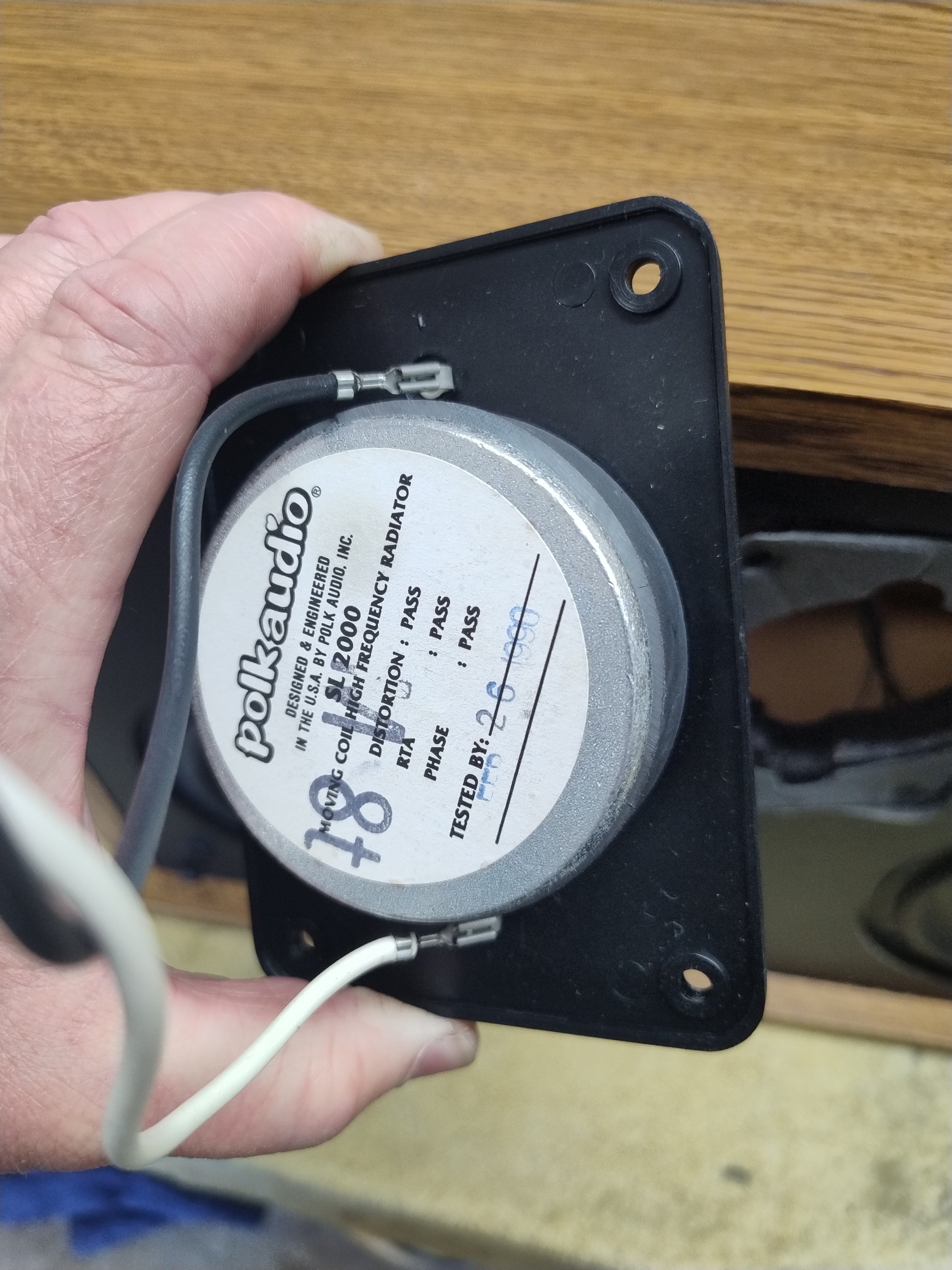

    Very nice. I'll machine an adapter that mounts the Erse Super Q/factory X-over in factory location as well, mounting with 1 bolt. All other hardware will be machined solid brass, including the terminal plates, tweeter plates, and custom grill pegs.
    Don't take experimental gene therapies from known eugenicists.
    · Share on FacebookShare on Twitter
  • VR3
    VR3 Posts: 29,578
    edited May 7
    Thanks for the kind words :)

    really need to get the big sda inductor far away from the smaller ones for best performance
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
    · Share on FacebookShare on Twitter
  • Toolfan66
    Toolfan66 Posts: 18,232
    VR3 wrote: »
    Thanks for the kind words :)

    really need to get the big sda inductor far away from the smaller ones for best performance

    Yet Polk put it directly behind the crossover board.

    I’m not disagreeing with you..
    · Share on FacebookShare on Twitter
  • HzTweaker
    HzTweaker Posts: 1,052
    I thought as long as they were in different orientations you'd be in the clear?
    2ch rig: Speakers: Magnepan LRS w/Magna Riser stands Preamplifier: Parasound P5 Amplifier: Parasound A23 CDP: Pioneer DV-563A Cables: Wireworld Equinox 7 XLR ICs, Wireworld Ultraviolet 7 USB, AudioQuest Q2s, AudioQuest NRG X(preamp)

    Standby: LSi9s with VR3's Fortress mods
    · Share on FacebookShare on Twitter
  • pitdogg2
    pitdogg2 Posts: 27,436
    edited 5:43AM
    Correct me if I'm wrong.
    The big C-coil or laminated Erse are different critters than the original bobbin type Polk used behind the XO.
    As far as the field they produce.
    · Share on FacebookShare on Twitter
  • Grabber70Mach
    Grabber70Mach Posts: 70
    xschop wrote: »
    1.25" solid oak dowel
    cross-cut 8 3/16" offset either side puts it angled and centered between front and back weak points...


    This clears all drivers and factory crossover.
    Reason why I cannot use the larger point to point board....


    Power Grab time.

    What is the angle you cut this at? Definitely following along with your build.



    · Share on FacebookShare on Twitter
  • VR3
    VR3 Posts: 29,578
    Lol I'm far from the inductor police but pools handling of the large sda inductor was... Maybe not the best.

    Mounted right behind the small inductors and mounted directly to aluminum on the big boys.

    An inductor mounted directly to aluminum will decrease in value by over 10%
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
    · Share on FacebookShare on Twitter
  • pitdogg2
    pitdogg2 Posts: 27,436
    An inductor mounted directly to aluminum will decrease in value by over 10%
    Good info!
    · Share on FacebookShare on Twitter
  • xschop
    xschop Posts: 5,479
    Grabber70Mach wrote: »
    xschop wrote: »
    1.25" solid oak dowel
    cross-cut 8 3/16" offset either side puts it angled and centered between front and back weak points...


    This clears all drivers and factory crossover.
    Reason why I cannot use the larger point to point board....


    Power Grab time.

    What is the angle you cut this at? Definitely following along with your build.



    On it's side view it is a parallelogram with each long side 8 and 3/16" long.
    I started with a 8.5" length then gradually cut each end til it fit snug.
    Don't take experimental gene therapies from known eugenicists.
    · Share on FacebookShare on Twitter
  • xschop
    xschop Posts: 5,479
    edited 11:35AM
    I rasped on it this morning. (Pug Master need not comment) Rock solid now. This will translate to much improved midbass.
    Don't take experimental gene therapies from known eugenicists.
    · Share on FacebookShare on Twitter
  • xschop
    xschop Posts: 5,479
    No need to denigrate these further other than the factory wiring terminals were ready to short and cause havoc....

    Don't take experimental gene therapies from known eugenicists.
