LSI pic thread

DMara

HT setup:

Pic#1 - LSi15's & LSiC with dual JL Audio F113 subs in the living room (on this side of the wall)



Pic#2 - another view with subs without grills

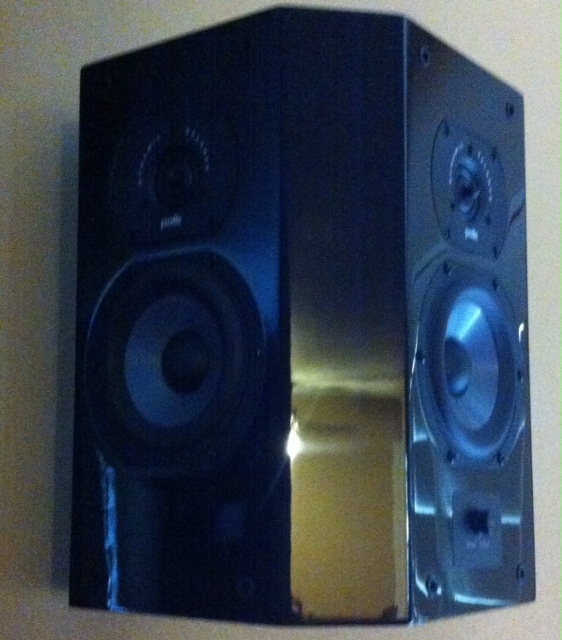

Pic#3 - right LSiFX



Pic#4 - left LSiFX






2-channel setup:

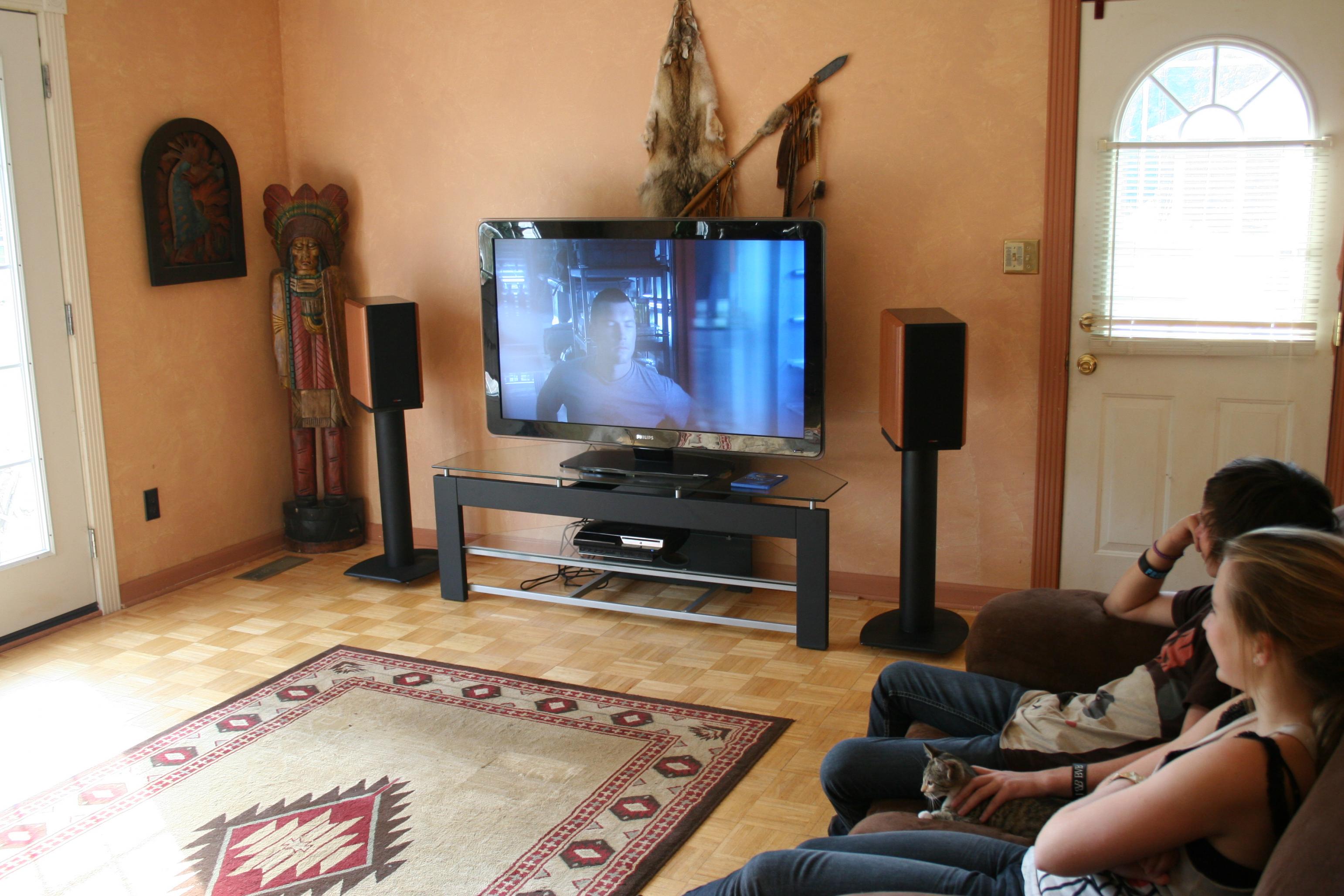

Pic#5 - 2-channel LSi15's setup in the bedroom (on the other side of the wall)



Pic#6 - another view (the new Oppo BDP-95 is right next to the right LSi15)






I'm also proud of my cable management labor :biggrin::

Pic#7 - cable management view from the back of the Emotiva XPA-5 HT amp



Pic#8 - cable management view from the back of the Emotiva XPA-2 2-channel amp and the side of the Oppo BDP-95

JuanR

BADASS! am I allowed to say that?

indyhawg

That is one sweet set up.

mantis

DMara wrote: »

HT setup:

Pic#1 - LSi15's & LSiC with dual JL Audio F113 subs in the living room (on this side of the wall)



Pic#2 - another view with subs without grills



Pic#3 - right LSiFX



Pic#4 - left LSiFX






2-channel setup:

Pic#5 - 2-channel LSi15's setup in the bedroom (on the other side of the wall)



Pic#6 - another view (the new Oppo BDP-95 is right next to the right LSi15)






I'm also proud of my cable management labor :biggrin::

Pic#7 - cable management view from the back of the Emotiva XPA-5 HT amp



Pic#8 - cable management view from the back of the Emotiva XPA-2 2-channel amp and the side of the Oppo BDP-95

Very nice cable management , it's nice to see someone put some time in behind the rack.
You do know that the LsiC is wall mountable and performs extremely well mounted? I'd get rid of that stand and mount that sucker 1 /14 inches from bottom of TV

DMara

mantis wrote: »

Very nice cable management , it's nice to see someone put some time in behind the rack.
You do know that the LsiC is wall mountable and performs extremely well mounted? I'd get rid of that stand and mount that sucker 1 /14 inches from bottom of TV

Thanks for the suggestion, mantis. I am planning on upgrading to a bigger TV in the upcoming months, I'll wait until the new TV settle down on the wall before mounting the LSiC.

nme medic

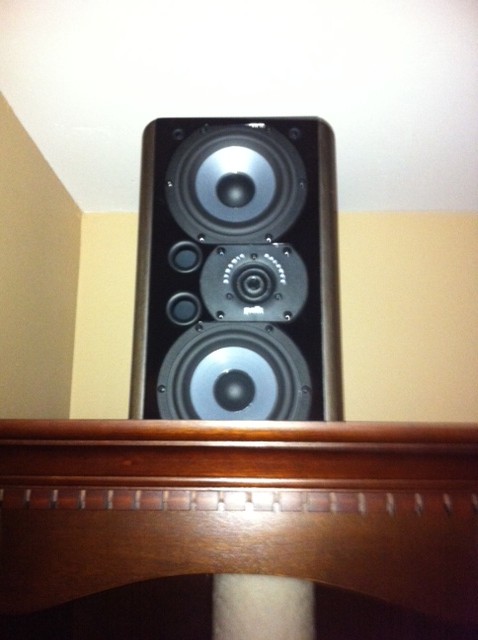

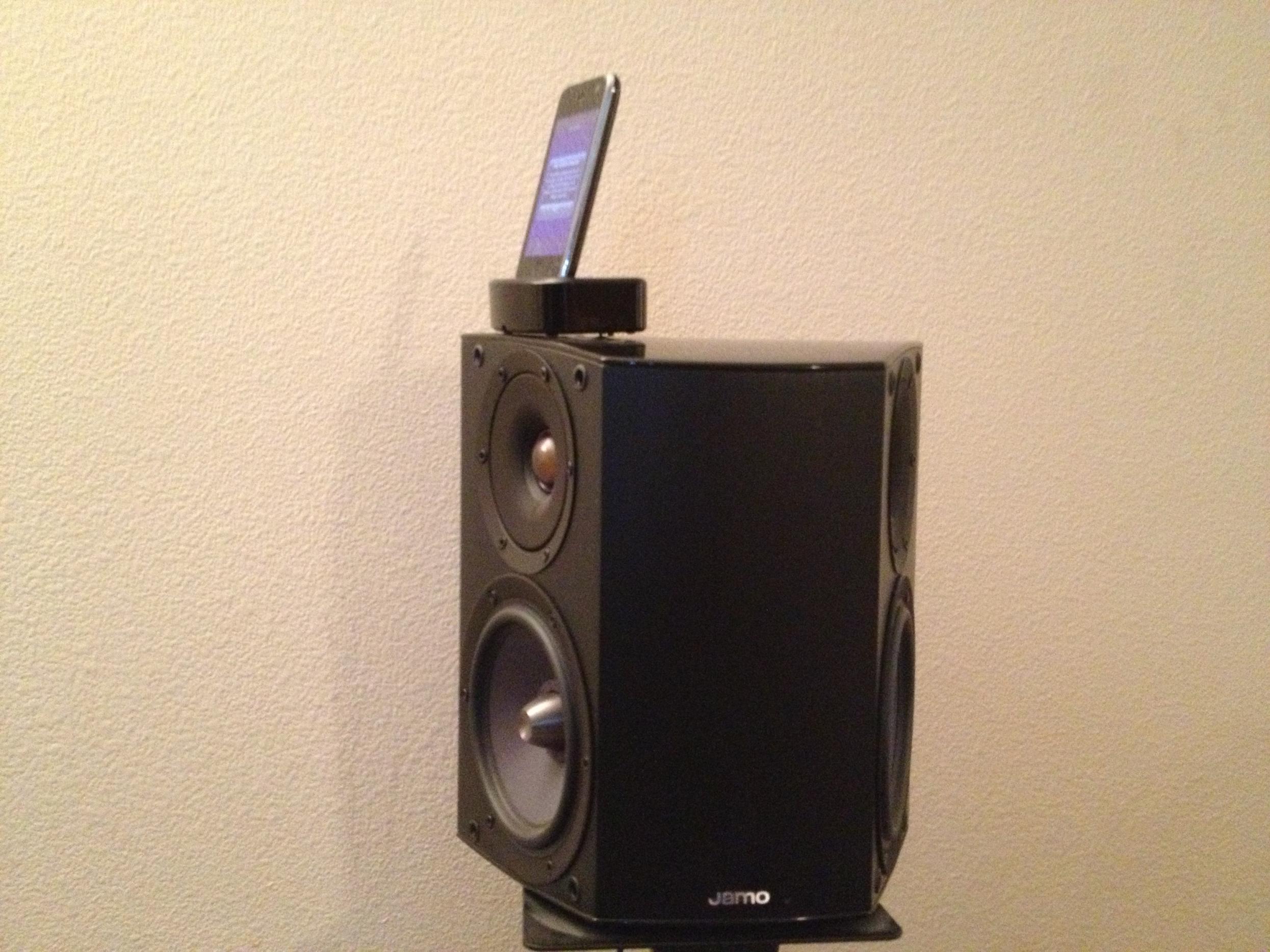

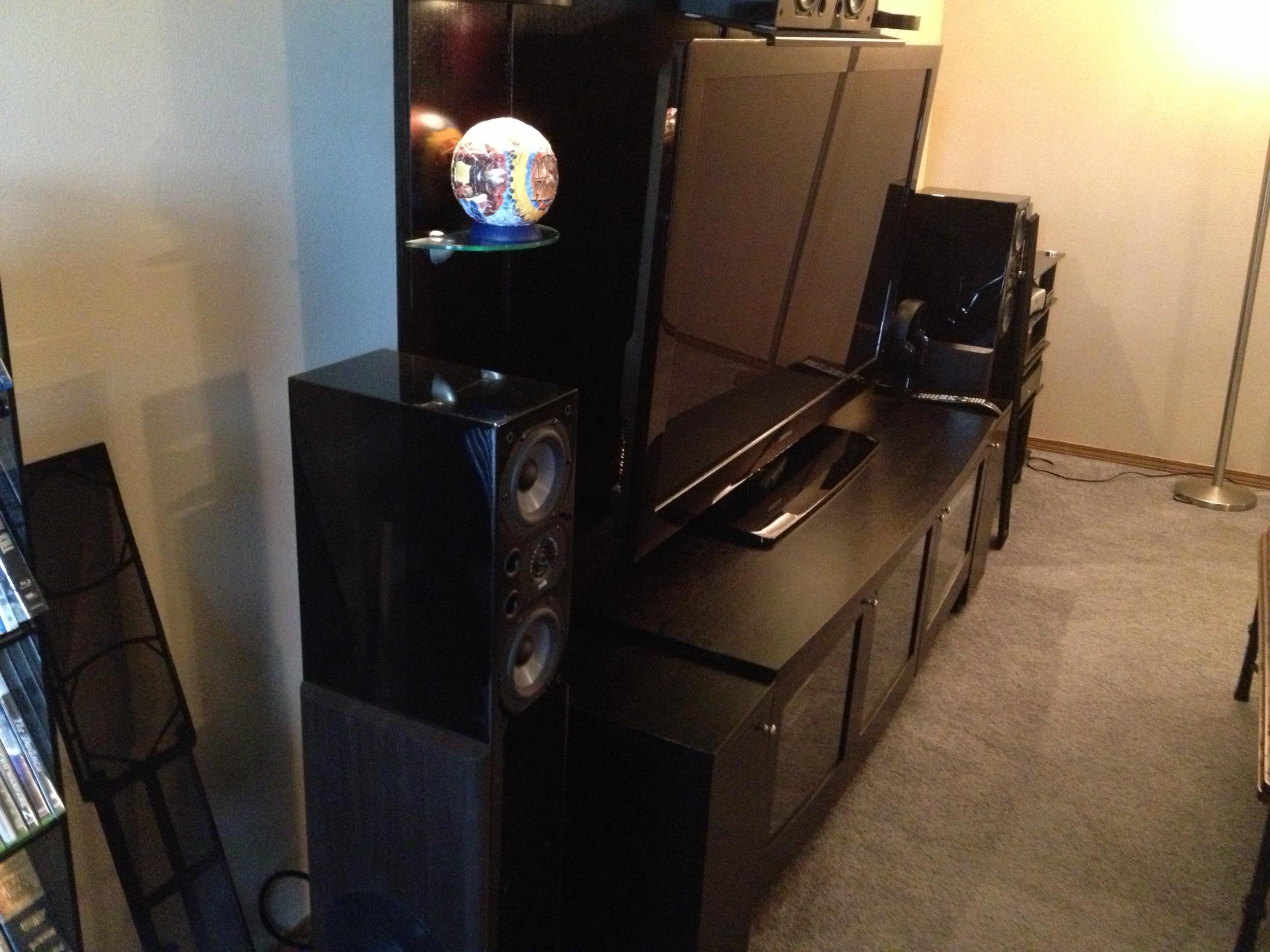

I Didn't want to start a new thread so I hope it is ok for me to post my LSi Setup here. I just got the LSiC today:cheesygrin: and when I can find a good pair of LSi9's I will replace the Jamo C80's. What I will do is move the LSi9's to back surround and move the LSi FX to surround.

snake1

Very nice pics guys! Keep them coming!! I'm trying to get a deal going on switching from my RTi's to LSi's since i do mostly music anyway. From the looks of these pics though, most of you do surround sound with them as well (which I'll do as well cause I still love my movies) so it must not be a bad trade-off in that area.

WLDock

Well, horn loaded drivers for HT is one things...but, any speaker that can reproduce music well can't be that bad for HT. You guys have some nice systems posted.

nme medic

I was able to get a pair of Mint LSi9's:cheesygrin: from a CP member and I found a New modded Polk PSW1000 Subwoofer with Dayton SPA1000 amplifier on eBay. Man I can't wait to finally have a complete 7.1 LSi HT. Will post pics as soon as they arrive and I get everything setup.

snake1

nme medic wrote: »

I was able to get a pair of Mint LSi9's:cheesygrin: from a CP member and I found a New modded Polk PSW1000 Subwoofer with Dayton SPA1000 amplifier on eBay. Man I can't wait to finally have a complete 7.1 LSi HT. Will post pics as soon as they arrive and I get everything setup.

The guy you bought that sub from is a member here. Chris213120 or something like that. Guy has some good info and knowledge on subs!

nme medic

snake1 wrote: »

The guy you bought that sub from is a member here. Chris213120 or something like that. Guy has some good info and knowledge on subs!

Yeah I have been getting advice from him on how to properly set it up. Not sure if the LSi9's deal will go through, the seller has not claimed the money yet and the email they gave me is Unregistered. I'm sure its legit just wish it could be resolved soon. I'm impatient and I don't want to lose the sale.

willyy1

My apologies for the pictures being dark. I figured I had let in enough light by opening up the shutters.

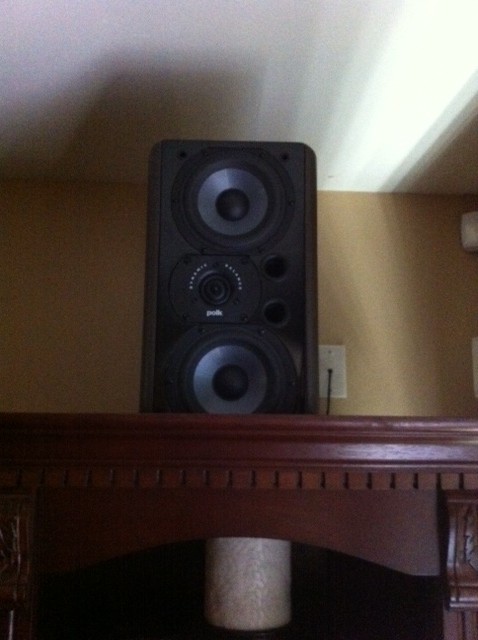

Pic #1 LSi 15's, LSiC, LSi 7's, Outlaw LFM-1 EX SW & Panasonic TCP65VT60

Pic #2 Onkyo 5010, Outlaw 7200, 2 Outlaw 2200's, Monster HDP 2500, Panasonic DMP-BDT500 3D Blu-Ray player

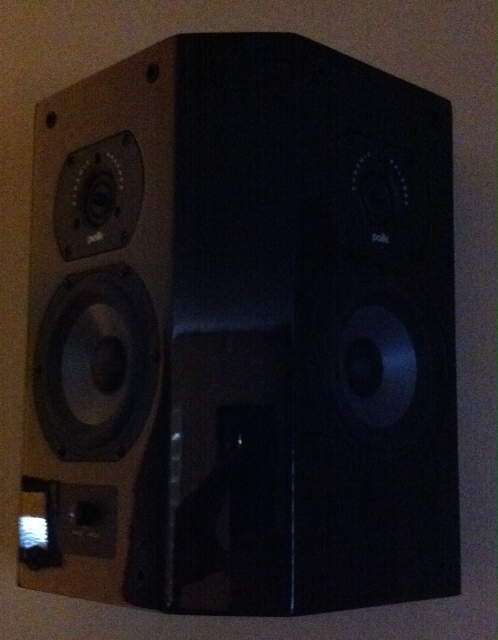

Pic #3 & 4 Side L&R LSi FX

Pic #4 & 5 Rear L&R Lsi 9's

Pic #6 Rear Outlaw LFM-1 EX SW

Pic # 7 Random shot of front Outlaw LFM-1 EX SW and Lsi 15

snake1

Looking good willyy1!

chumlie

Damn good willyy1

WLDock

Very nice setup there Willyy1

nme medic

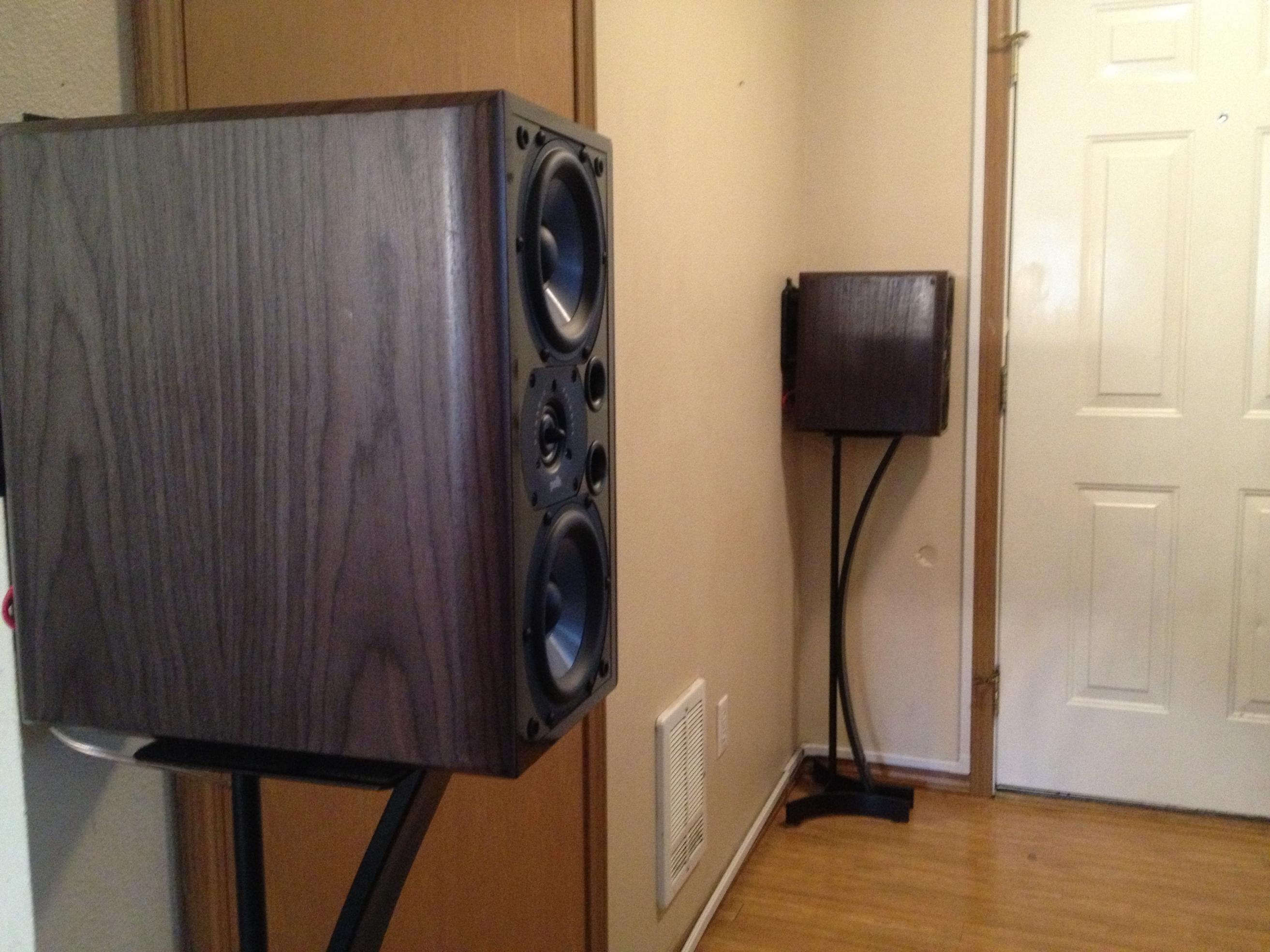

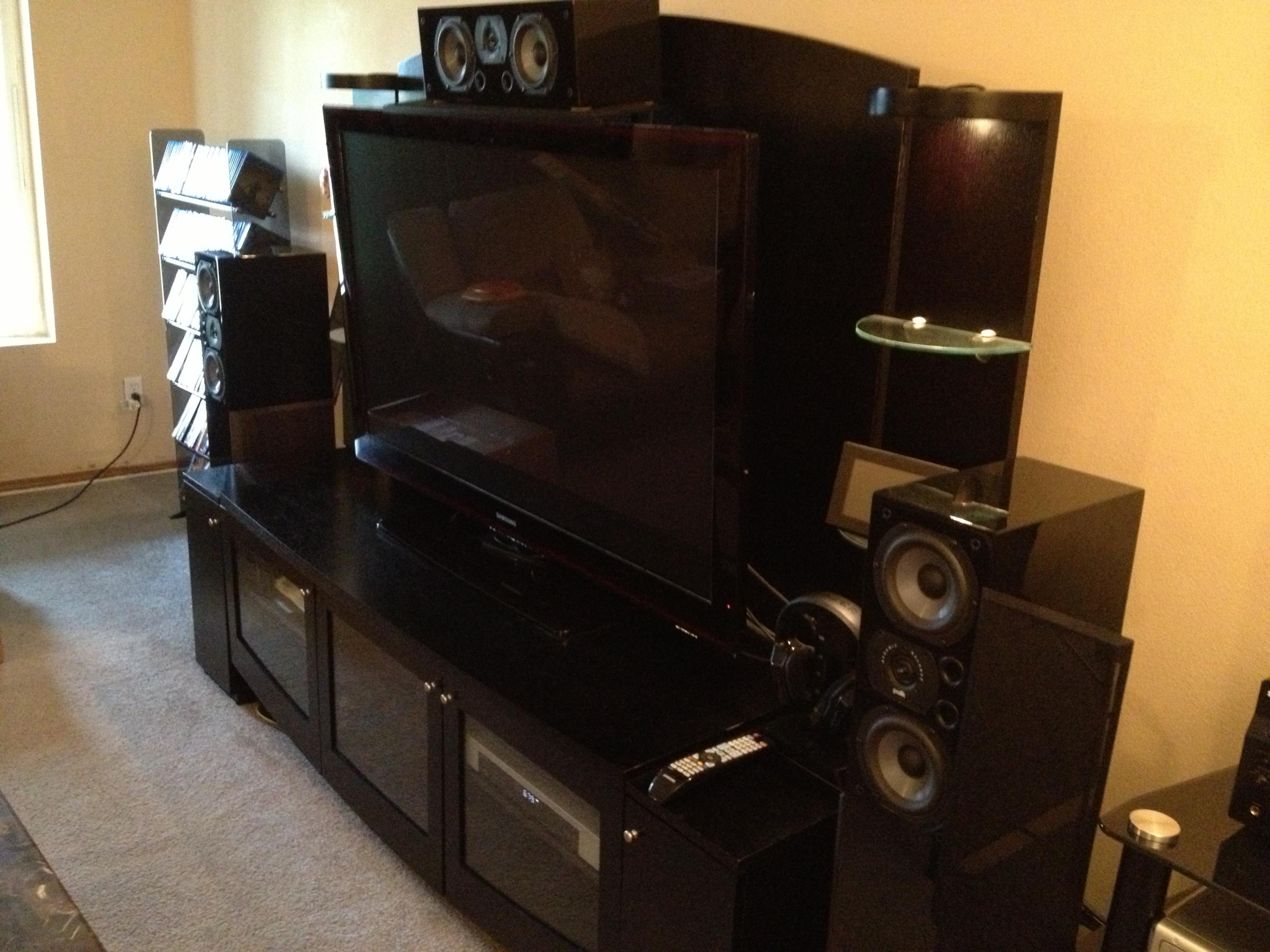

Got the LSi9's today:cheesygrin: I didn't realize they were so HUGE! I get the modded sub on Tue and my new XPA-3 amp on Monday I moved the LSi FX to Surround duty and put the 9's as Sur/Back. Did a quick SPL check and watched a Blu-Ray. it just sounds so good. Once I get the rest of the stuff I will post pic's. I plan on moving some things around and fixing the mess of wires in the corner.

Ducati Guy

Hey nme medic,
it looks like you have your left and right speakers switched. The ring radiator tweeter is suppose to be on the interior.

nme medic

Ducati Guy wrote: »

Hey nme medic,
it looks like you have your left and right speakers switched. The ring radiator tweeter is suppose to be on the interior.

Oops! Fixed it thanks

specd_out

Here is mine. Refinshed with a mix of two stains

snake1

Thats an amazing personal space Specd_out!!!

amgala

So jealous!

nme medic

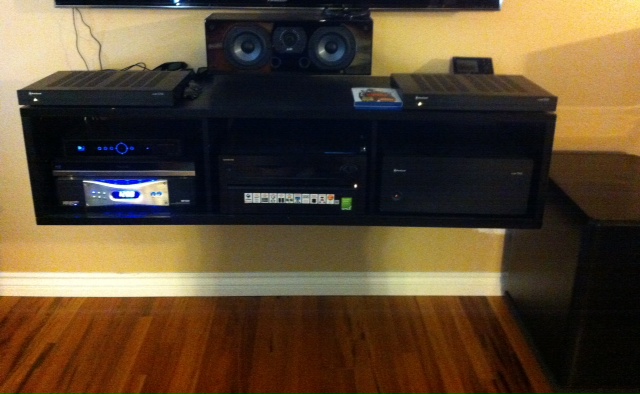

New XPA-3 with the Black Trim. The black trim IMO is so much better. If they are not going to include the black trim they should at least let you choose before checkout. Either way I like it a lot.

nme medic

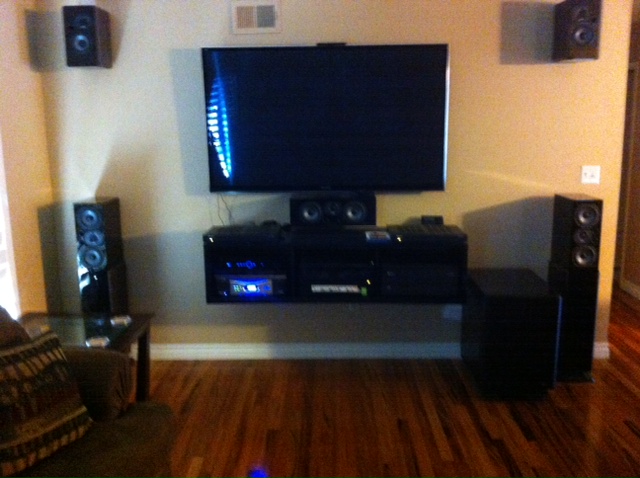

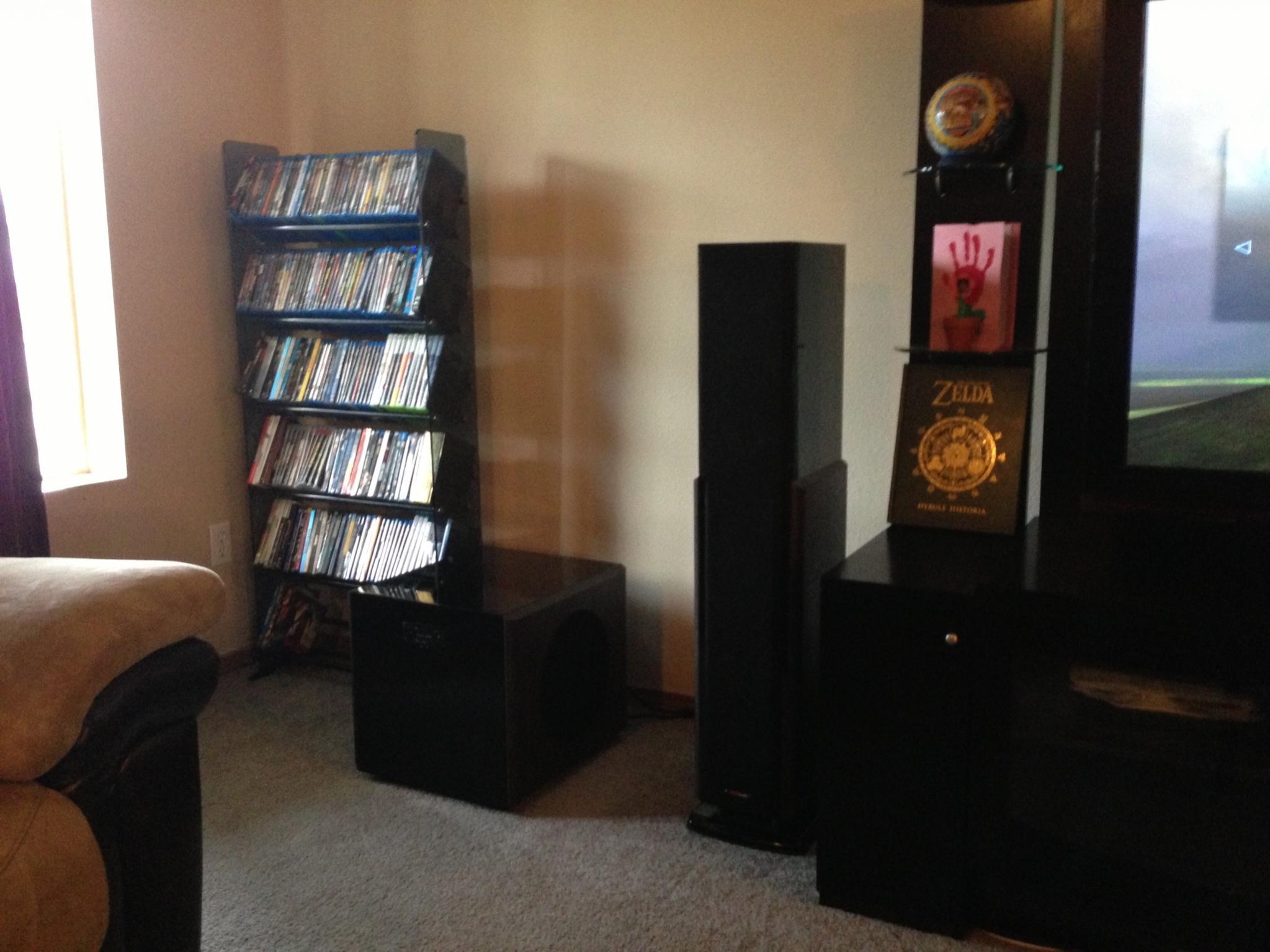

Here is the PSW1000. I thought the 505 was big this thing is a beast. I had a ground loop issue but was able to fix it quick. I got it set up and will let it burn-in for a week or so before I do any calibration. So far loving this sub and the complete LSi setup

snake1

nme medic wrote: »

Here is the PSW1000. I thought the 505 was big this thing is a beast. I had a ground loop issue but was able to fix it quick. I got it set up and will let it burn-in for a week or so before I do any calibration. So far loving this sub and the complete LSi setup

Is that the one with the 1000 dayton amp?

nme medic

snake1 wrote: »

Is that the one with the 1000 dayton amp?

Yes

snake1

Let me know your thoughts on the modded 1000

chris23120

Your setup Looks GREAT! You might want to turn the sub 90degrees or back it in under the window. I would be afraid in its current location you might be canceling some bass response by having the woofer in the LSi15 fire into one of the 10's on the sub. Another option might be to move your DVD rack over and put the speaker at a 45degree in the corner. In my experience with these units that yields the most even response across the room. Looks like you have quite the Blu Ray collection! $$$

nme medic wrote: »

Here is the PSW1000. I thought the 505 was big this thing is a beast. I had a ground loop issue but was able to fix it quick. I got it set up and will let it burn-in for a week or so before I do any calibration. So far loving this sub and the complete LSi setup

nme medic

chris23120 wrote: »

Your setup Looks GREAT! You might want to turn the sub 90degrees or back it in under the window. I would be afraid in its current location you might be canceling some bass response by having the woofer in the LSi15 fire into one of the 10's on the sub. Another option might be to move your DVD rack over and put the speaker at a 45degree in the corner. In my experience with these units that yields the most even response across the room. Looks like you have quite the Blu Ray collection! $$$

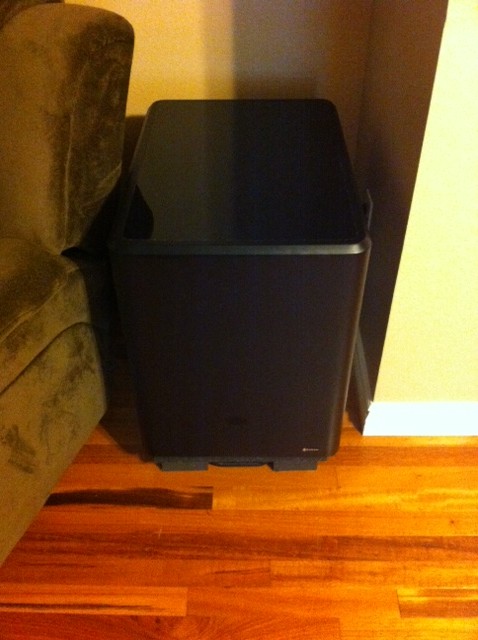

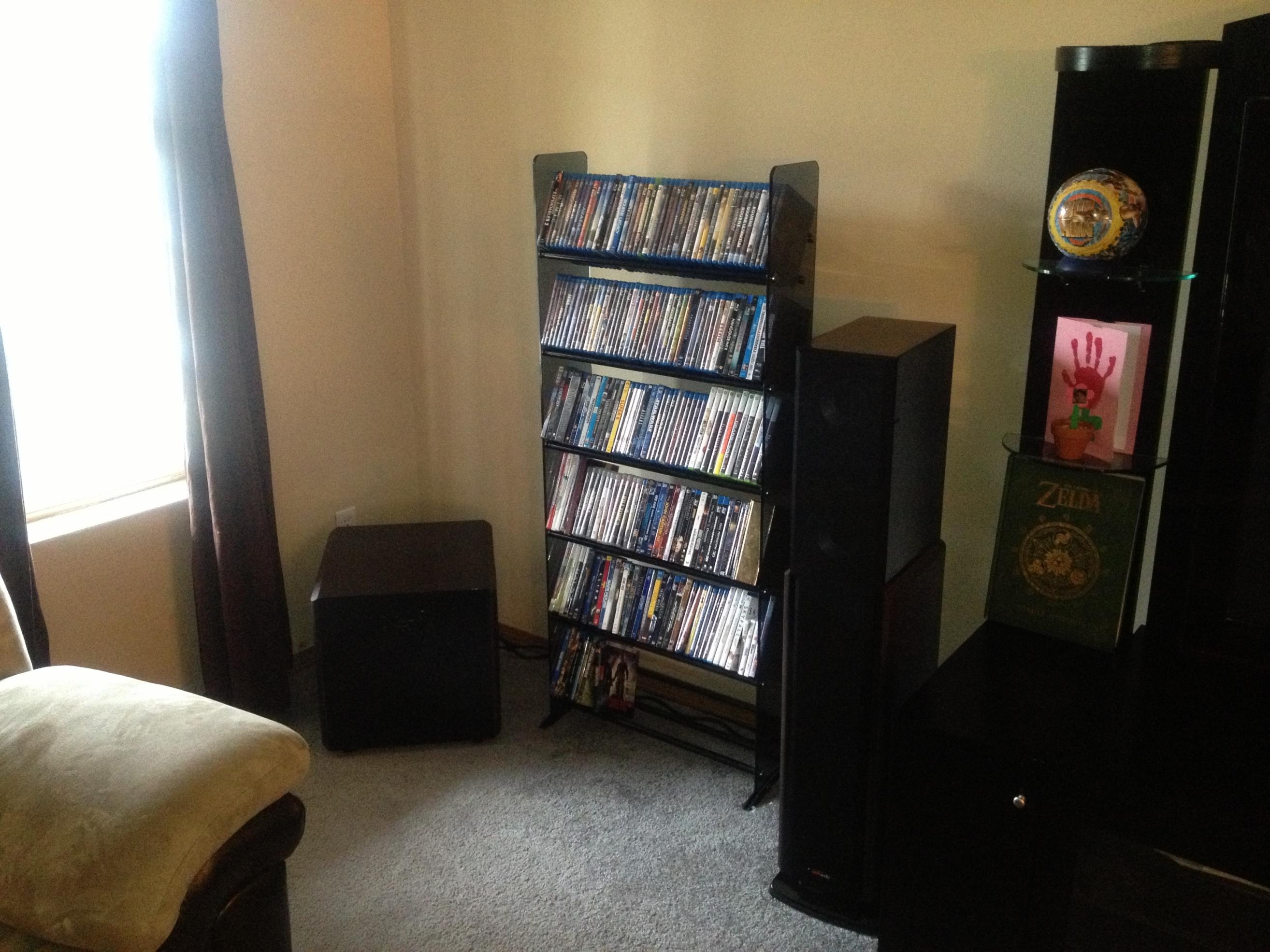

Chris how about this? The corner sounds much better than right next to the 15. I tried under the window and turning 90degrees but it was not really hitting the main listening position. Thanks for the helpful advice!

ZLTFUL

That's perfect (as long as it sounds good to you).
Chris was just pointing out that the signals from the LSi15 woofer and the one side of the sub were partially cancelling each other.

Great looking set up. If I wasn't dead set on a pair of Micropros, I would be hitting Chris up for those 1000s. :biggrin:

chris23120

Yep, that should work well.
