    TNHNDYMAN is the Garrard an RC210 changer? If so, the manuals are available at:
    http://www.vinylengine.com/library/garrard/rc210.shtml

    (free registration required to download and well worth the effort; a terrific resource)
  • organ
    organ Posts: 4,969
    edited February 2013
    Options
    Wow, Ken. You electronics skill never fail to impress me. You've worked on some amazing gear and always do an excellent job.

    Mrh,
    Thanks for sharing the flyers. I swear man, the build quality back then is superior to the ones of similar price (including inflation) today.
  • TNHNDYMAN
    TNHNDYMAN Posts: 2,145
    edited February 2013
    Options
    Thanks for the paint resize tip. I'll try again...

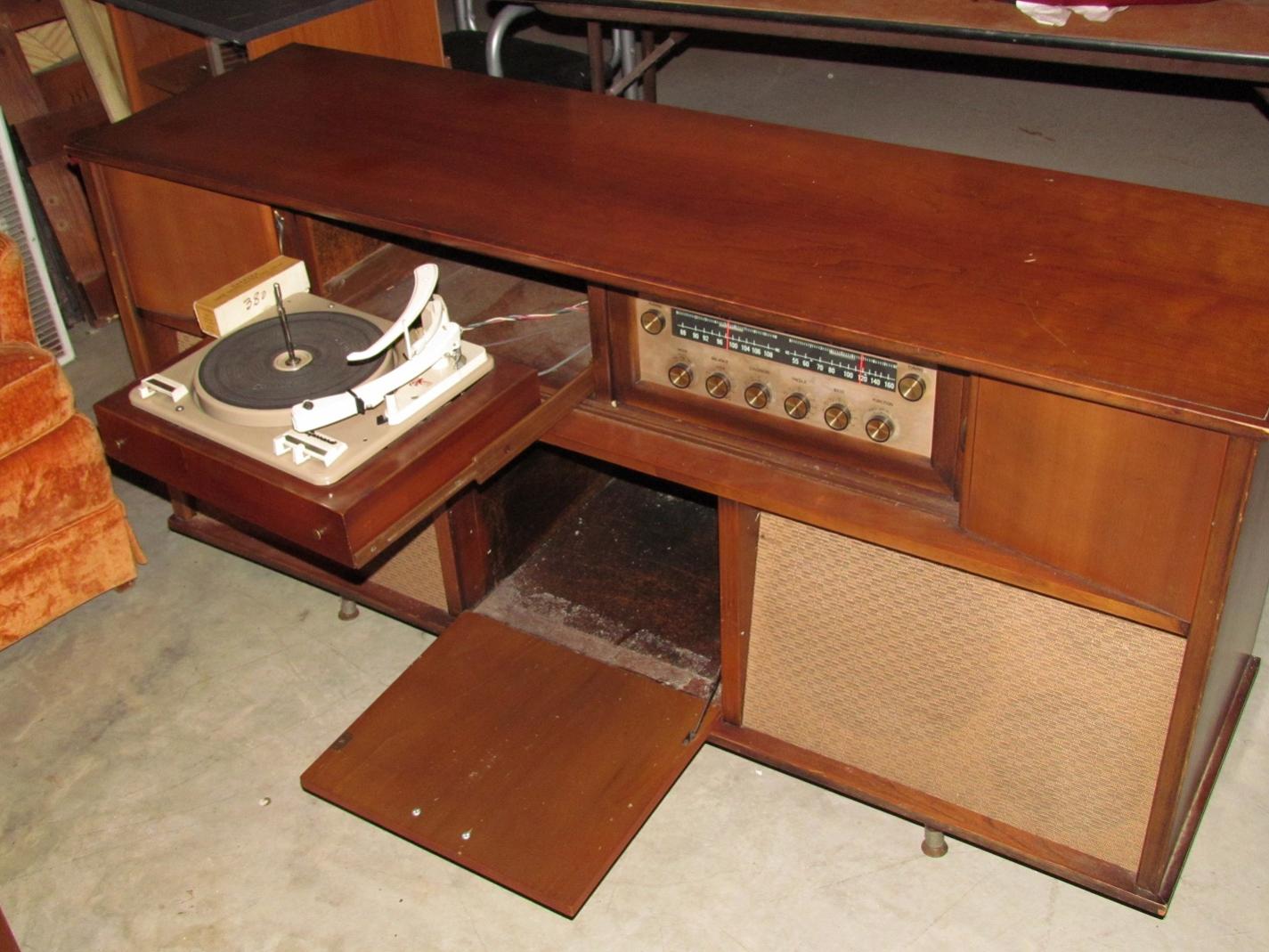

    Space Tone Senator Console_small2.jpg
    Garrard 210 turntablesmall.jpg
    2-ch System: Parasound P/LD 2000 pre, Parasound HCA-1000 amp, Parasound T/DQ Tuner, Phase Technology PC-100 Tower speakers, Technics SL-1600 Turntable, Denon 2910 SACD/CD player, Peachtree DAC iT and X1asynchorus USB converter, HSU VTF-3 subwoofer.

  • scottyboy76
    scottyboy76 Posts: 2,905
    edited February 2013
    Options
    Dont you know someone was proud to get that stereo home.

    Probably spent many hours lovin life listening to tunes.
    humpty dumpty was pushed
  • [Deleted User]
    [Deleted User] Posts: 7,658
    edited February 2013
    Options
    Hi TNHNDYMAN,
    The Garrard I worked on probably represents more of a historical milestone than a sonic one. There's just too much mechanical linkage connected to the tonearm for it to sound very good. Being a record changer there is a cam assembly attached to the platter which lifts the arm and places it on the beginning of the record and then lift it off at the end. The complete opposite of what a modern turntable/tonearm do now, eliminating any superfluous mechanism, even mechanical bearings to allow the phono cartridge to extract the smallest amounts of information. I've always compared what a turntable has to do to how a seismograph works. The seismograph has to detect extremely small vibrations in the earth and a record player has to do the same thing but from the surface of a record. If you were going to install a seismograph you wouldn't put it near a steel mill or a race track, right? Too many competing vibrations to give you any indications of what was happening in the earth. The same thing happens in a good turntable system, no competing vibrations from chattering bearings or arm linkage moving underneath the platter.
    But, this doesn't mean you shouldn't try and get your Garrard working. There should be an appreciation for classic audio manufacturers even though that particular model isn't on the "most significant" list. If you can take a photo or two of the underside of the chassis we can help with the wiring. You'll have a better understanding of what happens "under the hood".
    Cheers, Ken
  • mhardy6647
    mhardy6647 Posts: 33,356
    edited February 2013
    Options
    Interestingly, the Garrard 301 transcription table - also shown in the catalog page scan I posted - lies (arguably) at the other end of the spectrum and is still held in high regard by at least a segment of the vinyl-playing cognescenti...



    ... and then there is this guy...


    Not mine (although it passed through en route to its new owner)... One of those is on my (thankfully, now fairly short) bucket list :-)

    (in the meantime, I will be bringing a Rek-O-Kut 743 on-line in the not-too-distant future. Just need an arm and a "plinth"...)
  • TNHNDYMAN
    TNHNDYMAN Posts: 2,145
    edited February 2013
    Options
    Nice pics MrH.

    Thanks for the info Ken. I'll try to get some pics up later of the underside. I'll have to check but it's possible the turntable has no power supply in its chassis since it was getting power from the main unit. The would complicate things to the point of being more trouble than it's worth.
    2-ch System: Parasound P/LD 2000 pre, Parasound HCA-1000 amp, Parasound T/DQ Tuner, Phase Technology PC-100 Tower speakers, Technics SL-1600 Turntable, Denon 2910 SACD/CD player, Peachtree DAC iT and X1asynchorus USB converter, HSU VTF-3 subwoofer.

  • [Deleted User]
    [Deleted User] Posts: 7,658
    edited February 2013
    Options
    I imagine Garrard, like most companies, designed products for different markets. At the time most people wanted convenience, so companies made turntables that all you had to do was put a stack of 45s or LPs on the spindle and push the "play" lever. The machine did the rest, dropping the record, moving the tonearm and changing to the next one when it was finished. Then all you need to do was flip the stack over to play the "B" sides. For radio stations, however, that wasn't important when they played a record, the DJ did all the work so much of the mechanism was eliminated in favor of ruggedness and low wow and flutter and rumble. The same thing has happened throughout audio's history, convenience trumps performance. It doesn't mean owners didn't enjoy their Garrard record changers (my first setup was a Garrard SL95 with a Shure M75) it just reflects on what was popular at the time and how it relates to what is available today.
    I don't suspect there's a power supply for the turntable, rather some switching done by the main unit when the system was turned off/on. Just my semi-educated guess.
  • mhardy6647
    mhardy6647 Posts: 33,356
    edited February 2013
    Options
    It is as Ken said.

    All you need to know is what terminals underneath the turntable's chassis are "hot". You can probably trace the wires through the switch to the motor - and/or that service bulletin on the VinylEngine site ought to make it fairly clear.

    Come to think of it, you do need to ensure that the turntable is set up for 120 VAC/60 Hz. Assuming it was sold in the US, it should be.
  • [Deleted User]
    [Deleted User] Posts: 7,658
    edited February 2013
    Options
    This link should provide lots of nostalgic interest, I know it kept me occupied for a while:
    http://reel2reeltexas.com/vinAd53.html#AmpCorp
    Enjoy, Ken
  • Msabot1
    Msabot1 Posts: 2,098
    edited February 2013
    Options
    I still have an old Dual 1229 that I bought new in 72! Still in good shape too! Will this qualify as vintage?
  • mhardy6647
    mhardy6647 Posts: 33,356
    edited February 2013
    Options
  • mhardy6647
    mhardy6647 Posts: 33,356
    edited February 2013
    Options
  • mhardy6647
    mhardy6647 Posts: 33,356
    edited February 2013
    Options
    Not to interrupt myself :-) but I just saw this news at AK...

    I just learned that the proprietor of the Radio Shack catalog archive site http://www.radioshackcatalogs.com/ just brought a similar site on-line for the old Allied catalogs:

    http://www.alliedcatalogs.com/catalogs_main.html



    This is momentous news (at least as far as I am concerned). No affiliation (other than my own rather idiosyncratic enjoyment of vintage catalogs!).

    Thought this group would like to know.
