CRS+ RestoMod

Options
1234568»

Comments

  • xschop
    xschop Posts: 5,875
    Options
    Don't take experimental gene therapies from known eugenicists.
    · Share on Facebook
  • xschop
    xschop Posts: 5,875
    Options
    Fly cutting the long thin covers caused to much heat and started to warp. Decided to put on large upright belt sander 120 grit and cleaned them up. Will finalize at 320 grit hand belt sander to contrast with the flycut faceplate...

    Don't take experimental gene therapies from known eugenicists.
    · Share on Facebook
  • xschop
    xschop Posts: 5,875
    Options
    240 wet sand....

    Don't take experimental gene therapies from known eugenicists.
    · Share on Facebook
  • xschop
    xschop Posts: 5,875
    Options
    Went with .218 drill thru and touch deeper countersink to give more case adjustment of stainless flat heads and add bling before final sand...

    Don't take experimental gene therapies from known eugenicists.
    · Share on Facebook
  • xschop
    xschop Posts: 5,875
    edited October 16
    Options

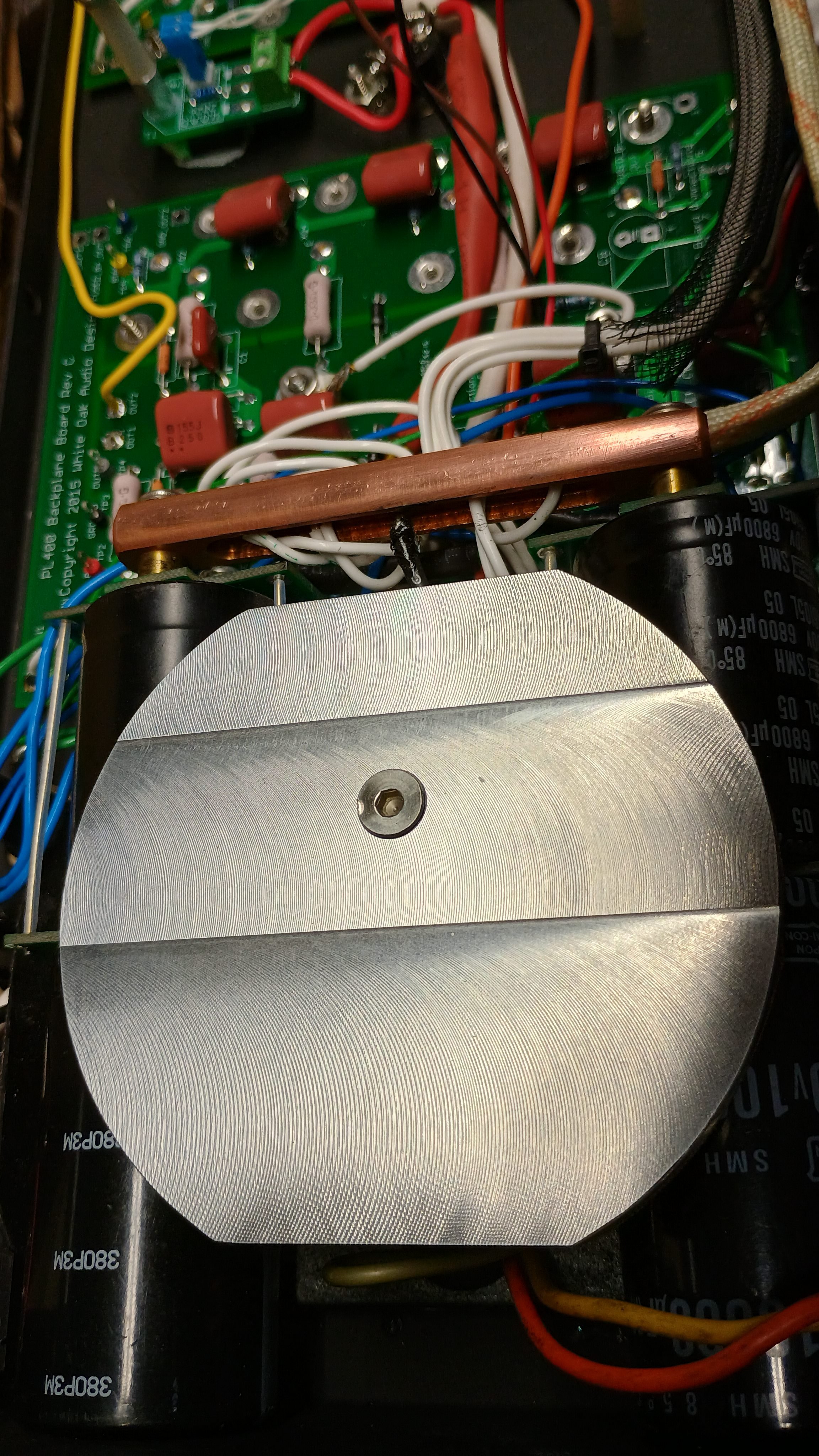

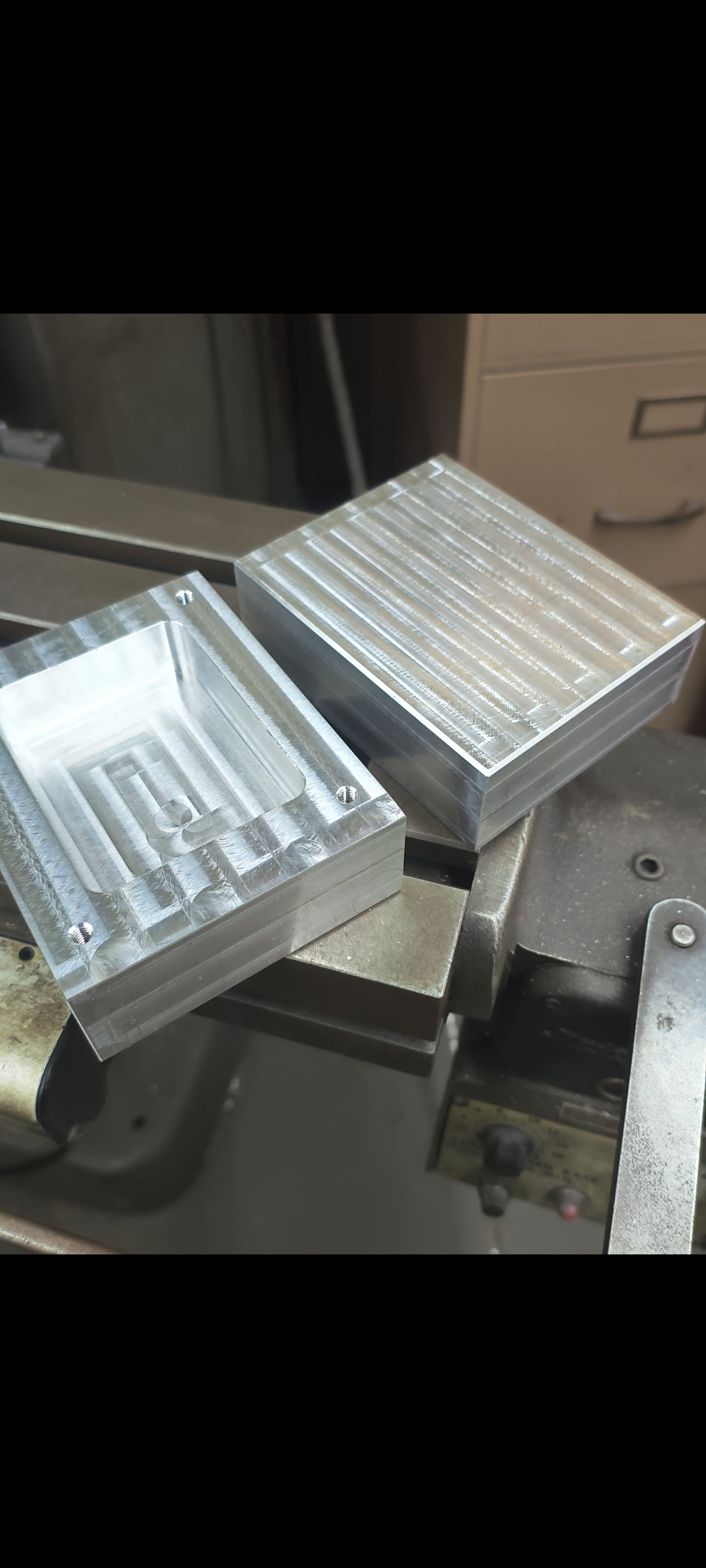

    Last piece of the puzzle...



    Don't take experimental gene therapies from known eugenicists.
    · Share on Facebook
  • xschop
    xschop Posts: 5,875
    Options
    Will tie it in with a chamfer to match the faceplate...


    Don't take experimental gene therapies from known eugenicists.
    · Share on Facebook
  • xschop
    xschop Posts: 5,875
    Options
    Had material for a spare, so knocked it out too...

    Don't take experimental gene therapies from known eugenicists.
    · Share on Facebook
  • xschop
    xschop Posts: 5,875
    edited October 21
    Options

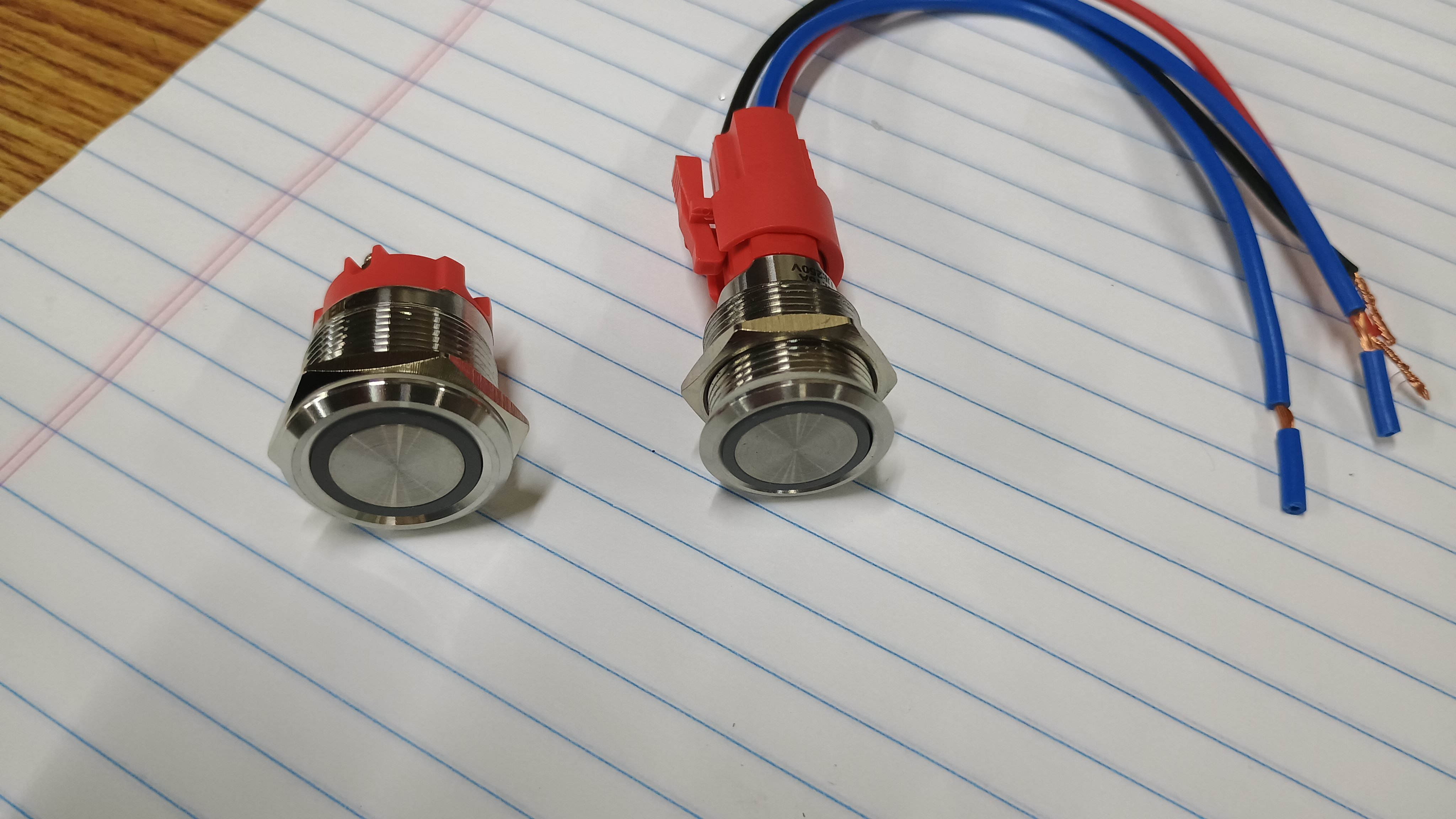

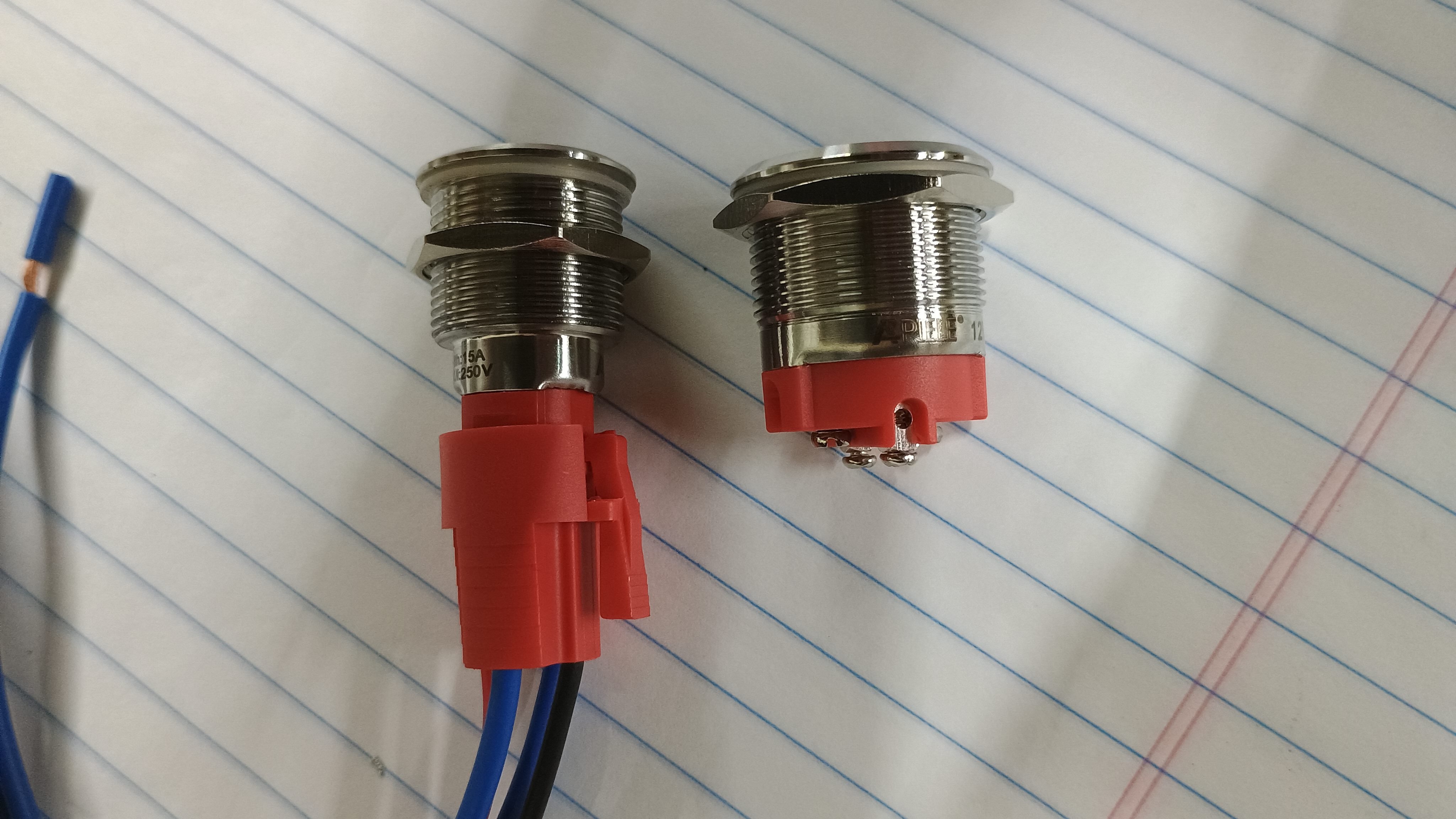

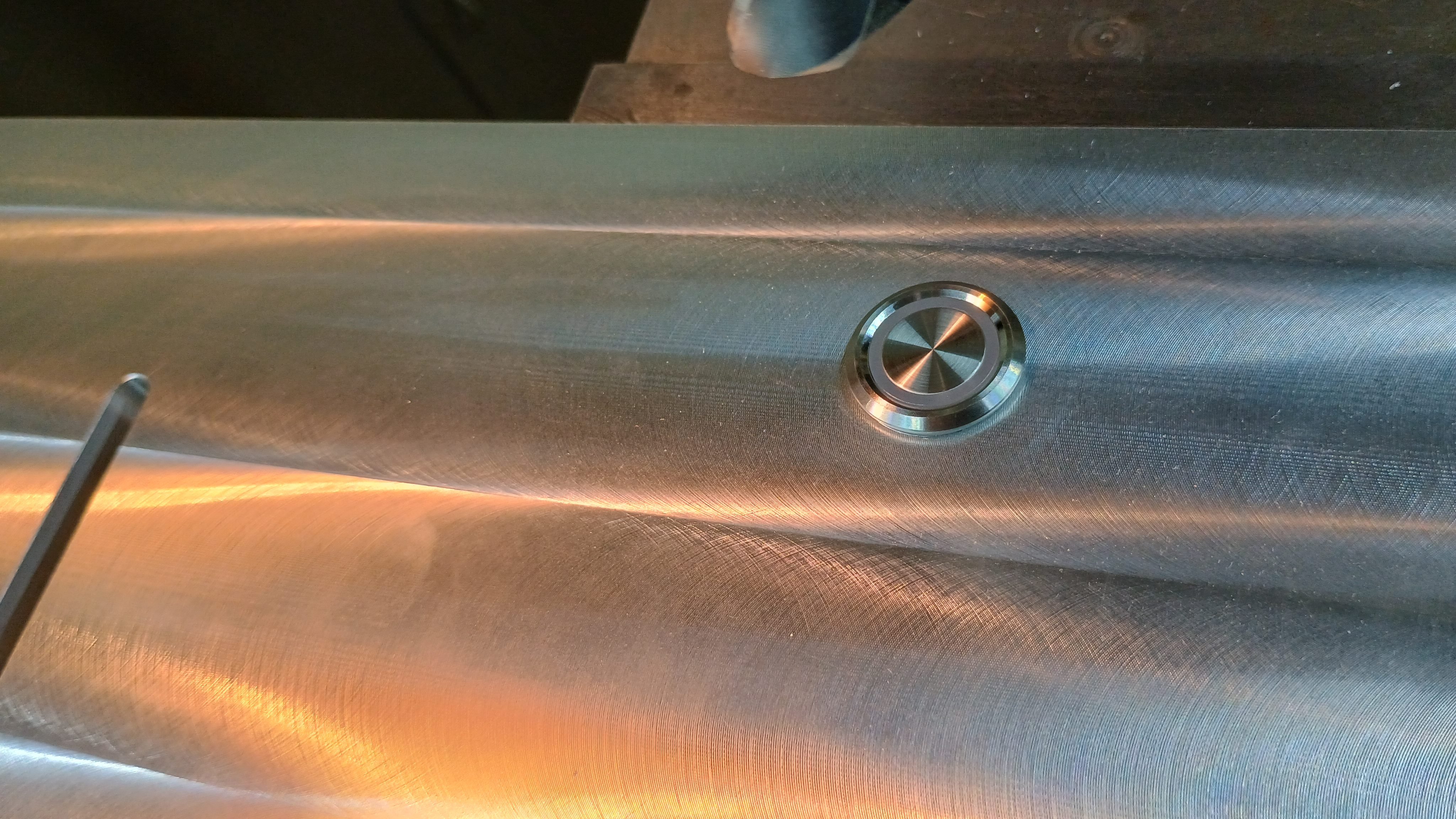

    Another great suggestion from the guys over on Phoenix. The 12v one I had is actually bigger, yet gives more clearance in the case near the control board. Just had to drill faceplate 7/8" thru and decided not to countersink it and expose it's bezel....


    Don't take experimental gene therapies from known eugenicists.
    · Share on Facebook
  • xschop
    xschop Posts: 5,875
    edited October 23
    Options

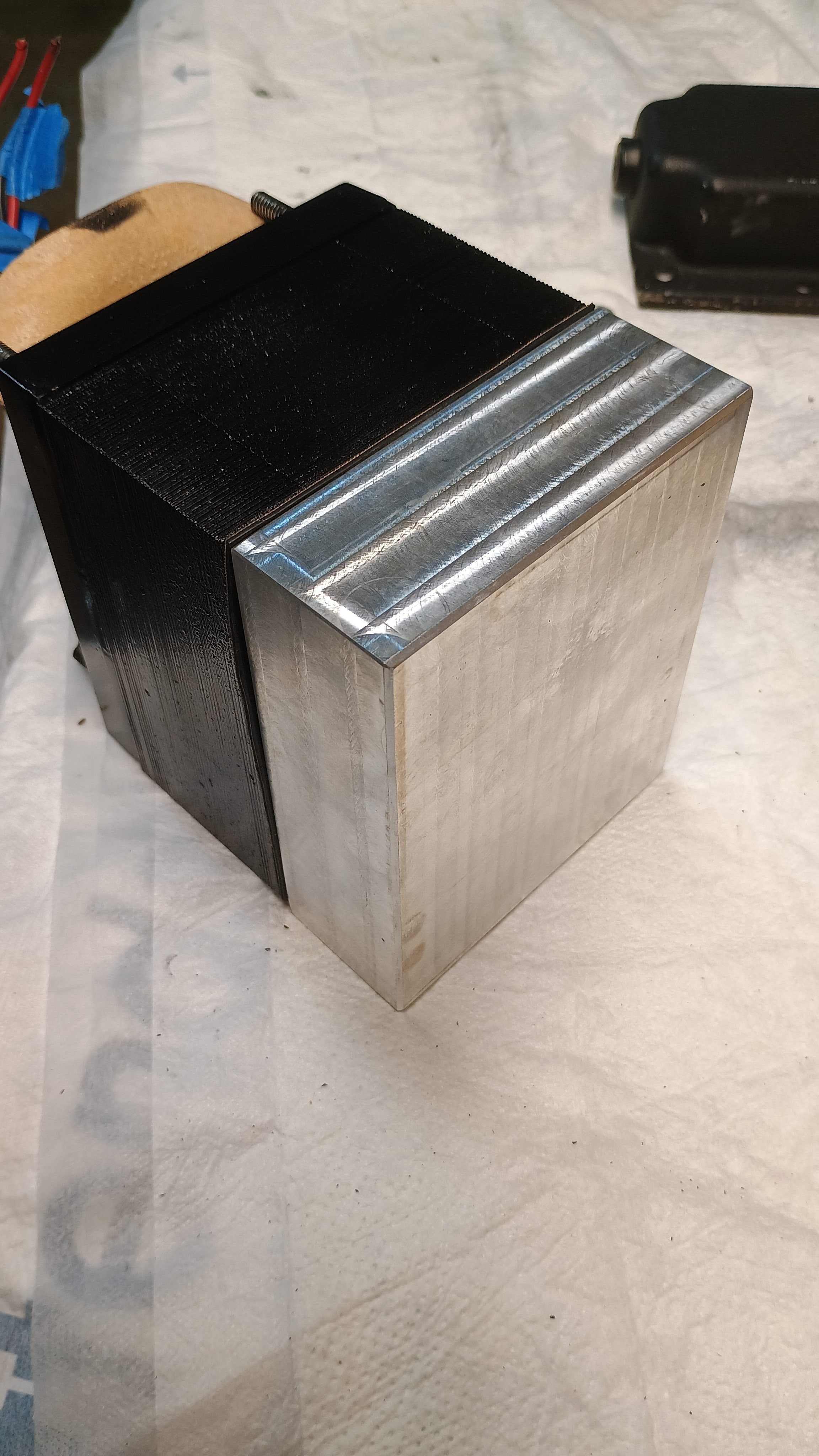

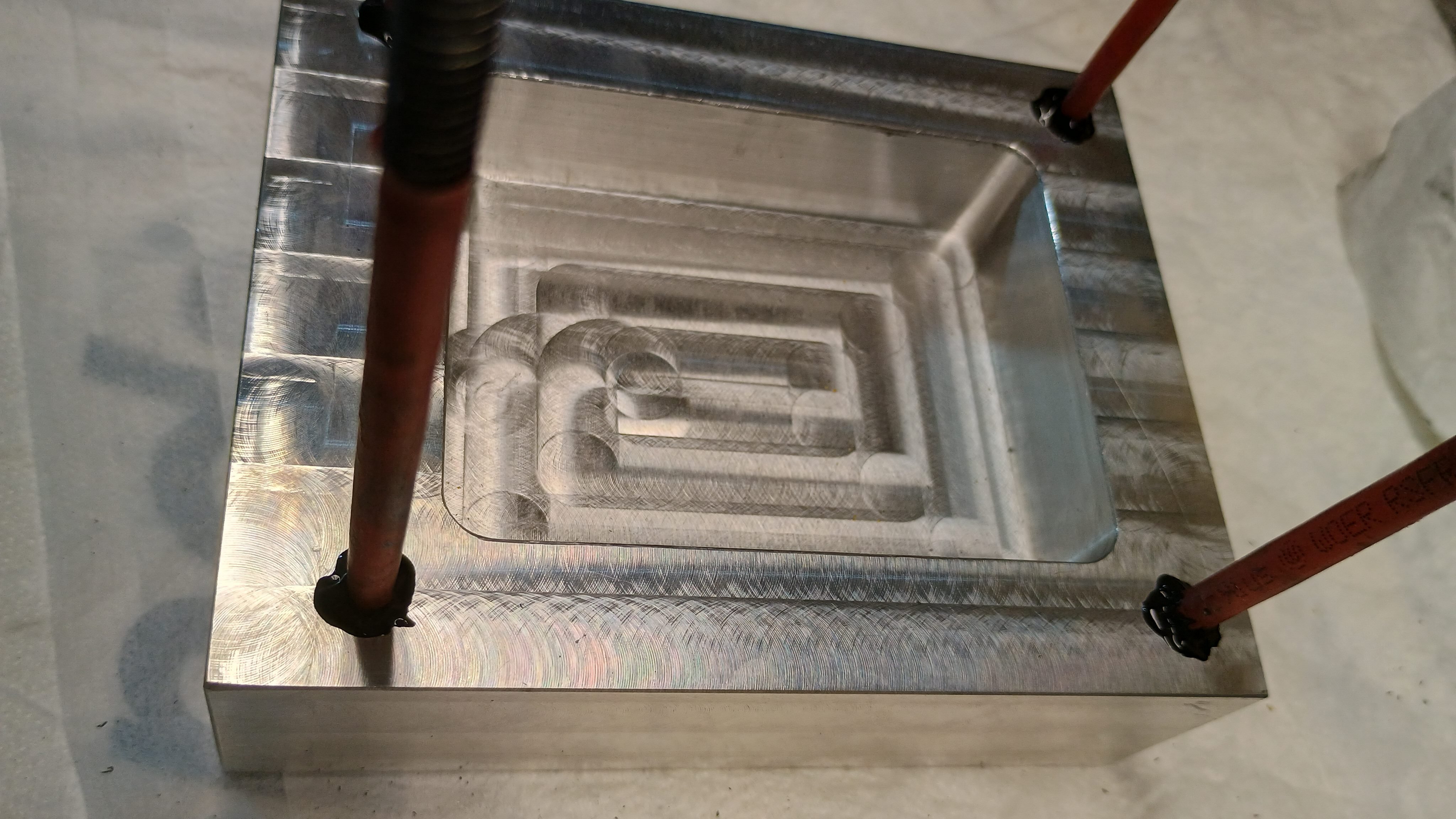

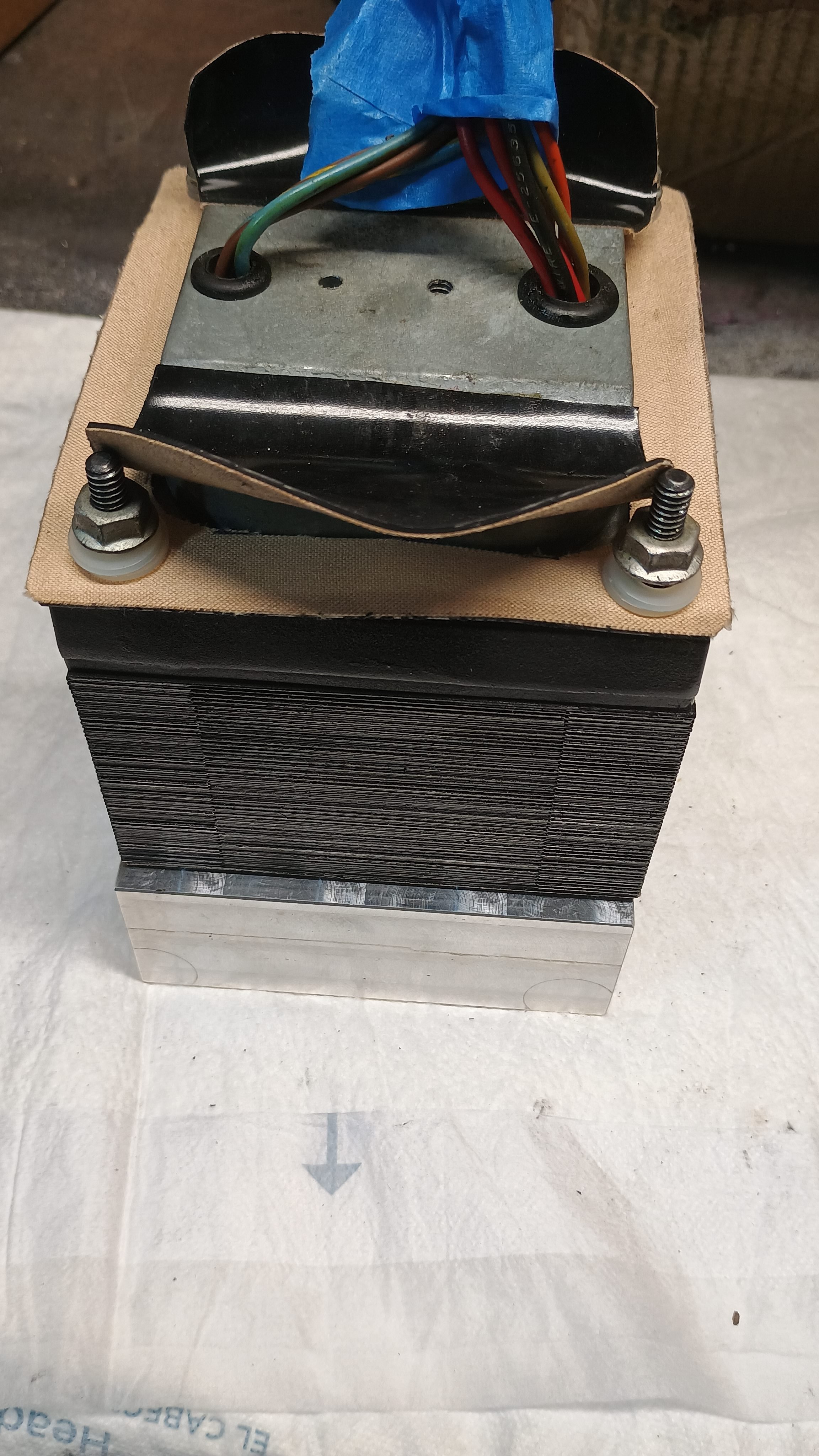

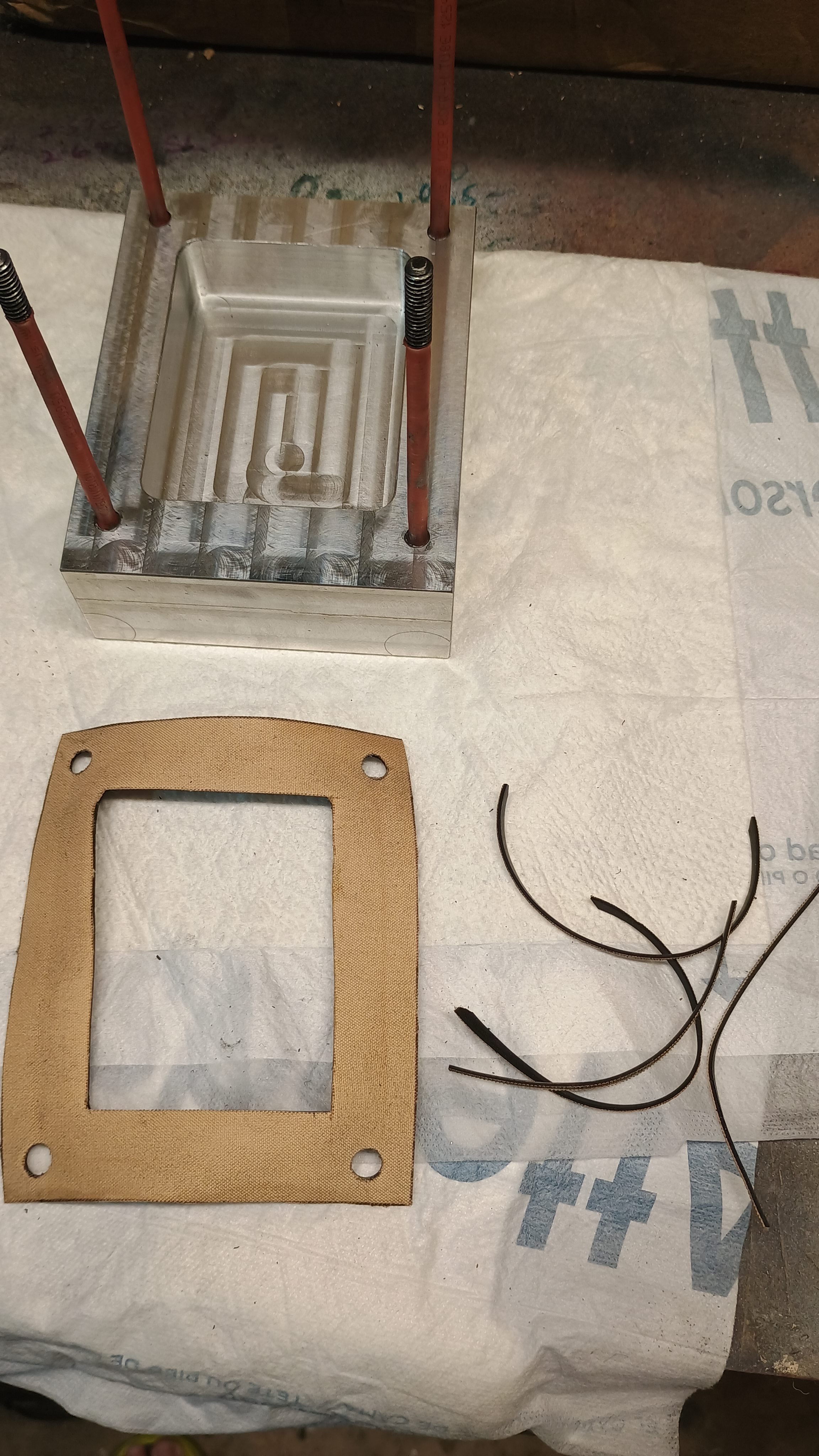

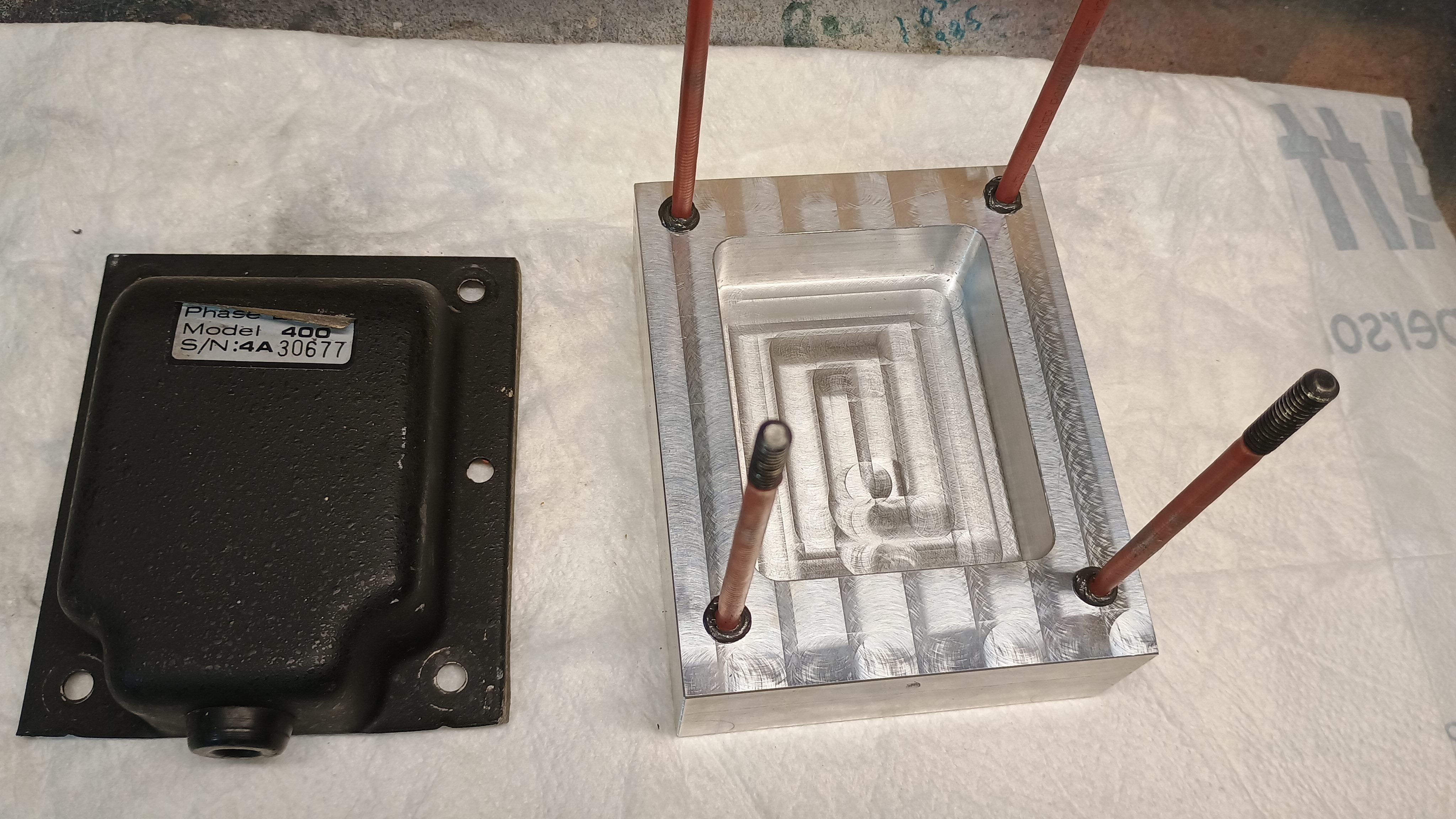

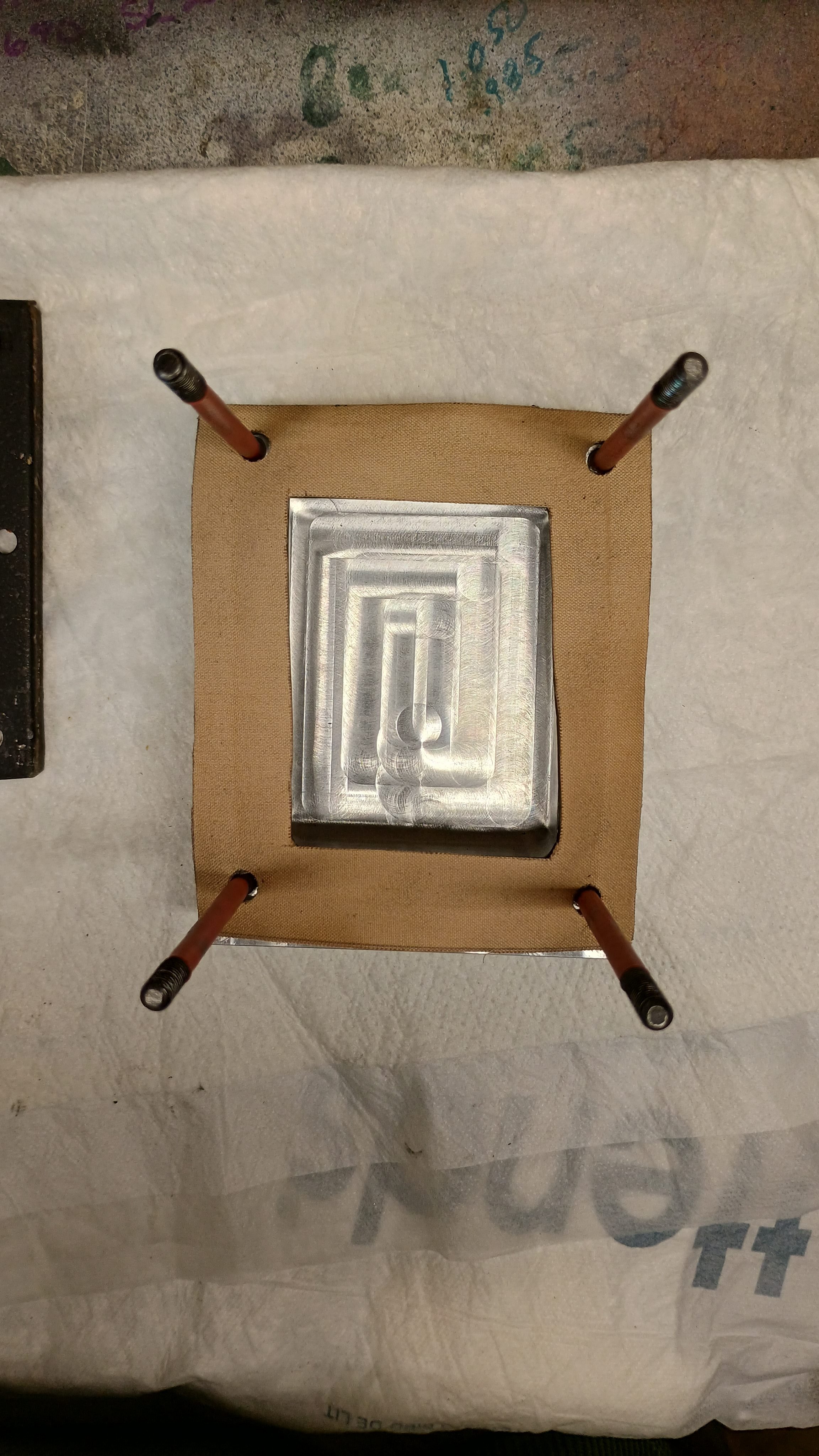

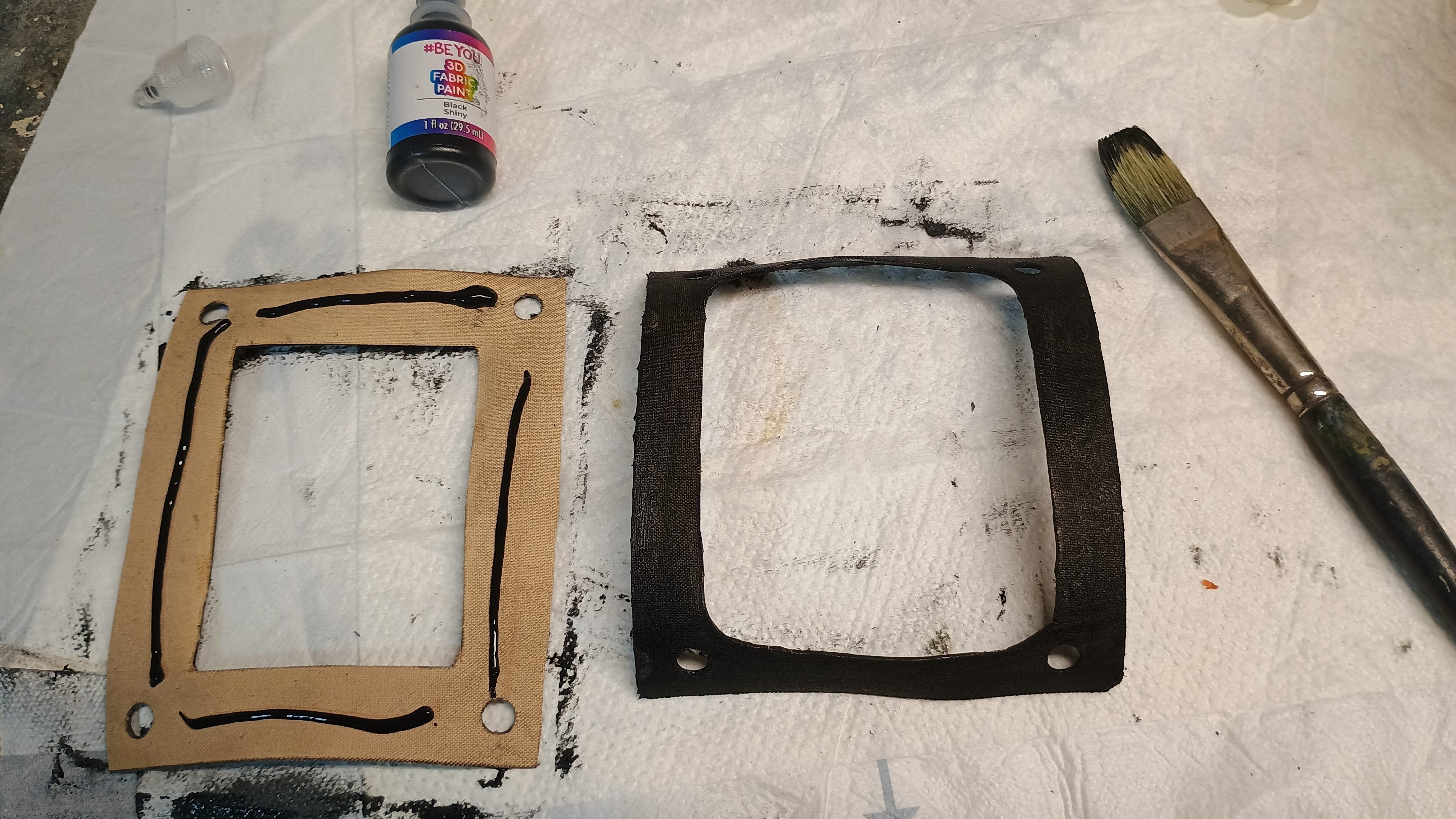

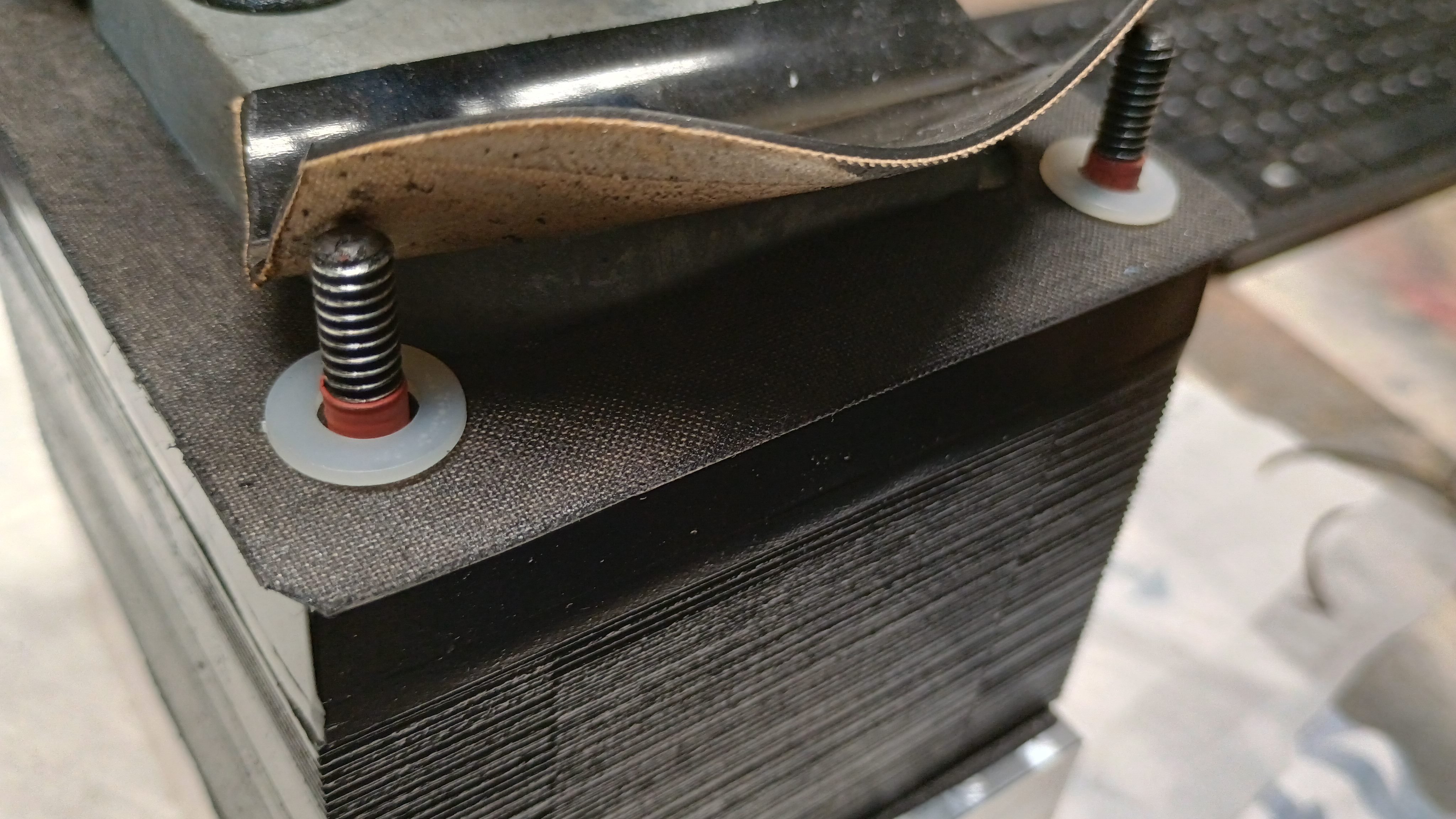

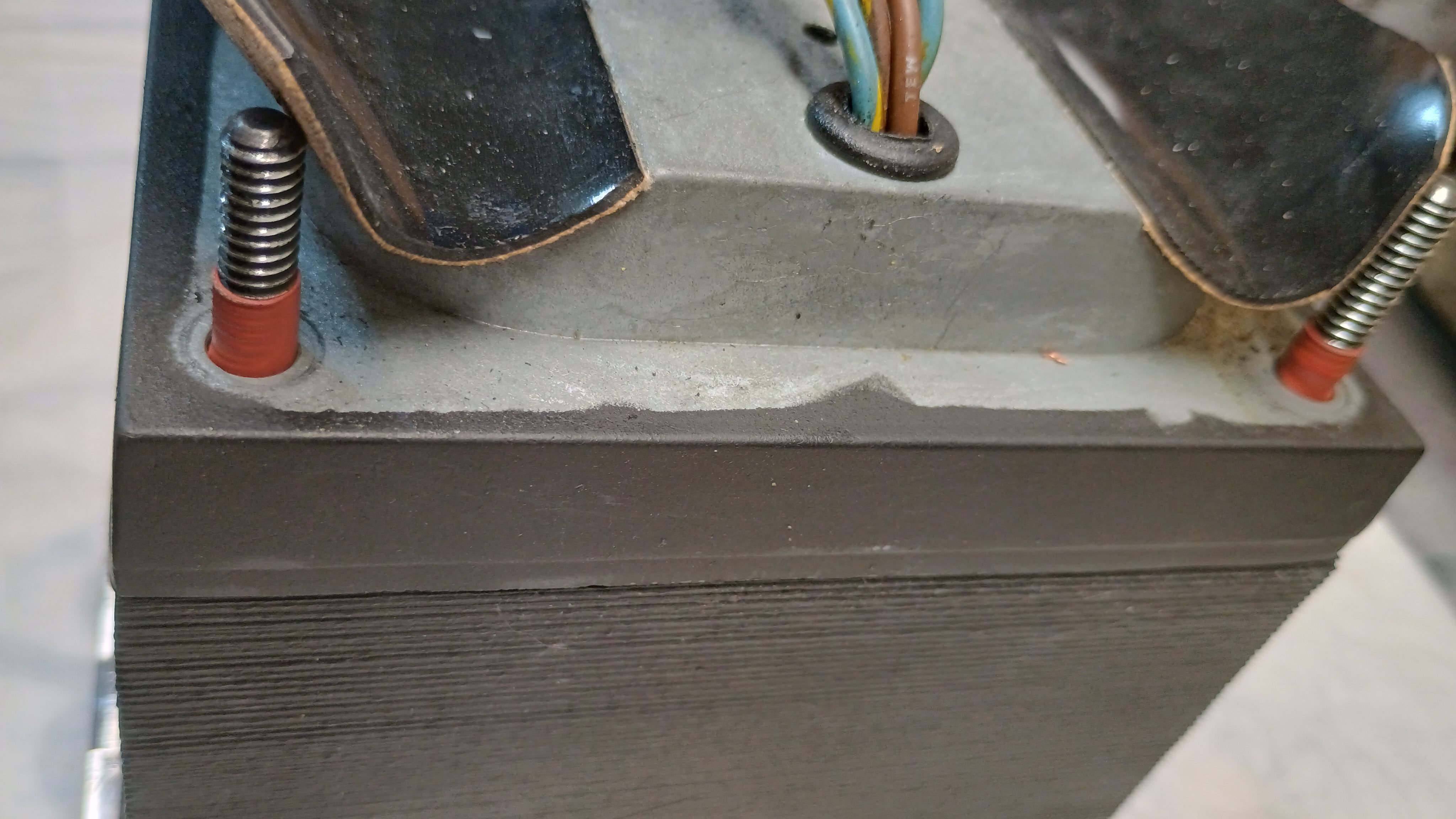

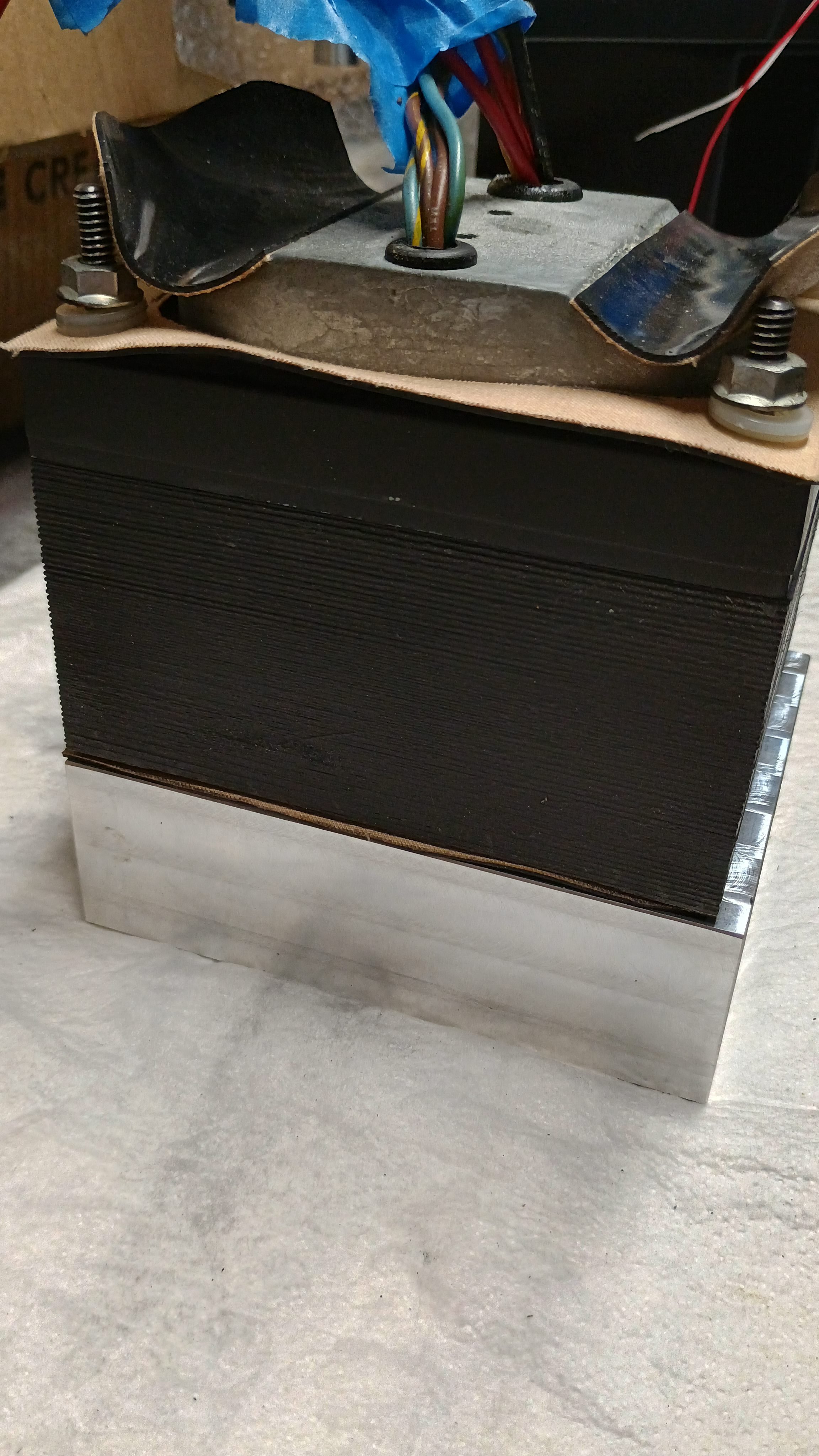

    Installed inserted studs with antisieze and gasket layers, then bolted down tight to straighten the bowed laminated steel. Works as intended. Looks like new. Took back apart to trim middle gasket and add RTV around that stud/gasket for insurance. Will do same for top studs near case and add extra shrink wrap as well. 100% electrically isolated....

    I'll add a rubber protector for the extended billet footing as well as some alcohol cleanup...

    Don't take experimental gene therapies from known eugenicists.
    · Share on Facebook
  • xschop
    xschop Posts: 5,875
    Options
    Don't take experimental gene therapies from known eugenicists.
    · Share on Facebook
  • Gardenstater
    Gardenstater Posts: 4,960
    Options
    I may need the idiot's guide to what's happening here lol.
    George / NJ

    Polk 7B main speakers, std. mods+ (1979, orig owner)
    Martin Logan Dynamo sub w/6ft 14awg Power Cord
    Onkyo A-8017 integrated
    Logitech Squeezebox Touch Streamer w/EDO applet
    iFi nano iDSD DAC
    iPurifier3
    iDefender w/ iPower PS
    Custom Steve Wilson 1m UPOCC Interconnect
    iFi Mercury 0.5m OFHC continuous cast copper USB cable
    Custom Ribbon Speaker Cables, 5ft long, 4N Copper, 14awg, ultra low inductance
    Custom Vibration Isolation Speaker Stands and Sub Platform
    · Share on Facebook
  • xschop
    xschop Posts: 5,875
    Options
    Why start another thread that I can't find later lmao.
    Don't take experimental gene therapies from known eugenicists.
    · Share on Facebook
  • xschop
    xschop Posts: 5,875
    Options

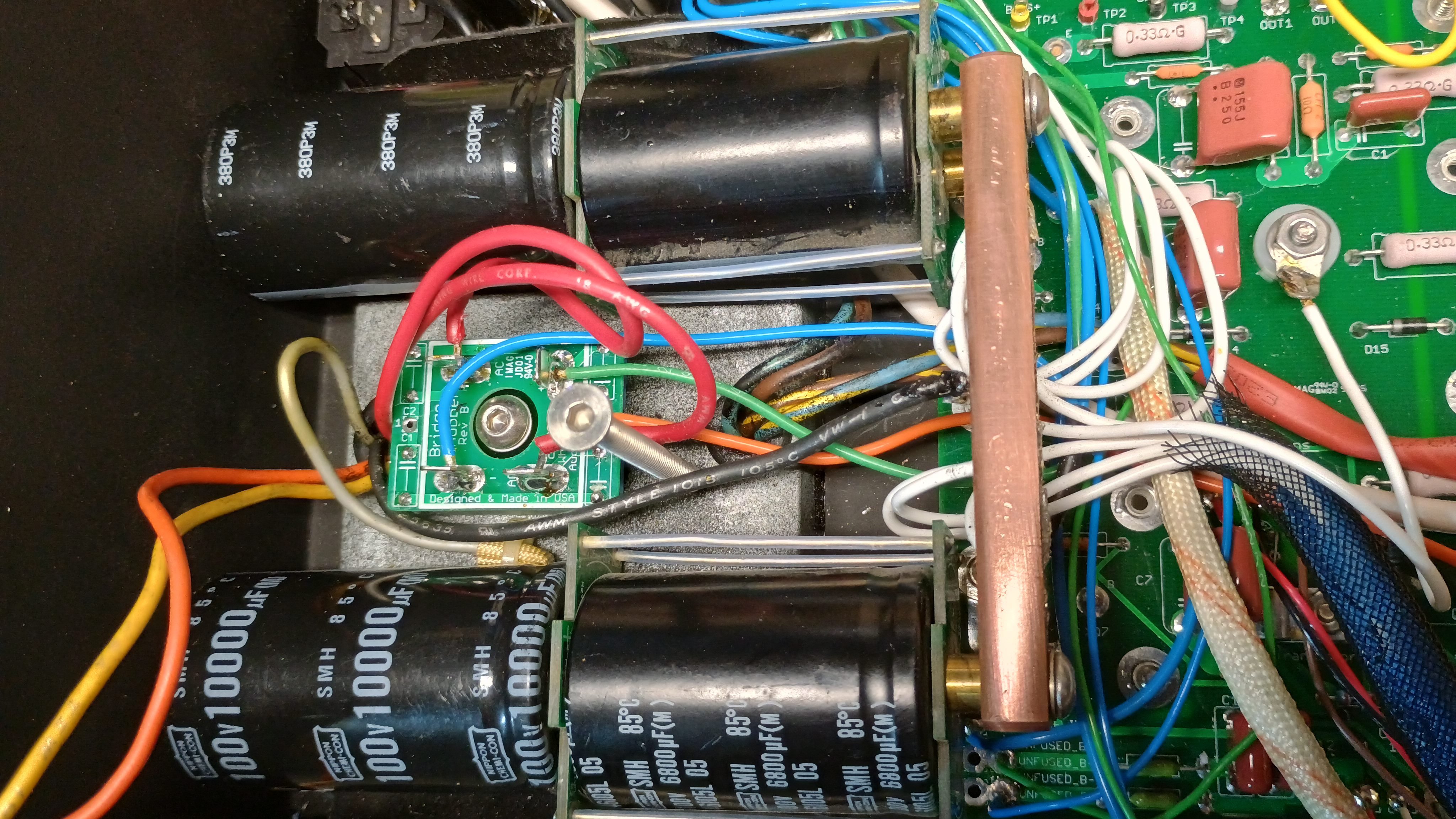

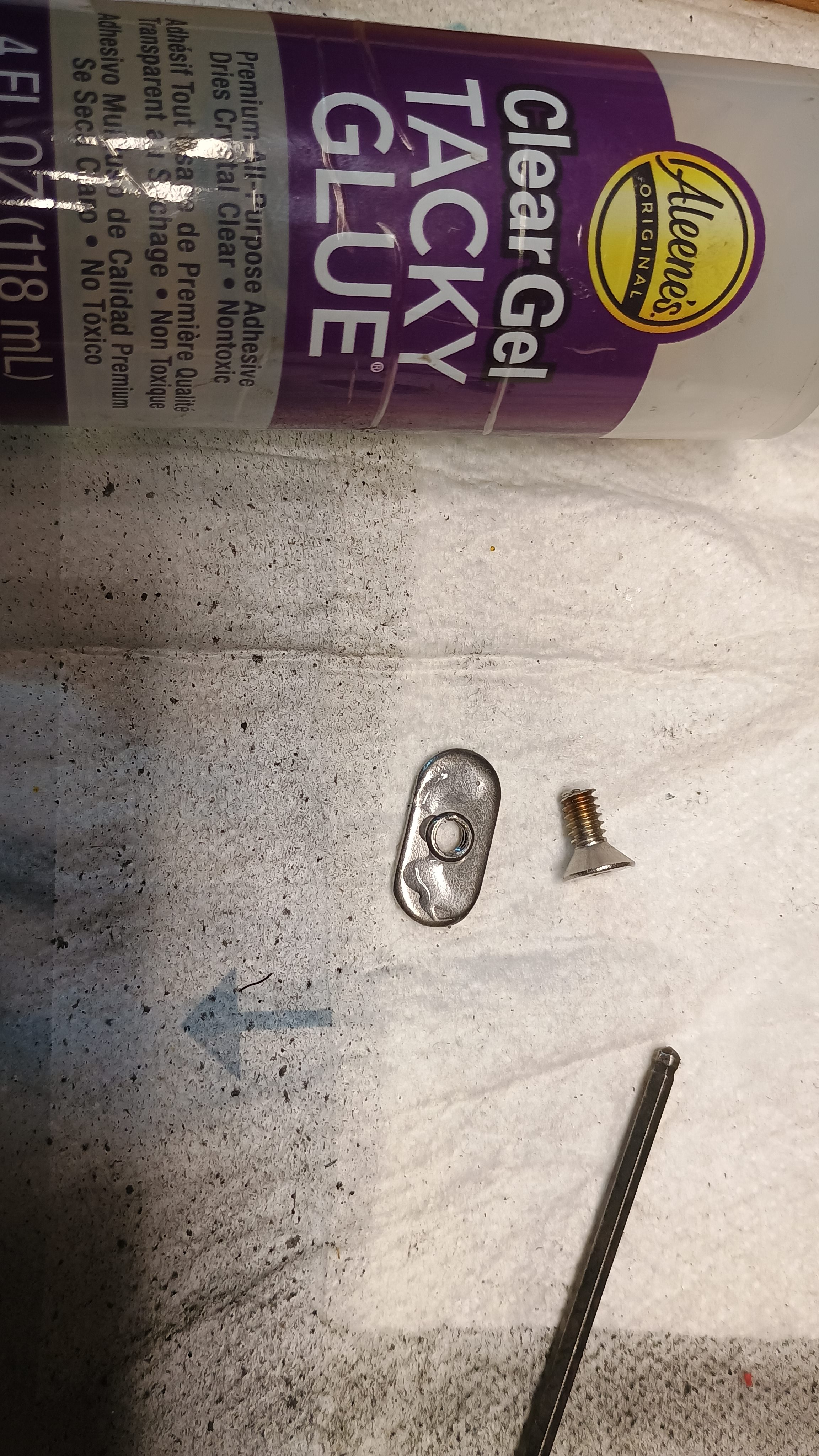

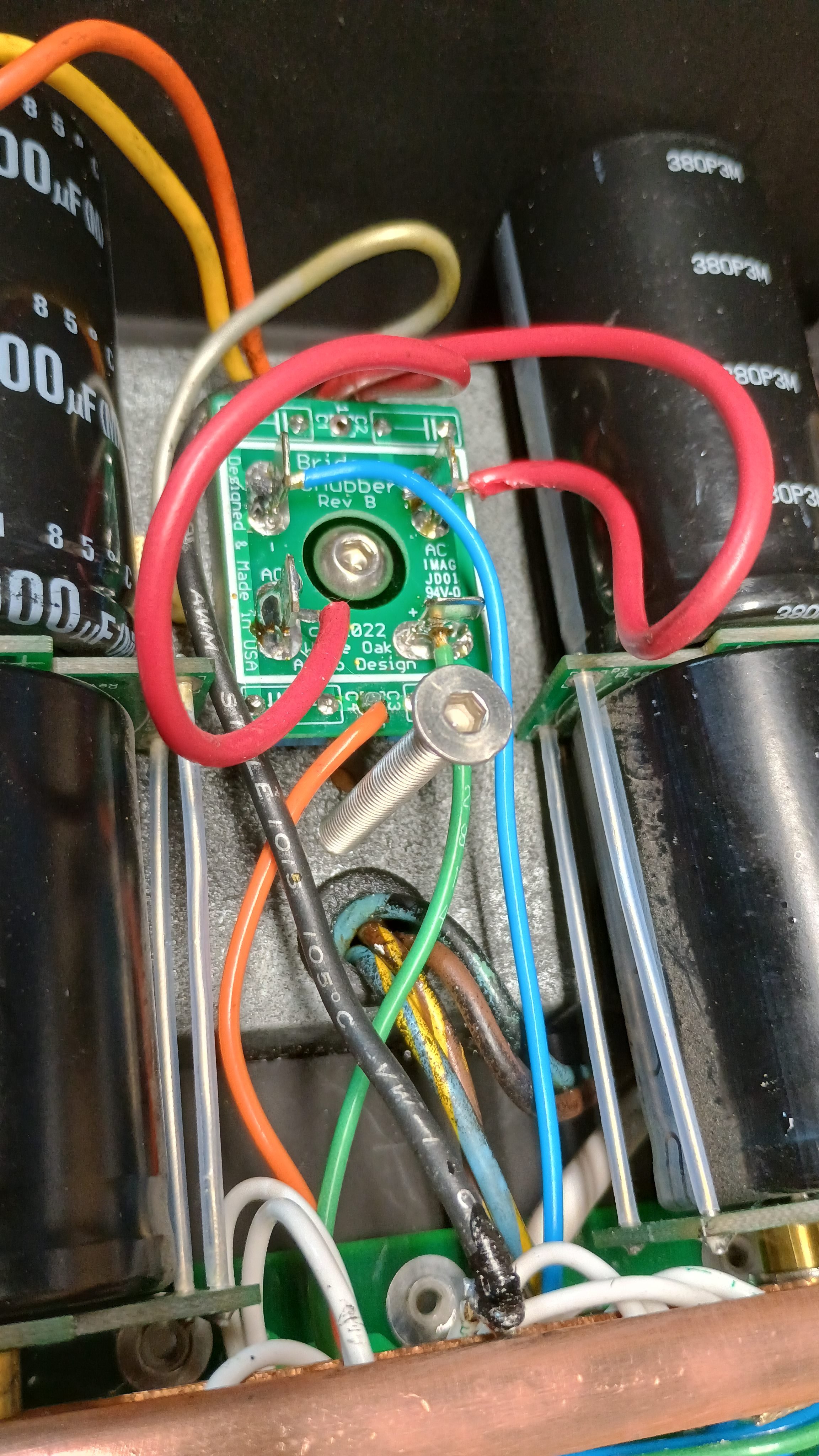

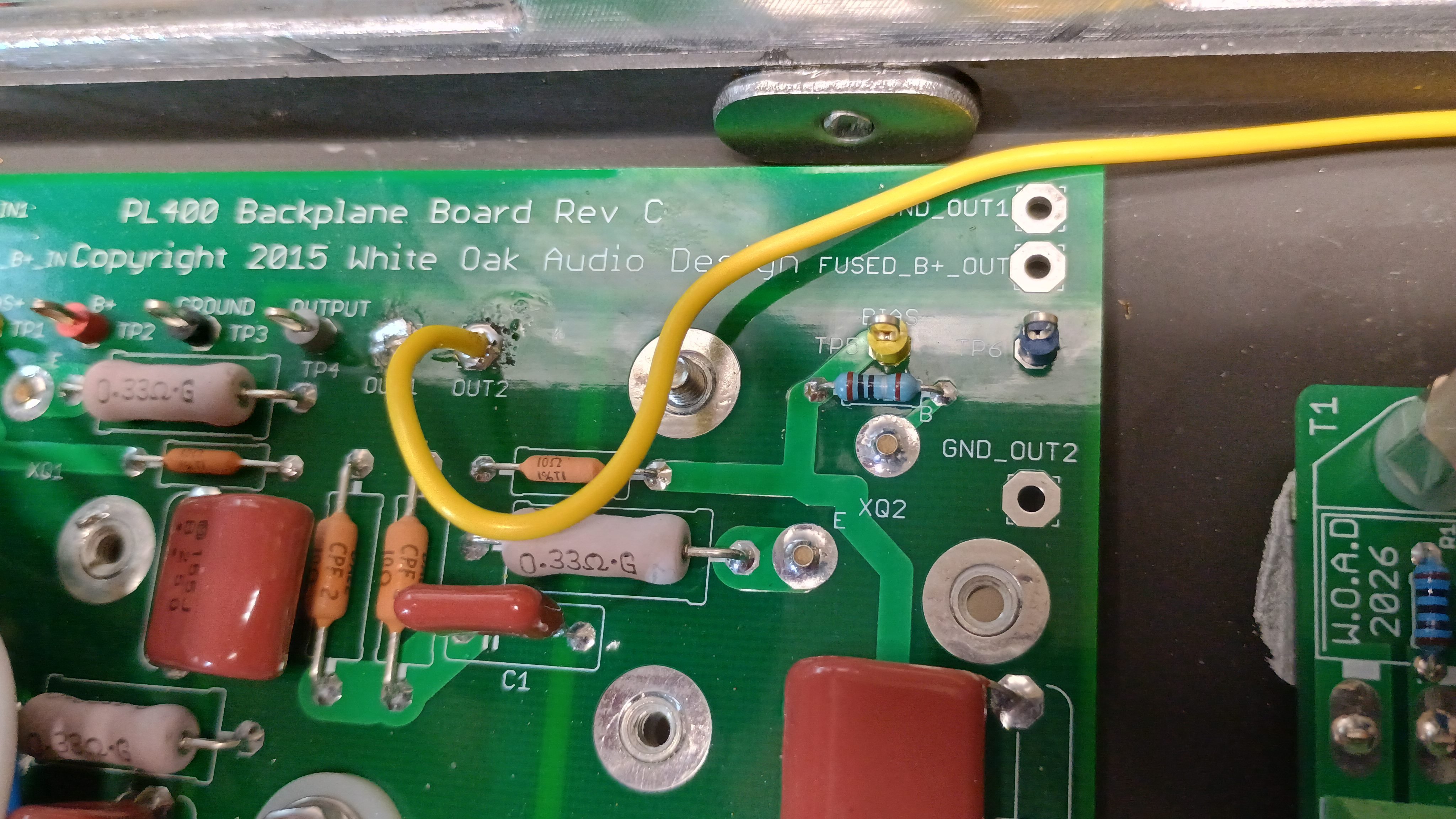

    Had to get a 10-32 x3/4" for the rectifier and tap the trans cover 10-32 for a 2" 10-32 flat stainless.

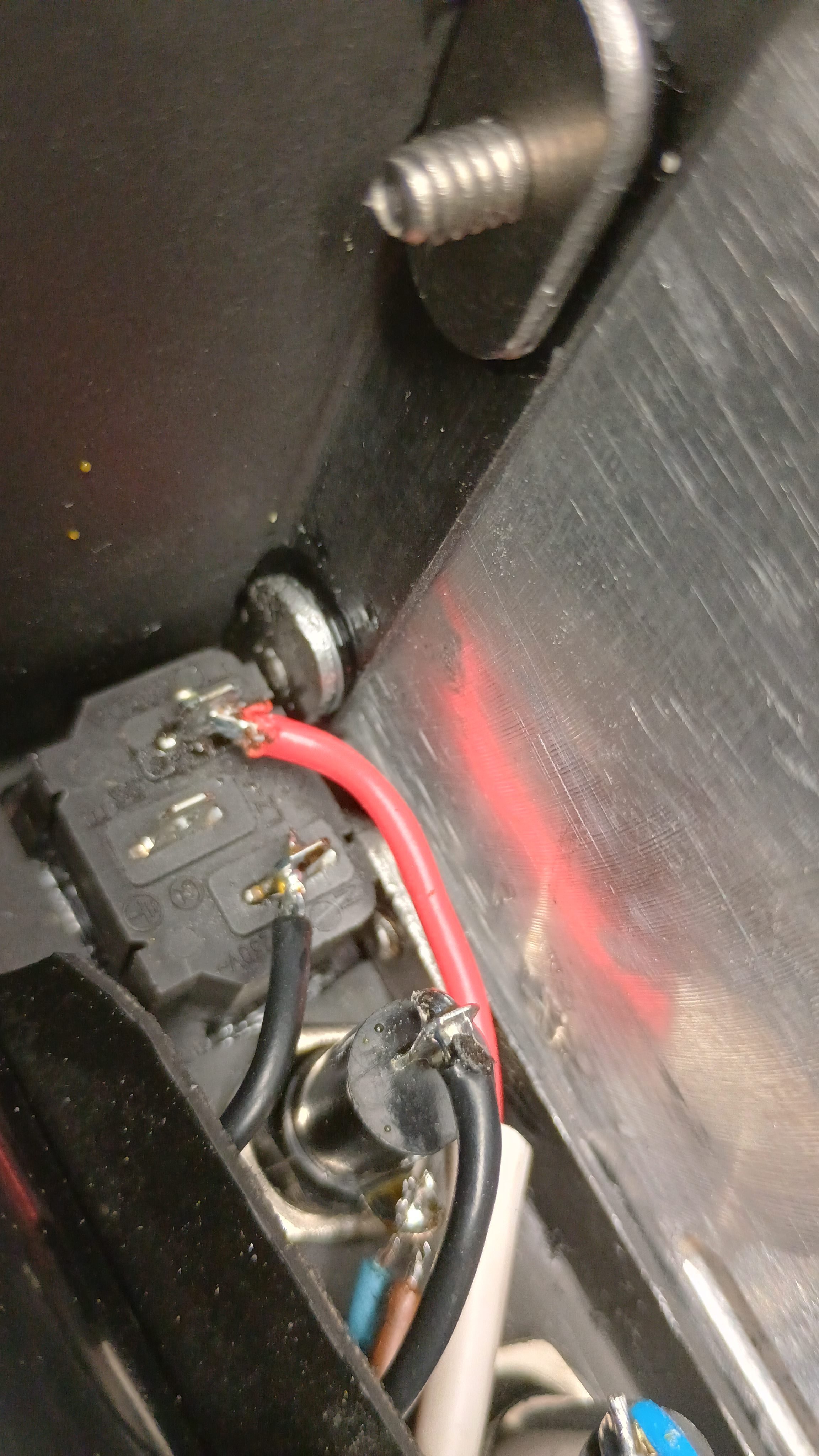

    Had to cut and re-thread a couple the 10-24's down to 3/8" near the AC socket and the backplanes for clearance..

    Don't take experimental gene therapies from known eugenicists.
    · Share on Facebook
  • xschop
    xschop Posts: 5,875
    Options

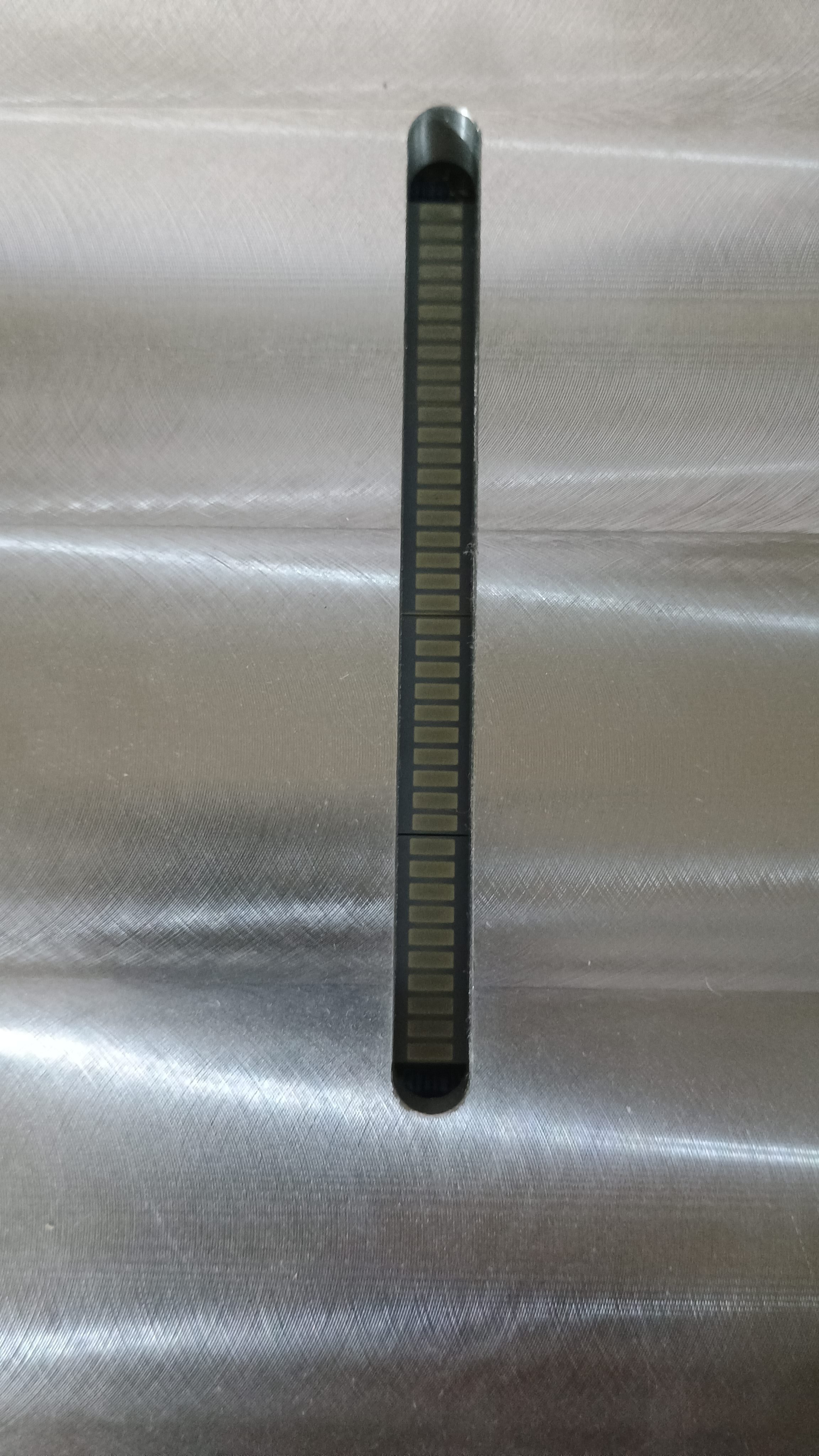

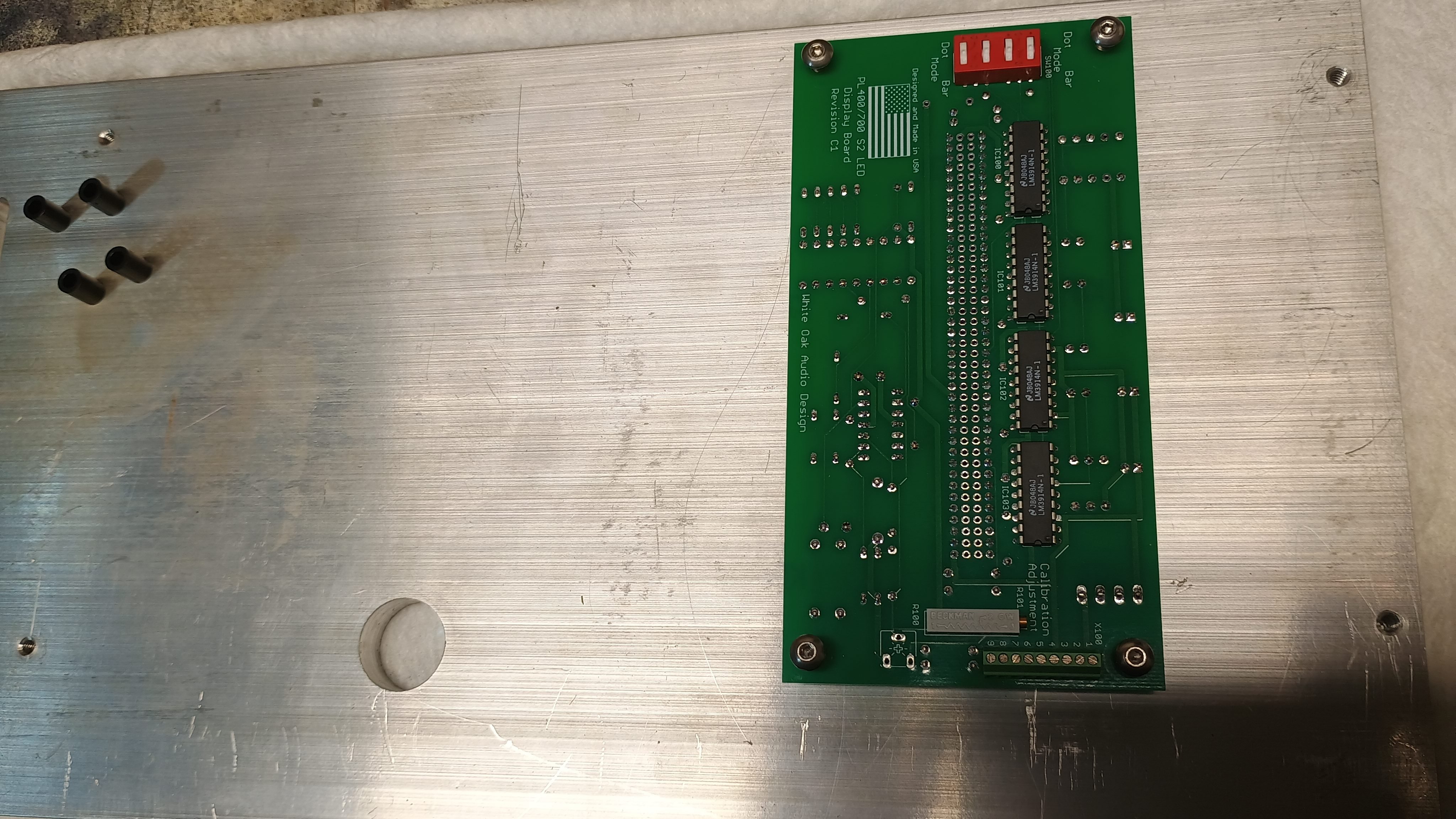

    Test fit the WOA LED boards to the faceplate. I'll need to get 3/4" 8-32 button stainless. Just had 1" from all the Polk builds.
    The LED meters on the boards stand 0.310" proud of the PCB, so went with 0.390" tall Nylon spacers to leave a gap for thick film if I decide to tone down the bling later.

    You can take those plate dimensions I posted to the bank if you decide to build one yourself...
