Monitor 10A

westmassguy

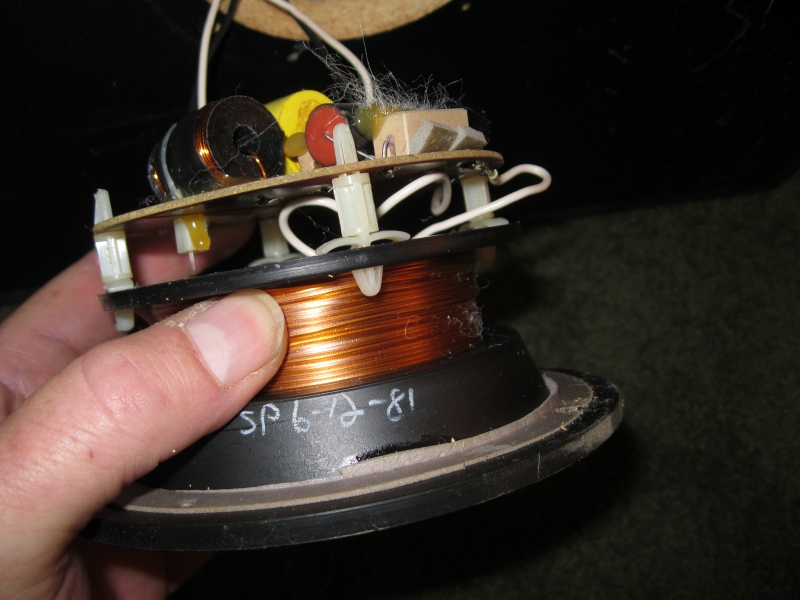

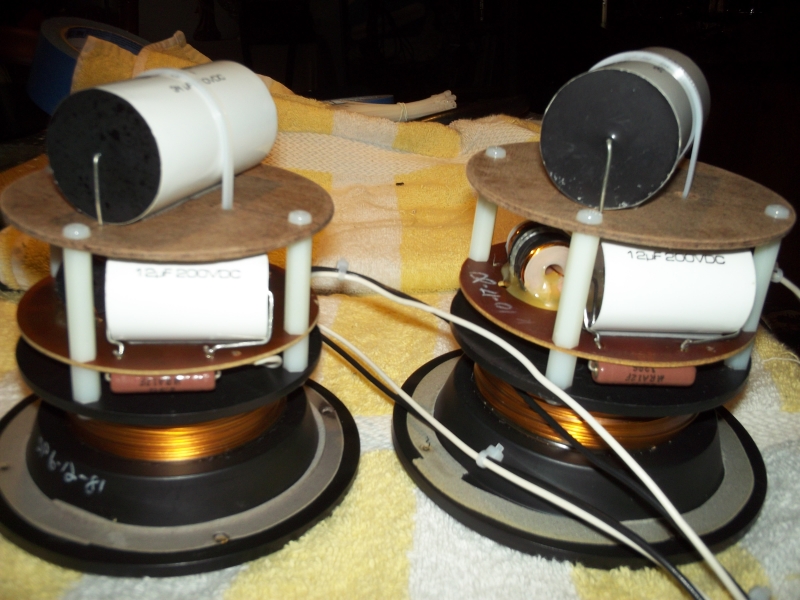

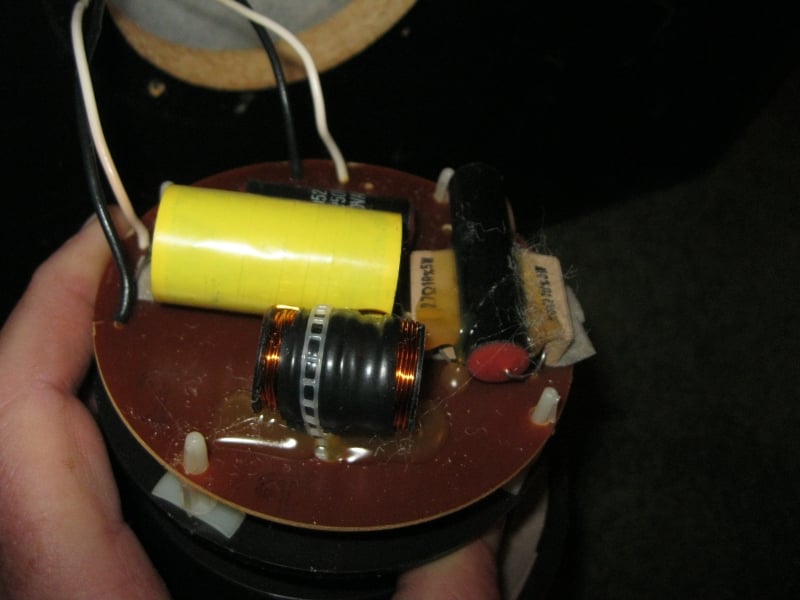

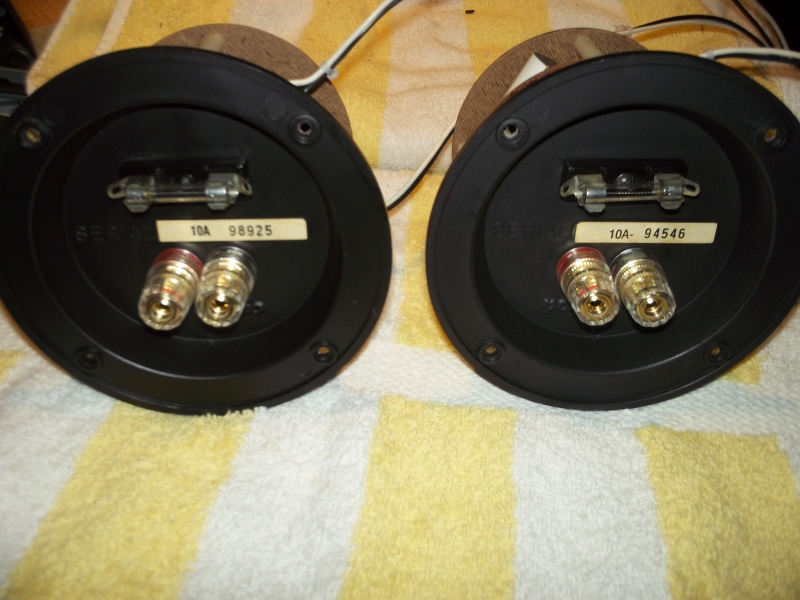

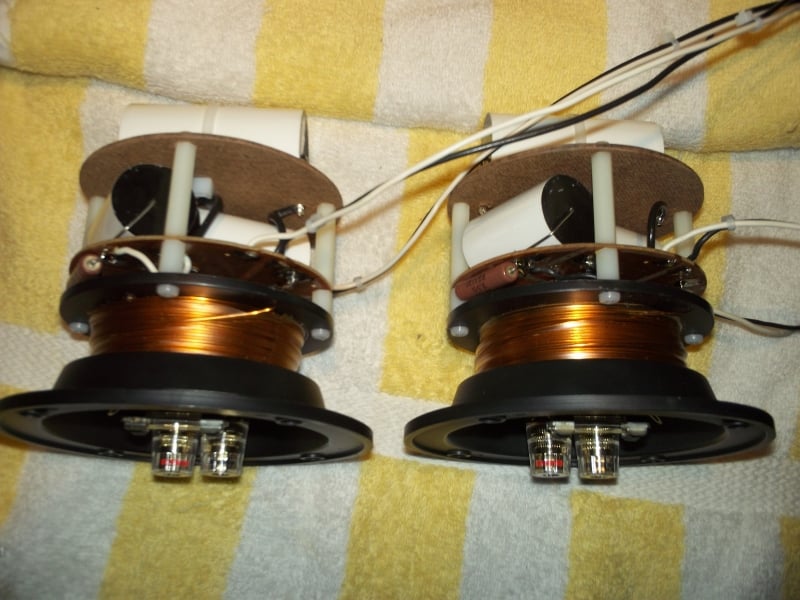

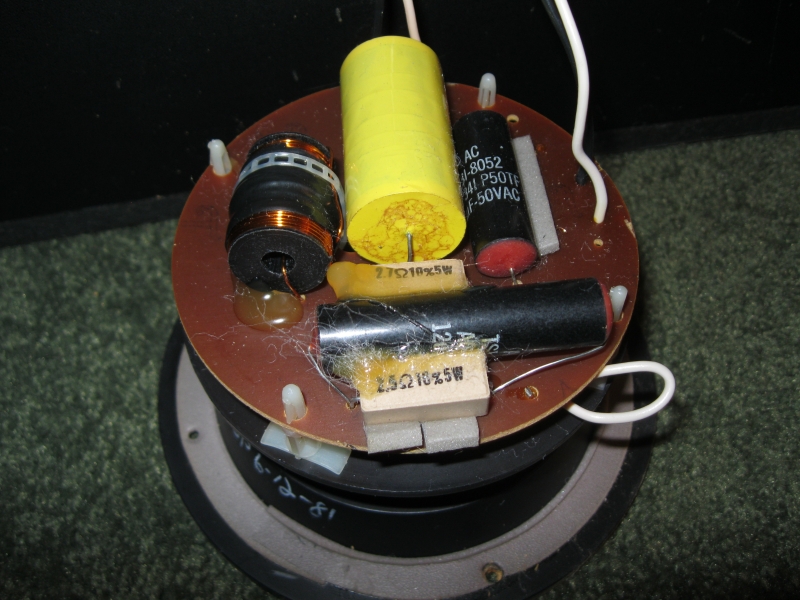

This was a nice little Crossover project. Original Monitor 10As with fully functioning Peerless Tweeters. Sonicaps were chosen for the Hi & Lo-Pass, Mills MRA-12 Resistors, and new Gold Plated Copper Binding Posts were installed. Due to the size of the Lo-Pass Shunt Caps, new riser boards were installed, along with New Nylon Standoffs. All Caps were secured with 3M VHB Tape, and the large shunt caps received Nylon Wire Ties in addition to the 3M VHB tape. The existing fuse holders were cleaned, polished and treated with DeoxIT. The Peerless never sounded so good.

helipilotdoug

Nice!! I have a set of Monitor 10A's in my shop that has been waiting for the crossover rebuild. Have all the parts to do it, but have not gotten around to it yet. Thanks for posting these photos. They give me an idea of what to expect when I do mine.

Faustin

Very nice. I should have replaced the binding posts on my 10a's when they were rebuilt.

westmassguy

helipilotdoug wrote: »

Nice!! I have a set of Monitor 10A's in my shop that has been waiting for the crossover rebuild. Have all the parts to do it, but have not gotten around to it yet. Thanks for posting these photos. They give me an idea of what to expect when I do mine.

Thanks

westmassguy

Faustin wrote: »

Very nice. I should have replaced the binding posts on my 10a's when they were rebuilt.

Pretty sure we spoke about that Bruce

Faustin

We did. Mistake on my part!!

NJPOLKER

Do you know what VHB stands for?

I sold high performance pressure sensitive tape for many years so I know the answer LOL

NJPOLKER

One more thing Nice work!!!

How hot do capacitors get? I know resistors get plenty hot and some adhesives won't hold up to extreme temperatures.

westmassguy

NJPOLKER wrote: »

Do you know what VHB stands for?

I sold high performance pressure sensitive tape for many years so I know the answer LOL

Actually it means Very High Bond

westmassguy

NJPOLKER wrote: »

One more thing Nice work!!!

How hot do capacitors get? I know resistors get plenty hot and some adhesives won't hold up to extreme temperatures.

I doubt the capacitors even get warm, unless you approach their maximum voltage rating. As for the resistors, 12 watt Mills are more than twice the rating of the originals, and mine are soldered flat to the underside of the circuit board.

NJPOLKER

Did you look do a search on VHB or did you know it? Just fooling with you!

One of these days I would like to hear your 901's. One of these days I will buy a nice pair so I can relive my past.

westmassguy

NJPOLKER wrote: »

Did you look do a search on VHB or did you know it? Just fooling with you!

One of these days I would like to hear your 901's. One of these days I will buy a nice pair so I can relive my past.

I've been using it for years, and new back then what it meant. 3M also make UHB products as well. Fellow Polkies are always welcome, even if it's to hear an alternate and much maligned (mostly undeserved) speaker system.

alkermes

That's a nice little project, thanks for posting the photos. I didn't know about the 3M VHB tape, looks like a better way to go than hot glue. Do you pick it up at Staples, or at a specialty store?

westmassguy

alkermes wrote: »

That's a nice little project, thanks for posting the photos. I didn't know about the 3M VHB tape, looks like a better way to go than hot glue. Do you pick it up at Staples, or at a specialty store?

Thanks. Any good hardware store will have it, Home Depot, Lowes etc.

halo71

Nice work! Redoing my 10's is on the "list"! lol

westmassguy

Thanks halo. I think we all have one of those lists
