Coming to a website near you -

Old school, dual boards -

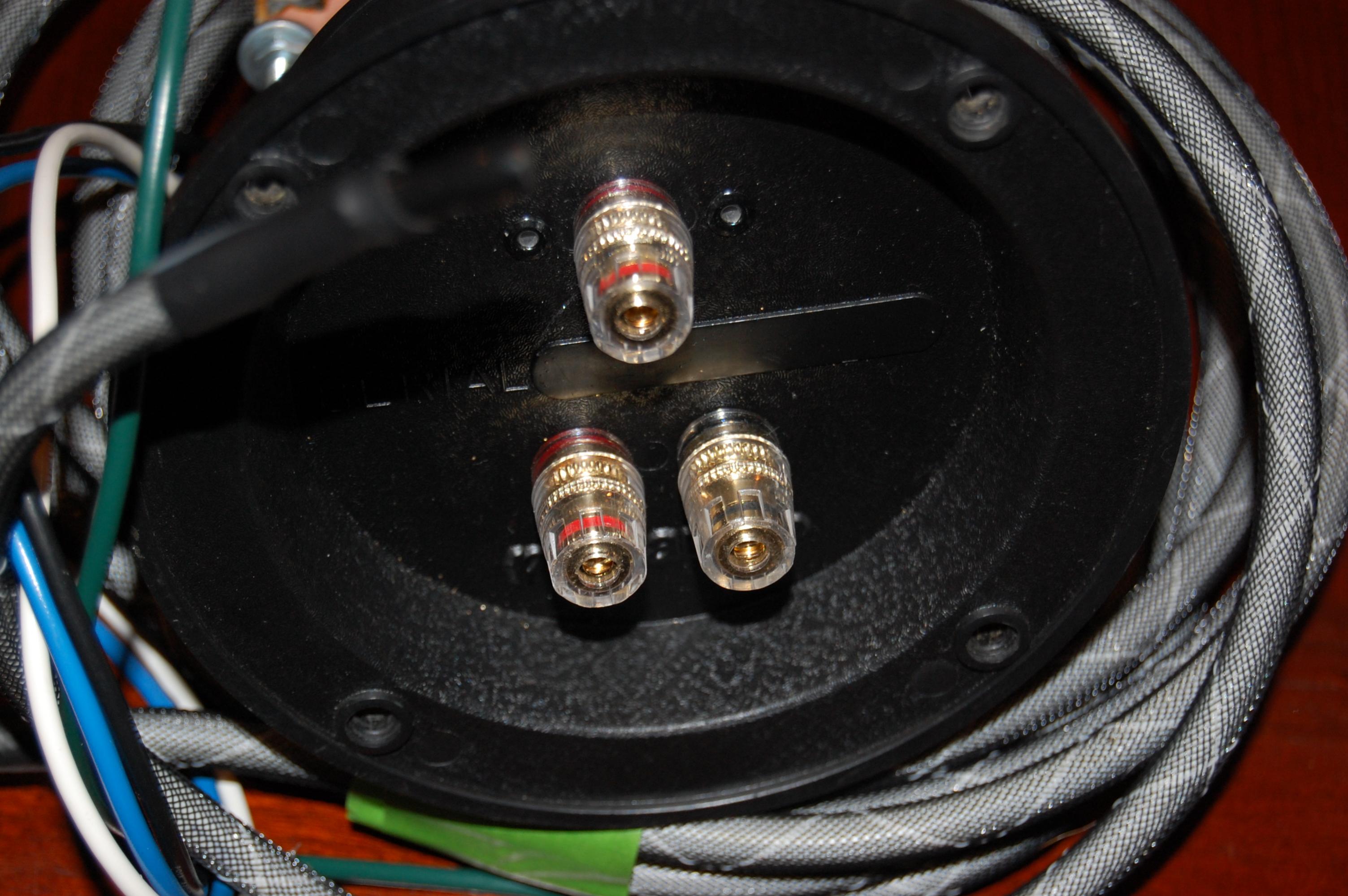

Replacing the SDA blade blade jack with a binding post as it is supposed to be a P/B...

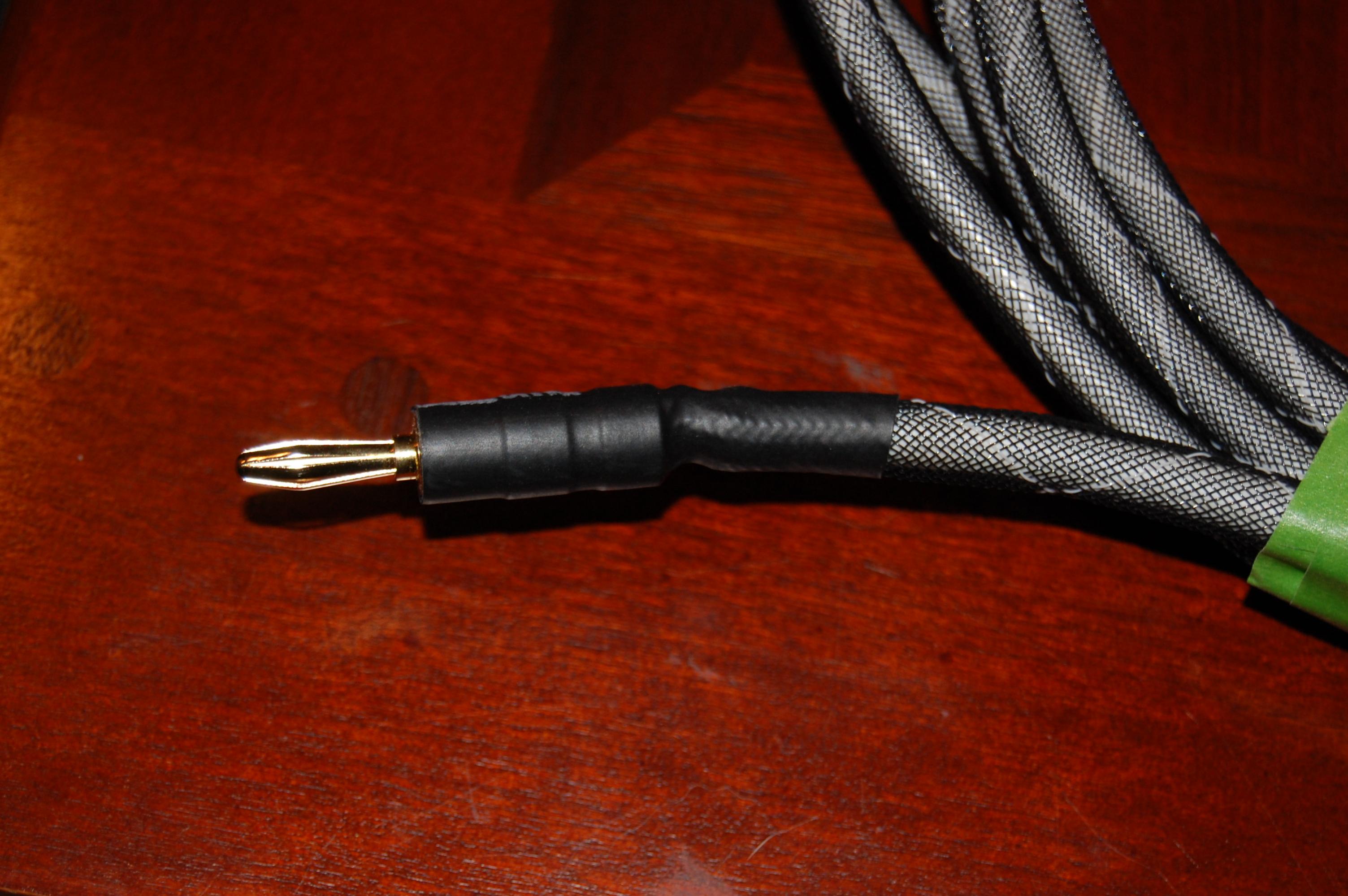

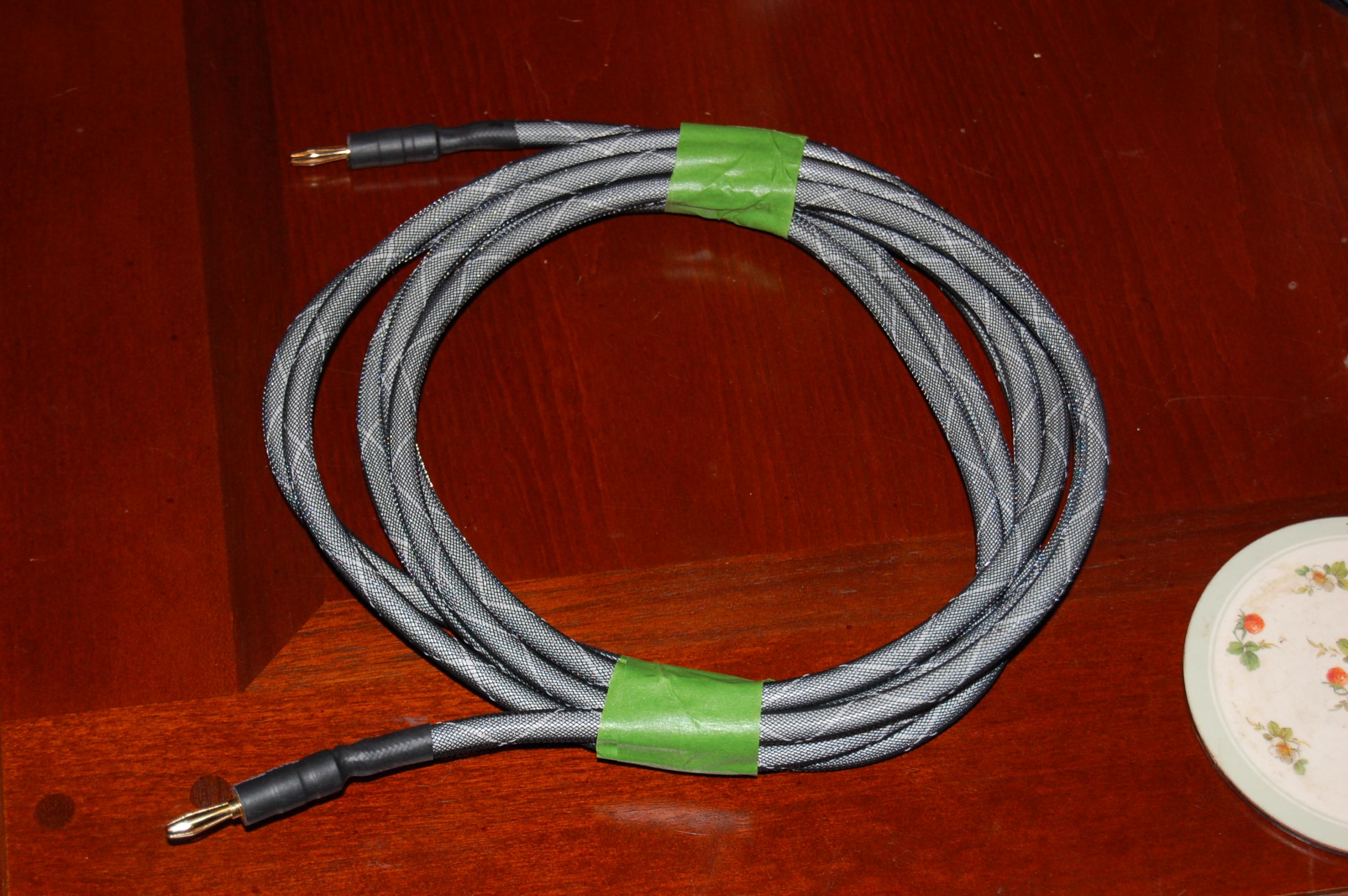

Building up a nice dual 14 awg run cable for the SDA cable - binding post...

Clarity Cap ESA on the tweeter network and PX on the midbass and SDA board...

Mundorf 10 watt resistors - also am doing my "Power Stack'' on the main board so the tweeter caps will have their own board and the resistors will have their own - allows for easy maintenance and a cleaner install!

Should be nice!

I really like modifying SDA crossovers so far!
- Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
