Polk crs+ Erse Super Q Inductor question
Comments
-
You need the proper meter to get to the proper value.I have no idea how to do that right.
Do you know the proper inductor value for yours? Am I overlooking it above?
I'm thinking with the inductor values listed a laminated would not be beneficial. -
5.6mh.
-
-
If you play your cards right you could make baby inductors along the way- Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
-
At this point, is where Larry would just mod them to CRS+’s
Get the two needed drivers, point to point crossovers, RD-0198 tweeters. Etc.. 🤪 -
5.6mH Jantzen C Coils are available:
https://www.parts-express.com/Jantzen-6295-5.6mH-14-AWG-C-Coil-Toroidal-Inductor-255-824?quantity=1George / NJ
Polk 7B main speakers, std. mods+ (1979, orig owner)
Martin Logan Dynamo sub w/6ft 14awg Power Cord
Onkyo A-8017 integrated
Logitech Squeezebox Touch Streamer w/EDO applet
iFi nano iDSD DAC
iPurifier3
iDefender w/ iPower PS
Custom Steve Wilson 1m UPOCC Interconnect
iFi Mercury 0.5m OFHC continuous cast copper USB cable
Custom Ribbon Speaker Cables, 5ft long, 4N Copper, 14awg, ultra low inductance
Custom Vibration Isolation Speaker Stands and Sub Platform -
Yep, found the uscoils last week, ordered them this morning. From what I read, erse employees started uscoils, so they are pretty much the same coils. Not expensive either. On order.
-
Life got in the way, just mounted the 130's, but before I fire these up, will the way I have them wired work? I know these need to be in Parrell, but looking at how I wired I'm wondering if this is in series?
Thanks -
The cap goes from the dimensional driver negative to sda connector. Keep in mind on this series the connection for the sda cable on each speaker is different. This is important as if it's not it's a short
The inductor is connected to the dimensional driver negative and the stereo driver negative
Caps in series decrease, caps in parallel increase- Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit. -

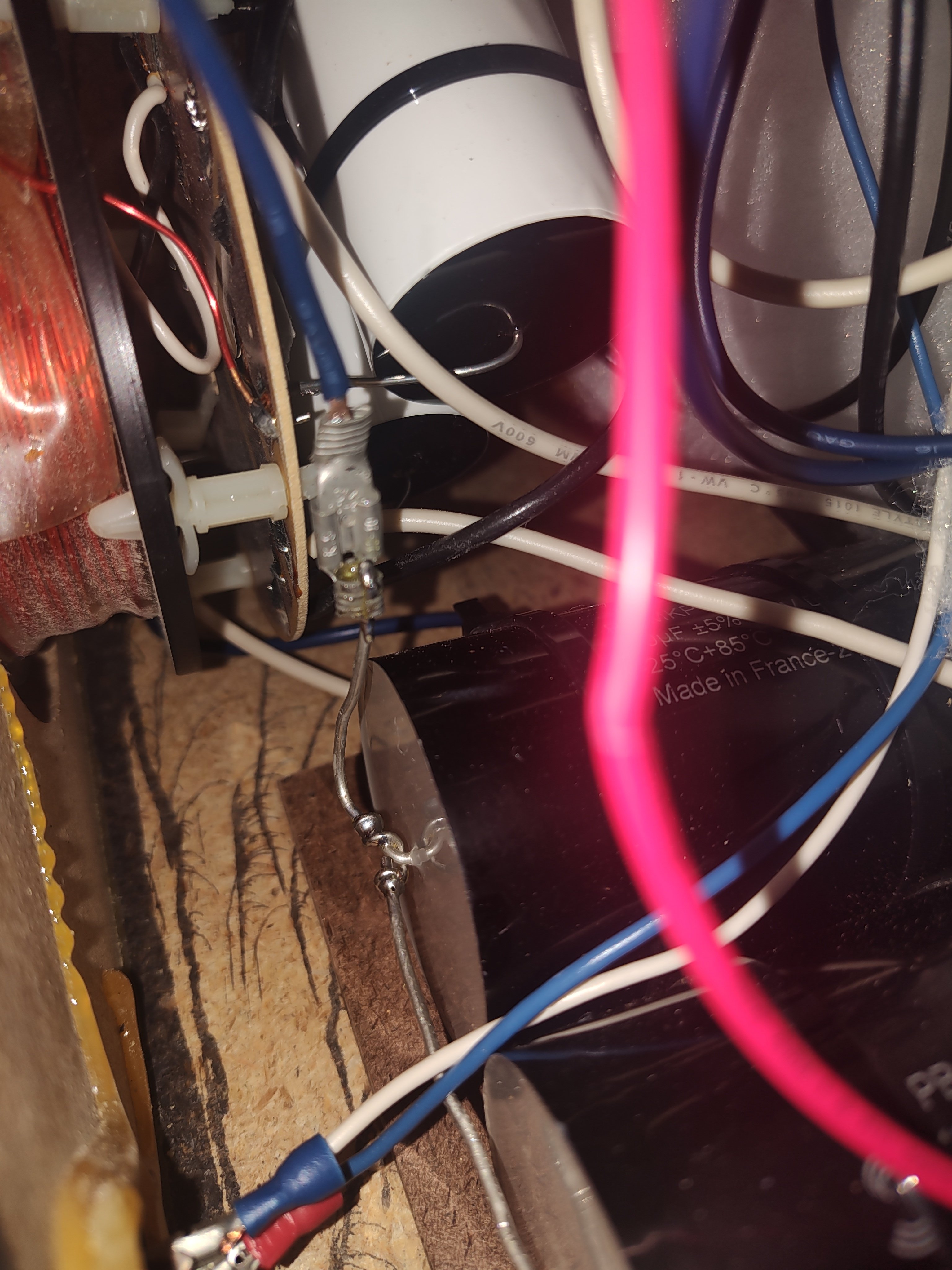

I rechecked the wiring, left PR out and played music, bingo, they work, dimensional is working based on changing balance. Before I button them up and based on how I soldered the two caps together, does this look correct? I'm pretty sure it is unless you have to have both leads on each side connect to the spade??
Thanks -
I honestly can't make heads or tails of your photo lol- Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
-
lol, yeah, it's fricken cramped in there. Basically, I'm just over thinking this is all. I was just wondering if the caps were soldered the right way and not in series, but there is no way these are in series the way I have them. Thats what happens when you wake up at 3:30
-
Series would be like Christmas lights
Parallel is like a big hug- Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
