Wire arrangement

acmf74
acmf74 Posts: 937
edited December 2012 in Basic Hookup/Wiring Questions
I have most of my gear on amp stands next to each other on the floor.

Should I keep my power cables away from my IC's?

Would wires close to each other introduce noise?

Thanks..
Post edited by acmf74 on
· Share on FacebookShare on Twitter

Comments

  • gp4jesus
    gp4jesus Posts: 2,016
    edited December 2012
    Yup. Otherwise cross them @ right angles.
    Samsung 60" QN65Q7FAMFXZA QLED, Outlaw Audio 976 Pre/Pro, Samsung BDP, Amazon Firestick, Phillips CD Changer

    Canare 14 ga - LCR tweeters inside*; Ctr Ch outside
    BJC 10 ga - LCR mids “Foamed” & “Plugged**”, inside* & out
    8 ga Powerline: LR woofers, inside* & out
    *soldered **Rob the Man (Xschop)

    LR: Tri-amped RTi A7 w/Rotels*. Woofers - 980BX; Tweets & Mids - RB981*
    Ctr Ch: Rotel RB981* -> Bi-amped CSi A6
    Surrounds: Rotel 981* -> AR 12 ga -> RTi A3
    *all connected w/Premiere ICs
    5 Subs: Sunfire True SW Signature -> LFE & Ctr Ch; 4 Audio Pro Evidence @ the “Corners”

    Power Conditioning & Distribution:
    4 dedicated 20A feeds; APC H15; 5 Furman Miniport 20s
    · Share on FacebookShare on Twitter
  • steveinaz
    steveinaz Posts: 19,545
    edited December 2012
    Get you some pull-ties and pull-tie stand-offs at the hardware. They work great for cable management. Also be careful of digital cables near analog IC's.
    Source: Bluesound Node 2i - Preamp/DAC: Benchmark DAC2 DX - Amp: Parasound Halo A21 - Speakers: MartinLogan Motion 60XTi - Shop Rig: Yamaha A-S501 Integrated - Source: Rotel CD14MkII CD Player - Speakers: Elac Debut 2.0 B5.2
    · Share on FacebookShare on Twitter
  • specd_out
    specd_out Posts: 505
    edited December 2012
    gp4jesus wrote: »
    Yup. Otherwise cross them @ right angles.

    Bingo. I used the velcro straps. this way you can reuse them

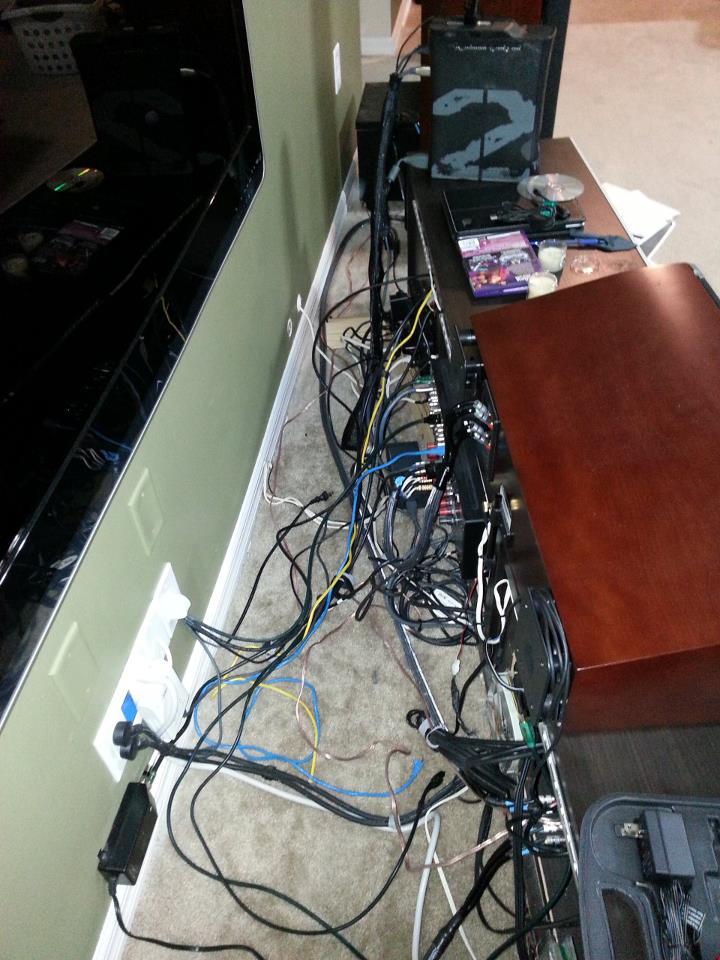

    Mine has never looked this bad. I have always bundled them. But this is all unwrapped showing what I had to work with

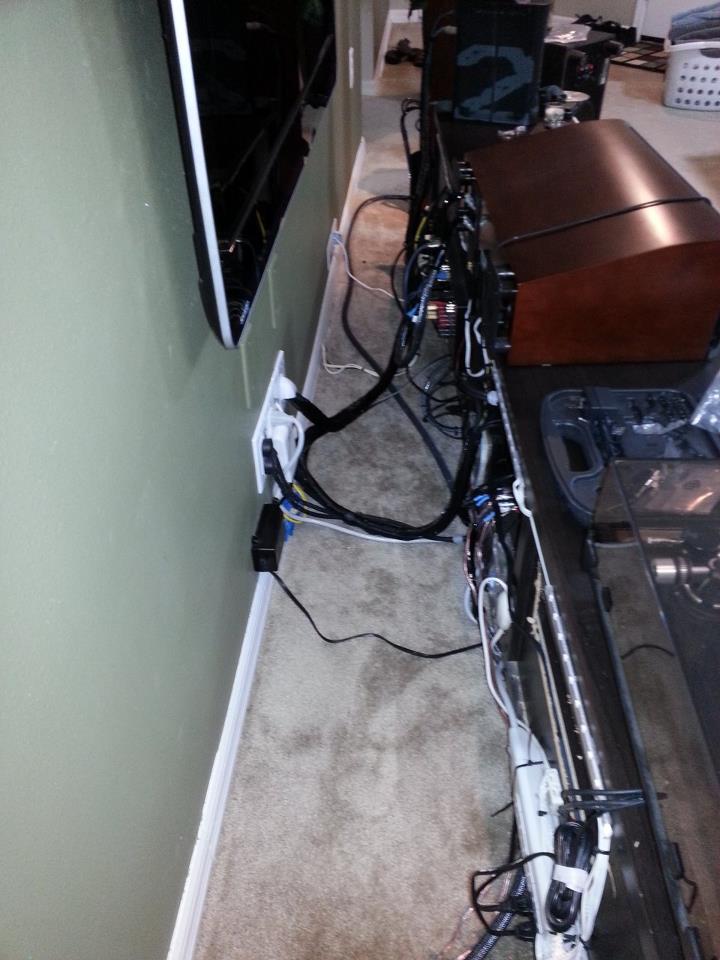

    This is all done


    Power wire run separately under the stand I/C and hdmi run together. Any overlap is at 90 degrees
    HT Rig Samsung 64F8500 |Pioneer Elite BDP-52FD|Pioneer Elite VSX-32| Two Carver TFM-15cb Bridged for mains|Polk Audio RTiA5 Cherry|Polk Audio CsiA6 Cherry|Polk Audio T-15 Heights|Polk Audio FXia6 Surround|DIY 8cuft Dayton Ultimax 15" powered with a Crown XLS1000
    2Channel Rig Polk Audio LSi9 Cherry| Carver C-1BillD Mod|Carver M1.0t MkII Opt2|Pro-ject RM 1.3|SpeedBox S|AQ King Cobras|AQ Rocket88|
    ISF Level 2 Certified Calibrator
    · Share on FacebookShare on Twitter
