Fuse for Peerless Tweeters

Options
motorcityguy
motorcityguy Posts: 69
in Vintage Speakers
Does anyone know why the specified fuse for Monitor 7's and 10's with Peerless tweeter is 1A, but for the first-gen Monitor 11 the spec is 0.75A?
· Share on Facebook

Comments

  • pitdogg2
    pitdogg2 Posts: 27,779
    Options
    It is the same for all 1amp fast blow.
    · Share on Facebook
  • motorcityguy
    motorcityguy Posts: 69
    Options
    pitdogg2 wrote: »
    It is the same for all 1amp fast blow.

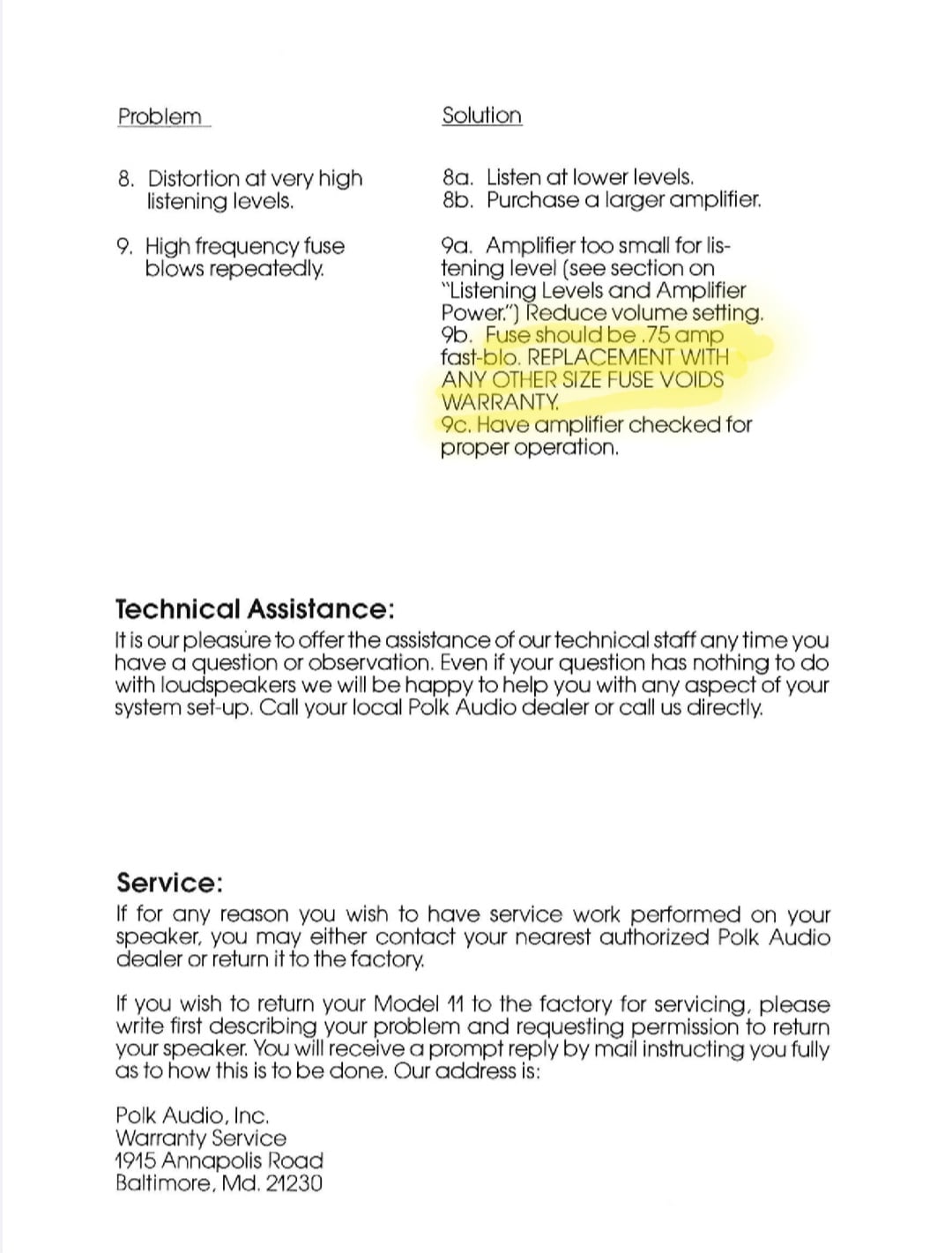

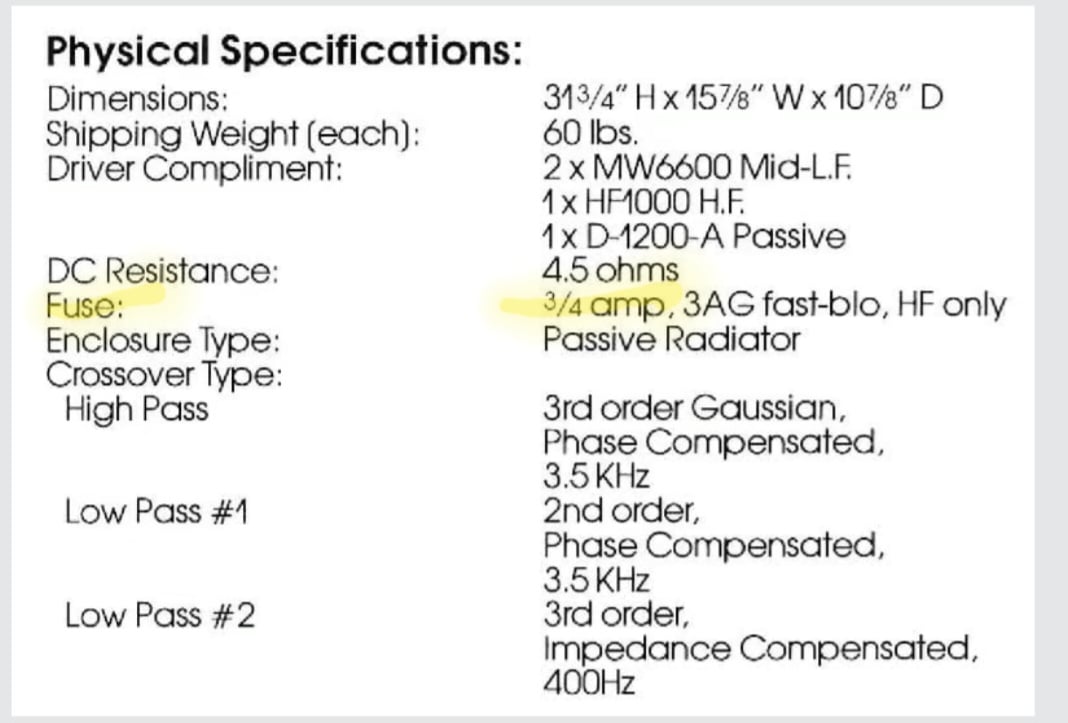

    But, according to Polk Monitor 11 owner's manual, "correct" fuse for THIS model is 0.75A, not 1A. In fact, Polk is rather adamant about it. (See screen shots from owner's manual.)

    I admit it is puzzling to me, since the Peerless tweeter is identical to Monitor 10 & 7, in which 1A fuse is specified.



    · Share on Facebook
  • Gardenstater
    Gardenstater Posts: 4,887
    Options
    Yeah I remember puzzling about that myself. The Peerless are the usual 8 ohm ones right? I mean they made 4 ohm ones as well.
    George / NJ

    Polk 7B main speakers, std. mods+ (1979, orig owner)
    Martin Logan Dynamo sub w/6ft 14awg Power Cord
    Onkyo A-8017 integrated
    Logitech Squeezebox Touch Streamer w/EDO applet
    iFi nano iDSD DAC
    iPurifier3
    iDefender w/ iPower PS
    Custom Steve Wilson 1m UPOCC Interconnect
    iFi Mercury 0.5m OFHC continuous cast copper USB cable
    Custom Ribbon Speaker Cables, 5ft long, 4N Copper, 14awg, ultra low inductance
    Custom Vibration Isolation Speaker Stands and Sub Platform
    · Share on Facebook
  • motorcityguy
    motorcityguy Posts: 69
    Options
    Gardenstater wrote: »
    The Peerless are the usual 8 ohm ones right?

    Correct. They are (nominal) 8ohm Peerless.
    · Share on Facebook
  • pitdogg2
    pitdogg2 Posts: 27,779
    edited August 27
    Options
    Well, use the .75 amp fast blo. All the 7's or 10's have been 1 amp fast blo as well as my SDA 1 signatures.
    If you do a search here, you'll find most cases suggest 1 amp fast blo.

    https://forum.polkaudio.com/discussion/166860/fuses-on-vintage-speakers?utm_source=community-search&utm_medium=organic-search&utm_term=speaker+fuse
    · Share on Facebook
  • motorcityguy
    motorcityguy Posts: 69
    edited August 27
    Options
    pitdogg2 wrote: »
    Well, use the .75 amp fast blo. All the 7's or 10's have been 1 amp fast blo as well as my SDA 1 signatures.

    Yessir! That's the plan. But I was curious about the reasoning behind Polk's deviation from their usual 1A fuse. Not that everything Polk ever did makes sense.... But just thought there might be a technical reason that I was unaware of.
    · Share on Facebook
  • pitdogg2
    pitdogg2 Posts: 27,779
    Options
    It is kind of strange, it's not like they were different peerless tweeters. The SL1000 also used the 1 amp fast blo.
