Need a speakon connector that can accommodate 13.5mm speaker cable housing.
invalid
Posts: 1,519
I have the discontinued NL2FX speakon connectors, I bought a new furutech cable for my sda2a speakers but the blue retention collar doesn't fit over the cable housing. Is there a larger one, and are the newer versions any better, as the ones I have don't seem to have a very robust connection to the conductors.
Comments
-
Do you have pictures of your issue- Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
-
I'll take some pictures later today.
-

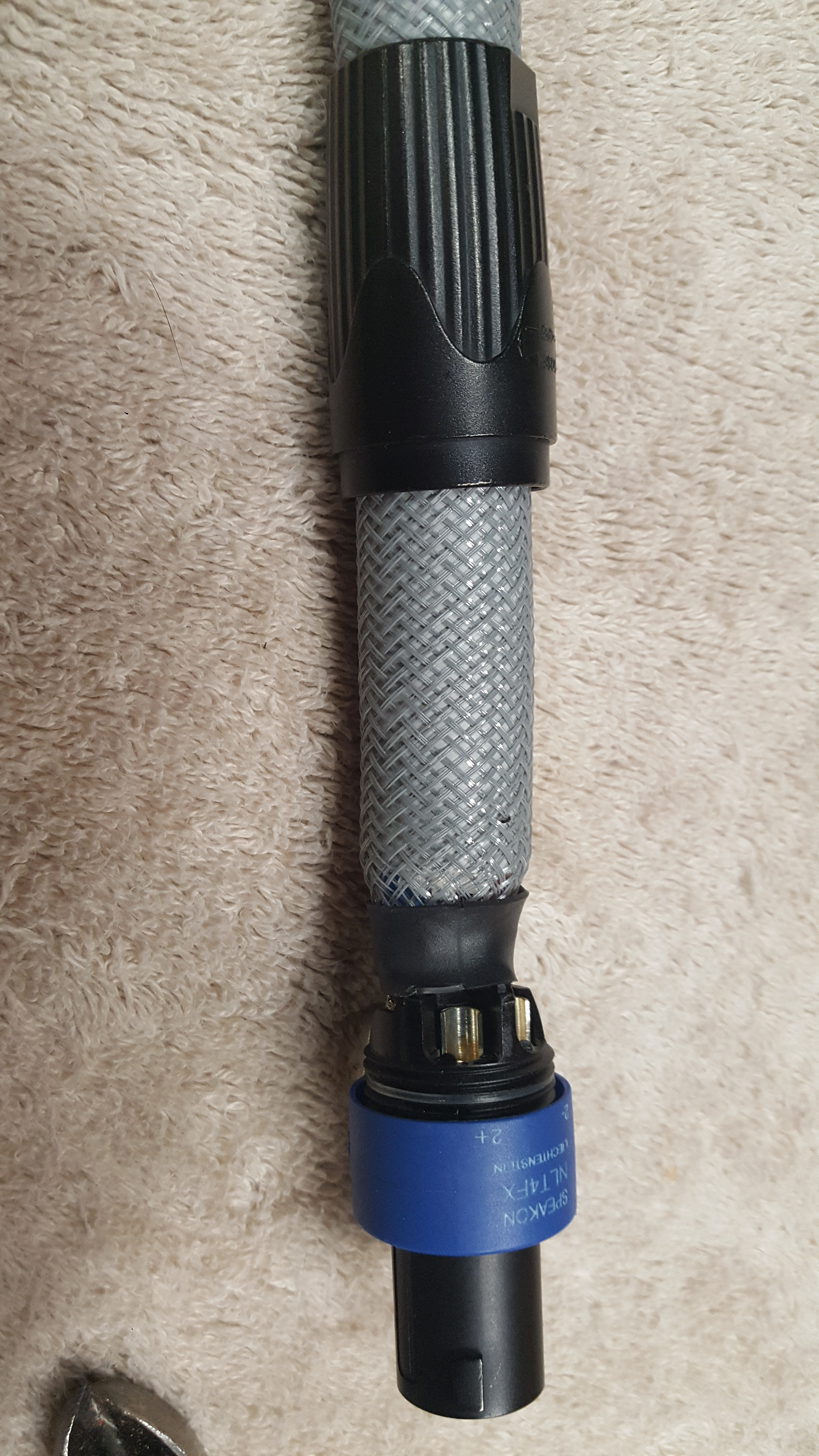

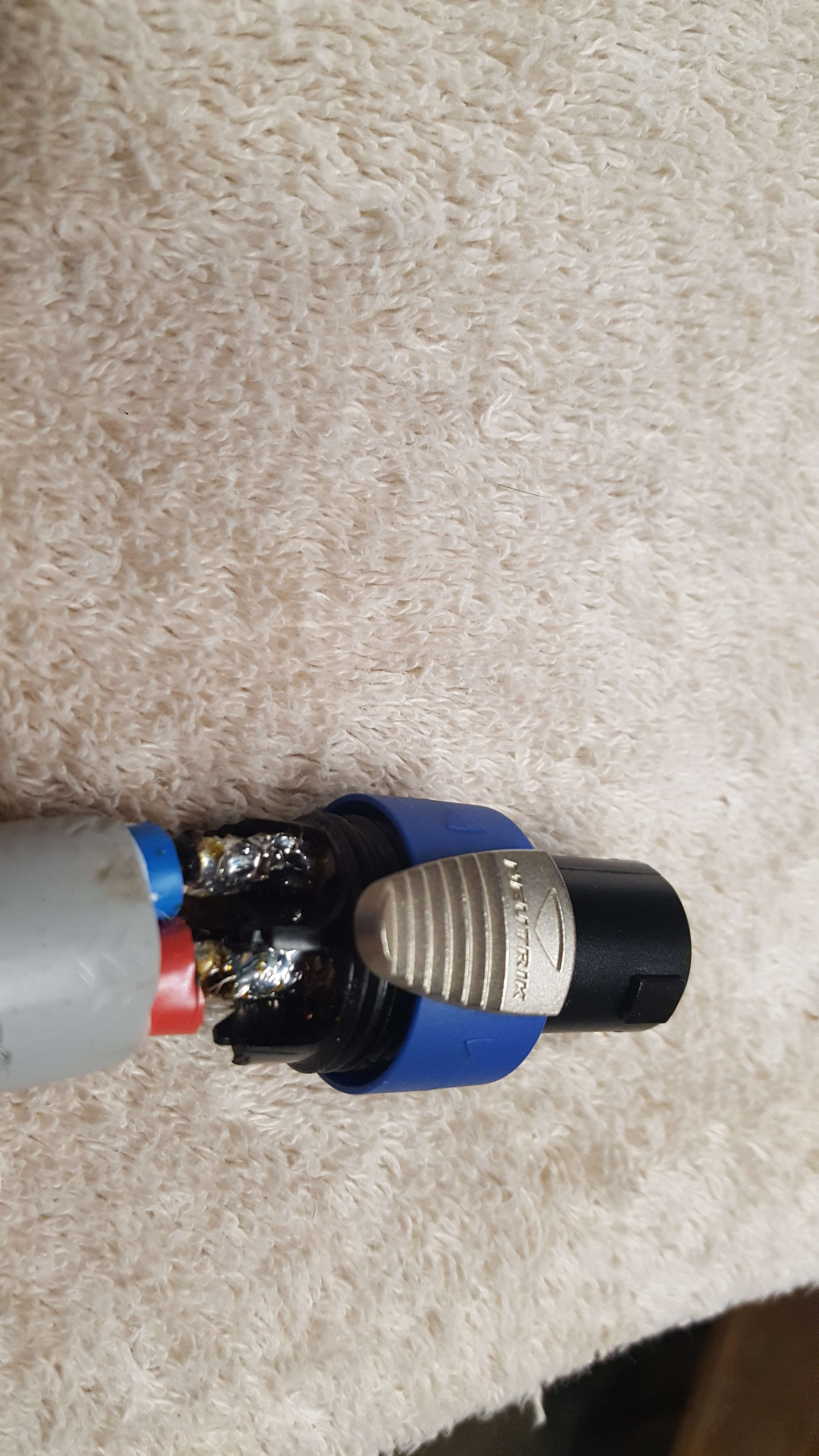

The blue collar is the problem, it doesn't fit over the cable housing, the other picture is the conductor termination that doesn't look like much.
-

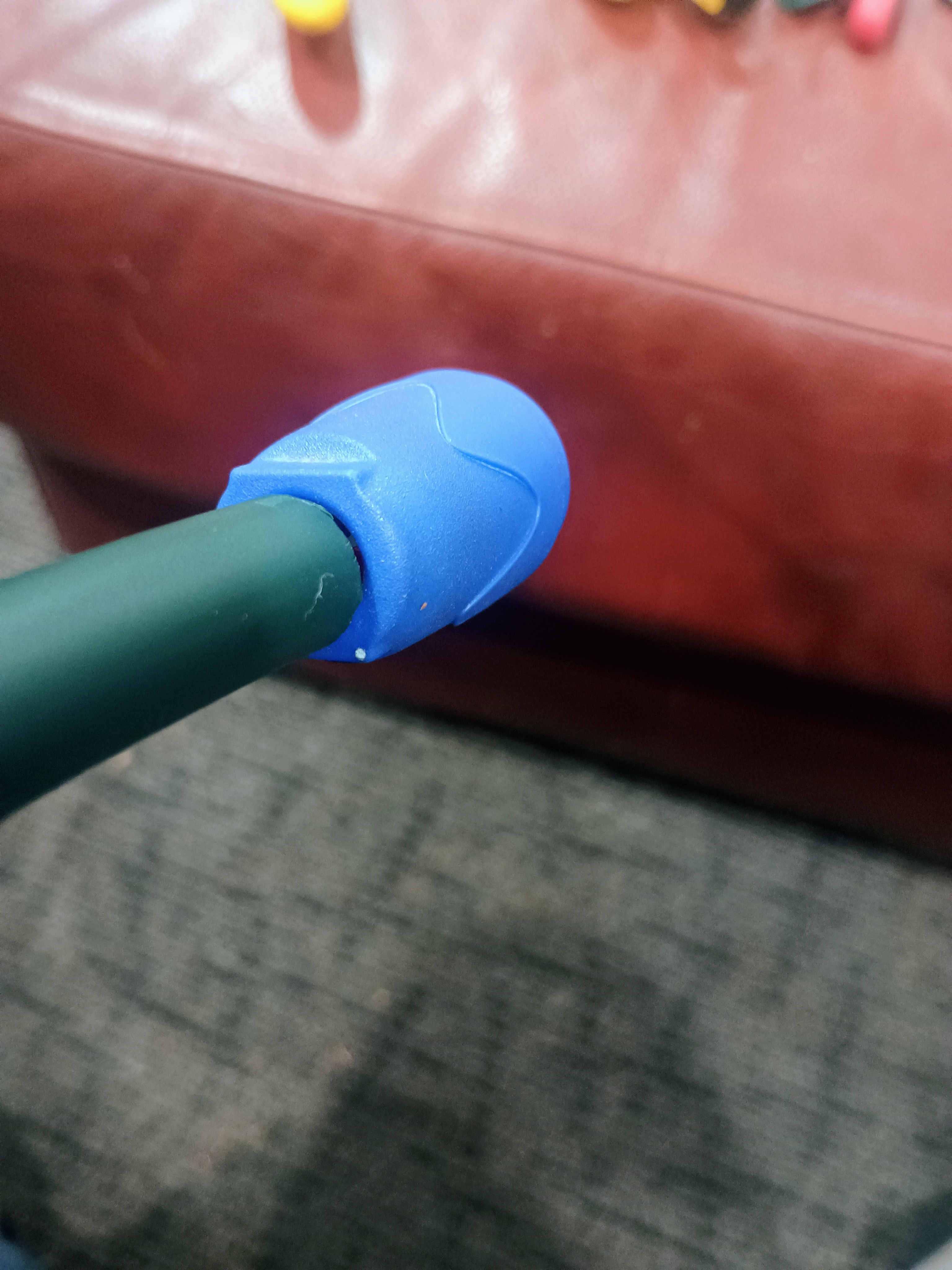

I recommend removing the outer jacket and going to heat shrink and a collar[, you can see in this photo.

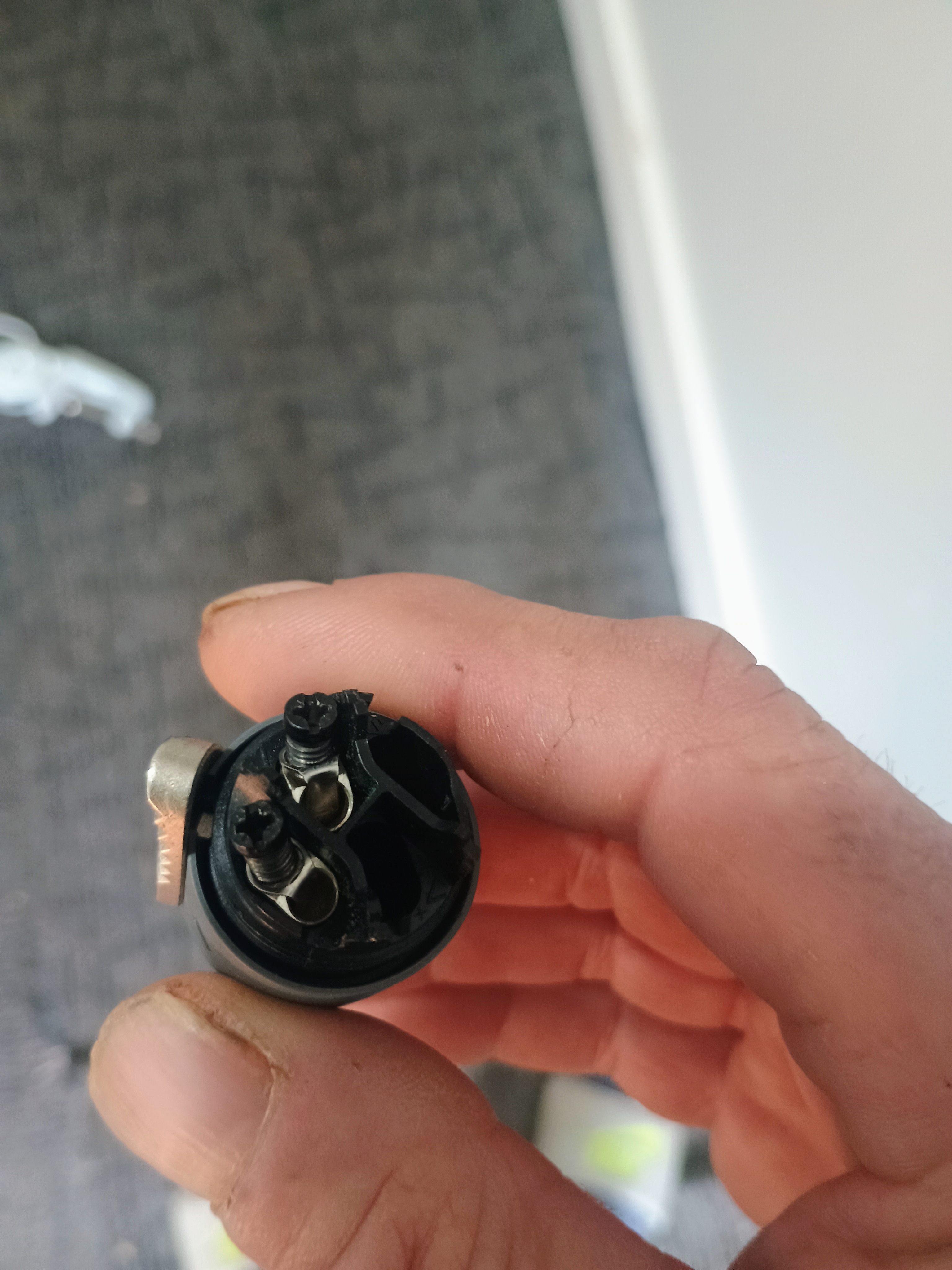

I've never had any issues with the set screws not grabbing the wire. Very secure
- Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit. -

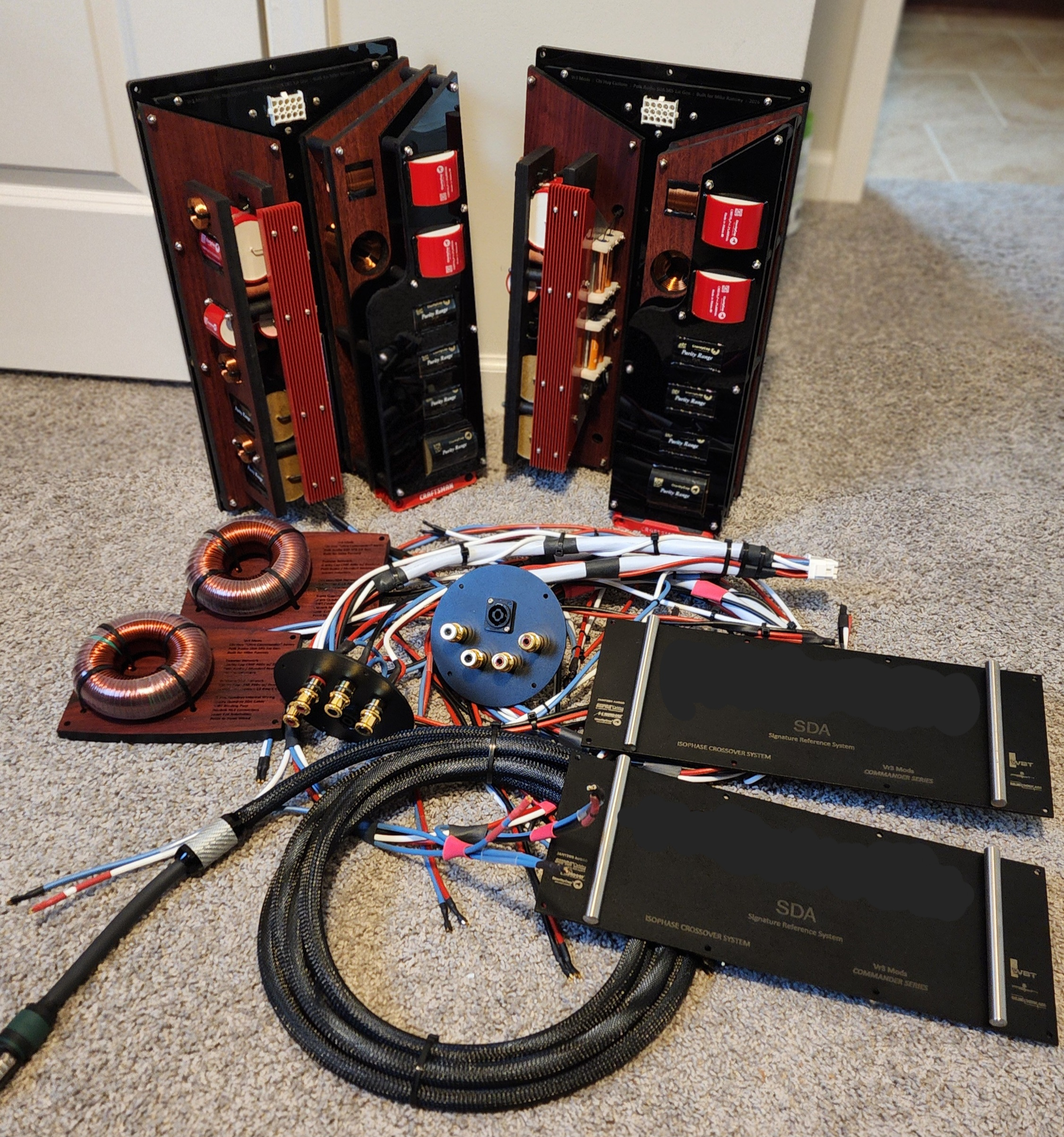

Whatever kind VR3 used on my SDA's are pretty impressive.
Edit: That picture is not my SDA crossovers for the record! -
Yeah the new neutrik connectors with the green barrels are a huge improvement over the old blue ones.- Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
-
Use the best one. It takes up to a 16mm cable as is. With a little custom work one can fit almost double that.
https://www.neutrik.com/en/product/nlt4fxx-bagPolitical Correctness'.........defined
"A doctrine fostered by a delusional, illogical minority and rabidly promoted by an unscrupulous mainstream media, which holds forth the proposition that it is entirely possible to pick up a t-u-r-d by the clean end."
President of Club Polk -
Use the best one. It takes up to a 16mm cable as is. With a little custom work one can fit almost double that.
https://www.neutrik.com/en/product/nlt4fxx-bag
That will work, looks like it's way better constructed than the NL2FX I have. -
I was a bit off with my, "almost double" comment, but its been a long time since I did one. That connector will take up to a 22mm OD cable with a little modification.
Political Correctness'.........defined
"A doctrine fostered by a delusional, illogical minority and rabidly promoted by an unscrupulous mainstream media, which holds forth the proposition that it is entirely possible to pick up a t-u-r-d by the clean end."
President of Club Polk -
The nl2 is a smaller connector since it's meant for 2 conductors- Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
-
Yep this is the one I used as well.NLT4FXX-BAG -
The nl2 is a smaller connector since it's meant for 2 conductors
I only have 2 conductors, I guess that Neutrik didn't figure for this higher end cable. -
Can you drill out the end to accommodate the larger diameter?
-
Can you drill out the end to accommodate the larger diameter?
I thought about doing that, but I just ordered the newer bigger better ones instead.
