Micro sdw 3000 transistor name
zari
Posts: 5
Hello
I need the name of Q8 transistor on psw boards ,transistor blown and half of number missing .attached pic
I need the name of Q8 transistor on psw boards ,transistor blown and half of number missing .attached pic
Answers
-
That Chinese "yellow glue" is said to turn brown and to become conductive. Not good.
Check your photos again. The first photo, you circled a capacitor instead of the place where something (Q8?) blew up in the 2nd photo.
On that vertical board it looks like some of the yellow glue has turned brown. That's a suspicious spot.George / NJ
Polk 7B main speakers, std. mods+ (1979, orig owner)
Martin Logan Dynamo sub w/6ft 14awg Power Cord
Onkyo A-8017 integrated
Logitech Squeezebox Touch Streamer w/EDO applet
iFi nano iDSD DAC
iPurifier3
iDefender w/ iPower PS
Custom Steve Wilson 1m UPOCC Interconnect
iFi Mercury 0.5m OFHC continuous cast copper USB cable
Custom Ribbon Speaker Cables, 5ft long, 4N Copper, 14awg, ultra low inductance
Custom Vibration Isolation Speaker Stands and Sub Platform -
Agree.On that vertical board it looks like some of the yellow glue has turned brown. That's
Once again, I agree. I see no transistor in the photo.Check your photos again. The first photo, you circled a capacitor instead of the place where something (Q8?) blew up in the 2nd photo.
-
Hello

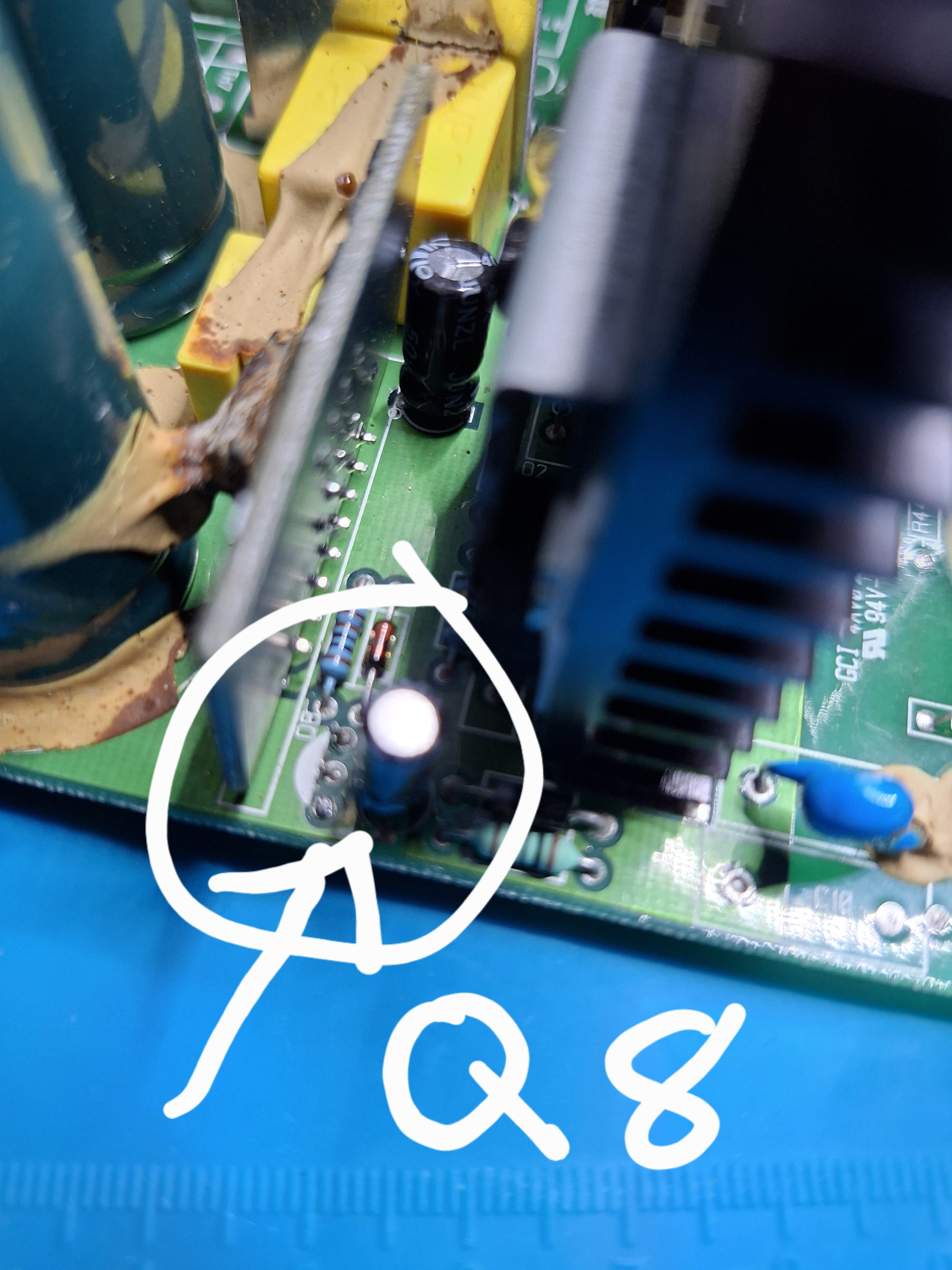

Yes I did take off the transistor but for sure it's called Q8 and is seat near the mentioned capacitor (circle around) -
Hello
Yes I did take off the transistor but for sure it's called Q8 and is seat near the mentioned capacitor (circle around)
Ahh ok I see now. You clipped the leads rather than desoldered.

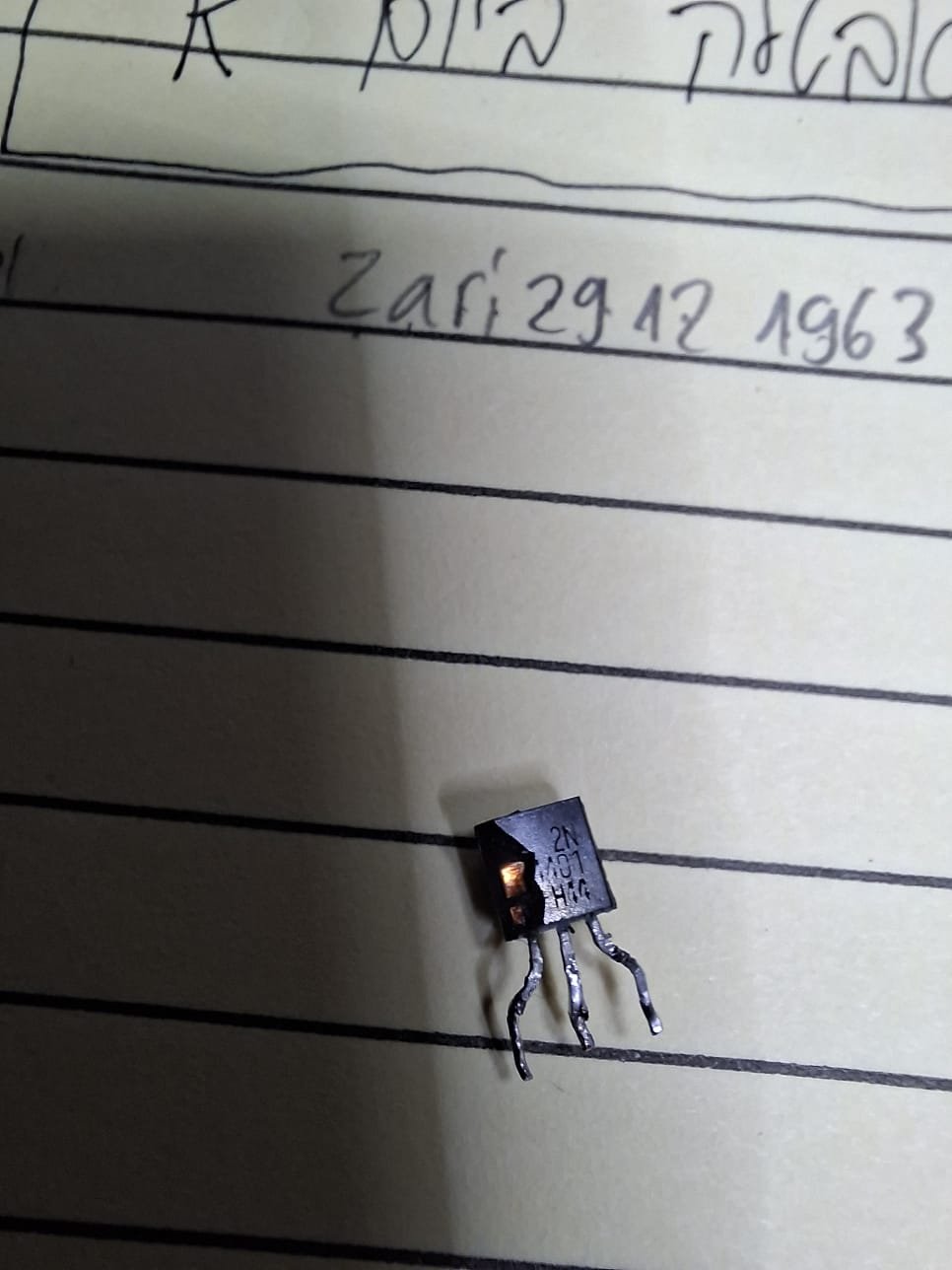

I know you say it is unreadable but could you post pictures of the transistor?
What is the model # of the Polk subwoofer, ie. PSW3000? Maybe they have the schematic or can tell you the transistor part # @SeleniumFalconGeorge / NJ
Polk 7B main speakers, std. mods+ (1979, orig owner)
Martin Logan Dynamo sub w/6ft 14awg Power Cord
Onkyo A-8017 integrated
Logitech Squeezebox Touch Streamer w/EDO applet
iFi nano iDSD DAC
iPurifier3
iDefender w/ iPower PS
Custom Steve Wilson 1m UPOCC Interconnect
iFi Mercury 0.5m OFHC continuous cast copper USB cable
Custom Ribbon Speaker Cables, 5ft long, 4N Copper, 14awg, ultra low inductance
Custom Vibration Isolation Speaker Stands and Sub Platform -
Let me contact Polk for a schematic.
-
By any chance are you trying to say DSW MicroPro 3000 (not micro sdw 3000) ?
Looks like there may have been a general schematic available but will that specify what the component specs are is the next question:
https://forum.polkaudio.com/discussion/198578/anyone-has-a-schematic-or-service-manual-for-any-dsw-micropro-subs/p2George / NJ
Polk 7B main speakers, std. mods+ (1979, orig owner)
Martin Logan Dynamo sub w/6ft 14awg Power Cord
Onkyo A-8017 integrated
Logitech Squeezebox Touch Streamer w/EDO applet
iFi nano iDSD DAC
iPurifier3
iDefender w/ iPower PS
Custom Steve Wilson 1m UPOCC Interconnect
iFi Mercury 0.5m OFHC continuous cast copper USB cable
Custom Ribbon Speaker Cables, 5ft long, 4N Copper, 14awg, ultra low inductance
Custom Vibration Isolation Speaker Stands and Sub Platform -
I have sent the schematic for the DSW series amplifiers, however there isn't a Q8.
-
Wonder what he clipped off that sucker
-
hello

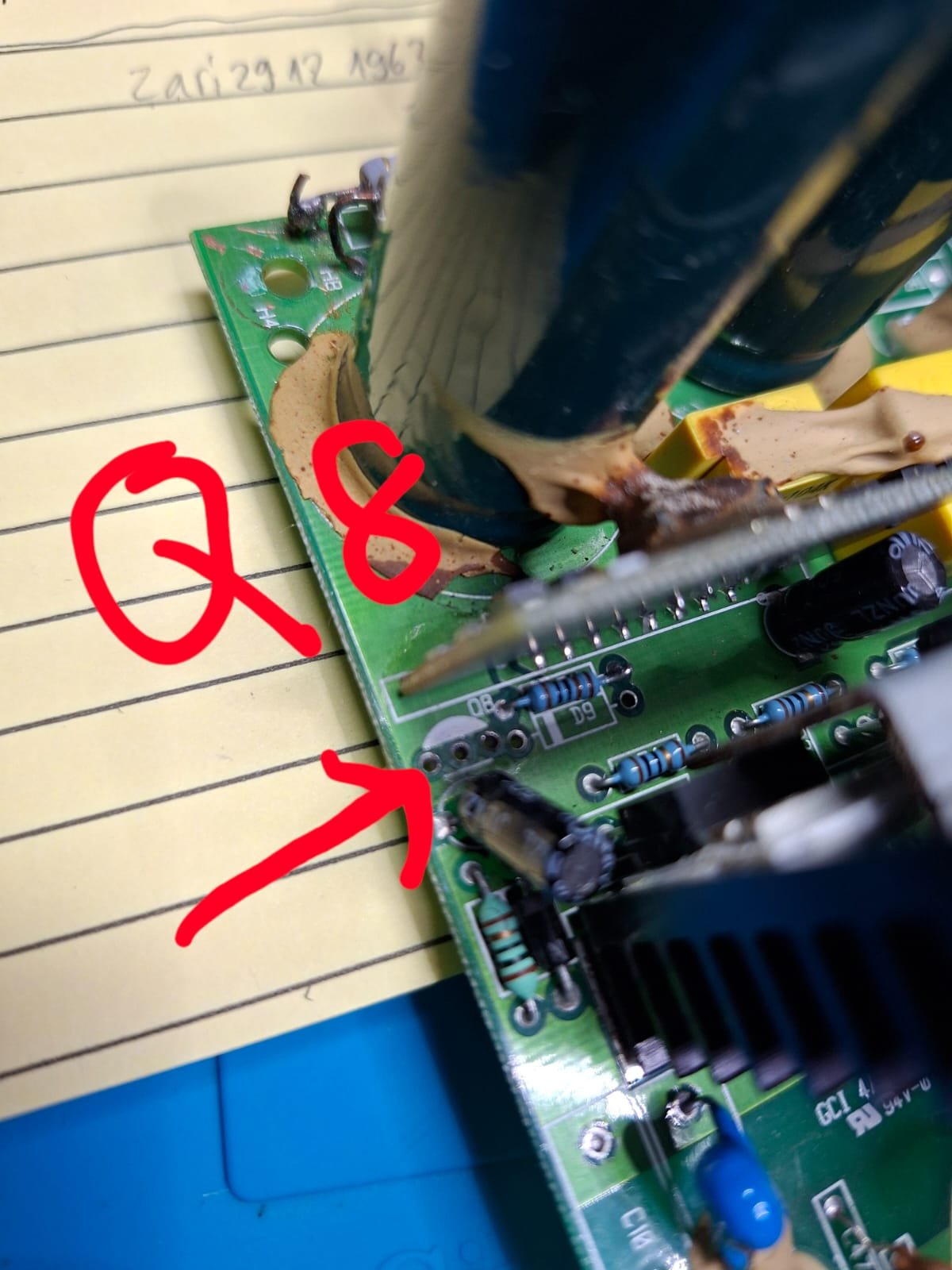

attc closer pic
-

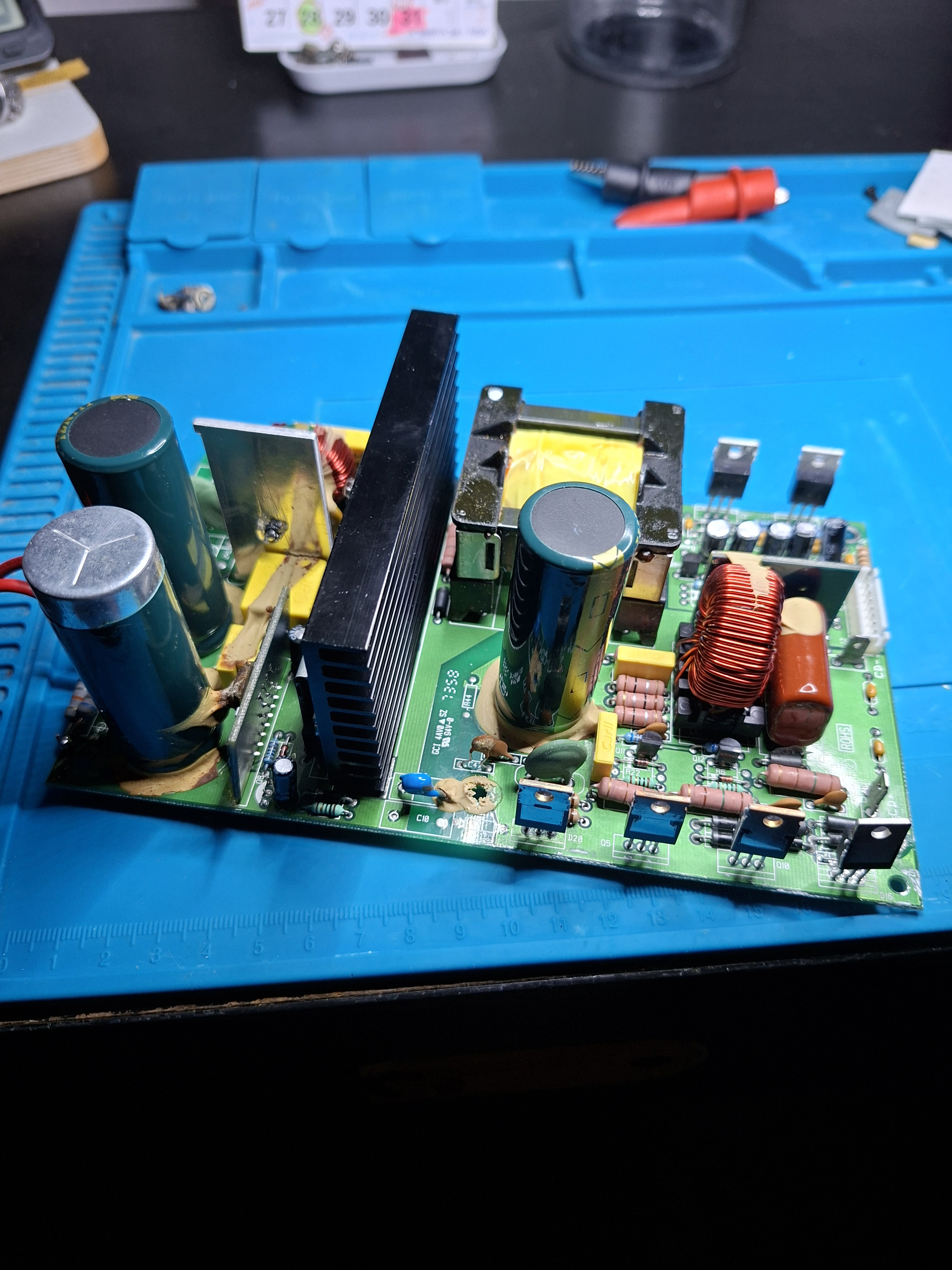

next pic blowen component
-

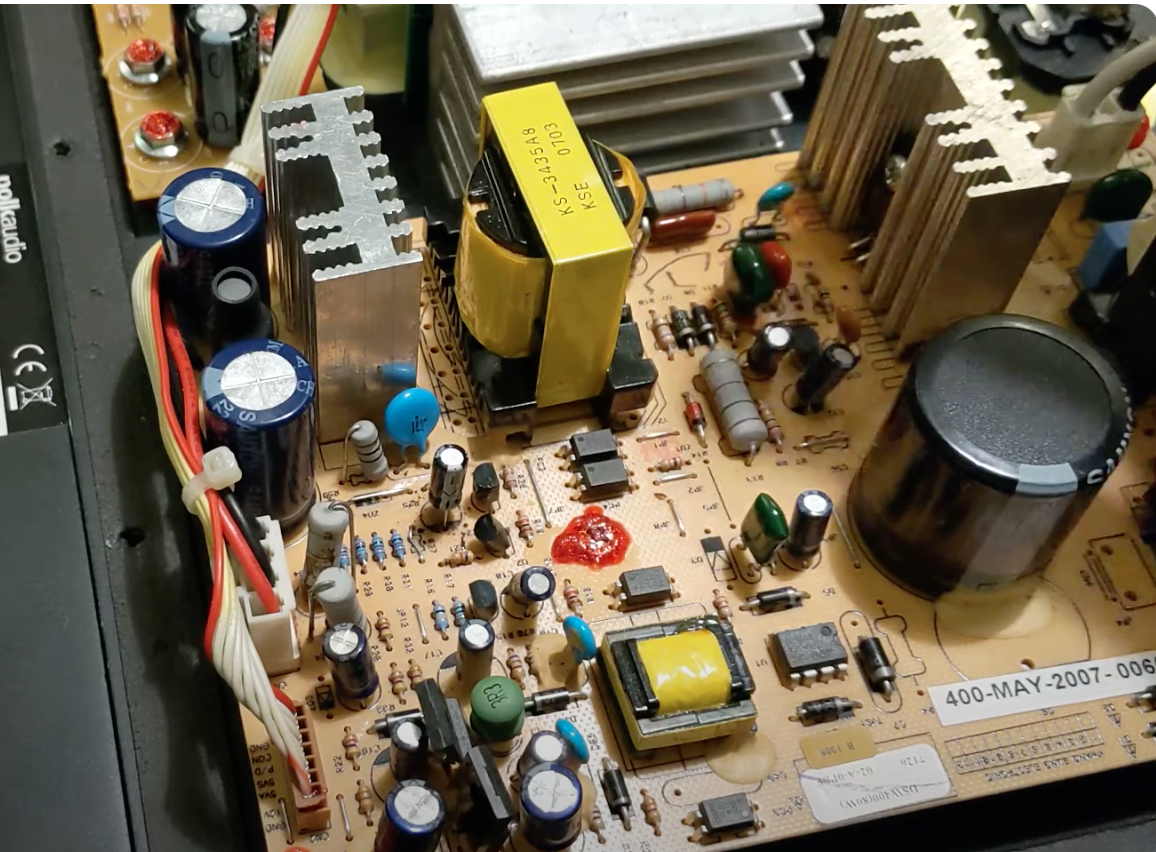

Are you sure that is from a DSW MicroPRO 3000 subwoofer? This is a photo of a DSW MicroPRO 3000:
-
yes I'm sure
-
Post edited by F1nut onPolitical Correctness'.........defined
"A doctrine fostered by a delusional, illogical minority and rabidly promoted by an unscrupulous mainstream media, which holds forth the proposition that it is entirely possible to pick up a t-u-r-d by the clean end."
President of Club Polk -
Looks familiar...
Political Correctness'.........defined
"A doctrine fostered by a delusional, illogical minority and rabidly promoted by an unscrupulous mainstream media, which holds forth the proposition that it is entirely possible to pick up a t-u-r-d by the clean end."
President of Club Polk -

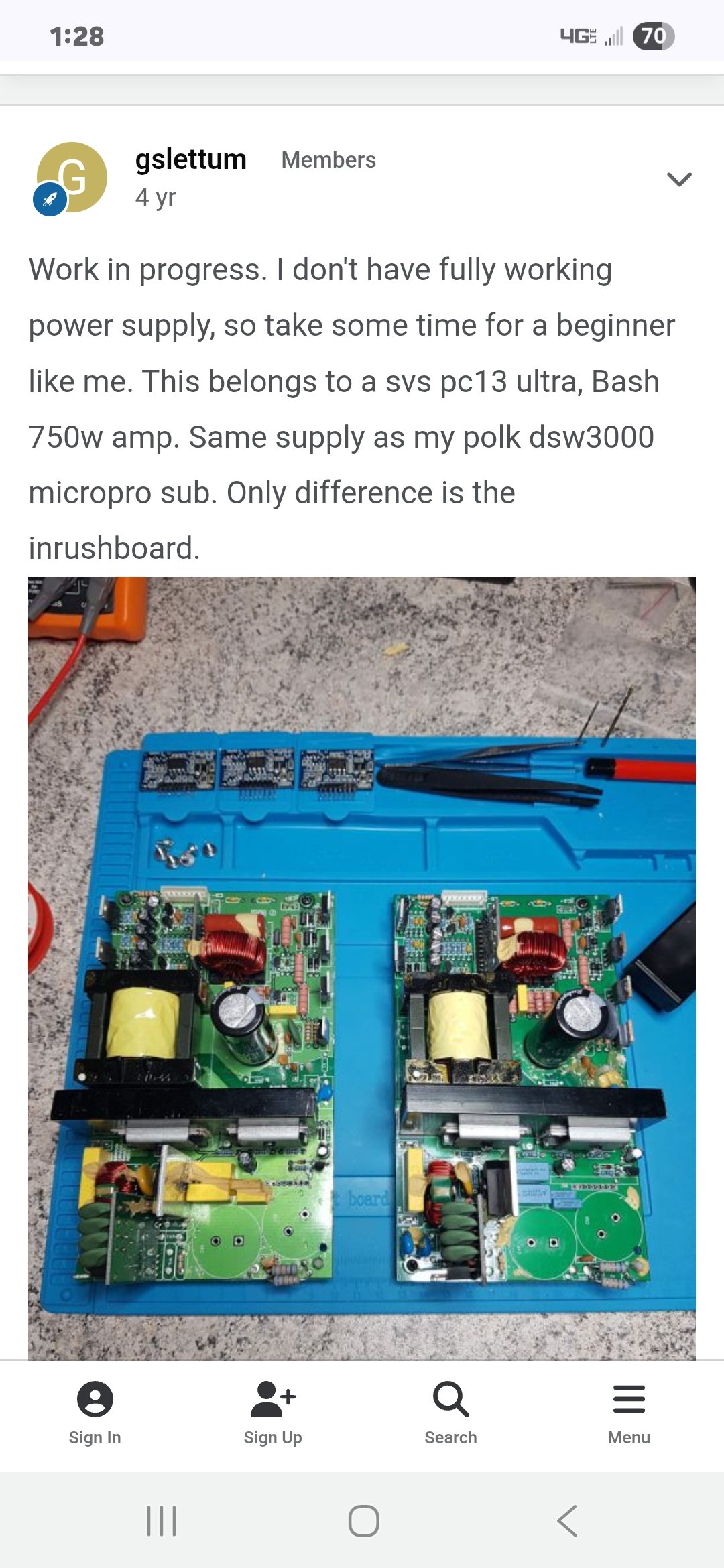

I don't know if this applies to your board but:
On board Indigo 640047
D9 - 1N5253B Diode Zener Single 25V 5% 500mW 2-Pin DO-35
Q8 - Transistor is a 2n4401
Resistor next to diode 1 k ohm
https://audiokarma.org/forums/index.php?threads/svs-pb13ultra-bash-amp-picture-needed.806097/George / NJ
