Acoustic panels

joecoulsonjoecoulson Posts: 3,585
edited June 10 in DIY, Mods & Tweaks
Have any of you made simple acoustic panels from wood frames, sponge or insulation guts and fabric outer? Thoughts on their performance vs professionally made?
Thanks all.
Auralic Vega G1/Rega TT/Denon SACD - Parasound P6 - PS Audio M700x2 - Elac Adante AF-61

Comments

  • skrolskrol Posts: 2,824
    I made some for my son's studio. Use Rockwool for sound absorption. For covering, we just got some course weave material from the local fabric store. They work very well. Sometimes I borrow them to put on the walls beside my LSi15's and I'm amazed how the sound stage opens up.
    Stan

    Main 2ch:
    Polk LSi15 (DB840 upgrade), Parasound: P/LD-1100, HCA-1000A; Denon: DVD-2910, DRM-800A; Monster HTS3600-MKII, Grado SR-225i; Technics SL-J2, Parasound PPH-100.

    HT:
    Marantz SR7010, Polk: RTA11TL (RDO198-1, XO and Damping Upgrades), S4, CS250, PSW10 (DXi104 upgrade), Marantz UD5005, Pioneer PL-530, Panasonic TC-P42S60

    Other stuff:
    Denon: DRA-835R, AVR-888, DCD-660, DRM-700A, DRR-780; Polk: S8, Monitor 5A, 5B, TSi100, RM7; Pioneer: CT-6R; Onkyo CP-1046F; Ortofon OM5E, Marantz: PM5004, CD5004, CDR-615; Parasound C/PT-600, HCA-800ii, Sony CDP-650ESD, Technics SA 5070, B&W DM601
  • motorstereomotorstereo Posts: 1,322
    I've made several. They work very well and aren't eyesores like traditional wall treatments which I ended up taking down in favor of them. I used 2'' square wood for the frame the size of the beach or bath towel I was using and used foam acoustic panels cut to size underneath.
  • F1nutF1nut Posts: 42,948
    I bought mine from, https://www.soundproofcow.com/product-category/acoustic-panels/fabric-wrapped-acoustic-panels/

    It was the easiest way for me. They look nice and work well.
    Political Correctness'.........defined

    "A doctrine fostered by a delusional, illogical minority and rabidly promoted by an unscrupulous mainstream media, which holds forth the proposition that it is entirely possible to pick up a t-u-r-d by the clean end."


    President of Club Polk

  • hochpt21hochpt21 Posts: 5,185
    If you search the title of your thread in the forum you’ll find a number of member threads on DIY and professional treatments. You can even see mine from 2013 when I made some ‘portable’ ones.

    I have been very happy with my DIY panels.
    __________________________________________________
    2 Channel
    Turntable - VPI Scout 1.1/Ortofon 2M Blue
    Amplification - Parks Audio Budgie, Dared SL2000a, McCormack DNA 0.5 Deluxe
    Speakers - GoldenEar Triton 2
    __________________________________________________
    7.1 Home Theater
    Denon AVR-X3300W; Rotel RMB-1066; Polk CS350ls, LS90's, FXi3's, RC60i; SVS PC Ultra; BenQ HT2050; Elite Screens 120"
    __________________________________________________
    Man Cave
    Turntable - Pro-Ject 2.9 Wood/Grado Gold
    Integrated Amplifier - Rogue Audio Cronus Magnum II
    CD: Cambridge Audio
    Speakers - SDA 2A; Epos Epic 2
    __________________________________________________
  • SCompRacerSCompRacer Posts: 7,190
    edited June 11
    You have access to nice WAF fabrics so DIY can look great and match your decor. I just went with GIK myself. If you want art panels, you can upload a pic of yours or choose from many they offer.

    I had recovered some GIK panels that had the base burlap type covering with Guilford of Maine acoustic fabric. Wife liked Silver Papier. I ordered GIK bass traps to match.

    This is one source for GIK fabric.

    https://acousticalwallfabric.com/guilford-fr701/acoustical-wall-fabric/acoustic-panels/guilford-of-maine/fabric/fr701-fabric-2/acoustic-fabrics/sound-absorbing-fabrics/acoustically-transparent-fabric/acoustic-insulation-materials/
    Make yourself necessary to someone. Ralph Waldo Emerson

    Salk SoundScape 8's * Audio Research Reference 3 * Bottlehead Eros Phono * Park's Audio Budgie SUT * Krell KSA-250 * Harmonic Technology Pro 9+ & Pro 11+ * Signature Series Sonore Music Server w/Deux PS* Twisted Pear Buffalo III Dual Mono ESS Sabre32 DAC * Heavy Plinth Lenco L75 Idler Drive * AA MG-1 Linear Air Bearing Arm * AT33PTG/II & Denon 103R * Richard Gray 600S * NHT B-12d subs * GIK Acoustic Treatments * Sennheiser HD650 *

  • joecoulsonjoecoulson Posts: 3,585
    Great info fellas, and the pics help tremendously
    Thank You
    Auralic Vega G1/Rega TT/Denon SACD - Parasound P6 - PS Audio M700x2 - Elac Adante AF-61
  • HermitismHermitism Posts: 2,576
    If you are interested in DIY... At the time I built mine, this was the cheapest place I could find to order OC703. It's the shipping cost that gets you. Not sure if they are still the cheapest, I haven't price checked in a long time.

    https://www.buyinsulationproductstore.com/

    They also carry Guilford of Maine (acoustic transparent) fabric that comes in wider widths than most other fabrics. But I went the cheaper route and used fabric from Joann Fabrics. They have a coupon page:

    https://www.joann.com/coupon/

    You want breathable fabric (loose weave). Tight, none breathable fabric can, in theory, reflect highs instead of absorb them. A none-issue for bass traps. For best absorption you want an air gap between the insulation and wall.

    Also keep an eye out on Craigslist. I purchased six 2" thick panels already built on CL and disassembled them to make 4" panels. Then later found two leftover full boxes from a project, of 4" thick OC703 from ATS that I bought for dirt cheap on CL.
    2.0/3.0 - Marantz: PM8005 w/HT Bypass, NA8005 | Polk: LSiM703, LSiM706c | PS Audio: Duet, Power Port Classic, PerfectWave AC5 x3 PC | Wireworld Equinox 7 IC | AudioPrism Quietline MkIII x7 | Sanus UF30 | Acoustic Panels, GIK Soffit Traps

    6.1 - Pioneer Elite SC-05 | Pio BDP-51FD | Polk: RTi8, CSi5, F/Xi3, CSi3 | HSU Research VTF-2 MK4 | PS Audio: Quintet, Power Port Classic | DCF124BW x3 SC | Pangea: AC-9SE x2, 14SE, 14 PC | AQ Chocolate x2 HDMI | M850SW | Acoustic Panels, GIK Soffit Traps
  • HermitismHermitism Posts: 2,576
    I can't remember who posted this, to give them credit.

    http://www.bobgolds.com/AbsorptionCoefficients.htm
    2.0/3.0 - Marantz: PM8005 w/HT Bypass, NA8005 | Polk: LSiM703, LSiM706c | PS Audio: Duet, Power Port Classic, PerfectWave AC5 x3 PC | Wireworld Equinox 7 IC | AudioPrism Quietline MkIII x7 | Sanus UF30 | Acoustic Panels, GIK Soffit Traps

    6.1 - Pioneer Elite SC-05 | Pio BDP-51FD | Polk: RTi8, CSi5, F/Xi3, CSi3 | HSU Research VTF-2 MK4 | PS Audio: Quintet, Power Port Classic | DCF124BW x3 SC | Pangea: AC-9SE x2, 14SE, 14 PC | AQ Chocolate x2 HDMI | M850SW | Acoustic Panels, GIK Soffit Traps
  • Mikey081057Mikey081057 Posts: 6,633
    My New Year's resolution is 3840 × 2160

    HT:Polk LSiM 706 LSiM 705's VR3 LSiM 703's LSiM 702's| Marantz AV7704 | Sunfire TGA-7401 | Oppo UDP 203 | Sony PS4 Pro| Directv Genie HD DVR | Samsung 75" Q8 QLED | SVS PB13 Ultra | MIT EXP 2's (Fronts & Center)

    ManCave: Parasound Halo A21 | Parsound Halo A52+ | Marantz AV7002 AV PrePro | Usher Dancer Mini-x DMD's | Usher BE-616 Center | SVS Ultra Surrounds | SVS SB4000 Sub | SVS SB2000 Sub | Oppo UDP 203 | MIT Shotgun S3's | PSAudio Stellar GCD | Music Hall MMF 5.3se TT w/ Soundsmith Carmen | Mytek Brooklyn DAC+ | Lumin U1 Mini | HP Elite Slice PC | ROON'd for life | Samsung 50" SUHD TV | Sony PS4

    Patio | Polk Atrium 8's | Yamaha R-N303BL |

    Office |Cocktail Audio X14 | KEF LS50 | Peactree Nova 125SE |

    Bedroom | Focal 905's | Chromecast Audio |

    Garage | Polk Monitor 5B's

    Closet Yamaha M80 | 2 Polk MP3K subs| Yaqin MC100B with Shuguang Treasures KT 88's & CV181Z's | Tesla E83CC's | Marantz 2252B | Marantz 2385 | Bluesound Node |Polk SDA SRS 2.3 |
  • audioluvraudioluvr Posts: 1,379
    I want to do this but haven't figured out how to follow the Western motif of my living room yet.
    Home System:
    SDA 1C's - Full mod with the help by Dave...
    1000 Va Dreadnought- w/ WireWorld Mini-Eclipse cables
    WireWorld Mini-Eclipse 7 speaker cables
    WireWorld Silver Eclipse IC's
    Cambridge Audio Azur 851N - DAC/Streamer
    B&K Reference 50 Pre/Pro
    B&K M200 Sonata Monoblocks
    BLE-Design 16mm Power Cables
    Denon DVD 2900

    Barn system:
    SDA SRS 2.3's Full mod done by myself
    Carver C-1 pre
    Carver M1.5t
    BluDenso - Bluetooth receiver/DAC
  • CH46ECH46E Posts: 1,243
    edited June 28
    I traded my SRS 2 for a complete acoustic treatment for my small humble room. Guy came up from Miami did several messument with some mic's and a PC. Placed 9 Owens Corning 1 inch glass fiber and two bass traps. I added 4 more corner bass traps later.

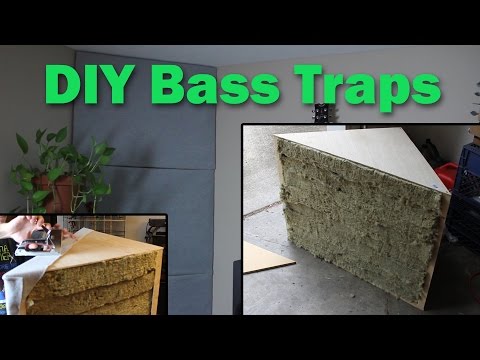

    Before I made this deal I was going to go with Roxul. Here is one of the videos I liked for the DIY.



    You can use the same stuff for some acoustic panels.
  • VR3VR3 Posts: 23,476
    edited June 28
    I purchased 4 * 24x48x2 panels from acoustimac... Only 250 shipped with the executive cloth and cornings insulation

    They are not as nicely built as GIK but just as effective. I am pleased with the results. I store mine when not using the 2 channel rig.
    - Not Tom

    Vr3Mods.com ///// Version3Audio.com

    "No, that's silly talk. Dude, you can't possibly be this audio dumb so quit the act." - Doro
  • DSkipDSkip Posts: 16,209
    I'm still an NBP dealer but personally I've fallen out of love with the wall approach. It has its merits but the mobile treatments are more where I lean to now. The tuning abilities they allow for are impossible to beat.

    Also, don't stick strictly to absorption. Diffraction is a powerful tool too - just as powerful as absorption and twice as good when used together properly.

    You know those crystals and doodads people put on the wall? The reason they do anything for your system is they introduce new resonances into the air. They are quite elementary if you think about it and not the voodoo so many people claim them to be. How much they actually impact the sound depends on how strong the resonances are. Keep this in mind if you add something to the room.
  • machonemachone Posts: 1,134
    Just added an 8x10 wool rug to my seating area (Hand me down from the wife). I ageed to this grudgingly as I knew it would make the room too dead.
    Wrong!
    Once again in this hobby don't knock it to you try it.
    Mojo Audio Illuminati v3>>Quantum Byte w/LMS>>Rpi/PiCoreplayer>> Starlight 7 USB >> Mojo Audio Mystique v2 SE>>ModWright SWL 9.0 SE Signature>>Hafler DH-500 Amp+ (Musical Concepts Fully Modded)>>
    SRS 2.3TL (Fully Modded)...SDA-1A (Fully Modded with Dimensional Tweeter Delete)
    1KVA Dreadnought
    Marantz SA 8005
    Pioneer PLX-1000 Turntable - Shure SC35C/N35X - V15III/VN35HE
    Yamaha TX-540 Tuner...Sony BDP-S570
    Sony PS4

    Separate subpanel with four dedicated 20 amp circuits.
    1. Amplification 2. Analog 3. Digital 4. Video

    "All THAT IS LOST FROM THE SOURCE IS LOST FOREVER"
  • verbverb Posts: 7,989
    DSkip wrote: »
    I'm still an NBP dealer but personally I've fallen out of love with the wall approach. It has its merits but the mobile treatments are more where I lean to now. The tuning abilities they allow for are impossible to beat.

    Also, don't stick strictly to absorption. Diffraction is a powerful tool too - just as powerful as absorption and twice as good when used together properly.

    You know those crystals and doodads people put on the wall? The reason they do anything for your system is they introduce new resonances into the air. They are quite elementary if you think about it and not the voodoo so many people claim them to be. How much they actually impact the sound depends on how strong the resonances are. Keep this in mind if you add something to the room.

    Tell us more Skip! Do you have any examples of diffraction doodads? :smile:
    Basement: Polk SDA SRS, Cary SLP-05 Pre, Enlightened Audio Designs CD Transport, Northstar Designs Excelsio DAC, Silnote Morpheus Ref2 Digital Cable, Marantz SA-14 SACD, McIntosh MC300 Amp, Furman 15PFi Power Conditioner, Pangea Power Cables, Wireworld Oasis 8 RCA IC's, MIT Shotgun S3 IC's, MIT Shotgun S1 Bi-Wire speaker cables
    Office: PC, EAR Acute CD Player, EAR 834L Pre, PASS ACA Monoblocks, Denon UDR-F10 Cassette, Acoustic Technologies Classic FR Speakers, SVS SB12 Plus sub, MIT AVt2 speaker cables, IFI Purifier2, AQ Cinnamon USB cable, Groneberg Quatro Reference IC's
    Spare Room: , Antique Sound Labs Wave AV-8 Monoblocks, Tisbury Mini Passive Pre, Tjoeb 99 tube CD player (modified Marantz CD-38), Analysis Plus Oval 9's, Zu Jumpers, AudioEngine B1 Streamer, Klipsch RB-61 v2, SVS PB1000 sub, Blue Jeans RCA IC's
    Living Room: Peachtree Nova Integrated, Cambridge CXN v2 Streamer, Furman 15PFi Power Conditioner, Polk RT265 In Wall Speakers, Polk DSW Pro 660wi sub
  • FestYboyFestYboy Posts: 3,735

    Found these yesterday... Just a thought
  • VR3VR3 Posts: 23,476
    Acoustimac sales panels for that
    - Not Tom

    Vr3Mods.com ///// Version3Audio.com

    "No, that's silly talk. Dude, you can't possibly be this audio dumb so quit the act." - Doro
  • kharp1kharp1 Posts: 3,390
    Here are a few different diffusion panels:
    https://www.gikacoustics.com/product-category/diffusion-products/

    This guy has several Youtube videos that has some good info. He has in the acoustic design business, so, there will also be some links to their products, but, does a good job on laying out some of the foundation of acoustical properties.:

    Main System:
    Joule-Electra LA 100 MKIII Upgraded by Rich Brkich Pre
    Butler Audio TBD 2250 Amp
    PS Audio DirectStream DAC and MemoryPlayer Transport
    LSA-1 Statement
    SVS SB4000 & SB2000
    Wireworld Equinox 7 bi-wire, Wireworld Silver Eclipse 7 IC

    Secondary Rig:
    Parasound P5, Audio Electronics by Cary Constellation
    Marsh a200s, Audio Elecrtonics by Cary Hercules
    Pioneer Elite DV-45a, Denon DVD-2910
    Klipsch Epic CF-1, Vandersteen 3CE sig
    Analysus Plus Oval

    Backup Gear:
    Pass Labs Aleph 30, McCormack DNA-125, Parasound A21
    Marantz SA-14S1
    Usher CP-6311/Tyler Acoustics Taylo Reference Monitor, LSA-1
  • verbverb Posts: 7,989
    Thanks Kerry!
    Basement: Polk SDA SRS, Cary SLP-05 Pre, Enlightened Audio Designs CD Transport, Northstar Designs Excelsio DAC, Silnote Morpheus Ref2 Digital Cable, Marantz SA-14 SACD, McIntosh MC300 Amp, Furman 15PFi Power Conditioner, Pangea Power Cables, Wireworld Oasis 8 RCA IC's, MIT Shotgun S3 IC's, MIT Shotgun S1 Bi-Wire speaker cables
    Office: PC, EAR Acute CD Player, EAR 834L Pre, PASS ACA Monoblocks, Denon UDR-F10 Cassette, Acoustic Technologies Classic FR Speakers, SVS SB12 Plus sub, MIT AVt2 speaker cables, IFI Purifier2, AQ Cinnamon USB cable, Groneberg Quatro Reference IC's
    Spare Room: , Antique Sound Labs Wave AV-8 Monoblocks, Tisbury Mini Passive Pre, Tjoeb 99 tube CD player (modified Marantz CD-38), Analysis Plus Oval 9's, Zu Jumpers, AudioEngine B1 Streamer, Klipsch RB-61 v2, SVS PB1000 sub, Blue Jeans RCA IC's
    Living Room: Peachtree Nova Integrated, Cambridge CXN v2 Streamer, Furman 15PFi Power Conditioner, Polk RT265 In Wall Speakers, Polk DSW Pro 660wi sub
