Cardas Litz internal re-wire for 2.3TL
gmcman
Posts: 1,806
I've been going back and forth trying to decide on what to use to internally re-wire my 2.3TL, decided on the Cardas Litz 15.5ga. I feel the factory wire being 29 years old, is likely a bottleneck in my system. I say that cautiously as any component can hold back what another piece of gear is putting out, but it's a safe bet if I really want to see the full potential of these speakers, some type of fresh, high-quality copper is in order.
Piecing this system together over the last year, has resulted in mostly positive results. I think the McCormack DNA-1 paired with the RLD-1 has added a great amount of clarity and liquidity to the speakers. The RLD-1 is still stock, while the DNA-1 was upgraded to Ultra Platinum late last year.
For the 2.3TL's, I have added the rings, BH5, dynamat on the baskets, Cardas binding posts, Erse SuperQ for the large inductor, along with the Sonicap Gen1/Mills crossover upgrade with Jantzen air core board inductors.
At this point, the stock wiring is left and with all the recent upgrades, one thing that seems to stand out, is there's a hint of grit for the lack of better terms, mainly in the vocals. Grit may be a bad analogy, but I don't feel my system is bright, but just coming apart a little bit in the highs and also the midrange vocals.
Before I open the cabinets up again and give the Clarity CMR a run, I wanted to at least upgrade the wiring, being the last link before the speakers. I was able to get a slight price break using the white wire but mainly for ordering more than 100'. I do plan on using some of the leftover elsewhere, but I also wanted a little bit more than the normal length for the 2.3TL since I wanted to solder the wire to the speakers and needed some room to work with.
After tinning all the ends in the solder pot, I used some color-coded heat shrink to mimic the factory wire which aided in the final assembly. I added about 3-4" to each lead to aid in soldering.
Using some heat sink clips on the terminals took some heat away from the rest of the connection, had no issues there. Trying to get a stand to reach each opening was challenging so the temporary Dreadnought stand was called to duty.
The added length came in handy when soldering, easily tucked out of the way.
I started with the left speaker and when finished I did a polarity check, then performed a quick listening test despite using stereo instead of mono, I wanted to see if I could hear the difference right out of the gate.
I loaded "Never Coming Back" from the "Rumors" album and listened to the right speaker for about half the track, then started over on the left.
The difference was quite dramatic.
I put the balance in the middle and it was basically unlistenable, there was no synergy and I was trying to focus on the left speaker despite being the same volume level.
I called my son in the room and let him listen the same way I did and his eyes lit up when he heard the left...lol.
Needless to say I went on the right speaker then gave it another test run. This time I honestly was hearing these new components and upgrades over the past months as they were trying to be heard.
Right away the realism, the clarity, smoothness, stood out. The highs weren't as pitchy but after a few hours some of that new found "warmth" went away and the highs were not as smooth.
I let it play all week returning briefly after about 48 hours, at this point it sounded much better and the transition between highs and the mids were near seamless.
At about the 100 hour mark I ran through some CD's and was struck again by the realism of the vocals and the overall smoothness. The depth of the soundstage gave way to some subtle nuances I couldn't make out before but the added clarity has really let these sounds come through.
I wish I had a better recording, but I did take a few videos with my Sony XR500 and the ECM-HQP1 external microphone before I changed the wire. This mic is great for outdoors for distances, but for this purpose, the background hiss is overbearing....so I apologize. Also, it seems to exaggerate the hard S's and T's a little but I think that especially with some good headphones, the difference will be audible.
This is going from a camcorder to You tube, so the file degradation is inevitable. Even though, after about 2 min of the stock wire video, the Cardas video will sound much smoother.

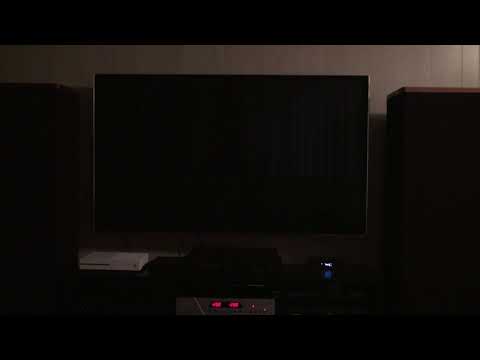

The camcorder was placed on a tripod in the same spot as where my head would be, and this is right at 9'10" from the front plane of the speakers. The XR500 is setup more for telephoto than wide angle which is why I couldn't get all the speaker in the frame.
I will say if you're on the fence about rewiring your speakers, just do it. This is one of the single largest sonic upgrades I have done.
Is there better wire? Pretty confident there is especially based on other members' reviews, but this is clearly better than the factory wire.
Here's two videos, again, sorry for the background hiss, but the first video will sound somewhat flat in the vocals by comparison and not nearly have the smoothness of the 2nd.
I would put the audio in the video about 1/8 octave higher than actual during the loudest passages....not as ear piercing as it sounds...lol.
2nd video was taken at about the 100 hour mark.
I know, I need longer HDMI cables..
New mount swallows up a lot of wire if you use the hideaways.
Bruce Springsteen "Highway 29" About 2/3rd's of the track.
Stock wire:
https://www.youtube.com/watch?v=SFlI8EvuASI
Cardas Litz:
https://www.youtube.com/watch?v=YuA8U4C1oUA
Piecing this system together over the last year, has resulted in mostly positive results. I think the McCormack DNA-1 paired with the RLD-1 has added a great amount of clarity and liquidity to the speakers. The RLD-1 is still stock, while the DNA-1 was upgraded to Ultra Platinum late last year.
For the 2.3TL's, I have added the rings, BH5, dynamat on the baskets, Cardas binding posts, Erse SuperQ for the large inductor, along with the Sonicap Gen1/Mills crossover upgrade with Jantzen air core board inductors.
At this point, the stock wiring is left and with all the recent upgrades, one thing that seems to stand out, is there's a hint of grit for the lack of better terms, mainly in the vocals. Grit may be a bad analogy, but I don't feel my system is bright, but just coming apart a little bit in the highs and also the midrange vocals.
Before I open the cabinets up again and give the Clarity CMR a run, I wanted to at least upgrade the wiring, being the last link before the speakers. I was able to get a slight price break using the white wire but mainly for ordering more than 100'. I do plan on using some of the leftover elsewhere, but I also wanted a little bit more than the normal length for the 2.3TL since I wanted to solder the wire to the speakers and needed some room to work with.
After tinning all the ends in the solder pot, I used some color-coded heat shrink to mimic the factory wire which aided in the final assembly. I added about 3-4" to each lead to aid in soldering.
Using some heat sink clips on the terminals took some heat away from the rest of the connection, had no issues there. Trying to get a stand to reach each opening was challenging so the temporary Dreadnought stand was called to duty.
The added length came in handy when soldering, easily tucked out of the way.
I started with the left speaker and when finished I did a polarity check, then performed a quick listening test despite using stereo instead of mono, I wanted to see if I could hear the difference right out of the gate.
I loaded "Never Coming Back" from the "Rumors" album and listened to the right speaker for about half the track, then started over on the left.
The difference was quite dramatic.
I put the balance in the middle and it was basically unlistenable, there was no synergy and I was trying to focus on the left speaker despite being the same volume level.
I called my son in the room and let him listen the same way I did and his eyes lit up when he heard the left...lol.
Needless to say I went on the right speaker then gave it another test run. This time I honestly was hearing these new components and upgrades over the past months as they were trying to be heard.
Right away the realism, the clarity, smoothness, stood out. The highs weren't as pitchy but after a few hours some of that new found "warmth" went away and the highs were not as smooth.
I let it play all week returning briefly after about 48 hours, at this point it sounded much better and the transition between highs and the mids were near seamless.
At about the 100 hour mark I ran through some CD's and was struck again by the realism of the vocals and the overall smoothness. The depth of the soundstage gave way to some subtle nuances I couldn't make out before but the added clarity has really let these sounds come through.
I wish I had a better recording, but I did take a few videos with my Sony XR500 and the ECM-HQP1 external microphone before I changed the wire. This mic is great for outdoors for distances, but for this purpose, the background hiss is overbearing....so I apologize. Also, it seems to exaggerate the hard S's and T's a little but I think that especially with some good headphones, the difference will be audible.
This is going from a camcorder to You tube, so the file degradation is inevitable. Even though, after about 2 min of the stock wire video, the Cardas video will sound much smoother.
The camcorder was placed on a tripod in the same spot as where my head would be, and this is right at 9'10" from the front plane of the speakers. The XR500 is setup more for telephoto than wide angle which is why I couldn't get all the speaker in the frame.
I will say if you're on the fence about rewiring your speakers, just do it. This is one of the single largest sonic upgrades I have done.
Is there better wire? Pretty confident there is especially based on other members' reviews, but this is clearly better than the factory wire.
Here's two videos, again, sorry for the background hiss, but the first video will sound somewhat flat in the vocals by comparison and not nearly have the smoothness of the 2nd.
I would put the audio in the video about 1/8 octave higher than actual during the loudest passages....not as ear piercing as it sounds...lol.
2nd video was taken at about the 100 hour mark.
I know, I need longer HDMI cables..
New mount swallows up a lot of wire if you use the hideaways.Bruce Springsteen "Highway 29" About 2/3rd's of the track.
Stock wire:
https://www.youtube.com/watch?v=SFlI8EvuASICardas Litz:
https://www.youtube.com/watch?v=YuA8U4C1oUAPost edited by gmcman on
Comments
-
The Cardas video definitely sounds better. So, how many feet of wire did you use?Political Correctness'.........defined
"A doctrine fostered by a delusional, illogical minority and rabidly promoted by an unscrupulous mainstream media, which holds forth the proposition that it is entirely possible to pick up a t-u-r-d by the clean end."
President of Club Polk -
What are you using for the interconnect cable? The original?
-
I have a pair of speakers at your house. Feel free to do the same thing to them.
-
The Cardas video definitely sounds better. So, how many feet of wire did you use?
Thanks
I didn't measure out everything I used in the speakers, wish I did. I ordered 110' and have 20.7' remaining so if my order was precise, Then I used roughly 89' for both.
I will post a sketch of the original setup with wire length used by the factory in my speakers.
For the factory harnesses, I came up with:
104" total for the dimensional drivers. (8.6')
128" total for the tweeters. (10.6')
189" total for the stereo drivers. (15.75')
Total used by the factory in my 2.3TL's per speaker for just the drivers: 421" (35.08')
I already changed out the binding post to crossover harness to AQ Type 4 last year as I had some extra laying around. I will likely finish this with the remaining Cardas Litz.
Total used from the factory for my binding plate to the crossover per speaker:
14.5" for each speaker lead.
14" for the SDA interconnect.
4" for the negative jumper to the blade terminal.
Binding plate to crossover total wire length per speaker: 76" (6'4")
Total wire used in my 2.3TL's from the factory per speaker.
499" (41.58')What are you using for the interconnect cable? The original?
No, not using the factory cable.
I have been using MIT cable made from the same type as my Shotgun S1...thanks F1 for the help on that.
However, leading up to this internal wire changeout, I'm also in the middle of trying different cables and I moved the Drednought temporarily to gain some working room behind the stand....it will be returned shortly....
For the two video clips, I used my old Monster Z2 cable terminated with Neutrik connectors. Reason is...I didn't want to alter the results as I had the Z2 cable in place for the first video.I have a pair of speakers at your house. Feel free to do the same thing to them.
Where do you think I pulled my spare tweeter from....
JK. Post edited by gmcman on -
Fantastic job. I wonder why you direct soldered to the drivers? Quick connects make the removal of drivers so quick and convenient. Do you think direct soldering gives you that last bit of "polish" so to speak?
-
Fantastic job. I wonder why you direct soldered to the drivers? Quick connects make the removal of drivers so quick and convenient. Do you think direct soldering gives you that last bit of "polish" so to speak?
Thanks!
I initially wanted to use the quick connects, but with the rings, BH5, and dynamat in place, I don't plan on removing them anytime in the near future unless one goes bad. So why not go the extra little bit and finish the wire off with a solder connection.
Worst case, I can always quickly remove the leads, but yeah...I think the "last bit of polish" is a good description. It's a good argument that a solid, cold-weld crimp connection is as good or possibly a better mechanical connection.
I did tin the leads in the solder pot with the Cardas bar solder, so even going to the terminals, I used the Cardas QE solder as well, tried to keep it in the family...:)
I suppose it's a tough call that after it was all said and done, should I make that last possible link with a quick connect or a good solder joint? This also removes another connection point so, I figure, all that's gone into this from the source to the voice coil leads...whats a couple more hours....
-
I like the idea of having it soldered to the post of the drivers because there's no doubt about whether there's a solid connection, unlike the quick connects which are sometimes loose fitting and need to be crimped down a bit.SDA SRS 2.3TL's
Silk Audio MS-90-BT integrated tube amp
Yaqin MS-20L integrated tube amp
SDA 2B TL's -
michaeljhsda2 wrote: »there's no doubt about whether there's a solid connection, unlike the quick connects which are sometimes loose fitting and need to be crimped down a bit.
Yeah, that was another driving factor.
I was after consistency and while time consuming, it's reassuring they are all solidly mounted.
-
What wire did you use for the radiator?
Lol....I believe it's the ultra-high oxygen filled type..
-
Smokin..... -
I think I need to give the 2.3TL's some redemption as the external mic I used for those two videos while captured the tonal change of the wire, surely isn't the ideal match for making these comparisons.
I still need to get the gain on the camera, set correctly to the gain on the mic, but there's only a few options anyway.
The mic I used in the first two videos was the Sony ECM-HQP1
The one I used for this and subsequent tests, is the Sennheiser MKE 440, got lucky on an open box deal.
This is much closer to the actual sound. Just very, slightly mid bass heavy and likely from the gain, or the web compression.
https://www.youtube.com/watch?v=KZMB-HNaLGs&feature=youtu.be
