Replacing binding posts on a Yamaha M-65

ipsullivan
ipsullivan Posts: 64
edited July 2013 in Electronics
I am looking to replace the old binding posts on my M-65 with some new 5-ways. Could someone point me in the right direction for a good replacement?

Any tips or things I should consider before doing this?

Thanks,
Ian
Post edited by ipsullivan on

Comments

  • jeremymarcinko
    jeremymarcinko Posts: 3,775
    edited July 2013
    The problem is, on that amp the plastic binding posts are attached directly to the output board are secured to the back panel via plastic housing that was incorporated into the binding posts itself. So to replace them you must remove the output board completely with the binding posts. Then you have to fabricate a panel preferably out of metal, to accommodate the 6 new pairs of binding post. and attach it just inside the pack panel. Now to wire in the new posts you will have splice into the output leads that originally were soldered to the output board that you can no longer use, unless you fabricate a bracket for it because it too was held in place by the binding posts. But if you pay attention and take notes or mark which leads are what before removal of the output board you can do away with it all together. Good luck
    Oh, Listen here mister. We got no way of understandin' this world. But we got as much sense of this bird flyin in the sky. Now there is a lot that bird don't know, but it don't change the fact that the world is happening to him all the same. What I am tryin to say is, is that the course of your life, well its changing, and you don't even see it- Forest Bondurant
  • jeremymarcinko
    jeremymarcinko Posts: 3,775
    edited July 2013

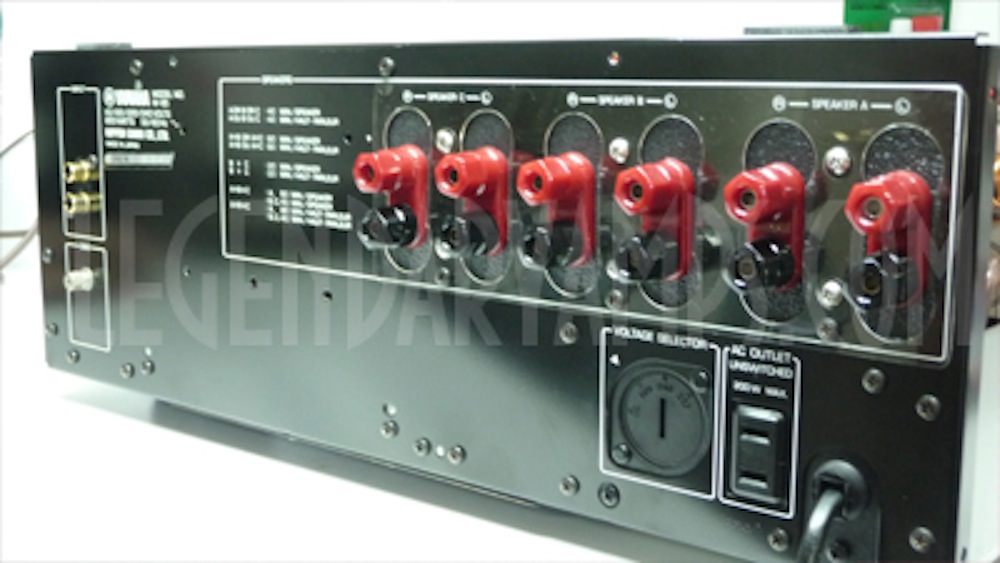

    Or has I suggested before check out www.legendaryamps.com as they specialize in repairing/restoring that line of yamaha amplifiers. There is some pics on that website of the amps with new binding posts that might help shed some light.
    Oh, Listen here mister. We got no way of understandin' this world. But we got as much sense of this bird flyin in the sky. Now there is a lot that bird don't know, but it don't change the fact that the world is happening to him all the same. What I am tryin to say is, is that the course of your life, well its changing, and you don't even see it- Forest Bondurant
  • Mikey081057
    Mikey081057 Posts: 7,127
    edited July 2013
    Or has I suggested before check out www.legendaryamps.com as they specialize in repairing/restoring that line of yamaha amplifiers. There is some pics on that website of the amps with new binding posts that might help shed some light.

    I have an M80 that works great except 2 of the binding posts are broken off at the panel. I Checked with Legendary amps about repairing/replacing, and his minimum is app $400 + Parts and he will restore the whole amp. It really is a great amp, but how much can I sink into it? How much can a fully restored M-80 be worth? It is an absolute beast of an amp and beautiful too.
