Anyone see any reason one couldn't use a piece of delrin to build a point to point crossover?

I don't see where delrin has any conductivity that might harm the process..
Polk Audio SDA 2.3tl Fully Hot Rodded. 😎

SVS SB16 X2

Cary SLP-05/Ultimate Upgrade.
Cary SA-500.1 ES Amps
Cary DMS 800PV Network
OPPO UDP 205/ModWright Modification
VPI Scout TT / Dynavector 20x2
Jolida JD9 Fully Modified

VPI MW-1 Cyclone RCM

MIT Shotgun 3 cables throughout / Except TT, and PC’s
Post edited by Toolfan66 on
· Share on FacebookShare on Twitter

Comments

  • VR3
    VR3 Posts: 28,746
    edited March 2013
    Should be safe

    I have used Aluminum -
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
    · Share on FacebookShare on Twitter
  • Toolfan66
    Toolfan66 Posts: 17,303
    edited March 2013
    I plan to drill holes in the delrin to feed the leads into and do my point to point on the bottom side as well as having holes to zip tie the capacitors, and inductors down to the delrin..
    Polk Audio SDA 2.3tl Fully Hot Rodded. 😎

    SVS SB16 X2

    Cary SLP-05/Ultimate Upgrade.
    Cary SA-500.1 ES Amps
    Cary DMS 800PV Network
    OPPO UDP 205/ModWright Modification
    VPI Scout TT / Dynavector 20x2
    Jolida JD9 Fully Modified

    VPI MW-1 Cyclone RCM

    MIT Shotgun 3 cables throughout / Except TT, and PC’s
    · Share on FacebookShare on Twitter
  • FTGV
    FTGV Posts: 3,649
    edited March 2013
    Toolfan66 wrote: »

    I don't see where delrin has any conductivity that might harm the process..
    It's an insulator not a conductor so u r good.
    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited March 2013
    I've done a point to point crossover on MDF and it worked great.
    Jake
    · Share on FacebookShare on Twitter
  • westmassguy
    westmassguy Posts: 6,850
    edited March 2013
    Toolfan66 wrote: »
    Anyone see any reason one couldn't use a piece of delrin to build a point to point crossover?

    I don't see where delrin has any conductivity that might harm the process..
    As long as it doesn't conduct, you'll be fine. It's an engineered plastic, so be careful with the soldering iron. You can also go "old school", and use 1/8", 3/16", or 1/4" Masonite
    Home Theater/2 Channel:
    Front: SDA-2ATL forum.polkaudio.com/discussion/143984/my-2as-finally-finished-almost/p1
    Center: Custom Built forum.polkaudio.com/discussion/150760/my-center-channel-project/p1
    Surrounds & Rears: Custom Built forum.polkaudio.com/discussion/151647/my-surround-project/p1
    Sonicaps, Mills, RDO-194s-198s, Dynamat, Hurricane Nuts, Blackhole5
    Pioneer Elite VSX-72TXV, Carver PM-600, SVS PB2-Plus Subwoofer

    dhsspeakerservice.com/
    · Share on FacebookShare on Twitter
  • VR3
    VR3 Posts: 28,746
    edited March 2013
    Toolfan66 wrote: »
    I plan to drill holes in the delrin to feed the leads into and do my point to point on the bottom side as well as having holes to zip tie the capacitors, and inductors down to the delrin..

    I would be concerned about it melting...

    May I suggest epoxy glass?

    http://www.digikey.com/product-detail/en/PC8-UNCLAD/PC8-UNCLAD-ND/354452

    I have used this for that purpose before with great results.
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
    · Share on FacebookShare on Twitter
  • Toolfan66
    Toolfan66 Posts: 17,303
    edited March 2013
    I have used it on my binding post cups with good results so I figured I was good but with what I have planed I thought I would ask just in case someone saw some concern.

    I'm not worried about melting, that I can control, and it's not like your there very long with the iron.

    My plan is to use 1/2" and machine a pocket on the bottom side where I will do my point to point. That way I can mount it flush to the cabinet or cap the bottom with another piece of delrin. Leaving the work looking clean on top..
    Polk Audio SDA 2.3tl Fully Hot Rodded. 😎

    SVS SB16 X2

    Cary SLP-05/Ultimate Upgrade.
    Cary SA-500.1 ES Amps
    Cary DMS 800PV Network
    OPPO UDP 205/ModWright Modification
    VPI Scout TT / Dynavector 20x2
    Jolida JD9 Fully Modified

    VPI MW-1 Cyclone RCM

    MIT Shotgun 3 cables throughout / Except TT, and PC’s
    · Share on FacebookShare on Twitter
  • VR3
    VR3 Posts: 28,746
    edited March 2013
    1/2"? Sweet!

    As soon as I regain connection with my laptop I am sending the dimensions of the shelf I had in mind...

    I would check out the SDA SRS 2 modification I did Larry, that is similar to what you are planning... Just not a 1/2" thick... That's going to be cool!
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
    · Share on FacebookShare on Twitter
  • treitz3
    treitz3 Posts: 19,145
    edited March 2013
    Sounds cool. Question for you though.....why delrin, if you don't mind me asking?

    Tom
    ~ In search of accurate reproduction of music. Real sound is my reference and while perfection may not be attainable? If I chase it, I might just catch excellence. ~
    · Share on FacebookShare on Twitter
  • VR3
    VR3 Posts: 28,746
    edited March 2013
    Delrin is the brand name for an acetal resin engineering plastic invented and sold by DuPont. Often marketed and used as a metal substitute, Delrin is a lightweight, low-friction, and wear-resistant plastic capable of operating in temperatures in excess of 90 degrees celsius (approx 200 degrees Fahrenheit). - WIKI

    It is also insanely pricey.
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
    · Share on FacebookShare on Twitter
  • Toolfan66
    Toolfan66 Posts: 17,303
    edited March 2013
    treitz3 wrote: »
    Sounds cool. Question for you though.....why delrin, if you don't mind me asking?

    Tom


    I have access to it easily.. Also it's easy to machine and it looks great..
    Polk Audio SDA 2.3tl Fully Hot Rodded. 😎

    SVS SB16 X2

    Cary SLP-05/Ultimate Upgrade.
    Cary SA-500.1 ES Amps
    Cary DMS 800PV Network
    OPPO UDP 205/ModWright Modification
    VPI Scout TT / Dynavector 20x2
    Jolida JD9 Fully Modified

    VPI MW-1 Cyclone RCM

    MIT Shotgun 3 cables throughout / Except TT, and PC’s
    · Share on FacebookShare on Twitter
  • treitz3
    treitz3 Posts: 19,145
    edited March 2013
    Ah, gotcha. If I'm not mistaken, that's the material used in Joe's "THE" record clamp you and I use.

    Tom
    ~ In search of accurate reproduction of music. Real sound is my reference and while perfection may not be attainable? If I chase it, I might just catch excellence. ~
    · Share on FacebookShare on Twitter
  • VR3
    VR3 Posts: 28,746
    edited March 2013
    Toolfan66 wrote: »
    I have access to it easily.. Also it's easy to machine and it looks great..

    Hmmm you should make my shelf with it... :-P

    Did you receive the email? I sent it to your paypal email
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
    · Share on FacebookShare on Twitter
  • Toolfan66
    Toolfan66 Posts: 17,303
    edited March 2013
    treitz3 wrote: »
    Ah, gotcha. If I'm not mistaken, that's the material used in Joe's "THE" record clamp you and I use.

    Tom

    That's it..
    VR3 wrote: »
    Hmmm you should make my shelf with it... :-P

    Did you receive the email? I sent it to your paypal email

    I will look at it..
    Polk Audio SDA 2.3tl Fully Hot Rodded. 😎

    SVS SB16 X2

    Cary SLP-05/Ultimate Upgrade.
    Cary SA-500.1 ES Amps
    Cary DMS 800PV Network
    OPPO UDP 205/ModWright Modification
    VPI Scout TT / Dynavector 20x2
    Jolida JD9 Fully Modified

    VPI MW-1 Cyclone RCM

    MIT Shotgun 3 cables throughout / Except TT, and PC’s
    · Share on FacebookShare on Twitter
  • VR3
    VR3 Posts: 28,746
    edited March 2013
    You da man! :)
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
    · Share on FacebookShare on Twitter
  • dracoskeeper
    dracoskeeper Posts: 142
    edited March 2013

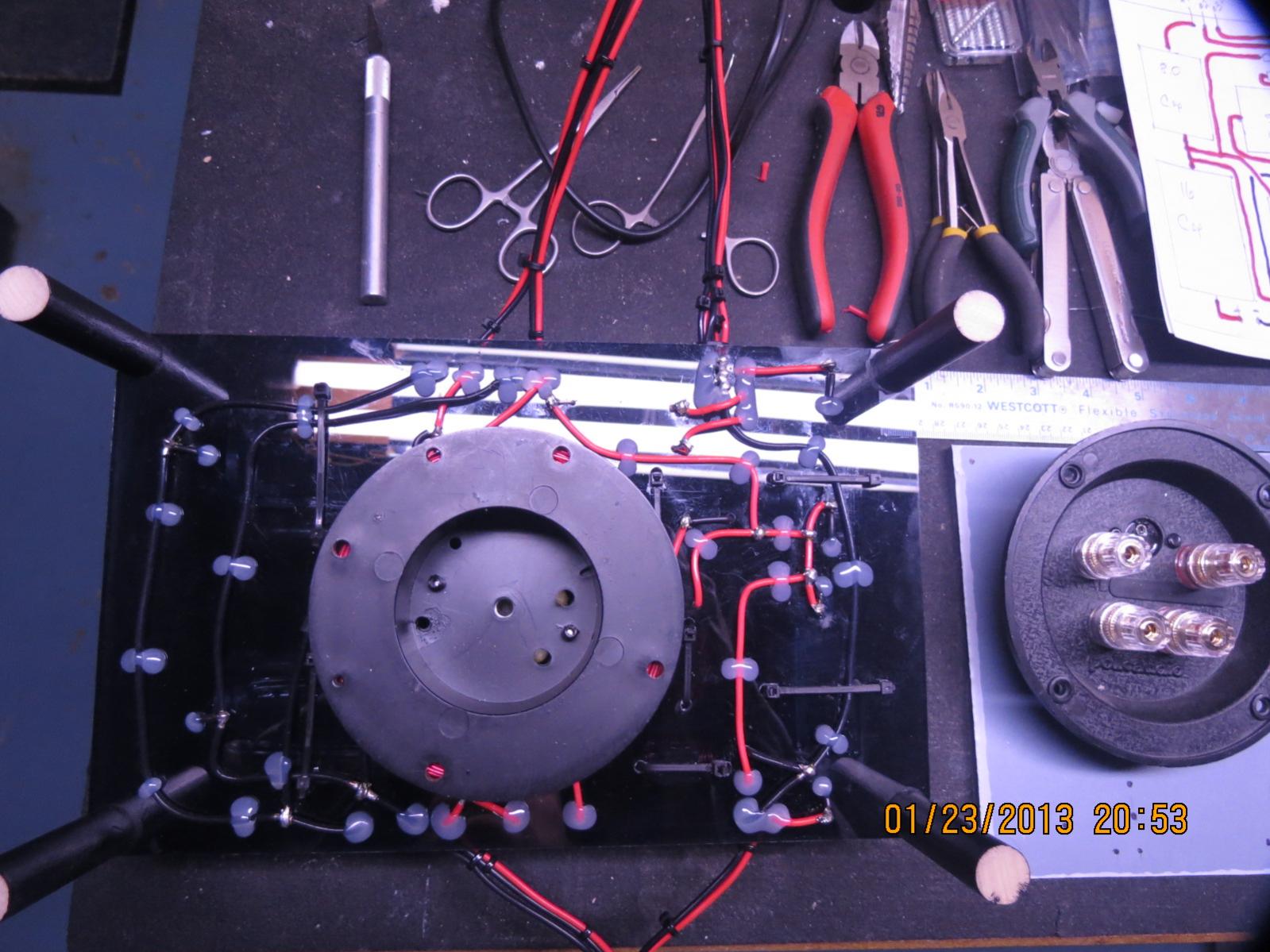

    2.3tl xvrs pt-2-pt 002.jpg

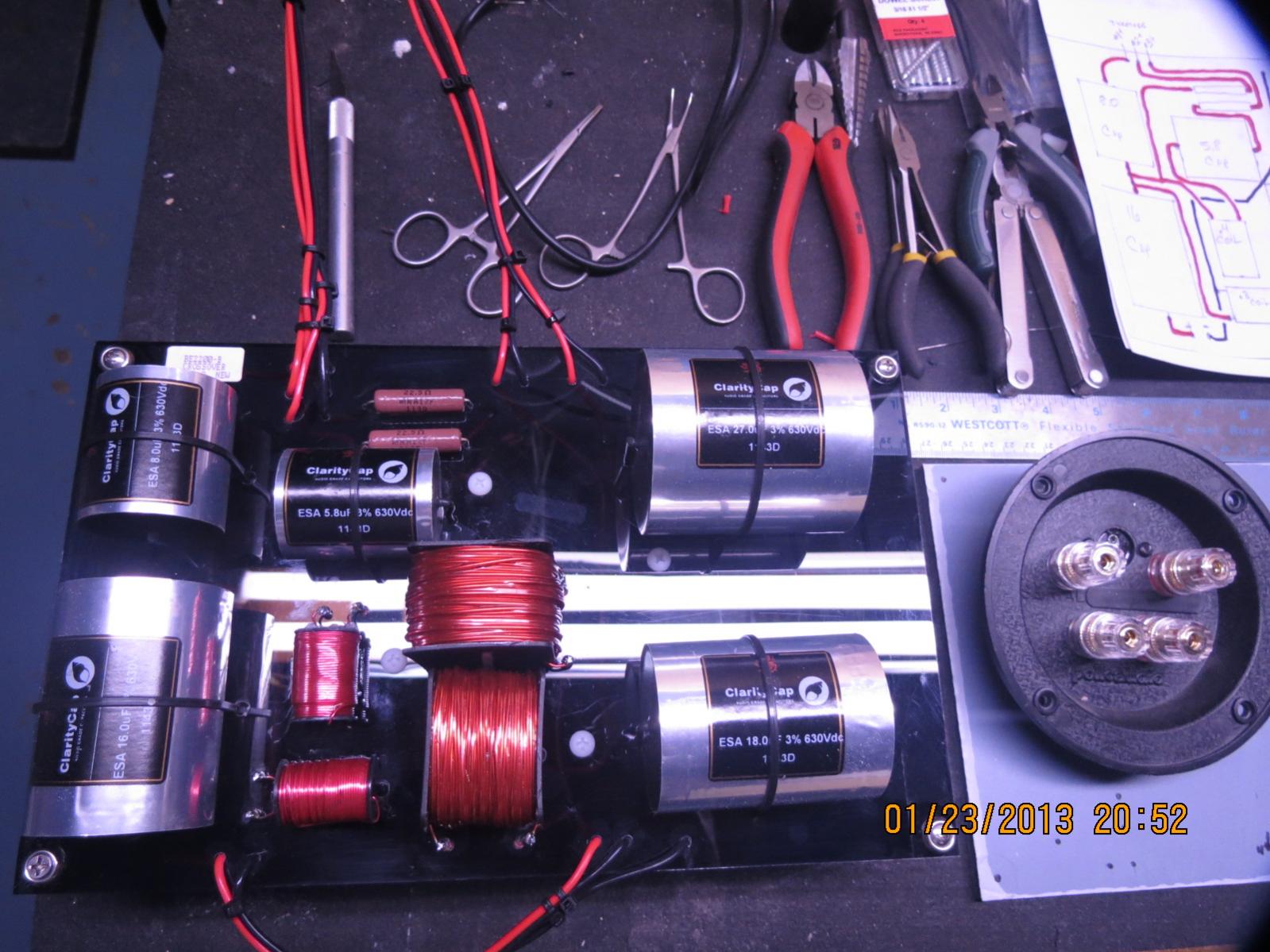

    2.3tl xvrs pt-2-pt 003.jpg
