Building two power cords and would appreciate advice

Moose68Bash
Moose68Bash Posts: 3,843
edited July 2013 in DIY, Mods & Tweaks
A newbie question:

I am going to build two new power cords for my amplifiers from Furutech FP-3T5S862 cord and Furutech FI-25 (IEC) and FI-25M-N1 (Edison) plugs.

The braided shield must be connected to the ground wire on the mains end.

Can anybody suggest the best way to make the connection between the braided shield and the ground wire?

Thanks in advance.
Family Room, Innuos Statement streamer (Roon Core) with Morrow Audio USB cable to McIntosh MC 2700 pre with DC2 Digital Audio Module; AQ Sky XLRs to CAT 600.2 dualmono amp, Morrow Elite Speaker Cables to NOLA Baby Grand Reference Gold 3 speakers. Power source for all components: Silver Circle Audio Pure Power One with dedicated 20 amp circuit to main panel.

Exercise Room, Innuos Streamer via Cat 6 cable connection to PS Audio PerfectWave MkII DAC w/Bridge II, AQ King Cobra RCAs to Perreaux PMF3150 amp (fully restored and upgraded by Jeffrey Jackson, Precision Audio Labs), Supra Rondo 4x2.5 Speaker Cables to SDA 1Cs (Vr3 Mods Xovers and other mods.), Dreadnaught with Supra Rondo 4x2.5 interconnect cables by Vr3 Mods. Power for each component from dedicated 20 amp circuit to main panel, except Innuos Statement powered from Silver Circle Audio Pure Power One.

Post edited by Moose68Bash on
· Share on FacebookShare on Twitter
«134

Comments

  • drumminman
    drumminman Posts: 3,396
    edited January 2013
    I presume you want to drain nasties from the equipment end to the ground wire in the outlet. You'll need to unbraid part of the shield to yield a ~ 2 inch length. Then connect them both the shield and ground wire to the ground wire lug on the wall plug end. Using something like tweezers helps.
    "Science is suppose to explain observations not dismiss them as impossible" - Norm on AA; 2.3TL's w/sonicaps/mills/jantzen inductors, Gimpod's boards, Lg Solen SDA inductors, RD-0198's, MW's dynamatted, Armaflex speaker gaskets, H-nuts, brass spikes, Cardas CCGR BP's, upgraded IC Cable, Black Hole Damping Sheet strips, interior of cabinets sealed with Loctite Power Grab, AI-1 interface with 1000VA A-L transformer
    · Share on FacebookShare on Twitter
  • Moose68Bash
    Moose68Bash Posts: 3,843
    edited January 2013
    drumminman wrote: »
    I presume you want to drain nasties from the equipment end to the ground wire in the outlet. You'll need to unbraid part of the shield to yield a ~ 2 inch length. Then connect them both the shield and ground wire to the ground wire lug on the wall plug end. Using something like tweezers helps.

    Drummiman,

    Thank you. I've never spent this kind of money on wire before, and I don't want to make any mistakes. I'll use my tweezers to the best of my ability!

    Again, thanks.

    Phil
    Family Room, Innuos Statement streamer (Roon Core) with Morrow Audio USB cable to McIntosh MC 2700 pre with DC2 Digital Audio Module; AQ Sky XLRs to CAT 600.2 dualmono amp, Morrow Elite Speaker Cables to NOLA Baby Grand Reference Gold 3 speakers. Power source for all components: Silver Circle Audio Pure Power One with dedicated 20 amp circuit to main panel.

    Exercise Room, Innuos Streamer via Cat 6 cable connection to PS Audio PerfectWave MkII DAC w/Bridge II, AQ King Cobra RCAs to Perreaux PMF3150 amp (fully restored and upgraded by Jeffrey Jackson, Precision Audio Labs), Supra Rondo 4x2.5 Speaker Cables to SDA 1Cs (Vr3 Mods Xovers and other mods.), Dreadnaught with Supra Rondo 4x2.5 interconnect cables by Vr3 Mods. Power for each component from dedicated 20 amp circuit to main panel, except Innuos Statement powered from Silver Circle Audio Pure Power One.

    · Share on FacebookShare on Twitter
  • zingo
    zingo Posts: 11,258
    edited January 2013
    If I'm attaching the braided shield, I'll leave enough exposed to reach where it needs to go and twist it into a "wire". Then tin it to prevent loose strands, and solder it to the needed contact.
    Jake
    · Share on FacebookShare on Twitter
  • Systems
    Systems Posts: 14,873
    edited January 2013
    Simply take the braid and twist it just like the ground, and then twist the two together.
    Great choice in the FI-25's, my absolute FAVORITE, and worth EVERY PENNY!!!
    If you have any questions don't hesitate to pm me, I would be happy to answer your questions.

    The drain and ground is only connected to the male side of the cable.
    Testing
    Testing
    Testing
    · Share on FacebookShare on Twitter
  • helipilotdoug
    helipilotdoug Posts: 1,229
    edited January 2013
    +1
    Listen to Pepster. He knoweth of what he speaks! :biggrin:
    Sunfire Theater Grand IV
    Sunfire Cinema Grand Signature
    SRS 2.1TL
    SDA 2BTL's
    CSiA6
    FXiA4
    FXiA6
    SDA 2A's
    Monitor 10A's
    http://www.douglasconnection.com
    · Share on FacebookShare on Twitter
  • Moose68Bash
    Moose68Bash Posts: 3,843
    edited January 2013
    zingo and pepster,

    Thank you for your very helpful comments, and, pepster, thank you for offering to advise me if I have questions. (I've been reading enough on this Forum to know, as heliopilotdoug says, that you know what you're talking about.

    Again, thanks,

    Phil
    Family Room, Innuos Statement streamer (Roon Core) with Morrow Audio USB cable to McIntosh MC 2700 pre with DC2 Digital Audio Module; AQ Sky XLRs to CAT 600.2 dualmono amp, Morrow Elite Speaker Cables to NOLA Baby Grand Reference Gold 3 speakers. Power source for all components: Silver Circle Audio Pure Power One with dedicated 20 amp circuit to main panel.

    Exercise Room, Innuos Streamer via Cat 6 cable connection to PS Audio PerfectWave MkII DAC w/Bridge II, AQ King Cobra RCAs to Perreaux PMF3150 amp (fully restored and upgraded by Jeffrey Jackson, Precision Audio Labs), Supra Rondo 4x2.5 Speaker Cables to SDA 1Cs (Vr3 Mods Xovers and other mods.), Dreadnaught with Supra Rondo 4x2.5 interconnect cables by Vr3 Mods. Power for each component from dedicated 20 amp circuit to main panel, except Innuos Statement powered from Silver Circle Audio Pure Power One.

    · Share on FacebookShare on Twitter
  • Moose68Bash
    Moose68Bash Posts: 3,843
    edited February 2013
    I picked up 12' of 10 AWG Carol power cord at Home Depot and two sets of Wattgate connectors and did a practice run at building power cords for my amps.

    When I replaced the stock cords with these, the difference was apparent -- improved clarity of detail and transparency of reproduction of voices and instruments.

    Frankly, I was a little surprised. This Carol wire is 99.9% oxygen free and it is far higher capacity than the 16 AWG cords that shipped with the amps. It is not shielded, and dealing with that is the most challenging aspect of using the Furutech wire for me. But at least I have now dealt with heavy duty wire and audio-type connectors, as well as Techflex! :smile:

    Onward and upward -- I hope!

    Cheers!
    Family Room, Innuos Statement streamer (Roon Core) with Morrow Audio USB cable to McIntosh MC 2700 pre with DC2 Digital Audio Module; AQ Sky XLRs to CAT 600.2 dualmono amp, Morrow Elite Speaker Cables to NOLA Baby Grand Reference Gold 3 speakers. Power source for all components: Silver Circle Audio Pure Power One with dedicated 20 amp circuit to main panel.

    Exercise Room, Innuos Streamer via Cat 6 cable connection to PS Audio PerfectWave MkII DAC w/Bridge II, AQ King Cobra RCAs to Perreaux PMF3150 amp (fully restored and upgraded by Jeffrey Jackson, Precision Audio Labs), Supra Rondo 4x2.5 Speaker Cables to SDA 1Cs (Vr3 Mods Xovers and other mods.), Dreadnaught with Supra Rondo 4x2.5 interconnect cables by Vr3 Mods. Power for each component from dedicated 20 amp circuit to main panel, except Innuos Statement powered from Silver Circle Audio Pure Power One.

    · Share on FacebookShare on Twitter
  • Systems
    Systems Posts: 14,873
    edited February 2013
    picked up 12' of 10 AWG Carol power cord at Home Depot and two sets of Wattgate connectors and did a practice run at building power cords for my amps.

    Pics or it didn't happen!:lol:

    I actually like the Carol cable.
    It takes ALOT more hours to come around (so expect some time) than alot I use, but none the less it is a great upgrade from stock.

    If you can find some CCI Seoprene 12/3 ga it is really nice considering the money.

    They will not beat the aftermarket stuff (XLO, Furutech, Oyaide, ect) but REALLY nice if you DIY considering you would have minimal money involved and they are a rather large step up from stock.

    I like both the Carol and CCI with the SQ benefit going to the CCI when using Wattgate IEC's for instance.

    Most people do not consider such wire, and I think they would be very surprised!

    Keep us updated, cool project!
    Testing
    Testing
    Testing
    · Share on FacebookShare on Twitter
  • seabeerob213
    seabeerob213 Posts: 1,843
    edited February 2013
    advice? dont put a bobby pin in a wall socket, one of my first memories in life
    2 Channel(work in progress):DAC: Schiit modi 2 uberAmp:Parasound 1200 MK IISub:RBH 1010-SEP Speakers: Monitor 5A peerlesscurrently running some krk rokit 3g since the HK pre outs died and i need to start breaking everything down to move in a couple monthsHeadphones:Source: tidalDAC: schiit modius epre: schiit sysAmp: AQ dragonfly black/ schiit magni2 Cans: Velodyne V-True, Grado SR225i, sennheiser x drop gaming headsetPC:DAC: schiit modius e(over spdif)pre: schiit sysspeakers: prenous eris 5 xtSub: Earthquake Sound MiniMe-P63most of my comments are passing on of info, im a noob, im just trying to help how i can, if im wrong or out of place to comment, dont hesitate to let me know :)"WITH WILLING HEARTS AND SKILLFUL HANDS, THE DIFFICULT WE DO AT ONCE, THE IMPOSSIBLE TAKES A BIT LONGER, WITH COMPASSION FOR OTHERS. WE BUILD - WE FIGHT FOR PEACE WITH FREEDOM"Seabee Memorial, Arlington, VA
    · Share on FacebookShare on Twitter
  • Systems
    Systems Posts: 14,873
    edited February 2013
    This will be your friend when making power cables:
    images?q=tbn:ANd9GcTPFTVltWa_cWT0aP2_GdTNhioiexO5Cb79nOcT8G9uPkk_yvH1Zg

    You should make you something like this, so you can put some serious break in on those cables, small space heater, refridge ect.

    http://i1091.photobucket.com/albums/i392/jakenmolly/Boxes012.jpg
    Testing
    Testing
    Testing
    · Share on FacebookShare on Twitter
  • Systems
    Systems Posts: 14,873
    edited February 2013
    A couple of VERY CHEAP ONES!:cheesygrin:
    My brother in law gave me the black aluminum one, all scared up (years of service).

    I scuffed it up with some sandpaper and used some spray truck bed liner on it.:lol:
    The grey one is simply a cheapo stud box with an IEC input on the back.
    If you can solder, these are very easy to build and make a world of difference when burning in power cables (even better than using your amps and just "listening").

    http://i1091.photobucket.com/albums/i392/jakenmolly/Reallycheap007_zps3ac07ab3.jpg
    Testing
    Testing
    Testing
    · Share on FacebookShare on Twitter
  • drumminman
    drumminman Posts: 3,396
    edited February 2013
    Or even easier and cheaper, $12.99 from VH Audio, though it can probably be bought elsewhere too:

    (You'll need to copy and paste the links - for some reason they're not clickable)

    http://www.vhaudio.com/acplugadapters.html


    http://www.vhaudio.com/acplugadapters.html
    "Science is suppose to explain observations not dismiss them as impossible" - Norm on AA; 2.3TL's w/sonicaps/mills/jantzen inductors, Gimpod's boards, Lg Solen SDA inductors, RD-0198's, MW's dynamatted, Armaflex speaker gaskets, H-nuts, brass spikes, Cardas CCGR BP's, upgraded IC Cable, Black Hole Damping Sheet strips, interior of cabinets sealed with Loctite Power Grab, AI-1 interface with 1000VA A-L transformer
    · Share on FacebookShare on Twitter
  • Moose68Bash
    Moose68Bash Posts: 3,843
    edited February 2013


    Pepster,

    Here are two pics. Not bad for a first shot at this -- including Techflex and heat shrink!

    :smile:

    More later after I work with the Furutech wire and connectors!
    Family Room, Innuos Statement streamer (Roon Core) with Morrow Audio USB cable to McIntosh MC 2700 pre with DC2 Digital Audio Module; AQ Sky XLRs to CAT 600.2 dualmono amp, Morrow Elite Speaker Cables to NOLA Baby Grand Reference Gold 3 speakers. Power source for all components: Silver Circle Audio Pure Power One with dedicated 20 amp circuit to main panel.

    Exercise Room, Innuos Streamer via Cat 6 cable connection to PS Audio PerfectWave MkII DAC w/Bridge II, AQ King Cobra RCAs to Perreaux PMF3150 amp (fully restored and upgraded by Jeffrey Jackson, Precision Audio Labs), Supra Rondo 4x2.5 Speaker Cables to SDA 1Cs (Vr3 Mods Xovers and other mods.), Dreadnaught with Supra Rondo 4x2.5 interconnect cables by Vr3 Mods. Power for each component from dedicated 20 amp circuit to main panel, except Innuos Statement powered from Silver Circle Audio Pure Power One.

    · Share on FacebookShare on Twitter
  • helipilotdoug
    helipilotdoug Posts: 1,229
    edited February 2013
    Moose68Bash wrote: »
    A newbie question:

    I am going to build two new power cords for my amplifiers from Furutech FP-3T5S862 cord and Furutech FI-25 (IEC) and FI-25M-N1 (Edison) plugs.

    The braided shield must be connected to the ground wire on the mains end.

    Can anybody suggest the best way to make the connection between the braided shield and the ground wire?

    Thanks in advance.

    Very good choice on the connectors and cable! When working with the Furutech FP 3TS762 Power Cable, it's a 10 AWG cable which can be a real PITA to work with. Trying to get the wire into the plug and IEC connectors can be "fun". One suggestion is to split the 10AWG wire into a fork, then insert into the plug. Furutech also makes the FP-209-10(G) High Performance Spade connector that works perfectly with their higher end power connectors. They are very hard to crimp onto the wire, and it takes a lot of force to do it right, but it sure makes the connection better and easier than trying to get the bare 10AWG wire in there. I keep the spades in stock, so PM me if you are interested.
    Sunfire Theater Grand IV
    Sunfire Cinema Grand Signature
    SRS 2.1TL
    SDA 2BTL's
    CSiA6
    FXiA4
    FXiA6
    SDA 2A's
    Monitor 10A's
    http://www.douglasconnection.com
    · Share on FacebookShare on Twitter
  • Moose68Bash
    Moose68Bash Posts: 3,843
    edited February 2013
    helipilotdoug wrote: »
    Very good choice on the connectors and cable! When working with the Furutech FP 3TS762 Power Cable, it's a 10 AWG cable which can be a real PITA to work with. Trying to get the wire into the plug and IEC connectors can be "fun". One suggestion is to split the 10AWG wire into a fork, then insert into the plug. Furutech also makes the FP-209-10(G) High Performance Spade connector that works perfectly with their higher end power connectors. They are very hard to crimp onto the wire, and it takes a lot of force to do it right, but it sure makes the connection better and easier than trying to get the bare 10AWG wire in there. I keep the spades in stock, so PM me if you are interested.

    helipilotdoug,

    Those spades look like they're very thick metal. What do you crimp them with? I have a pretty heavy duty crimping tool, but it is a standard tool. With enough force applied, is that tool sufficient?

    Thanks for the advice. My plan was to split the bare wire into a "fork," as the Sonicraft advisor suggested. However, if the spades work with the Furutech plugs and I can properly crimp the spades, then that sounds like a better solution.

    Phil
    Family Room, Innuos Statement streamer (Roon Core) with Morrow Audio USB cable to McIntosh MC 2700 pre with DC2 Digital Audio Module; AQ Sky XLRs to CAT 600.2 dualmono amp, Morrow Elite Speaker Cables to NOLA Baby Grand Reference Gold 3 speakers. Power source for all components: Silver Circle Audio Pure Power One with dedicated 20 amp circuit to main panel.

    Exercise Room, Innuos Streamer via Cat 6 cable connection to PS Audio PerfectWave MkII DAC w/Bridge II, AQ King Cobra RCAs to Perreaux PMF3150 amp (fully restored and upgraded by Jeffrey Jackson, Precision Audio Labs), Supra Rondo 4x2.5 Speaker Cables to SDA 1Cs (Vr3 Mods Xovers and other mods.), Dreadnaught with Supra Rondo 4x2.5 interconnect cables by Vr3 Mods. Power for each component from dedicated 20 amp circuit to main panel, except Innuos Statement powered from Silver Circle Audio Pure Power One.

    · Share on FacebookShare on Twitter
  • Systems
    Systems Posts: 14,873
    edited February 2013
    Can't think of any reason not to fit the 10 ga on one side and the shield on the other.
    Just twist them separately and run each on both sides of the stud.

    I am not a big fan of mechanical connections "internally in a plug" with power cables, but also know that sometimes its required (VH Flavor 4).

    I doubt you will need the spade in this case.:redface:

    Small "needlenose" pliers are your friend when fitting such wire to said connectors!:biggrin:
    Testing
    Testing
    Testing
    · Share on FacebookShare on Twitter
  • Systems
    Systems Posts: 14,873
    edited February 2013
    pepster wrote: »
    Can't think of any reason not to fit the 10 ga on one side and the shield on the other.
    Just twist them separately and run each on both sides of the stud.

    I am not a big fan of mechanical connections "internally in a plug" with power cables, but also know that sometimes its required (VH Flavor 4).

    I doubt you will need the spade in this case.:redface:

    Small "needlenose" pliers are your friend when fitting such wire to said connectors!:biggrin:

    I use 3-14ga wires in my "ground" connection, even in a Wattgate!:lol:
    2 grounds and a drain, no spade required and the Wattgates have a much smaller opening than the Furutechs!:lol:
    Testing
    Testing
    Testing
    · Share on FacebookShare on Twitter
  • Moose68Bash
    Moose68Bash Posts: 3,843
    edited February 2013
    Thanks, again, pepster.

    I think I neglected to post that this particular cable is 9 AWG, and the Furutech connectors are spec'd to take a maximum of 10 AWG. However, the Sonicraft (see post #16 above) said that he uses this cable and connector combination by "forking" the strands in the conductors.

    I'll give the needlenose pliers a try. I had some trouble getting the 10 AWG Carol conductors into the holes for them in the Wattgate plugs. I used patience and persistence, but the needlenose pliers might have made the process faster and easier.
    Family Room, Innuos Statement streamer (Roon Core) with Morrow Audio USB cable to McIntosh MC 2700 pre with DC2 Digital Audio Module; AQ Sky XLRs to CAT 600.2 dualmono amp, Morrow Elite Speaker Cables to NOLA Baby Grand Reference Gold 3 speakers. Power source for all components: Silver Circle Audio Pure Power One with dedicated 20 amp circuit to main panel.

    Exercise Room, Innuos Streamer via Cat 6 cable connection to PS Audio PerfectWave MkII DAC w/Bridge II, AQ King Cobra RCAs to Perreaux PMF3150 amp (fully restored and upgraded by Jeffrey Jackson, Precision Audio Labs), Supra Rondo 4x2.5 Speaker Cables to SDA 1Cs (Vr3 Mods Xovers and other mods.), Dreadnaught with Supra Rondo 4x2.5 interconnect cables by Vr3 Mods. Power for each component from dedicated 20 amp circuit to main panel, except Innuos Statement powered from Silver Circle Audio Pure Power One.

    · Share on FacebookShare on Twitter
  • Moose68Bash
    Moose68Bash Posts: 3,843
    edited April 2013
    Well, yesterday I finished building and burning in (partially) my power cords from the Furutech FP-3T5S862 cord and Furutech FI-25 (IEC) and FI-25M-N1 (Edison) plugs. I want to thank pepster, helipilotdoug, drumminman, and zingo for their help.

    I would give myself about a B to a B+ on the work -- the heat shrink is not as "tight" to the connectors as I would like, and I'm not happy with the "grip" on the cord from the strain relief clamps.

    The Furutech 9 AWG wire was a beast to work with. Not only was it "fat," it was also very stiff. I tried to get the wire into the "ports" in the plugs by forking it, but even with needlenose pliers and very fine pointed tweezers (which were great for unbraiding the copper shielding!), I could not get satisfactory results inserting the wire into the clamps.

    So, I resorted to the Furutech spades helipilotdoug suggested. Even with those (designed for 10 AWG wire), I had to spread them to allow me to insert the drain wire and the ground wire simultaneously.

    But, I got the job done, burned them in for about 24 hours using the "burn in box" I acquired from pepster (thank you, again).

    The reward came when my wife heard the inaugural CD playing and announced (shortly before beginning to dance to the music) that the sound was "decidedly richer." My observation was that, yes, it was richer and the sound stage opened up a bit more -- to my surprise, because it is already very wide. Today, I would add that the definition of individual instruments, their placement on the sound stage and the accuracy of their timbre is improved. This would be my explanation of what my wife calls "richness."

    Here are some pictures.


    A piece of the leftover Furutech cord.


    A picture showing the product number of the cord.

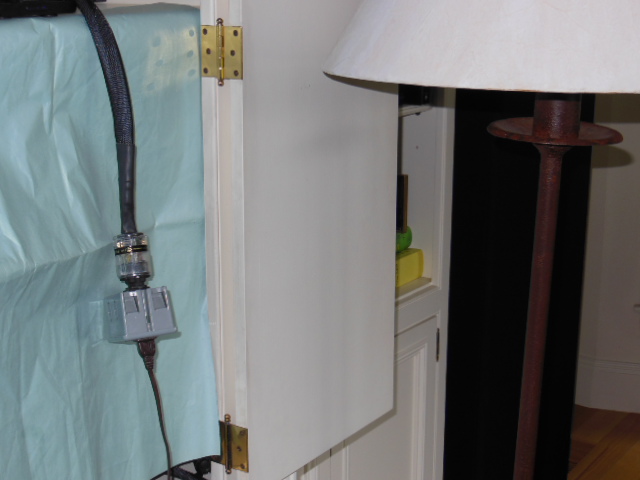

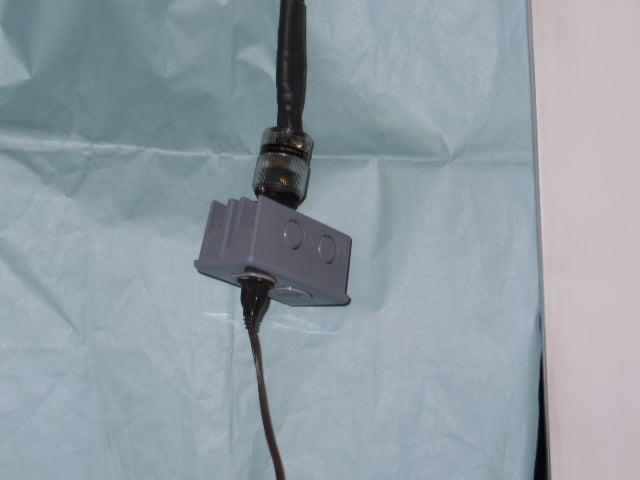

    A picture showing the completed cords surrounding pepster's "burn in box."

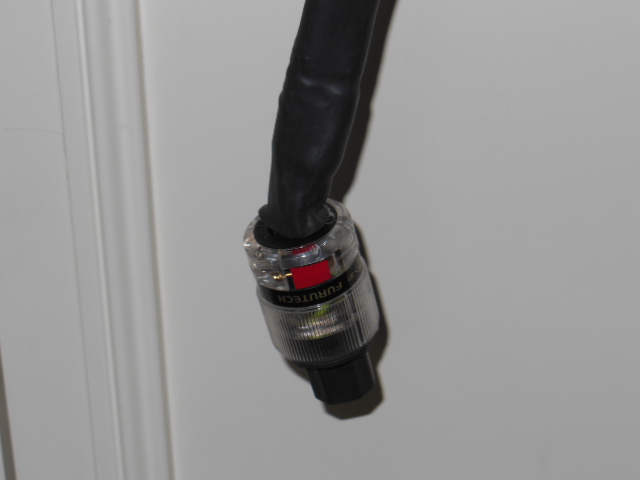

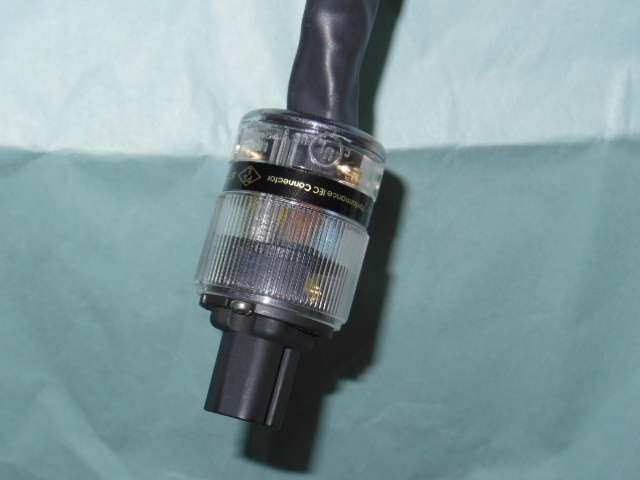

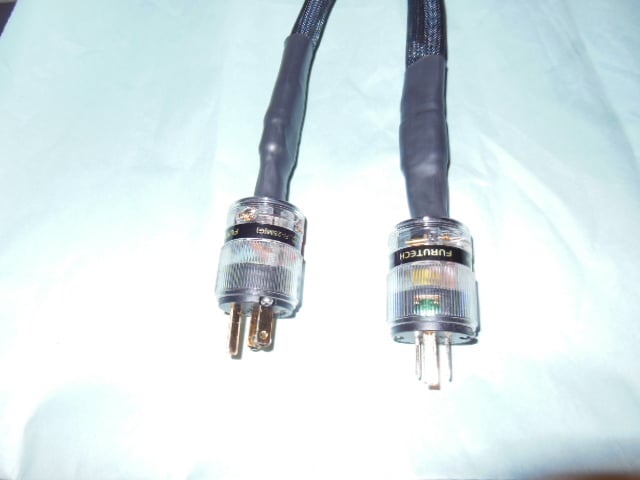

    A picture of the male connector on one cord and the female connector on the other.

    Look like I learning to insert pictures in a rational way! :biggrin:
    Family Room, Innuos Statement streamer (Roon Core) with Morrow Audio USB cable to McIntosh MC 2700 pre with DC2 Digital Audio Module; AQ Sky XLRs to CAT 600.2 dualmono amp, Morrow Elite Speaker Cables to NOLA Baby Grand Reference Gold 3 speakers. Power source for all components: Silver Circle Audio Pure Power One with dedicated 20 amp circuit to main panel.

    Exercise Room, Innuos Streamer via Cat 6 cable connection to PS Audio PerfectWave MkII DAC w/Bridge II, AQ King Cobra RCAs to Perreaux PMF3150 amp (fully restored and upgraded by Jeffrey Jackson, Precision Audio Labs), Supra Rondo 4x2.5 Speaker Cables to SDA 1Cs (Vr3 Mods Xovers and other mods.), Dreadnaught with Supra Rondo 4x2.5 interconnect cables by Vr3 Mods. Power for each component from dedicated 20 amp circuit to main panel, except Innuos Statement powered from Silver Circle Audio Pure Power One.

    · Share on FacebookShare on Twitter
  • helipilotdoug
    helipilotdoug Posts: 1,229
    edited April 2013
    Very nice job! Those look outstanding! I know from working with the Furutech 3TS762 cable it can be a b I ich to work with. But the results make all the hard work very worthwhile. Enjoy!
    Sunfire Theater Grand IV
    Sunfire Cinema Grand Signature
    SRS 2.1TL
    SDA 2BTL's
    CSiA6
    FXiA4
    FXiA6
    SDA 2A's
    Monitor 10A's
    http://www.douglasconnection.com
    · Share on FacebookShare on Twitter
  • Moose68Bash
    Moose68Bash Posts: 3,843
    edited April 2013
    helipilotdoug wrote: »
    Very nice job! Those look outstanding! I know from working with the Furutech 3TS762 cable it can be a b I ich to work with. But the results make all the hard work very worthwhile. Enjoy!

    Thank you, and thank you for your advice. I couldn't have gotten this done without your suggestion.

    I've been listening all day, and the sound is getting even better.

    Is there no end to improving these rigs? :eek:
    Family Room, Innuos Statement streamer (Roon Core) with Morrow Audio USB cable to McIntosh MC 2700 pre with DC2 Digital Audio Module; AQ Sky XLRs to CAT 600.2 dualmono amp, Morrow Elite Speaker Cables to NOLA Baby Grand Reference Gold 3 speakers. Power source for all components: Silver Circle Audio Pure Power One with dedicated 20 amp circuit to main panel.

    Exercise Room, Innuos Streamer via Cat 6 cable connection to PS Audio PerfectWave MkII DAC w/Bridge II, AQ King Cobra RCAs to Perreaux PMF3150 amp (fully restored and upgraded by Jeffrey Jackson, Precision Audio Labs), Supra Rondo 4x2.5 Speaker Cables to SDA 1Cs (Vr3 Mods Xovers and other mods.), Dreadnaught with Supra Rondo 4x2.5 interconnect cables by Vr3 Mods. Power for each component from dedicated 20 amp circuit to main panel, except Innuos Statement powered from Silver Circle Audio Pure Power One.

    · Share on FacebookShare on Twitter
  • VR3
    VR3 Posts: 28,746
    edited April 2013
    Hey Phil!

    Those turned out FANTASTIC!

    Good job!
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
    · Share on FacebookShare on Twitter
  • Moose68Bash
    Moose68Bash Posts: 3,843
    edited April 2013
    VR3 wrote: »
    Hey Phil!

    Those turned out FANTASTIC!

    Good job!

    Thank you, Trey.

    The FP-3TS862 power cord was so "fat" that the top part of the strain relief "clamp" could not be used. The cord would simply not go through the opening in the plugs with that part in place. As a result, I'm not sure how tightly the cord is actually clamped in the plugs. However, I don't expect to be connecting and disconnecting these cords very often; so, I'm hoping it won't be a problem. When Furutech designed the plugs for 10 AWG maximum wire, they weren't kidding.

    Now, i have to turn my attention to building the "shotgun" power cords for my CD player and preamp out of the Supra Rondo Lo-Rad cable. I'm hoping the 13 AWG wires will fit in the clamps on each side of the screw without resorting to the spades that I had to use with these PCs.

    What are your thoughts -- and thoughts of others who have an opinion :smile: -- about tinning the ends of the individual 13 AWG wires before inserting them in each side of the clamps? Does twisting the two wires from the double run produce a better connection? Does tinning the ends of the wires reduce the conductivity of the connections?

    Any advice about these issues will be greatly appreciated! :smile:
    Family Room, Innuos Statement streamer (Roon Core) with Morrow Audio USB cable to McIntosh MC 2700 pre with DC2 Digital Audio Module; AQ Sky XLRs to CAT 600.2 dualmono amp, Morrow Elite Speaker Cables to NOLA Baby Grand Reference Gold 3 speakers. Power source for all components: Silver Circle Audio Pure Power One with dedicated 20 amp circuit to main panel.

    Exercise Room, Innuos Streamer via Cat 6 cable connection to PS Audio PerfectWave MkII DAC w/Bridge II, AQ King Cobra RCAs to Perreaux PMF3150 amp (fully restored and upgraded by Jeffrey Jackson, Precision Audio Labs), Supra Rondo 4x2.5 Speaker Cables to SDA 1Cs (Vr3 Mods Xovers and other mods.), Dreadnaught with Supra Rondo 4x2.5 interconnect cables by Vr3 Mods. Power for each component from dedicated 20 amp circuit to main panel, except Innuos Statement powered from Silver Circle Audio Pure Power One.

    · Share on FacebookShare on Twitter
  • Speedskater
    Speedskater Posts: 495
    edited April 2013
    Don't solder tin the ends of stranded wires if they are to be used in screw terminals! What happens with time and changing temperature, is that the tinning will cold flow and the terminal will loosen.
    · Share on FacebookShare on Twitter
  • Moose68Bash
    Moose68Bash Posts: 3,843
    edited April 2013
    Speedskater wrote: »
    Don't solder tin the ends of stranded wires if they are to be used in screw terminals! What happens with time and changing temperature, is that the tinning will cold flow and the terminal will loosen.

    Speedskater,

    Many thanks.

    I'll either insert the bare wires and torque the clamps down on them, or I'll use the Furutech spades, again.

    Phil
    Family Room, Innuos Statement streamer (Roon Core) with Morrow Audio USB cable to McIntosh MC 2700 pre with DC2 Digital Audio Module; AQ Sky XLRs to CAT 600.2 dualmono amp, Morrow Elite Speaker Cables to NOLA Baby Grand Reference Gold 3 speakers. Power source for all components: Silver Circle Audio Pure Power One with dedicated 20 amp circuit to main panel.

    Exercise Room, Innuos Streamer via Cat 6 cable connection to PS Audio PerfectWave MkII DAC w/Bridge II, AQ King Cobra RCAs to Perreaux PMF3150 amp (fully restored and upgraded by Jeffrey Jackson, Precision Audio Labs), Supra Rondo 4x2.5 Speaker Cables to SDA 1Cs (Vr3 Mods Xovers and other mods.), Dreadnaught with Supra Rondo 4x2.5 interconnect cables by Vr3 Mods. Power for each component from dedicated 20 amp circuit to main panel, except Innuos Statement powered from Silver Circle Audio Pure Power One.

    · Share on FacebookShare on Twitter
  • helipilotdoug
    helipilotdoug Posts: 1,229
    edited April 2013
    Whatever you do, don't tin the wire. You can torque down on the Furutech connectors without fear. They are very tough, and unless you are superman, I doubt you will break one. The 13AWG wire should fit in there with no problem.
    Sunfire Theater Grand IV
    Sunfire Cinema Grand Signature
    SRS 2.1TL
    SDA 2BTL's
    CSiA6
    FXiA4
    FXiA6
    SDA 2A's
    Monitor 10A's
    http://www.douglasconnection.com
    · Share on FacebookShare on Twitter
  • Moose68Bash
    Moose68Bash Posts: 3,843
    edited April 2013
    helipilotdoug wrote: »
    Whatever you do, don't tin the wire. You can torque down on the Furutech connectors without fear. They are very tough, and unless you are superman, I doubt you will break one. The 13AWG wire should fit in there with no problem.

    I am certainly no superman; so, I should be all right with 13 AWG bare wire! :smile:

    Thank you for advising me about this.

    Another concern I have is about the double-run of wire. My thought is that it should be twisted (somewhat loosely), as twisted pairs are in CAT 5 or 6 cables to reduce interference between the two long parallel runs (these will be about 15 feet each). However, since the current in each run will be the same, this may be sheer nonsense.

    Does twisting the two cables make any sense?

    If so, how do I keep them twisted? I'm planning to use Techflex for the full length and heat shrink at the connectors, but it does not seem to me that these will maintain the twist.

    (I have never built a power cord with a double run of wire; so, I fully acknowledge my ignorance about this matter and enter a plea for mercy from those to whom this may seem terribly newbie-ish!) :confused:
    Family Room, Innuos Statement streamer (Roon Core) with Morrow Audio USB cable to McIntosh MC 2700 pre with DC2 Digital Audio Module; AQ Sky XLRs to CAT 600.2 dualmono amp, Morrow Elite Speaker Cables to NOLA Baby Grand Reference Gold 3 speakers. Power source for all components: Silver Circle Audio Pure Power One with dedicated 20 amp circuit to main panel.

    Exercise Room, Innuos Streamer via Cat 6 cable connection to PS Audio PerfectWave MkII DAC w/Bridge II, AQ King Cobra RCAs to Perreaux PMF3150 amp (fully restored and upgraded by Jeffrey Jackson, Precision Audio Labs), Supra Rondo 4x2.5 Speaker Cables to SDA 1Cs (Vr3 Mods Xovers and other mods.), Dreadnaught with Supra Rondo 4x2.5 interconnect cables by Vr3 Mods. Power for each component from dedicated 20 amp circuit to main panel, except Innuos Statement powered from Silver Circle Audio Pure Power One.

    · Share on FacebookShare on Twitter
  • VR3
    VR3 Posts: 28,746
    edited April 2013
    I would recommend giving them a small twist (granted you wont be able to twist them much) - I definitely would not go in straight (no twist) or two individually twisted runs into the same slot
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
    · Share on FacebookShare on Twitter
  • Speedskater
    Speedskater Posts: 495
    edited April 2013
    VR3 wrote: »
    I would recommend giving them a small twist (granted you wont be able to twist them much) - I definitely would not go in straight (no twist) or two individually twisted runs into the same slot

    Very, very true! With unshielded paired cables, twisting is always good. Be they AC power, DC power, interconnect, control or speaker.
    · Share on FacebookShare on Twitter
  • Speedskater
    Speedskater Posts: 495
    edited April 2013
    On cable ends, what you can do is:
    Strip back 1/8 to 3/16 inch of bare copper and solder tin the end. Then strip back another 1/2 inch of bare copper. Install so that the bare copper is under the screw.
    · Share on FacebookShare on Twitter
