Best configuration for home-cinema theater 7.1

Luce

Hi everyone!
I would like to know which configurations with my receiver >AVR< would be the best for my home-cinema theater 7.1 with these speakers and receiver... My living room is about : 14?5? x 19?
Thank's:rolleyes:

R?cepteur: HARMAN KARDON AVR-354
75W/canal 20Hz ? 20kHz

Center: POLK AUDIO CSI3
2-5 1/4?driver & 1-1?tweeter
Overall frequency response: 55Hz-27kHz
-3db Limits (65Hz-26kHz)
Recommanded amplification: 20-180W/canal

Front: POLK AUDIO R30
1-6.5? mid/woofer & 1-3/4? tweeter
Overall frequency response: 45Hz-24kHz
-3db Limits (55Hz-20kHz)
Recommanded amplification: 20-150W/canal

Surround Front : POLK AUDIO RTI6
1-6 1/2? driver & 1 ?tweeter
Overall frequency response: 40Hz-27kHz
-3 db limits: (50Hz-26kHz)
Recommanded amplification: 20-125W/canal

Back Surround : POLK AUDIO RTI4
1-5 1/4 ?driver & 1 ?Tweeter
Overall frequency response: 50Hz-27kHz
-3 db limits: (60Hz-26kHz)
Recommanded amplification: 20-125W/canal

Sub-Woofer: POLK AUDIO PSW10
1- 10?
Overall frequency response: 35Hz-200Hz
100W (50W RMS)

BigDaveyL

From what I hear, the PSW10 is a bit weak

Luce

what i would appreciate to have for answers is which 'SETTINGS' could help me to be the best configuration with my harman kardon receiver with those speakers...
thank's again

Luce

Thank your for your advisement but for the moment, it is the subwoofer that I have and it's not so bad to listen... maybe i will change it in the future but actually i will keep it

rpf65

You shoud start with allowing the AVR to run its auto-cal program, think it uses Audessy, and then listen to it a few times to find the weak areas, if any. If you wish to manually set the cross-over freqs, start at 80Hz, and adjust from there.

Luce

Thank your for the info... In the menu config of my Harman Kardon, it could be readed like that?

oleon621

Somewhere in the menu setting of the receiver you'll find the option to set crossovers for the speakers. Set those to 80HZ which the standard these days. Also most likely the receiver will set your speakers to LARGE or Full Range, change that option to small and let the sub handle all the low bass frequencies. Hope this kind of helps.

Luce

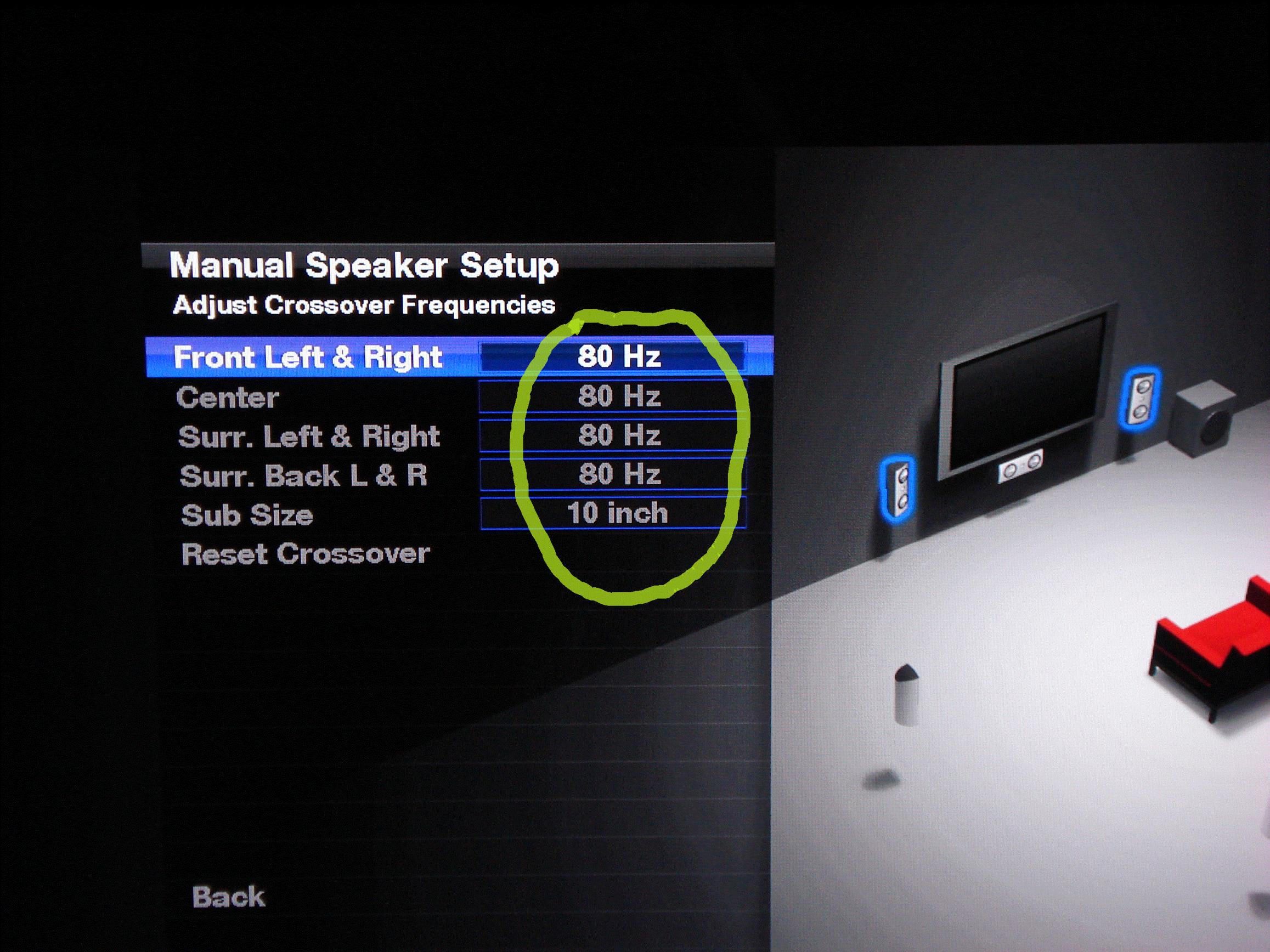

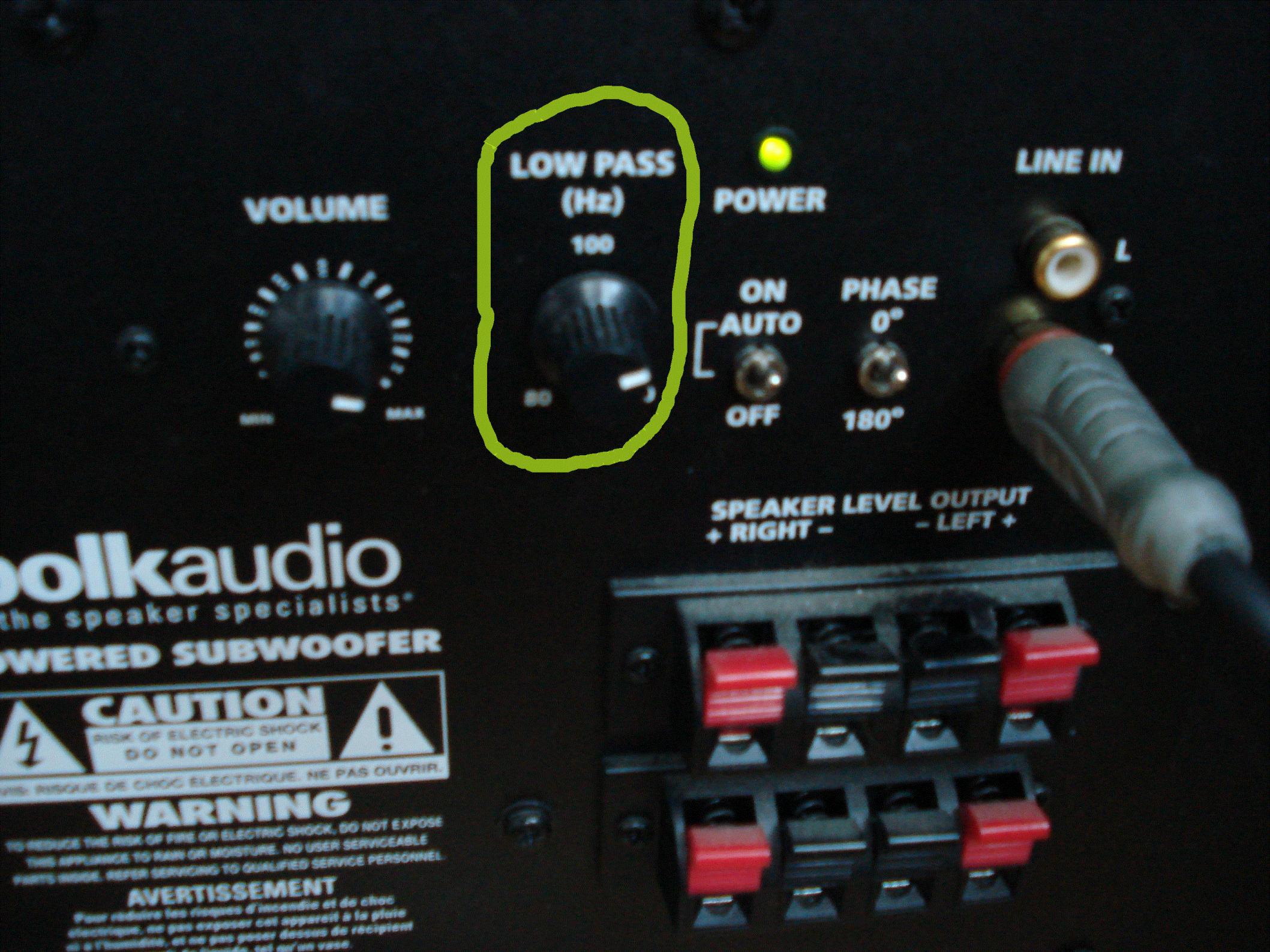

Ok... have you seen by photos... it's all i can find in my menu and the other photo is behind my sub-woofer... is it the good?
