Making acoustic panels and other general room treatment questions

quadzilla
quadzilla Posts: 1,543
edited December 2012 in DIY, Mods & Tweaks
After all upgrades over the last year, I'm at a point where the room is definitely the limiting factor. So now it's time to start room treatments. I found plans for acoustic panels over at http://www.instructables.com/id/Make-accoustic-panels-for-your-recording-studio-or/?ALLSTEPS. These look like they'll produce some fairly pro-ish panels. Does anyone have better instructions? That they'll share, that is?

Now, as to the treatment itself, my room layout is about 15.5Wx18.5Dx8H. Not ideal, I know. But it's probably the best room for audio in the house, so it'll have to do. The front, back, and one side wall is paneling over sheet rock, which will eventually be just sheet rock when I finally stop buying stereo stuff and start remodeling (haHA). The other side is a fireplace (brick) next to a sliding glass door. The door has a fairly heavy curtain over it. The back wall also has a 6x6 bookshelf filled with records, so I expect that should act somewhat as a diffuser. The back wall also has a large 7x7 door opening into the rest of the house.

That said, my initial plan is to build a total of 11 panels. Panels will be mounted 3 on the front wall behind the speakers, and 4 along each side wall at the first and second reflection points. Bass traps will come later.

The other question is whether to go with 3# or 6# for the panels initially, given the liveliness of the walls. Anyone have any input on this? I'm thinking 3# should be fine, and 6# might damp too much, but should be perfect for the bass traps.

The other option that I'm considering is rotating everything 90 degrees, putting the patio door and fireplace behind me, but I' probably have to move the book shelves to what would then be the back wall. I'm sure some will say that with my 2.3 TLs, I should have them on the long wall, and that's something I expect to play with some day. I just rather like how they sound now, and I'm sitting about 12" back from them. So the concern there is that if I rotate the room, I'll only have about a foot behind me which might make the reflection off the (now) back wall too strong to easily control.

Anyone have any input on these assumptions, or have I missed anything?
Turntable: Empire 208
Arm: Rega 300
Cart: Shelter 501 III
Phono Pre: dsachs consulting
Digital: Marantz SACD 30n
Pre: Conrad Johnson ET3 SE
Amp: Conrad Johnson Premier 350
Cables: Cardas Neutral Reference
Speakers: SDA 2.3TL, heavily modified
Post edited by quadzilla on
«13

Comments

  • inspiredsports
    inspiredsports Posts: 5,501
    edited January 2012
    You are now implementing one of the most important tweaks available.

    If you are installing 11 (second reflection points, ceiling) you have these 8 important positions covered:
    -- One behind each speaker (6" is best)
    -- One in each corner (6" or triangular is best)
    -- One on back wall directly behind your listening position (6" is best)
    -- One one on left and right walls at first reflection point (3" is good)

    You should research the insulation requirements for bass trapping and reflection point absorption as they are slightly different.

    gikacoustics.com and realtraps.com are good resources and good panels if you decide to buy already finished.

    NOTE: Every tweak and swap you've made up to this point is now subject to review as you were making those tweaks and swaps to a colored listening space that will now be more neutral and realistic.
    VTL ST50 w/mods / RCA6L6GC / TlfnknECC801S
    Conrad Johnson PV-5 w/mods
    TT Conrad Johnson Sonographe SG3 Oak / Sumiko LMT / Grado Woodbody Platinum / Sumiko PIB2 / The Clamp
    Musical Fidelity A1 CDPro/ Bada DD-22 Tube CDP / Conrad Johnson SD-22 CDP
    Tuners w/mods Kenwood KT5020 / Fisher KM60
    MF x-DAC V8, HAInfo NG27
    Herbies Ti-9 / Vibrapods / MIT Shotgun AC1 IEC's / MIT Shotgun 2 IC's / MIT Shotgun 2 Speaker Cables
    PS Audio Cryo / PowerPort Premium Outlets / Exact Power EP15A Conditioner
    Walnut SDA 2B TL /Oak SDA SRS II TL (Sonicaps/Mills/Cardas/Custom SDA ICs / Dynamat Extreme / Larry's Rings/ FSB-2 Spikes
    NAD SS rigs w/mods
    GIK panels
  • SDA1C
    SDA1C Posts: 2,072
    edited January 2012
    A couple articles that might be interesting to you.

    http://www.decware.com/paper14.htm

    http://www.decware.com/achowto.htm

    http://www.decware.com/acroom.htm

    http://www.decware.com/newsite/room.html

    I have spent countless hours reading on this site. I hope you find it as informative as I do.

    1C
    Too much **** to list....
  • inspiredsports
    inspiredsports Posts: 5,501
    edited January 2012
    Good articles.

    Along those lines, and scaled down to house depth, the design of the EJ Thomas Performing Arts Hall in Akron would be hard to beat.

    It's basically triangular, but with rounded corners, rounded baffles and tons of acoustic panels.

    I can listen to genres that I hate in that place with a smile on my face.
    VTL ST50 w/mods / RCA6L6GC / TlfnknECC801S
    Conrad Johnson PV-5 w/mods
    TT Conrad Johnson Sonographe SG3 Oak / Sumiko LMT / Grado Woodbody Platinum / Sumiko PIB2 / The Clamp
    Musical Fidelity A1 CDPro/ Bada DD-22 Tube CDP / Conrad Johnson SD-22 CDP
    Tuners w/mods Kenwood KT5020 / Fisher KM60
    MF x-DAC V8, HAInfo NG27
    Herbies Ti-9 / Vibrapods / MIT Shotgun AC1 IEC's / MIT Shotgun 2 IC's / MIT Shotgun 2 Speaker Cables
    PS Audio Cryo / PowerPort Premium Outlets / Exact Power EP15A Conditioner
    Walnut SDA 2B TL /Oak SDA SRS II TL (Sonicaps/Mills/Cardas/Custom SDA ICs / Dynamat Extreme / Larry's Rings/ FSB-2 Spikes
    NAD SS rigs w/mods
    GIK panels
  • Conradicles
    Conradicles Posts: 6,092
    edited January 2012
    Sweet Arts Hall...
  • PSOVLSK
    PSOVLSK Posts: 5,210
    edited January 2012
    pm Tracy (thsmith). He made some that are nice and I believe he said they were fairly easy to do as well as being economical.
    Things work out best for those who make the best of the way things work out.-John Wooden
  • thsmith
    thsmith Posts: 6,082
    edited January 2012

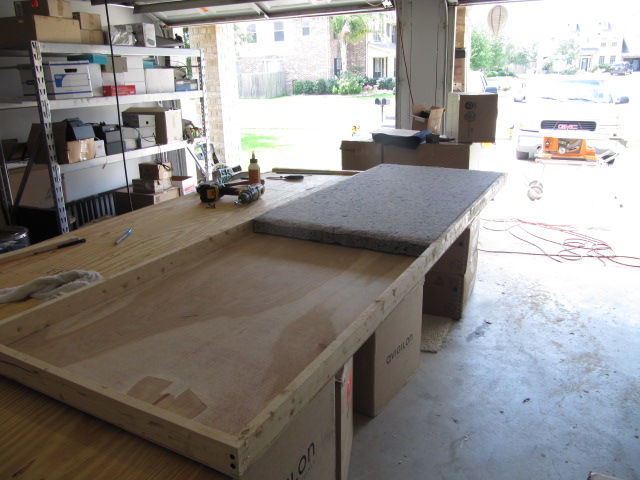

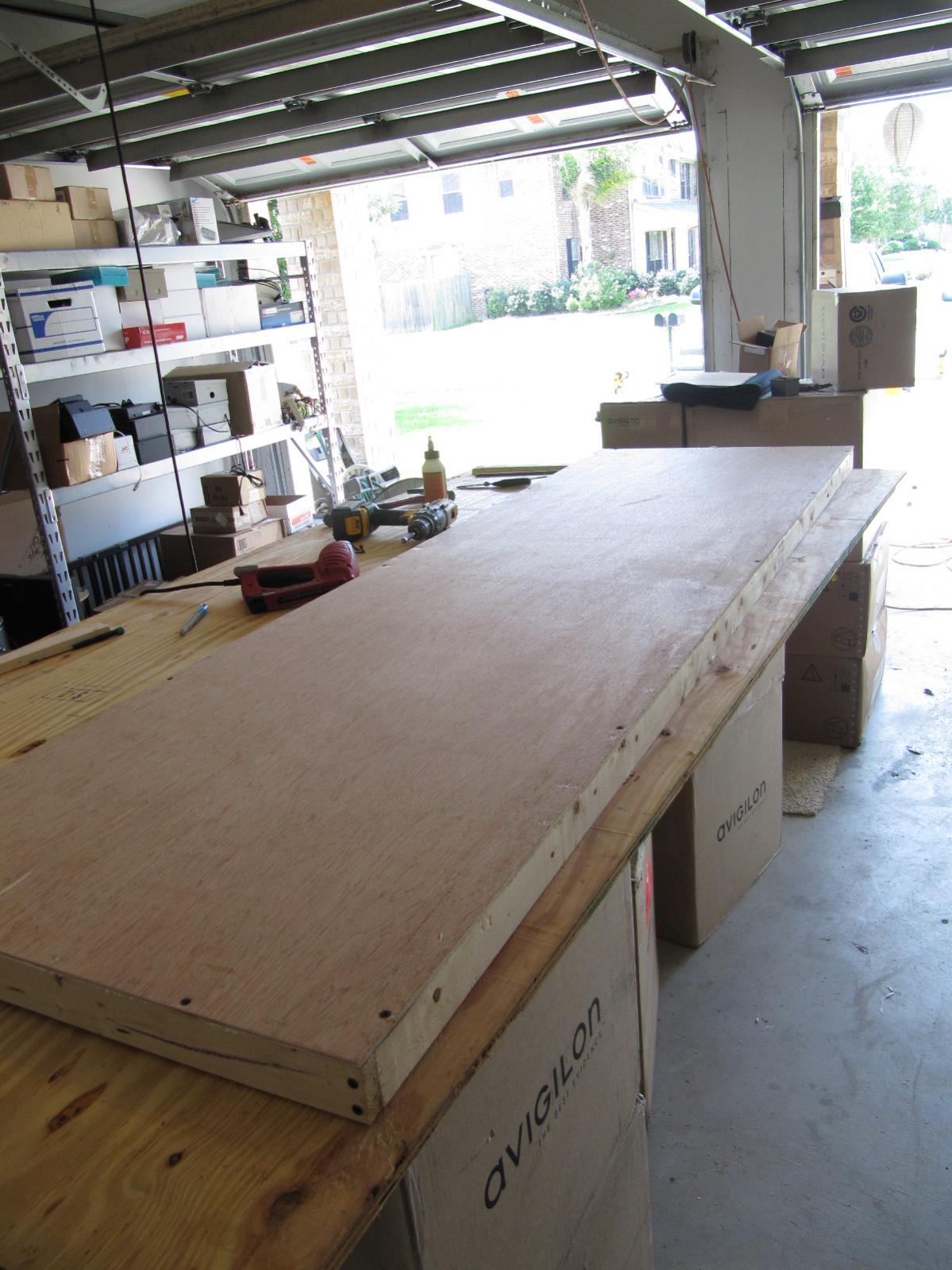

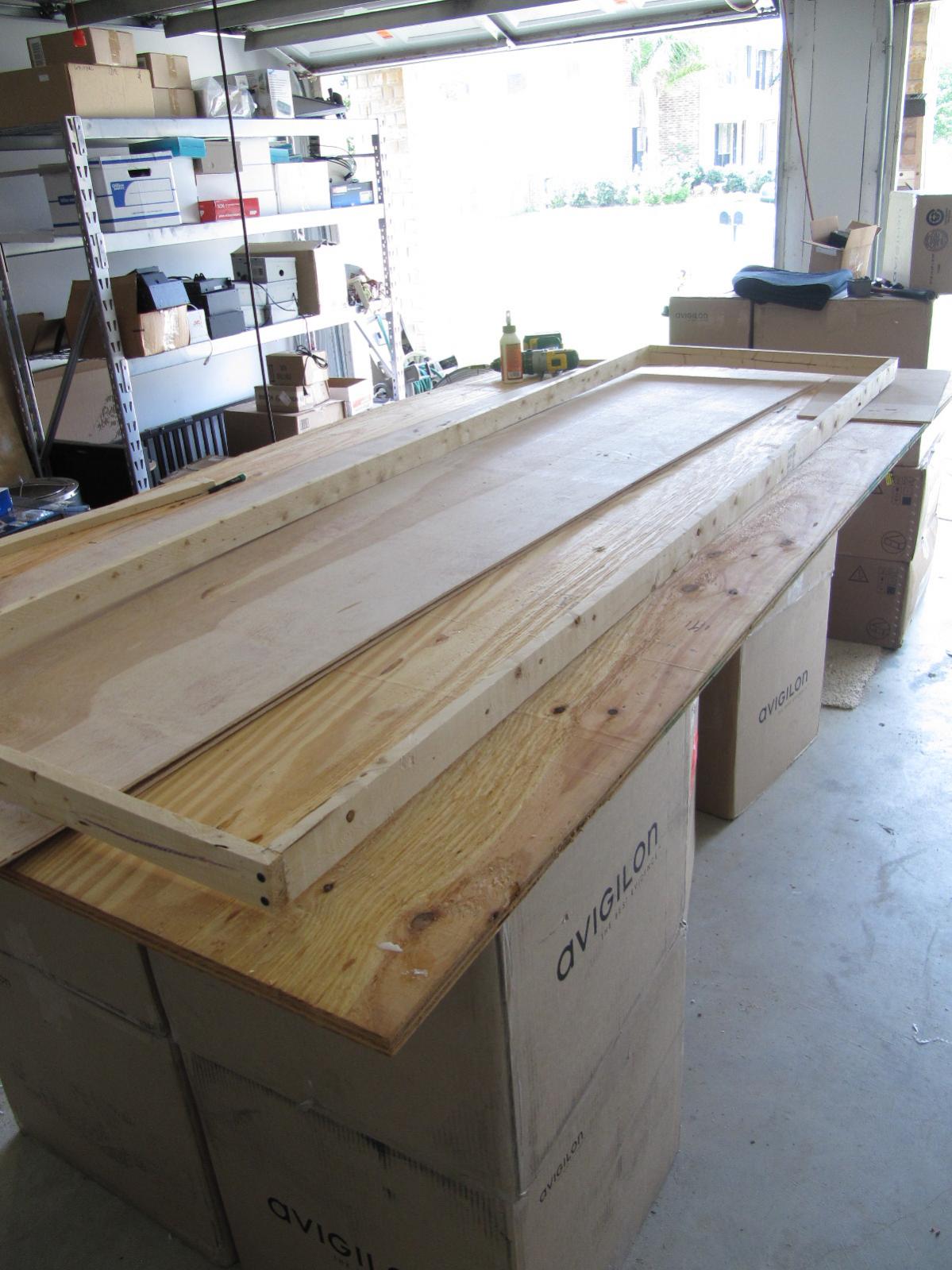

    Bought OC 705 from SPI 11232 Leo Lane Dallas USA, TX 75229 (214) 956-7781, $15 for 2'x4'x2" panel. Bought fabric that I liked and had wife make covers for them.

    Easy peasy.

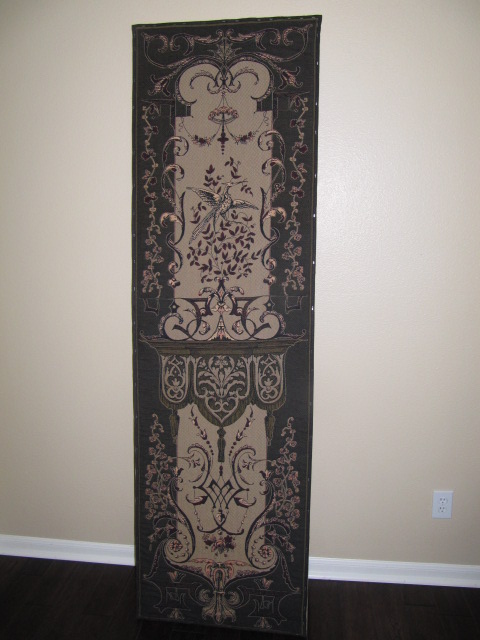

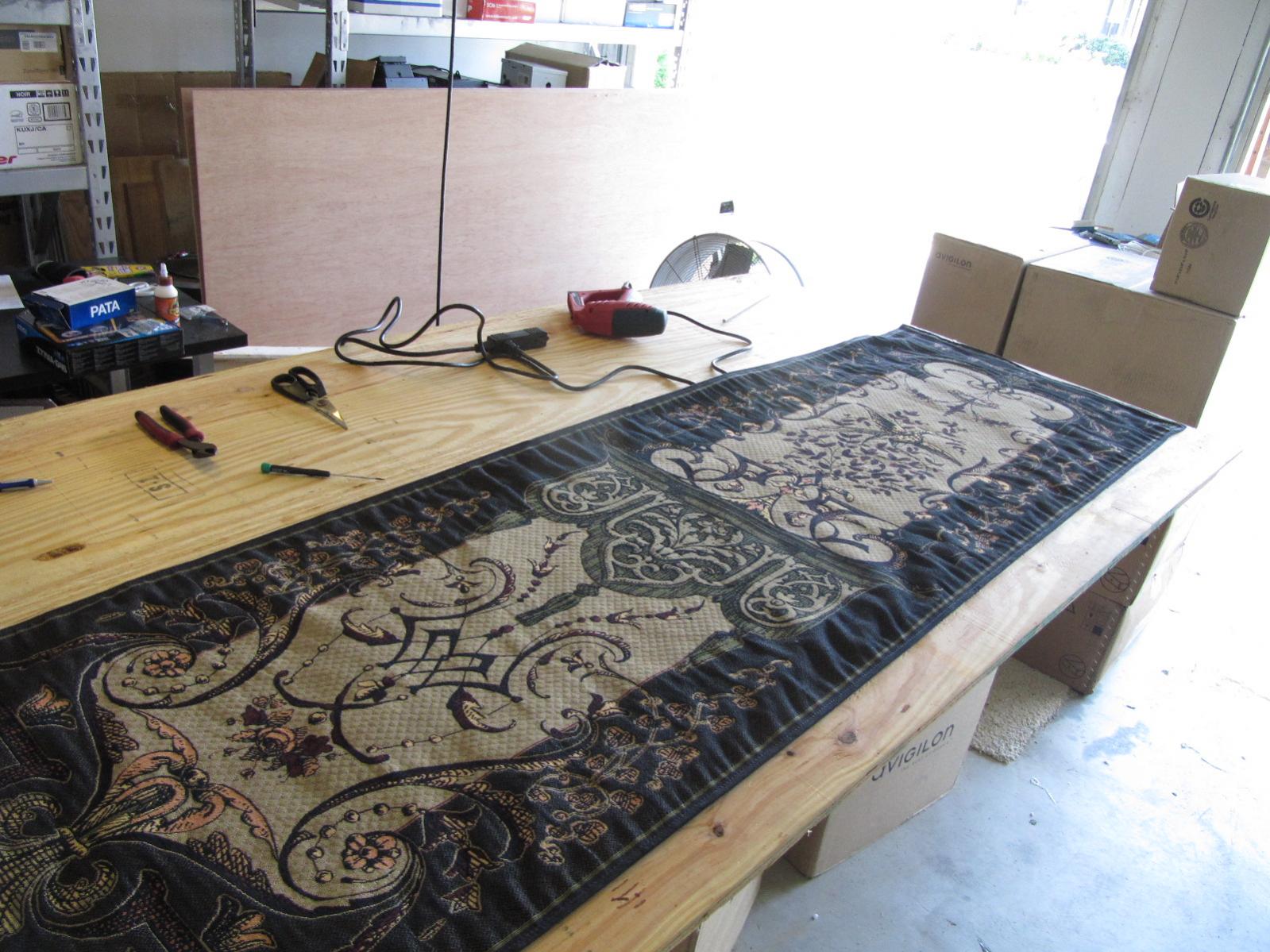

    Rob, you have been to Davids and seen his, wife made his covers a well.

    I use a 2" alum L bracket about 6 inches long for it to sit on and hoop in back towards top for mounting. Have a 2" air gap between panal and wall.
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • Systems
    Systems Posts: 14,873
    edited January 2012
    There is a TON of video's for both DIY and placement on YouTube.
    Testing
    Testing
    Testing
  • CoolJazz
    CoolJazz Posts: 570
    edited January 2012
    I'm with Mr. Smith! Owens Corning is the stuff! By the time you make anything look good enough to hang in a room, you might as well just the get what is the basis for doing it the best it can be (when it's affordable) and in this case it is!

    The professional panels (not the cheapy ones) use OC and so should you...as it's affordable. If you can find single pieces. then great! But you don't get 703 or 705 at the big box hardware stores and I couldn't find any source local, even going through builder type places. So turning to the web, you can order a box for about the same price several places and it's not all that much. A box of 6 2" thick, 2 foot by 4 foot panels, was somewhere around $125 delivered a couple years ago. I ordered two boxes and didn't use all of them yet.

    Spacing panels away from the wall increases the good they do. So plan a way to support away a couple inches, as Mr. Smith has done, and you're right there with the best it can be! It's a question after that of looks. I framed mine to have nice edges and that took time and planning. Then you can buy specific fabric from some of the sound supply places or just go down to a fabric place and get your wife to get what color she'll approve, which is a heck of a good idea anyway! Best fabric there is an open weave like a burlap. I layed the fabric out flat and even on a table and ran an iron across is briefly to get wrinkles out. Cut it to fit around and used a hot melt glue gun to attach it. The corners are the hardest to get to look decent. Otherwise, not to bad to do. For best looks, devise a way for it to stretch and keep it nice and tight! Folks visiting my room think mine are professionally done.

    Without trying to figure out your room, I'd say your count might be higher than you'd need if you use OC. You do not want to over deaden a room and suck all life out of it! Make a few and see how you like it and work your way up until you think it's enough. You could make a second round with a complimenting fabric color, if that works in your room, to help keep it from being all too much of one thing by having a whole lot of one fabric.

    You'll never regret the effectiveness of the money or the time...if you do it well the first time! Good luck with it!

    CJ
    A so called science type proudly says... "I do realize that I would fool myself all the time, about listening conclusions and many other observations, if I did listen before buying. That’s why I don’t, I bought all of my current gear based on technical parameters alone, such as specs and measurements."

    More amazing Internet Science Pink Panther wisdom..."My DAC has since been upgraded from Mark Levinson to Topping."
  • Systems
    Systems Posts: 14,873
    edited January 2012
    Each room is different, trust me.
    Really no set standards, only good starting points.
    I have over damped more rooms than you can count.:cheesygrin:
    Its give a little, take a little away.
    Tweak it to YOUR ear.
    Really super easy, and as others have said, "best money you ever spent on your system"
    Testing
    Testing
    Testing
  • mufsoman
    mufsoman Posts: 632
    edited January 2012
    How about rock wool (such as Roxul) vs. the OC 703 or 705? Any comparison experience?
    Parasound HCA-2003A & 2205A
    Front: Rti12's
    Center: Csi A6
    Side surrounds: Polk Rti A1's
    Atmos: Mirage Nanosats
    APC H15
    Power cords by Pepster, Morrow MA4 IC's, AQ Midnight, AQ Chocolate HDMI's[/SIZE]
    The rest is TBD.
  • FTGV
    FTGV Posts: 3,649
    edited January 2012
    Yes Roxul mineral wool is a suitable substitude and is what I used because the OC703,705 were not readily available in my area.
  • quadzilla
    quadzilla Posts: 1,543
    edited January 2012
    Thanks guys
    Turntable: Empire 208
    Arm: Rega 300
    Cart: Shelter 501 III
    Phono Pre: dsachs consulting
    Digital: Marantz SACD 30n
    Pre: Conrad Johnson ET3 SE
    Amp: Conrad Johnson Premier 350
    Cables: Cardas Neutral Reference
    Speakers: SDA 2.3TL, heavily modified
  • Systems
    Systems Posts: 14,873
    edited January 2012
    #1 I would start where the walls meet the ceiling and where walls meet wall.
    #2 Move your speakers in and out from the walls they are on now, to a point they sound the best.
    #3 Dampen behind speakers.
    #4 Repeat step #2

    You will know it when you hear it!
    Testing
    Testing
    Testing
  • Face
    Face Posts: 14,340
    edited January 2012
    For monopoles, absorb behind the speakers, diffuse behind the listener. The opposite for open baffle/di/bipoles. As for the first reflection point, I prefer absorption, but others prefer diffusion.
    "He who fights with monsters should look to it that he himself does not become a monster. And when you gaze long into an abyss the abyss also gazes into you." Friedrich Nietzsche
  • Mike Reeter
    Mike Reeter Posts: 4,315
    edited January 2012
    I just received a box of 6-2"x4'x2' insulation panels,they have many to choose from, and some heavy cloth material from http://www.atsacoustics.com/ fast shipping and decent prices. Going to get started next week.
  • Joe08867
    Joe08867 Posts: 3,919
    edited January 2012
    I built my own for my 2ch room. I preferred the ability to get the exact color I wanted.

    They aren't hard to build. Someone on here built some dipole panels and I actually used the same method. Not hard to do.

    I use absorption curtains on the back wall and the dipoles on the sides at the main reflection points on the sides. Made the biggest difference in my system.
  • thsmith
    thsmith Posts: 6,082
    edited January 2012
    For OC 703 and 705 locally in most big cities/towns google SPI insulation.

    http://www.spi-co.com/
