FS: Eastern Electric-DAC Supreme w/upgrades
Options
heiney9
Posts: 25,630
This is the successor model to the DAC Plus. It adds a little better power supply section as it uses (2) huge torrids. The biggest change is it adds DSD and uses the next generation Sabre chipset vs. the Dac Plus. It also has a screen showing the sampling rate. Also dual chipset like the Plus, one for each channel.
This one has been heavily modified w/ Dexa op-amps and Mundorf caps. Here's what the previous owner said:
The MiniMax DAC Supreme for sale here has benefited from the installation of DEXA Opamps (those vertically aligned boards that look like Bingo cards, in the photos) They make a big improvement in what was already a great-sounding DAC.
However, in addition to that, Mundorf capacitors (4 of them, see photos) have been installed to replace the cheaper stock caps in vital positions and now you have a huge improvement, that puts the performance of this DAC right up there with the best DACs available. (and a excellent NOS RCA tube has been installed also)
The cost of this job was $580.00 and the work was done by well-known technician and Canuck member Dan Santoni in Hamilton.
Here is a link to a thorough analysis of the Supreme
https://www.dagogo.com/eastern-electric-minimax-dac-junior-and-minimax-dac-supreme/
https://www.dagogo.com/eastern-electric-minimax-tube-dac-supreme-discrete-opamps-survey/
MiniMax DAC Supreme Specifications:
USB signal type : PCM, DSD
Frequency Response : 15Hz – 32KHz
Sampling Rates : 32bit 32KHz 44.1KHz 48KHz 192KHz 352.8KHz
384KHz
Dynamic Range : 130dB
Digital Input Impedance : 75Ω
Output Impedance : Tube 22K Solid State 10K
Output Voltage : Tube 3.2V ±0.5dB Solid State 2.8V ±0.5dB
S/N Ratio : Tube 92dB Solid State 98dB
THD : Tube 0.4% Solid State 0.01%
Power Consumption : 12W
Main Power Input : 120V 230V 240V switchable
Weight: 5kg
Dimensions: 371 x 295 x 70mm
MSRP: $1,350
This is a phenomenal sounding dac, very analog and organic, not the typical delta sigma sound, IMO. More refined and defined.
8/10 some minor swirls on the top, not easy to see.
Comes with original box, packing, owners manual and single tube.
$675 plus shipping. PayPal F/F or a check if I know you

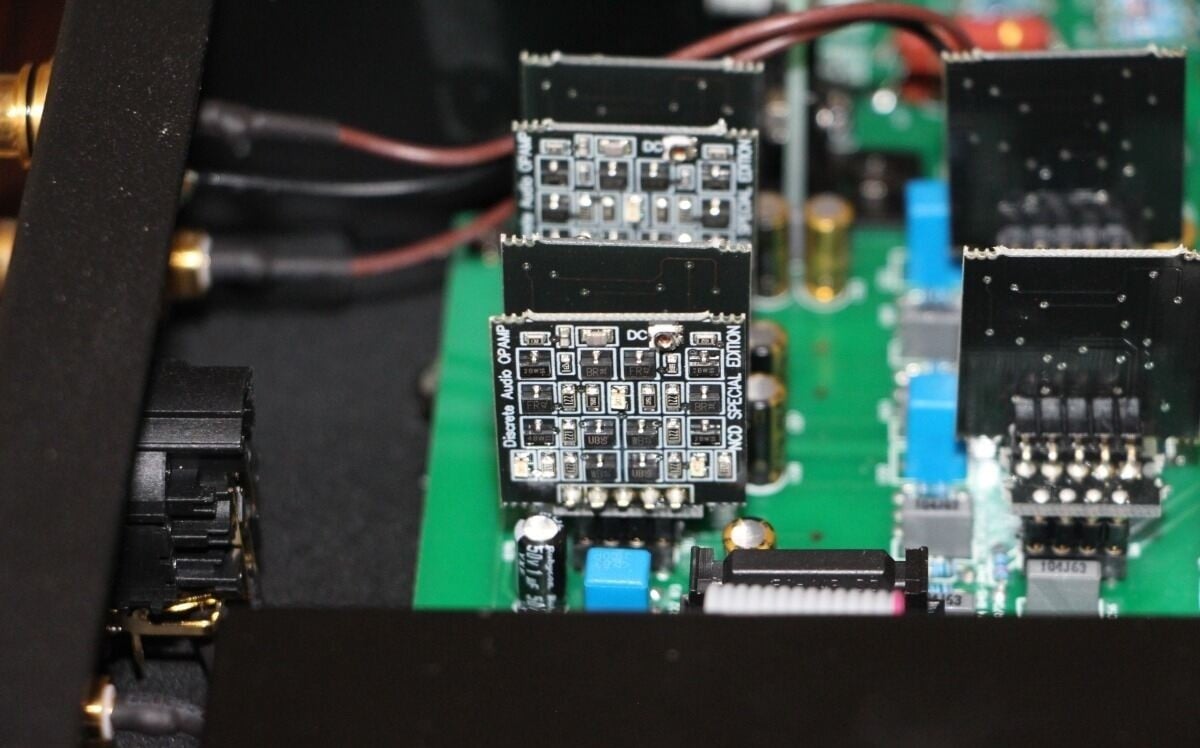

w/op-amps

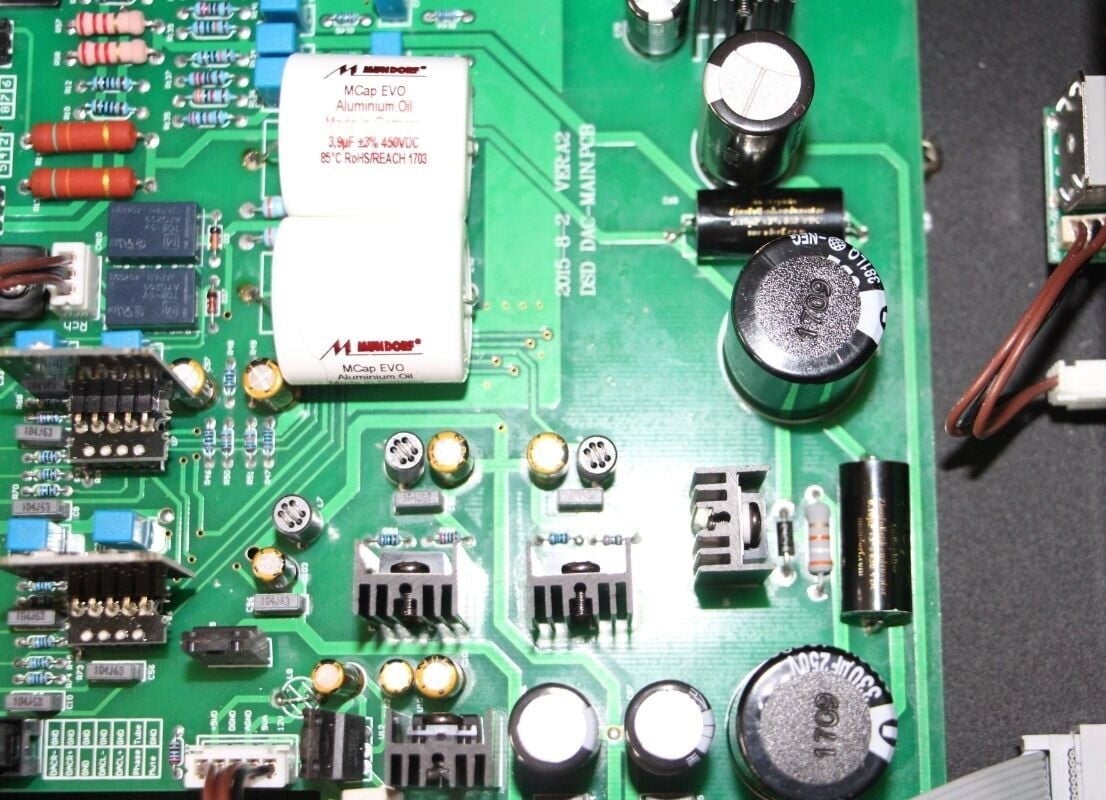

Mundorf MCap EVO Aluminum in Oil

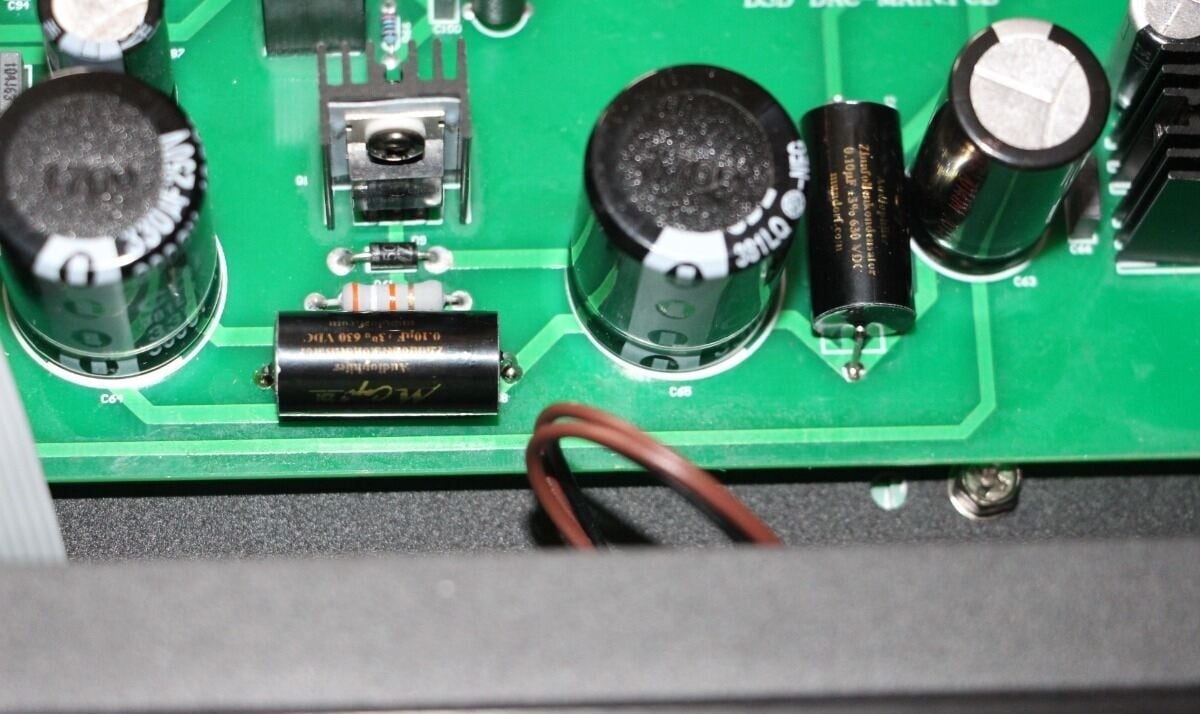

Mundorf MCap Supreme

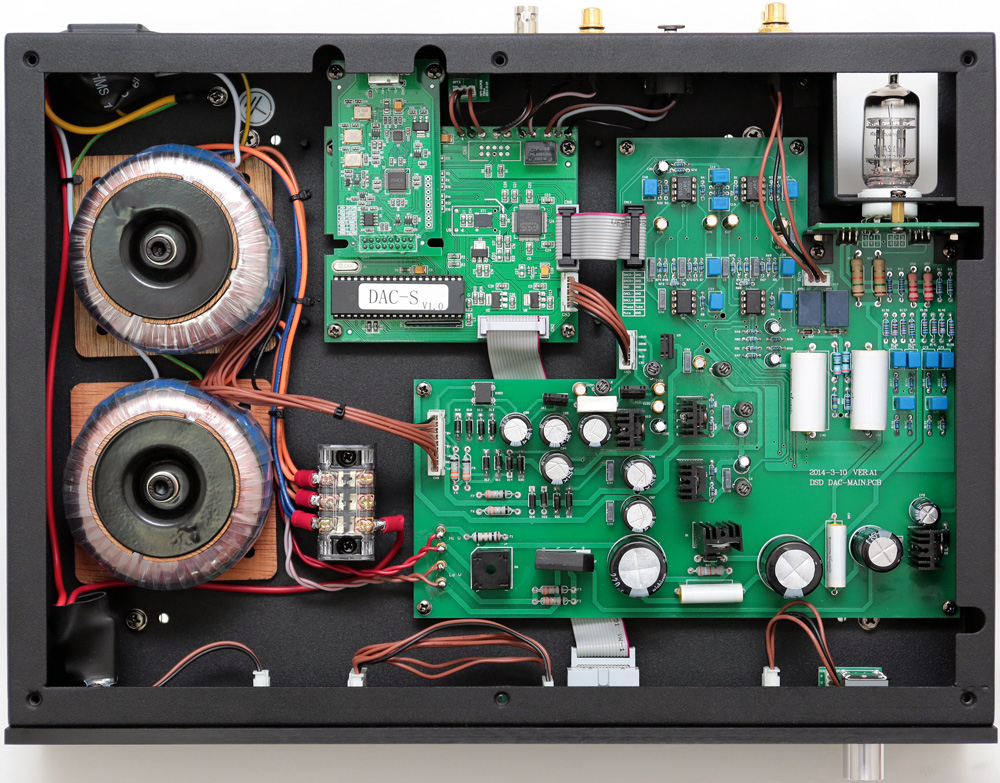

Stock photo
H9
This one has been heavily modified w/ Dexa op-amps and Mundorf caps. Here's what the previous owner said:
The MiniMax DAC Supreme for sale here has benefited from the installation of DEXA Opamps (those vertically aligned boards that look like Bingo cards, in the photos) They make a big improvement in what was already a great-sounding DAC.
However, in addition to that, Mundorf capacitors (4 of them, see photos) have been installed to replace the cheaper stock caps in vital positions and now you have a huge improvement, that puts the performance of this DAC right up there with the best DACs available. (and a excellent NOS RCA tube has been installed also)
The cost of this job was $580.00 and the work was done by well-known technician and Canuck member Dan Santoni in Hamilton.
Here is a link to a thorough analysis of the Supreme
https://www.dagogo.com/eastern-electric-minimax-dac-junior-and-minimax-dac-supreme/
https://www.dagogo.com/eastern-electric-minimax-tube-dac-supreme-discrete-opamps-survey/
MiniMax DAC Supreme Specifications:
USB signal type : PCM, DSD
Frequency Response : 15Hz – 32KHz
Sampling Rates : 32bit 32KHz 44.1KHz 48KHz 192KHz 352.8KHz
384KHz
Dynamic Range : 130dB
Digital Input Impedance : 75Ω
Output Impedance : Tube 22K Solid State 10K
Output Voltage : Tube 3.2V ±0.5dB Solid State 2.8V ±0.5dB
S/N Ratio : Tube 92dB Solid State 98dB
THD : Tube 0.4% Solid State 0.01%
Power Consumption : 12W
Main Power Input : 120V 230V 240V switchable
Weight: 5kg
Dimensions: 371 x 295 x 70mm
MSRP: $1,350
This is a phenomenal sounding dac, very analog and organic, not the typical delta sigma sound, IMO. More refined and defined.
8/10 some minor swirls on the top, not easy to see.
Comes with original box, packing, owners manual and single tube.
$675 plus shipping. PayPal F/F or a check if I know you
w/op-amps
Mundorf MCap EVO Aluminum in Oil
Mundorf MCap Supreme
Stock photo
H9
