Monitor 4 upgrades
Comments
-
How about Deez Nuts...
The Gear... Carver "Statement" Mono-blocks, Mcintosh C2800 Arcam AVR20, Oppo UDP-203 4K Blu-ray player, Sony XBR70x850B 4k, Polk Audio Legend L800 with height modules, L400 Center Channel Polk audio AB800 "in-wall" surrounds. Marantz MM7025 stereo amp. Simaudio Moon 680d DSD
“When once a Republic is corrupted, there is no possibility of remedying any of the growing evils but by removing the corruption and restoring its lost principles; every other correction is either useless or a new evil.”— Thomas Jefferson
How many flies need to be buzzing a dead horse before you guys stop beating it? -
How does a thread on Monitor 4's make it to 6 pages?
Whats next?
-
I thought it was obvious from the photos that “Deez Nuts” I was using are hurricane nuts.
The hurricane nuts do not have the on teeth back.
I do like to put one drop of power grab of the back of each one just before tightening it down.
For hurricane nuts, as I stated, and this is just my opinion, use your fingers to tighten down the bolt till the very end. Only the last couple turns with the screws driver to tighten down completely. This will prevent stripping or damaging the nut by trying to force it with a screw driver.
Post edited by DeRod on"Equality is a myth to protect the weak. Some of us are strong in the Force, others are not. Only a fool believes otherwise." - Sith Proverb. -
Then there are the confused Dey/Dem nuts.Don't take experimental gene therapies from known eugenicists.
-
-

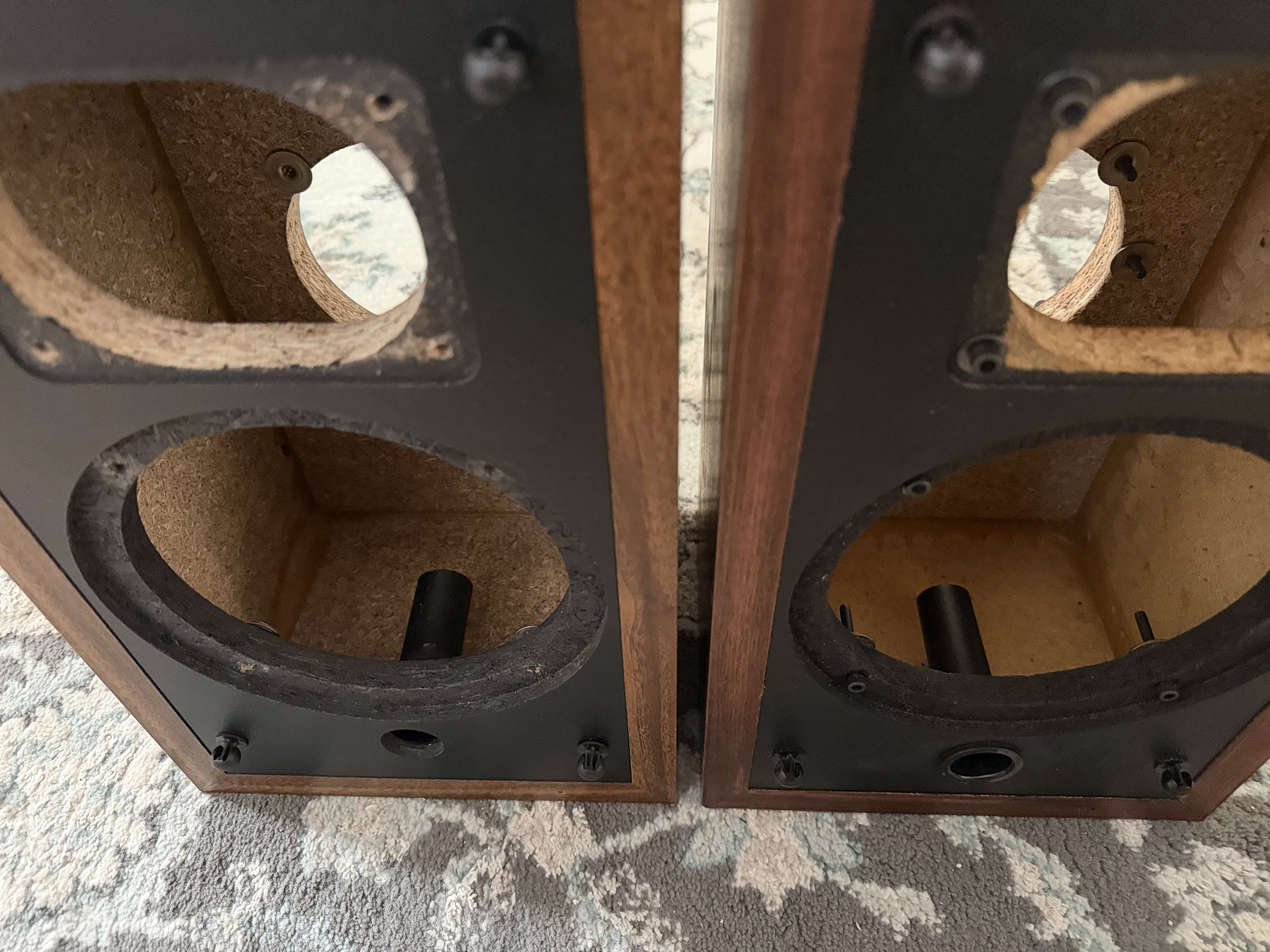

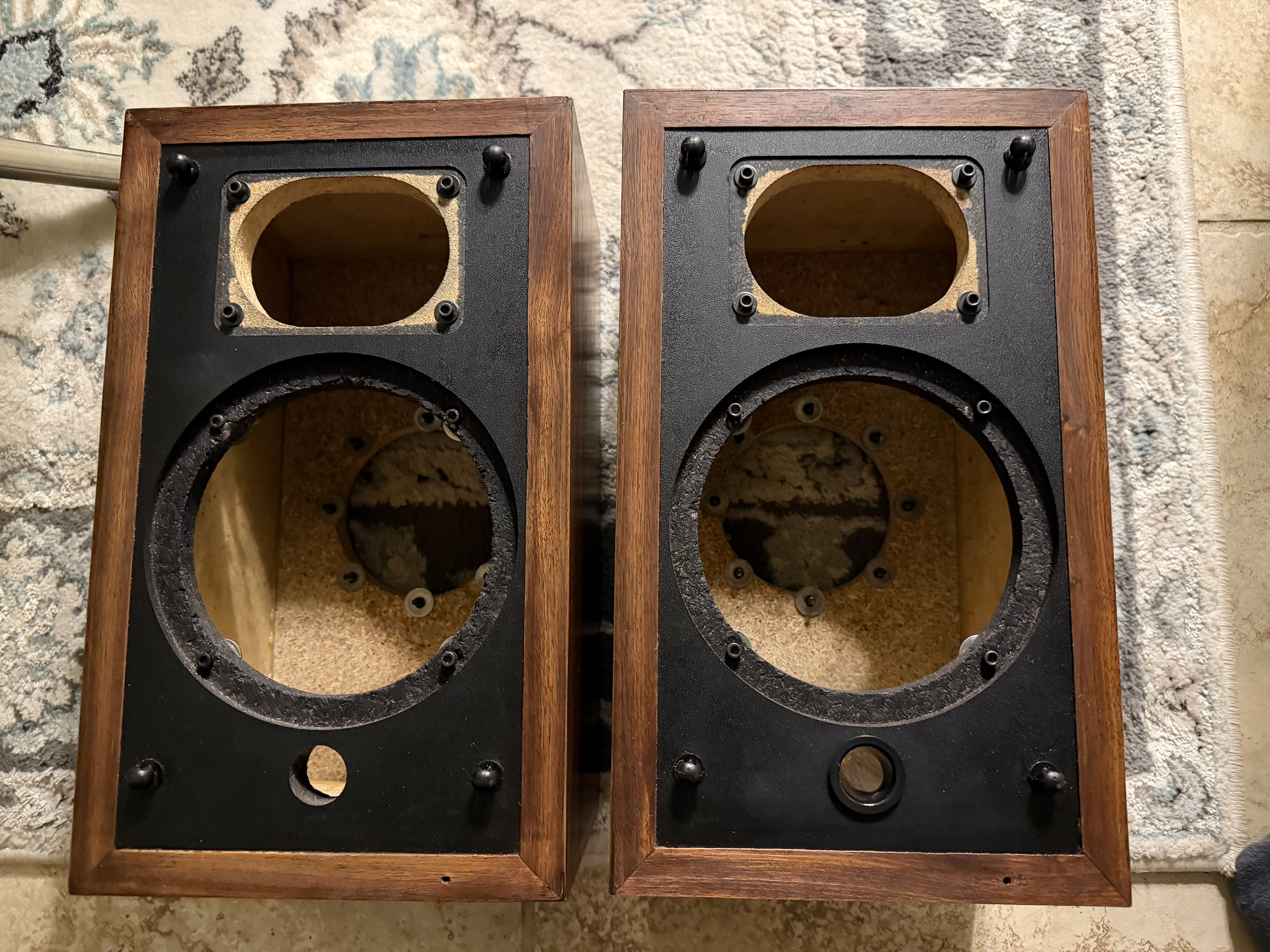

The previous owner had these mounted on the wall with brackets that left a few holes in the back of the cabinets. I filled the holes and sanded them down and applied a new sheet of black vinyl veneer. I think it looks almost the same as the original. Either way I covered the holes."Equality is a myth to protect the weak. Some of us are strong in the Force, others are not. Only a fool believes otherwise." - Sith Proverb. -

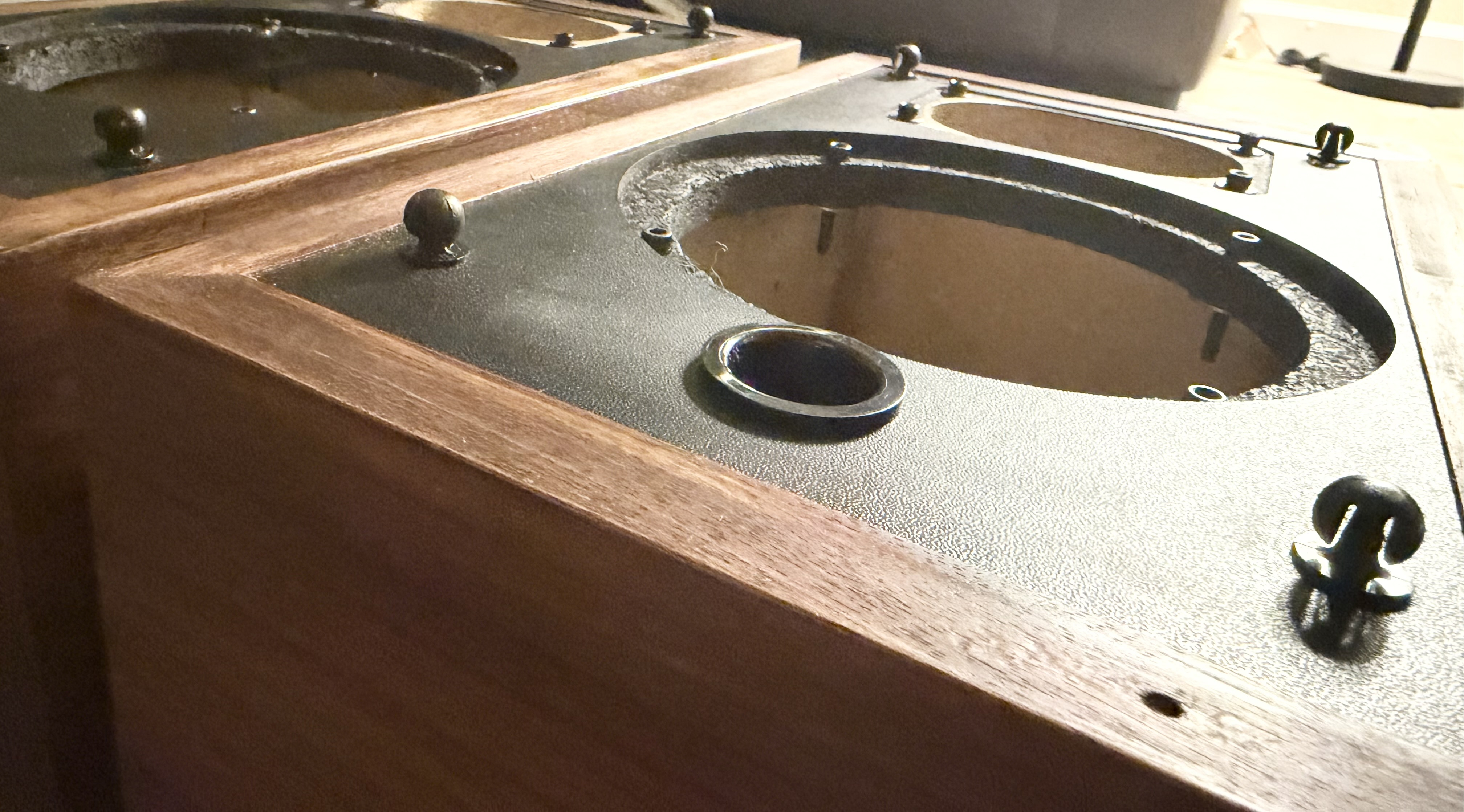

Finished the back of the other speaker and added gaskets to terminal plates"Equality is a myth to protect the weak. Some of us are strong in the Force, others are not. Only a fool believes otherwise." - Sith Proverb. -
Now looking at those pics, the enclosures look like the less-dense particle board similar to the 5Jr's. So the 8 mount fasteners and wider terminal plates should stiffen up that rear baffle. Great job again.Don't take experimental gene therapies from known eugenicists.
-
I found with delrin you have to add the extra holes to make the proper seal- Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
-

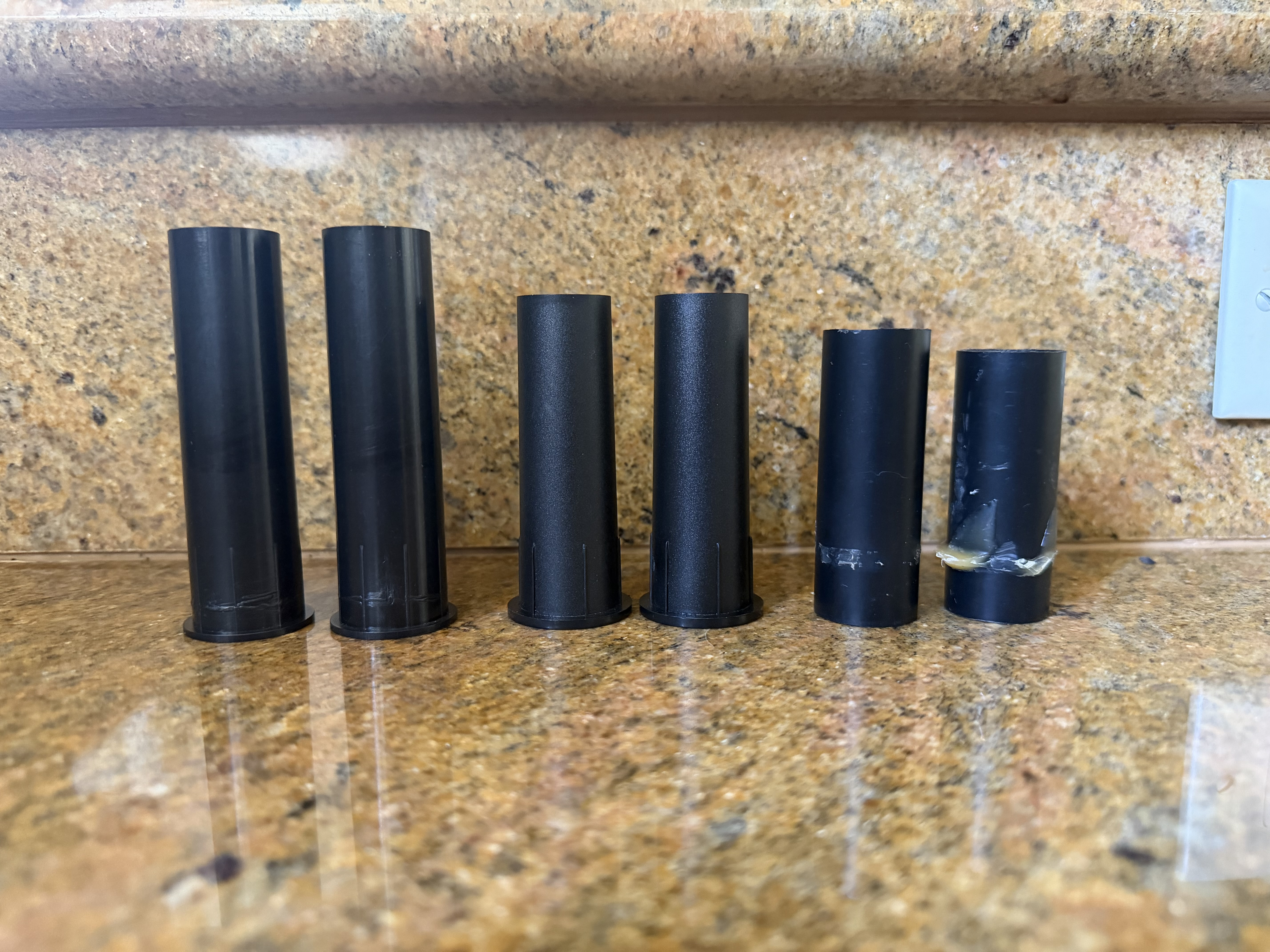

New port tubes arrived over the holidays.
Check out the 2 original ones. They are not even the same size 🤪 Seems like quality control was a top priority in those days. Or not 😂
"Equality is a myth to protect the weak. Some of us are strong in the Force, others are not. Only a fool believes otherwise." - Sith Proverb. -
Chalk that one up in the Eggnog Chronicles.
Don't take experimental gene therapies from known eugenicists. -
The ones in the middle are almost the exact length as the originals but do actually reach the surface of the front baffle."Equality is a myth to protect the weak. Some of us are strong in the Force, others are not. Only a fool believes otherwise." - Sith Proverb. -
On the left is the original un modified port tube. On the right the new tube."Equality is a myth to protect the weak. Some of us are strong in the Force, others are not. Only a fool believes otherwise." - Sith Proverb. -
That should fix the chuffing. Will you try the longest ports as well?Don't take experimental gene therapies from known eugenicists.
-
The longer ones are slightly tapered and get stuck halfway through the hole. I think a little sanding will fix it.
The series 2 M4 port tube is 1/4" wider in diameter and almost 2" longer.
"Equality is a myth to protect the weak. Some of us are strong in the Force, others are not. Only a fool believes otherwise." - Sith Proverb. -

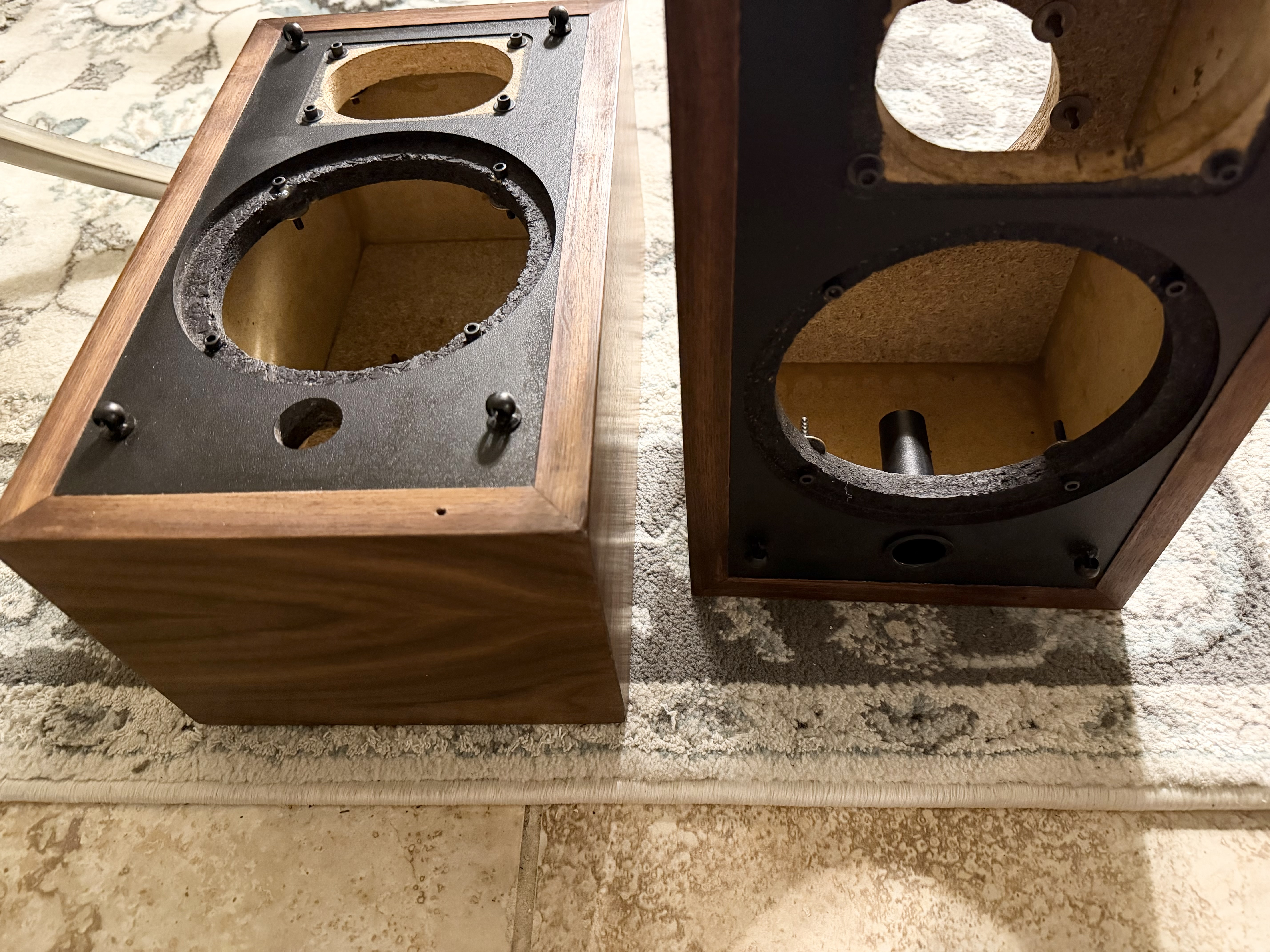

Series 2 M4 vs. the original M4"Equality is a myth to protect the weak. Some of us are strong in the Force, others are not. Only a fool believes otherwise." - Sith Proverb. -
I'm on a damn smartphone right now but the tuning frequency is given by the formula Fb = (345 / 2π) × √(A / (Vb × Leff)). If they had a different Vb in one box for some reason, they may have had reason for a different Leff.George / NJ
