Monitor 5 jrs

gdphoto
gdphoto Posts: 182
edited June 2014 in Vintage Speakers
I want to rebuild a pair of Monitor 5 Jr's. Can someone tell me the best caps and any other parts I should replace. Thanks!
Hafler DH220 Power amp Recapped
Hafler DH110 Preamp Recapped
Hafler Digital FM Tuner
Virtue Audio M1 Piano CD Player
Technics SL-1210-MK5 with a Rega Exact Cartridge
Polk SDA1c's(Rebuilt XO's by Ben) RDO194 Tweeters
Post edited by gdphoto on
· Share on FacebookShare on Twitter

Comments

  • gdphoto
    gdphoto Posts: 182
    edited June 2014
    I also have a line on another pair of 5 jrs for $75.00. Is that a good price?
    Hafler DH220 Power amp Recapped
    Hafler DH110 Preamp Recapped
    Hafler Digital FM Tuner
    Virtue Audio M1 Piano CD Player
    Technics SL-1210-MK5 with a Rega Exact Cartridge
    Polk SDA1c's(Rebuilt XO's by Ben) RDO194 Tweeters
    · Share on FacebookShare on Twitter
  • Dropthebeat
    Dropthebeat Posts: 154
    edited June 2014
    $75 is definitely a good price so long as they are working and in descent shape .I've seen them go from around 100-180 I know it's a price difference but it depends on the condition they are in. If your looking for some then definitely pick them up.
    Yamaha V1800 receiver along with a NAD 2600a and 2700a .
    Sda 1c - my new favorite speakers
    Rta 8,11tl,15tl
    Monitor 10 and 12
    Marty sub 18" still in the works
    Klipsch sw12-2
    Hobbies turn into addictions .
    · Share on FacebookShare on Twitter
  • Faustin
    Faustin Posts: 1,149
    edited June 2014
    Most people on the forum use Clarity , Sonicap, and Dayton capacitors and either Mills or Mundorf resistors.
    · Share on FacebookShare on Twitter
  • gdphoto
    gdphoto Posts: 182
    edited June 2014
    Turns out they are Monitor 5's. How much is there between the 5's and the 5 jrs.?
    Hafler DH220 Power amp Recapped
    Hafler DH110 Preamp Recapped
    Hafler Digital FM Tuner
    Virtue Audio M1 Piano CD Player
    Technics SL-1210-MK5 with a Rega Exact Cartridge
    Polk SDA1c's(Rebuilt XO's by Ben) RDO194 Tweeters
    · Share on FacebookShare on Twitter
  • gdphoto
    gdphoto Posts: 182
    edited June 2014
    Also, is there somewhere I can go to get a parts list for rebuilding the XO's in these units?
    Hafler DH220 Power amp Recapped
    Hafler DH110 Preamp Recapped
    Hafler Digital FM Tuner
    Virtue Audio M1 Piano CD Player
    Technics SL-1210-MK5 with a Rega Exact Cartridge
    Polk SDA1c's(Rebuilt XO's by Ben) RDO194 Tweeters
    · Share on FacebookShare on Twitter
  • TCK
    TCK Posts: 231
    edited June 2014
    There is not much difference between the 5's & 5Jr's. The 5's are slightly bigger w a slightly bigger passive woofer & so it adds a lil more bass.
    - SDA 2B (1989, Oak Tops, 194s, Spikes)
    - Monitor 7B (1982 Peerless, Sonicaps, Mills, BH5, JB Welded, Binding Posts)
    - (2) SVS SB12-NSD (Flat Black)
    - SVS SB 3000 (Gloss Black)
    - Pioneer SC-1222K AVR
    - Marantz MM 7055 (5 Ch Amp)
    - Pioneer PD-D6 SACD Player
    - Marantz NR1403 AVR
    - Sony UBP-X800M2 (4k Blu-ray)
    - Sony UBP-X1100ES (4K Blu-ray)
    - Adcom GFA 555 Amp
    - Monitor 5 (194s, Side Surrounds)
    - Monitor 5Jr+ (194s) {Storage}
    - LG OLED65CXPUA (4K OLED TV)
    - LG 55UN7300PUF (4K HD TV)
    - RT35i (Cherry)
    - (2 Pair) RT25i (Cherry)
    - CS400 (Center)
    - CS350 (Center)
    - F/Xi A4 (Rear Surrounds)
    - RT25 (Rear Surrounds) {Storage}
    - Audioquest Interconnects
    - Blu-Jean Speaker Cables & Interconnects



    " But boy do I remember the strain of her refrain " LG
    · Share on FacebookShare on Twitter
  • ZLTFUL
    ZLTFUL Posts: 5,653
    edited June 2014
    gdphoto wrote: »
    Also, is there somewhere I can go to get a parts list for rebuilding the XO's in these units?

    Go up about 4 or 5 posts to the stickies at the top of this sub-forum. You will see a wiring and crossover schematic post for non-SDAs.
    "Some people find it easier to be conceited rather than correct."

    "Unwad those panties and have a good time man. We're all here to help each other, no matter how it might appear." DSkip
    · Share on FacebookShare on Twitter
  • soundfreak1
    soundfreak1 Posts: 3,414
    edited June 2014
    Great little bookies. Have 2 pair for ht system. Recaped with clairty SA caps, they are very surprising sound quality. At tjat price grab them fast.
    Main Rig:
    Krell KAV 250a biamped to mid/highs
    Parasound HCA1500A biamped to lows
    Nakamichi EC100 Active xover
    MIT exp 1 ic's
    Perreaux SA33 class A preamp
    AQ kingcobra ic's
    OPPO 83 CDP
    Lehmann audio black cube SE phono pre, Audioquest phono wire (ITA1/1)
    Denon DP-1200 TT. AToc9ML MC cart.
    Monster HTS 3600 power conditioner
    ADS L1590/2 Biamped
    MIT exps2 speaker cable
    · Share on FacebookShare on Twitter
  • boston1450
    boston1450 Posts: 7,658
    edited June 2014
    Yup. If there in decent condition - run dont walk :smile:
    ..
    · Share on FacebookShare on Twitter
  • Faustin
    Faustin Posts: 1,149
    edited June 2014
    Picked these up for $50 about 6 months ago. In original boxes and pristine. A little cleaning and a crossover rebuild. I think you will be quite happy with them.


    Monitor 5a 1.jpg

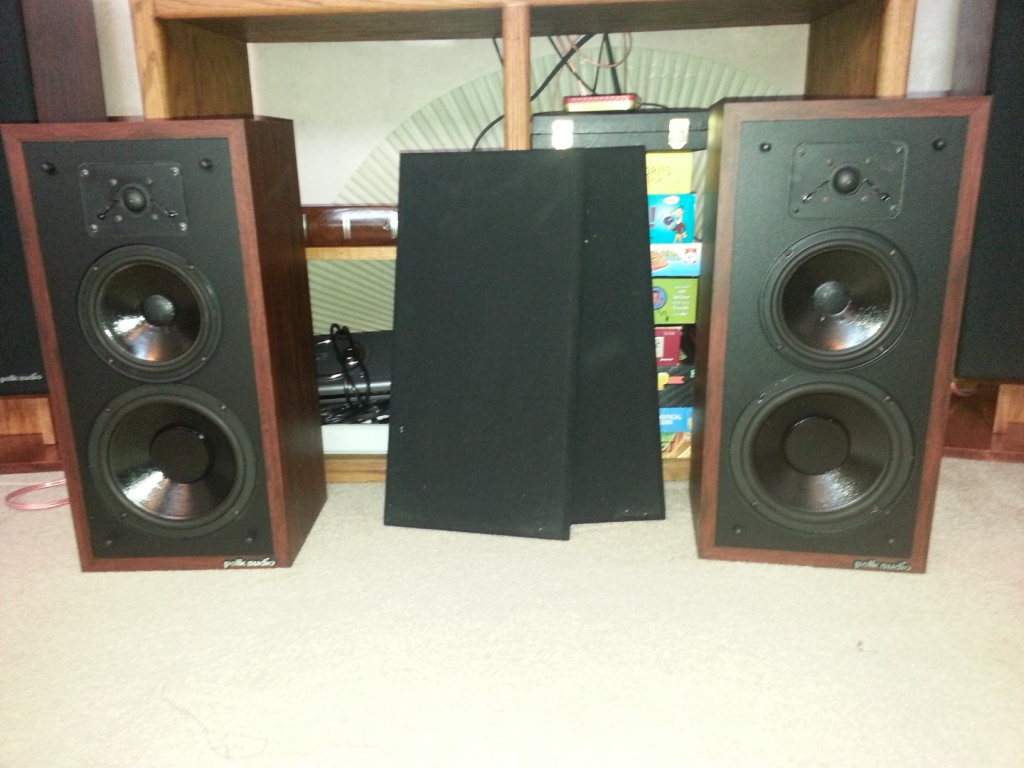

    monitor 5a 2.jpg

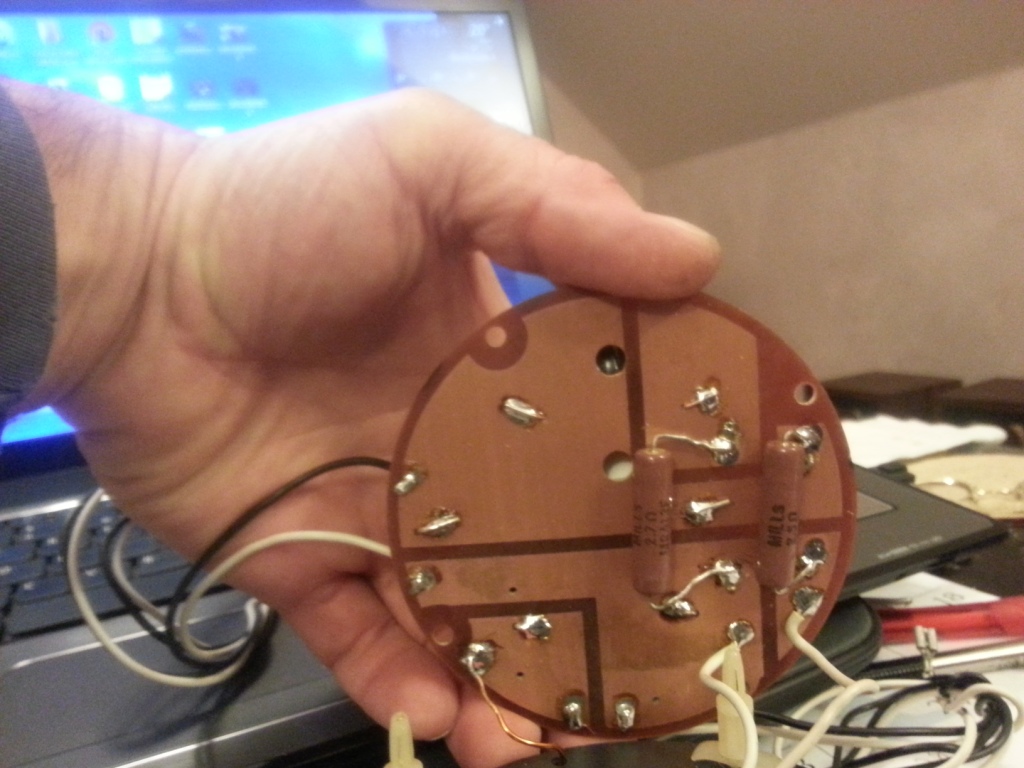

    Monitor 5a crossover rebuild 2.jpg

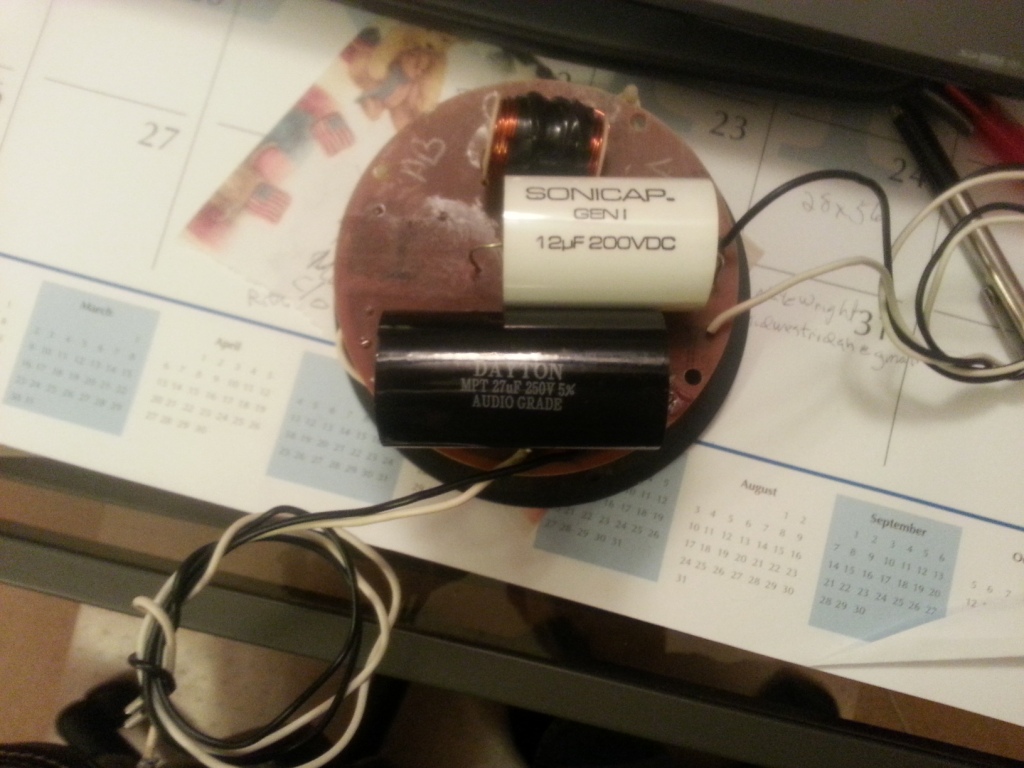

    monitor 5a Crossover Rebuild.jpg

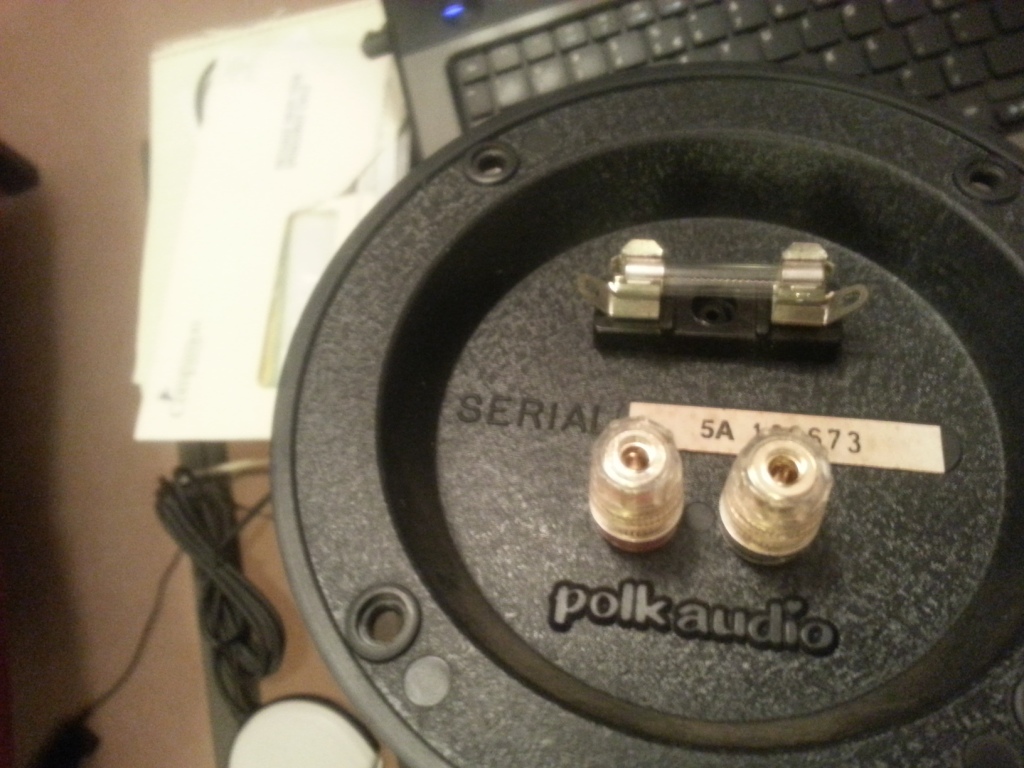

    Monitor 5a Crossover rebuld binding posts.jpg
    Monitor 5a.jpg
    Office Setup.jpg

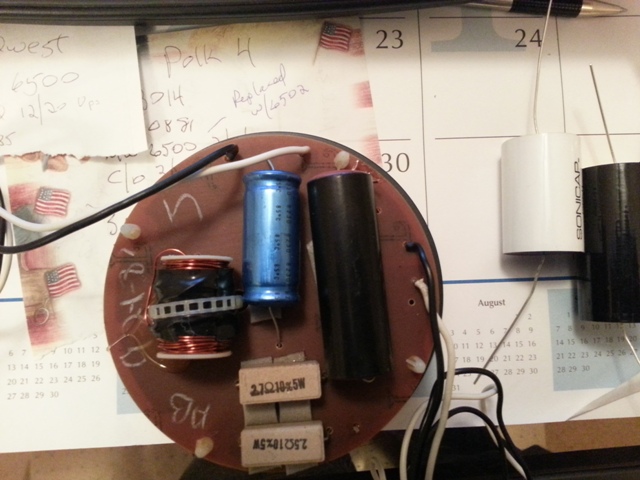

    Original 5a crossover 3.jpg
    · Share on FacebookShare on Twitter
  • voltz
    voltz Posts: 5,384
    edited June 2014
    gdphoto

    you might try Madisound, I just click on contact and told them what my Monitor 4's had for caps and he wrote back with 3 suggestions for each, I went with the ClarityCap px's capacitors for my M4's.

    http://www.madisoundspeakerstore.com/welcome.php
    2 ch- Polk CRS+ * Vincent SA-31MK Preamp * Vincent Sp-331 Amp * Marantz SA8005 SACD * Project Xperience Classic TT * Sumiko Blue Point #2 MC cartridge

    HT - Polk 703's * NAD T-758 * Adcom 5503 * Oppo 103 * Samsung 60" series 8 LCD
    · Share on FacebookShare on Twitter
  • gdphoto
    gdphoto Posts: 182
    edited June 2014
    I picked up the Monitor 5's and they sound wonderful! Best $75.00 ever spent on speakers.
    Hafler DH220 Power amp Recapped
    Hafler DH110 Preamp Recapped
    Hafler Digital FM Tuner
    Virtue Audio M1 Piano CD Player
    Technics SL-1210-MK5 with a Rega Exact Cartridge
    Polk SDA1c's(Rebuilt XO's by Ben) RDO194 Tweeters
    · Share on FacebookShare on Twitter
  • gdphoto
    gdphoto Posts: 182
    edited June 2014
    I found another guy in Allentown, PA selling a pair of JR's for $30.00. He says one tweeter has an issue, but the cabinets are fine and there's no mold or mildew. I have 4 L2000's from when I rebuilt my SDA 1c's, so I'm thinking I can use them.
    Hafler DH220 Power amp Recapped
    Hafler DH110 Preamp Recapped
    Hafler Digital FM Tuner
    Virtue Audio M1 Piano CD Player
    Technics SL-1210-MK5 with a Rega Exact Cartridge
    Polk SDA1c's(Rebuilt XO's by Ben) RDO194 Tweeters
    · Share on FacebookShare on Twitter
  • gdphoto
    gdphoto Posts: 182
    edited June 2014
    Thanks! This is helpful.
    Hafler DH220 Power amp Recapped
    Hafler DH110 Preamp Recapped
    Hafler Digital FM Tuner
    Virtue Audio M1 Piano CD Player
    Technics SL-1210-MK5 with a Rega Exact Cartridge
    Polk SDA1c's(Rebuilt XO's by Ben) RDO194 Tweeters
    · Share on FacebookShare on Twitter
  • gdphoto
    gdphoto Posts: 182
    edited June 2014
    Thanks Voltz! This is a big help.
    Hafler DH220 Power amp Recapped
    Hafler DH110 Preamp Recapped
    Hafler Digital FM Tuner
    Virtue Audio M1 Piano CD Player
    Technics SL-1210-MK5 with a Rega Exact Cartridge
    Polk SDA1c's(Rebuilt XO's by Ben) RDO194 Tweeters
    · Share on FacebookShare on Twitter
