Center speaker on top of sub?

azsam
azsam Posts: 45
edited January 2014 in Speakers

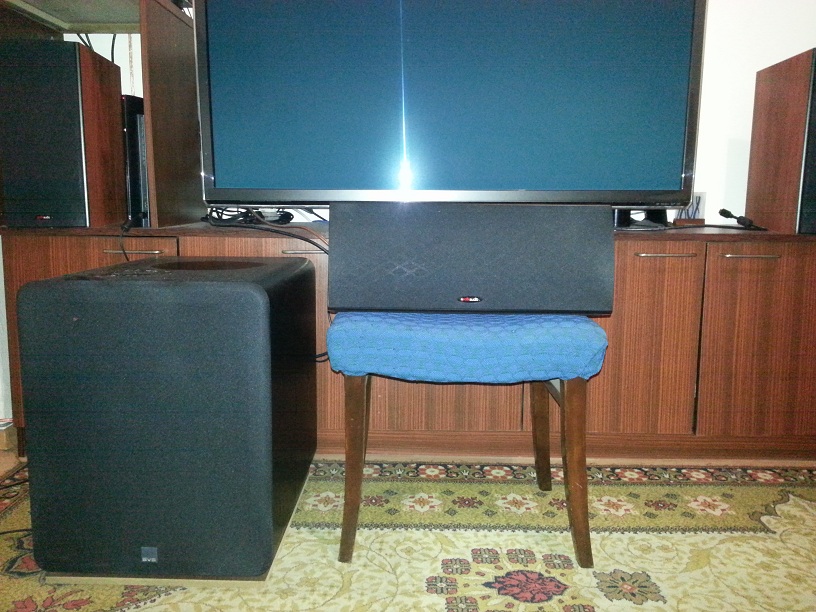

Hi guys, could you help me with my dilemma. I want to get rid of my stool and put the center channel CS1 on top of my sub. Will the vibrations from the sub damage it in any way? See the image below

Post edited by azsam on
· Share on FacebookShare on Twitter

Comments

  • seabeerob213
    seabeerob213 Posts: 1,843
    edited January 2014
    it wont sit still on top of a sub.
    2 Channel(work in progress):DAC: Schiit modi 2 uberAmp:Parasound 1200 MK IISub:RBH 1010-SEP Speakers: Monitor 5A peerlesscurrently running some krk rokit 3g since the HK pre outs died and i need to start breaking everything down to move in a couple monthsHeadphones:Source: tidalDAC: schiit modius epre: schiit sysAmp: AQ dragonfly black/ schiit magni2 Cans: Velodyne V-True, Grado SR225i, sennheiser x drop gaming headsetPC:DAC: schiit modius e(over spdif)pre: schiit sysspeakers: prenous eris 5 xtSub: Earthquake Sound MiniMe-P63most of my comments are passing on of info, im a noob, im just trying to help how i can, if im wrong or out of place to comment, dont hesitate to let me know :)"WITH WILLING HEARTS AND SKILLFUL HANDS, THE DIFFICULT WE DO AT ONCE, THE IMPOSSIBLE TAKES A BIT LONGER, WITH COMPASSION FOR OTHERS. WE BUILD - WE FIGHT FOR PEACE WITH FREEDOM"Seabee Memorial, Arlington, VA
    · Share on FacebookShare on Twitter
  • Mystery
    Mystery Posts: 2,546
    edited January 2014
    It's never good idea to put a speaker on top of subwoofer due to vibrations.

    Klipsch RB81, KG3.5, B&W DM602.5, Polk.
    Subwoofers: Klipsch RW10, Triad ProSub Bronze.
    · Share on FacebookShare on Twitter
  • marine5068
    marine5068 Posts: 4
    edited January 2014
    Nothing will sit on top of my sub nor would I want anything on it.
    I made a TV riser out of two 2x12s so that my centre channel speaker would sit in front and below the tv.
    You can also purchase a centre channel shelf that hangs it on top of the tv.
    · Share on FacebookShare on Twitter
  • azsam
    azsam Posts: 45
    edited January 2014
    seabeerob213 wrote: »
    it wont sit still on top of a sub.

    I am not worried about movement. I had Xmas decorations on top of the sub -- did not move for 20 days. if you look closely at the picture, you will see the dust free area on top of the sub as the xmas thingy was sitting still for all this time. I just do not know if the minimal vibrations will damage the speaker.
    · Share on FacebookShare on Twitter
  • Tornado Red
    Tornado Red Posts: 939
    edited January 2014
    Interesting. Are you planning on leaving the sub where it is? Then your center channel won't be a center channel anymore. Or are you going to move your sub to where the stool is now? That option looks like your center channel would cut into the bottom of the display, and it's quite unlikely the sub will sound good there, but who knows for sure.
    · Share on FacebookShare on Twitter
  • azsam
    azsam Posts: 45
    edited January 2014
    Tornado Red wrote: »
    Interesting. Are you planning on leaving the sub where it is? Then your center channel won't be a center channel anymore. Or are you going to move your sub to where the stool is now? That option looks like your center channel would cut into the bottom of the display, and it's quite unlikely the sub will sound good there, but who knows for sure.

    Yes, I am planning to move the sub where the stool is now -- dead center below the TV. Viewing should not be impacted from a sitting position.
    · Share on FacebookShare on Twitter
  • ikolbyi
    ikolbyi Posts: 77
    edited January 2014
    azsam wrote: »
    Yes, I am planning to move the sub where the stool is now -- dead center below the TV. Viewing should not be impacted from a sitting position.

    The best position/location for the sub is in one of the corners. Out-of-sight, out-of-mind but the sound will bounce off the walls and fill the room properly.
    Zone 1
    (5.1 Setup)
    -- VM 20 (L/R)
    -- RM 8 Center (center)
    -- VM 10 (S.L/R)
    -- DSW microPRO 1000 (LFE)
    Zone 2
    -- Atrium 45
    Denon AVR-2809
    (7.1 Setup)
    -- RM 6600 (L/R + center + S.L/R)
    -- RM 7 (SB.L/R)
    -- PSW 350 (LFE)
    Denon AVR-1909
    · Share on FacebookShare on Twitter
  • F1nut
    F1nut Posts: 50,734
    edited January 2014
    Get yourself a real center stand and move the sub to a corner.
    Political Correctness'.........defined

    "A doctrine fostered by a delusional, illogical minority and rabidly promoted by an unscrupulous mainstream media, which holds forth the proposition that it is entirely possible to pick up a t-u-r-d by the clean end."

    President of Club Polk

    · Share on FacebookShare on Twitter
  • WLDock
    WLDock Posts: 3,073
    edited January 2014
    Some of the other posters alluded to the thought...."the heck with the center on the sub. The question is.....is that the best place for the sub?" Have you done the sub crawl? http://www.youtube.com/watch?v=AV3oLLMgS-M

    Once you find the best place for the sub, put it there. Then, get a stand for the center....there are tons to choose from....even custom heights, etc.

    As far as damage to the speaker if you were to try it....I seriously doubt it. There are centers with built in subs.
    2.2 Office Setup | LG 29UB55 21:9 UltraWide | HP Probook 630 G8 | Dell Latitude | Cabasse Stream Amp 100 | Boston Acoustics VS 240 | AUDIORAX Desk Stands | Mirage Omni S8 sub1 | Mirage Omni S8 Sub2
    · Share on FacebookShare on Twitter
  • azsam
    azsam Posts: 45
    edited January 2014
    No, I have not done the sub crawl. My room is pretty small 16 feet by 10 feet and not a lot of options for the sub. It is either there where it is now or right next to my couch or in one other corner, but for those two locations I need to run a sub cable around the whole room...
    · Share on FacebookShare on Twitter
  • PolishDude
    PolishDude Posts: 58
    edited January 2014
    I just bought a wall mount for my center and will mount it under the TV but in your case, best thing would be to buy a stand or actually since it won't damage the speaker, why not try it and see if you like how everything sounds, if it sounds good to you than question answered!
    · Share on FacebookShare on Twitter
  • Face
    Face Posts: 14,340
    edited January 2014
    If the sub sounds good there, leave it there. By placing it in the corner you may get some more bottom end gain, but you'll also do a better job exciting room nodes.

    Buy a dedicated center stand, it'll look classier.
    "He who fights with monsters should look to it that he himself does not become a monster. And when you gaze long into an abyss the abyss also gazes into you." Friedrich Nietzsche
    · Share on FacebookShare on Twitter
  • azsam
    azsam Posts: 45
    edited January 2014
    OK, guys, I tried to draw my living room so you can see what I am working with. Basically I am limited to sub positions. In my view, I have only 2 options for the sub other than where it currently is places -- close to the center channel. In the drawing you will see the actual size of the room, furniture, and the other two sub positions as options marked as yellow circles. Alternative sub position 1 produces the most bass and rumbles the whole couch, but isn't that too close of a position for the sub? isn't it going to damage my hearing (maybe a stupid question)?

    I am open to any suggestions.

    · Share on FacebookShare on Twitter
  • Face
    Face Posts: 14,340
    edited January 2014
    No such thing as too close(besides sitting on it). By having it so close, bass will be smoother and you'll have more headroom since you may have to turn the gain/level down a bit.
    "He who fights with monsters should look to it that he himself does not become a monster. And when you gaze long into an abyss the abyss also gazes into you." Friedrich Nietzsche
    · Share on FacebookShare on Twitter
  • Face
    Face Posts: 14,340
    edited January 2014
    Even better, move one or both of those sofas to the side wall, and put a second sub on the other side of the couch. You'll thank me later.
    "He who fights with monsters should look to it that he himself does not become a monster. And when you gaze long into an abyss the abyss also gazes into you." Friedrich Nietzsche
    · Share on FacebookShare on Twitter
  • WLDock
    WLDock Posts: 3,073
    edited January 2014
    azsam wrote: »
    No, I have not done the sub crawl. My room is pretty small 16 feet by 10 feet and not a lot of options for the sub. It is either there where it is now or right next to my couch or in one other corner, but for those two locations I need to run a sub cable around the whole room...
    Yeah, back in the day that was the only option. However, there are tools and toys to make life easier today. Give it a go>

    Pick up some furniture sliders from your local store to help move the sub around.
    http://www.amazon.com/EZ-Moves-Furniture-Slides-4-Pack/dp/B001DECMSA

    Then get a wireless system for the sub...some modern subs like the HSU ULS-15 come with wireless units. SVS sound even sells the Dayton unit on their site:http://www.svsound.com/subwoofers/subwoofer-accessories/Dayton-Audio-Sub-Link-XR-2-4-GH

    Dayton Audio Sub-Link XR 2.4 GHz Wireless Audio Transmitter Receiver System for Subwoofers
    http://www.parts-express.com/dayton-audio-sub-link-xr-24-ghz-wireless-audio-transmitter-receiver-system-for-subwoofers--300-580

    Outlaw Audio OAW3 Wireless Audio System https://outlawaudio.com/products/OAW3.html

    Then you can find new and used center channel stands on Amazon, eBay, CL, etc from $30-$100!
    2.2 Office Setup | LG 29UB55 21:9 UltraWide | HP Probook 630 G8 | Dell Latitude | Cabasse Stream Amp 100 | Boston Acoustics VS 240 | AUDIORAX Desk Stands | Mirage Omni S8 sub1 | Mirage Omni S8 Sub2
    · Share on FacebookShare on Twitter
  • ken brydson
    ken brydson Posts: 8,779
    edited January 2014
    Can you wall mount the TV and put the center on the cabinet below it?
    · Share on FacebookShare on Twitter
  • azsam
    azsam Posts: 45
    edited January 2014
    ken brydson wrote: »
    Can you wall mount the TV and put the center on the cabinet below it?

    That's a good idea as it will free up space for the center as you say. The only problem is that I am renting and trying to avoid putting holes in the wall.
    · Share on FacebookShare on Twitter
  • socal swagger
    socal swagger Posts: 22
    edited January 2014
    rack?
    · Share on FacebookShare on Twitter
  • azsam
    azsam Posts: 45
    edited January 2014
    Guys, I want to thank you for your help. I moved the sub to the position 1 marked on the diagram. The bass has improved quite a bit! I will deal with the center channel stand next ;)
    · Share on FacebookShare on Twitter
