My DIY Audio Rack
pumpkinman
Posts: 9,893
Let me 1st point out that I'm in no way a wood worker so please be kind. This is for a 2nd system where
I can change components or speakers as my mood dictates. Also it's not finished yet I still need to finish
the edges of the shelves. I used MDF (2- 3/4" pieces glued together to make 1 1/2" thick shelves) and
Poplar.
In case you guys haven't figured it out yet I like Orange
I can change components or speakers as my mood dictates. Also it's not finished yet I still need to finish
the edges of the shelves. I used MDF (2- 3/4" pieces glued together to make 1 1/2" thick shelves) and
Poplar.
In case you guys haven't figured it out yet I like Orange
Because I am The Pumpkinking
A Kind Word Is An Easy Gift To Give
Post edited by pumpkinman on
Comments
-
Looks good!
-
Looks nice.
Can you take special orders and ship to NY (non-orange color, lol)?
But, seriously, very nice job! -
Very nice! Great job!
It looks like you have a real nice collection of vinyl too!!Carl -
Great Job!
-
Nice work. I was thinking of building one of my own thanks for the design idea. What are the dimensions L x W x H and spacing in between the shelves ?
-
Good job! Building a new rack is on my list of "winter projects"
-
Nice work. I was thinking of building one of my own thanks for the design idea. What are the dimensions L x W x H and spacing in between the shelves ?
Happy Sunday to you nap,
The rack is 39" high
Spacing - The bottom shelf is 12" and 9" between the other 2
The shelves were cut 21" wide by 19" deep but will be bigger once I add trim
3/4" or 1/2" I haven't decided yet.
I had Home Depot do all the rough cuts so I came home with 8-2'x2' pieces.
These were glued and cut then to size using a straight edge clamp and circular saw.

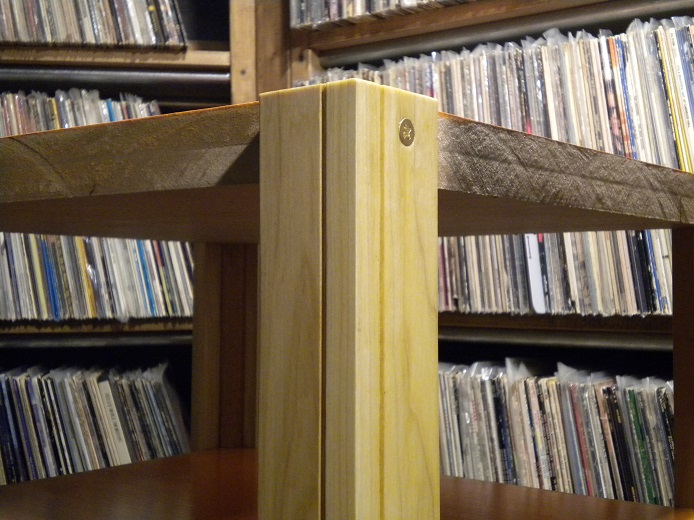

The legs are 1x3 and 1x2 poplar joined with biscuits and glue.
I bought a cheap biscuit from Harbor Freight.
http://www.harborfreight.com/4-plate-joiner-68987.html
You can never get the glued edge straight so I ran the glue joint thru the table saw.
This way you can't see it wasn't exact and looks great. (at least to me)
I used pre-finished 3/4" oak quarter round between the shelves. This way all the weight
is carried down to the floor. So that the #14 x 3" brass screws are not the sole support
of the weight on each shelf.
P-man
Because I am The Pumpkinking
A Kind Word Is An Easy Gift To Give -
Because I am The Pumpkinking
A Kind Word Is An Easy Gift To Give -
19" deep, good call. You need that for some of the bigger amps. I have been looking at audio racks and a lot of them are just too shallow. The only other option I may put on mine is casters which seems to be a rare commodity on audio furniture. Cheers.
-
19" deep, good call. You need that for some of the bigger amps. I have been looking at audio racks and a lot of them are just too shallow. The only other option I may put mine on casters which seems to be a rare commodity on audio furniture. Cheers.
My almost completed rack. I'll finish it next weekend
I had already bought my wheels for the rack to make it easier access the vinyl behind the rack.
I just might make dollies for the Polk's a well.
Because I am The Pumpkinking
A Kind Word Is An Easy Gift To Give -
Finally spending a little time to finish up my rack
Because I am The Pumpkinking
A Kind Word Is An Easy Gift To Give -
Nice work !!!
-
Very nice work.
-
I need to make a new rack myself. Good job P-Man. Or should I say Orange Man?
-
It's gotta be orange !!! I'm the Pumpkinking
Because I am The Pumpkinking
A Kind Word Is An Easy Gift To Give -
Dig it!
-
