Polk Audio PSW10 10-Inch Monitor Series Powered Sub with Behringer EP 2000

stevensound
stevensound Posts: 4
The polk says I can go directly from the speaker outs from the amp to the speker in on the sub then the speaker out to my JBL control 28's is that correct. I can go ipod to Mixer>Amp in to Amp out (speaker wires) > Speaker wire sub in > speaker wire from sub out? I will use 16 gauge wire.

As far as I can see this can be done according to the manual.

? Does this have an internal crossover? Can it handle the 2000 watt beringer? I have not hooked it up yet just because it seems kind of dicey. To go power amp speaker out to a powered sub. Is the sub made for this really?

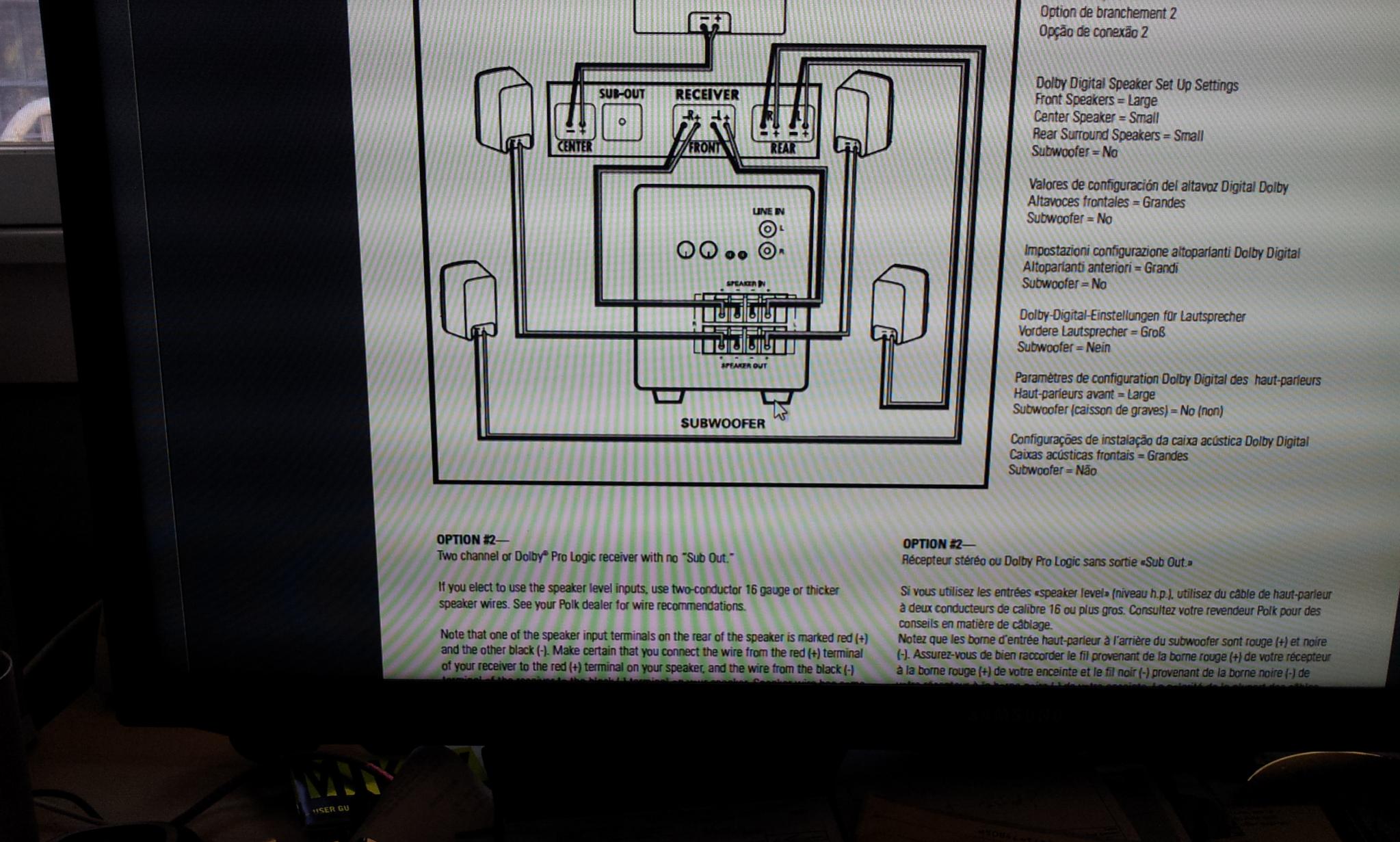

From the manual. See Attachement below. This is from the PSW 10 manual. Minus the surrounds and center speakers.

OPTION #2—
Two channel or Dolby® Pro Logic receiver with no “Sub Out.”
If you elect to use the speaker level inputs, use two-conductor 16 gauge or thicker
speaker wires.


Amp information : Behringer EUROPOWER EP2000 Professional 2,000-Watt Stereo Power Amplifier with Atr (Accelerated Transient Response) Technology Behringer EUROPOWER EP2000 Professional 2,000-Watt Stereo Power Amplifier with Atr (Accelerated Transient Response)
2 x 1,000 Watts into 2 Ohms; 2 x 750 Watts into 4 Ohms; 2,000 Watts into 4 Ohms (bridge mode)
ATR (Accelerated Transient Response) technology for ultimate punch and clarity
Switchable limiters offer maximum output level with reliable overload protection
Detented gain controls for precise setting and matching of sensitivity
Precise Power, Signal and Clip LEDs to monitor performance
XLR and 1/4" TRS input connectors for compatibility with any source
Professional speaker connectors and "touch-proof" binding posts support most speaker wiring systems
Selectable low-frequency filters remove damaging infra-sound frequencies
Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers
High-current toroidal transformer for ultra-high transient response and absolute reliability
"Back-to-front" ventilation system including air filter for reliable operation
Post edited by stevensound on

Comments

  • [Deleted User]
    [Deleted User] Posts: 7,658
    edited October 2013
    Hello,
    Yes, that is a valid connection method, the sub's bass amplifier is designed to accept a speaker level signal.
    Regards, Ken
  • stevensound
    stevensound Posts: 4
    edited October 2013
    Can it handle the 2000 watt beringer?
  • VR3
    VR3 Posts: 28,746
    edited October 2013
    Are you referring to something like an EP2000?

    If so, that is approximately 350 watt 8 ohm stereo, which you would have to be playing extremely loud volumes to achieve that power, so yes, you should be fine.

    You would have to bridge the Behringer into either a 2 or 4 ohm load, however your amp is rated, to achieve "2000 watts"
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
  • tonyb
    tonyb Posts: 32,981
    edited October 2013
    Can it handle the 2000 watt beringer?

    The psw 10 is self powered, has it's own built in amp. If your thinking the 2000 watt beringer will supply that power to the subwoofer, it won't. You'd need a passive subwoofer. The speaker level inputs/outputs are more or less just a pass thru for the signal.

    You will never use all that power anyway. Many have made the mistake, or should I say "assumption" that gobbs of power equates to concert level volumes. Instead it usually equates to over driven speakers and blown tweeters.
