Polk S10 crossover help

Steven72555
Steven72555 Posts: 35
edited August 2013 in Basic Hookup/Wiring Questions

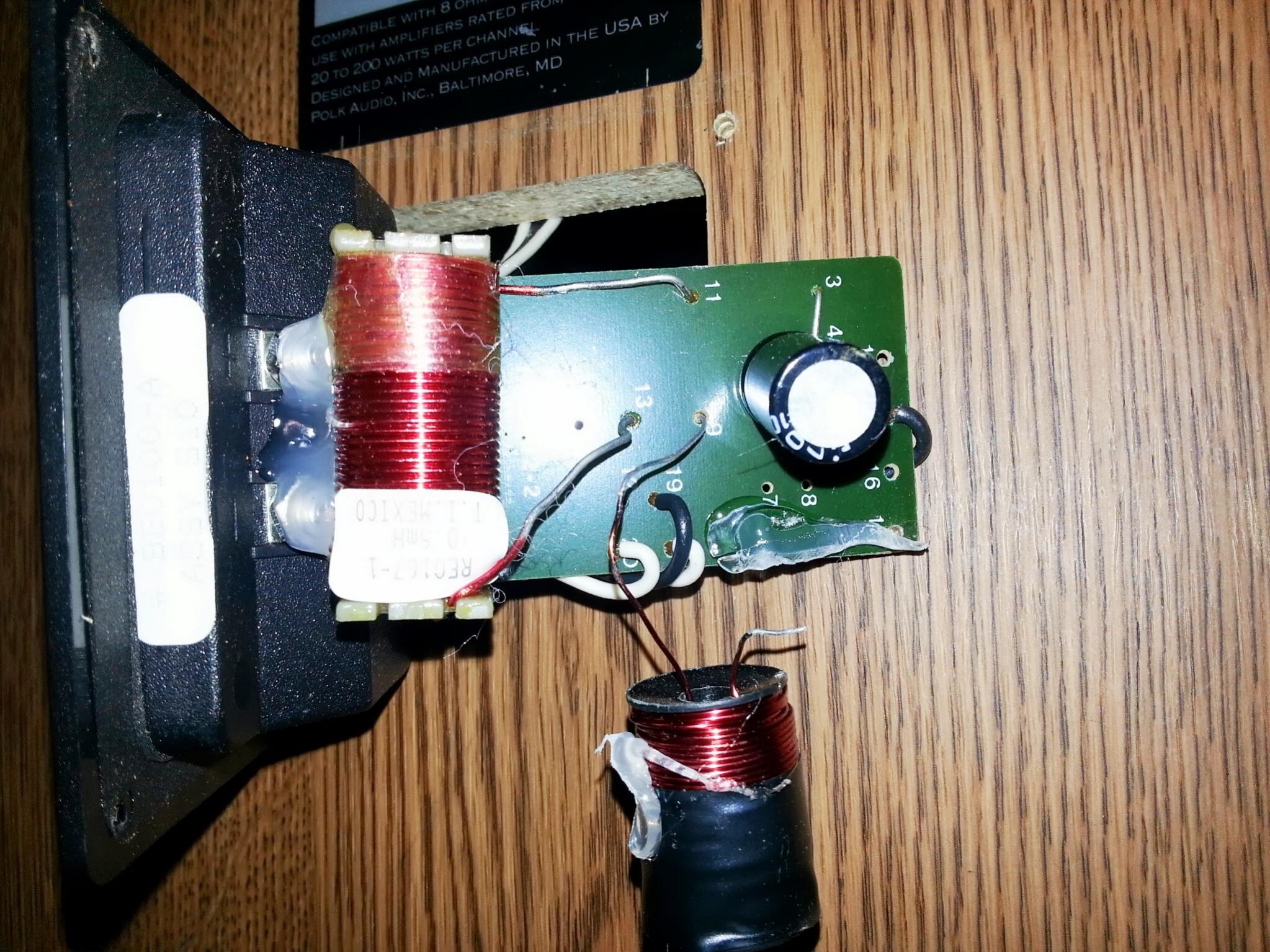

This is a crossover from my S10 and I need to where that loose wire goes


Crossover - 1.jpg
Post edited by Steven72555 on
· Share on FacebookShare on Twitter

Comments

  • zane77
    zane77 Posts: 1,696
    edited August 2013
    Just by looking at it and the way it was mounted I would make a guess that the loose wire goes in hole number 7' but this is just a WAG
    Home Theater
    Onkyo PR-SC5508 Sharp LC-70LE847U
    Emotiva XPA-5 Emotiva XPA-2 Emotiva UPA-2
    Front RTi-A9 Wide RTi-A7 Center CSi-A6 Surround FXi-A6 Rear RTi-A3 Sub 2x PSW505
    Sony BDP-S790 Dishnetwork Hopper/Joey Logitech Harmony One Apple TV
    Two Channel
    Oppo 105D BAT VK-500 w/BatPack SDA SRS 2.3 Dreadnought Squeezebox Touch Apple TV
    · Share on FacebookShare on Twitter
  • [Deleted User]
    [Deleted User] Posts: 7,658
    edited August 2013
    Hello,
    that looks to be the 0.35mH inductor, one leg is connected to the 4.7uF capacitor and the other leg is connected to the tweeter negative. So look on the other side of the circuit board and find the trace for the negative wire going to the tweeter. Follow it's path and see if one legt is already connected to the inductor. If it is then find the capacitor (the round thing) and see if hole #7 connects to it.
    Regards, Ken
    · Share on FacebookShare on Twitter
  • Steven72555
    Steven72555 Posts: 35
    edited August 2013
    Ok, I found out where it goes. Goes on the far bottom right.
    The thing is, that one is from the speaker that works.

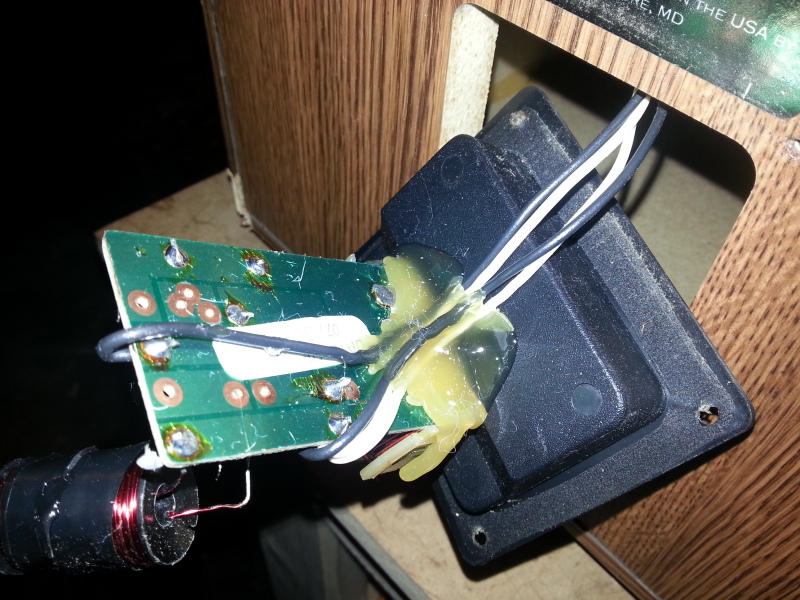

    This next pic is from the speaker that doesn't.
