Musiland Monitor 01 USB DAC
markmarc
Posts: 2,309

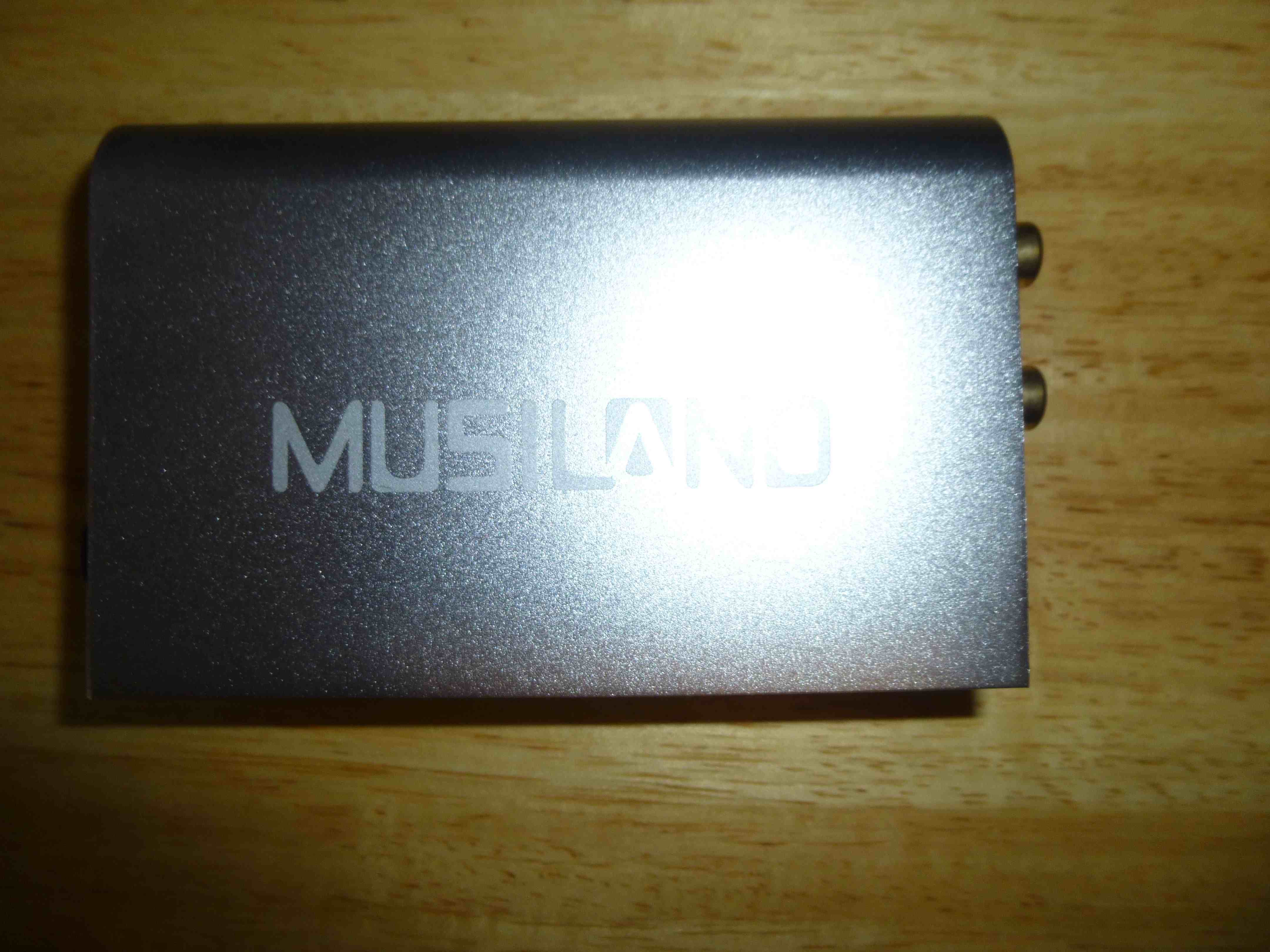

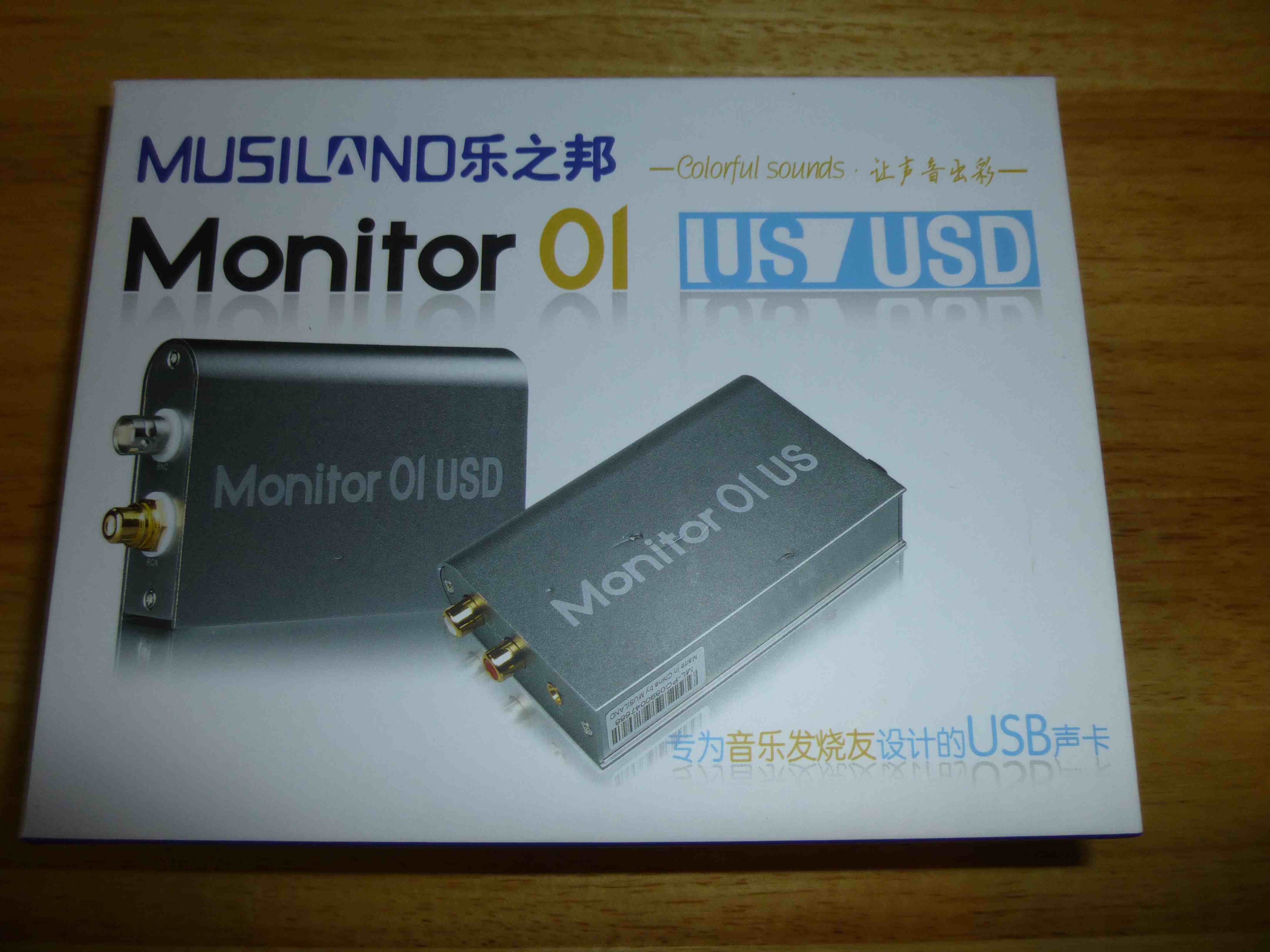

Continuing the house cleaning, here is a nifty little computer DAC from Musiland. Just plug in the USB and either listen from the headphone out, or use the RCA's to run it into an amplifier. Worthy little unit for win your working on a laptop at Starbucks, etc and want to listen to your music files onboard the laptop. Goes for $100 new, I'm selling for $60 OBO including shipping in USA. Below are the specs.
Analog output
Dynamic range (D / A): 120dB
Signal-to-noise ratio (D / A): 120dB
Total harmonic distortion (D / A): 0.005%
Frequency response (20Hz ~ 20KHz): +-0.1dB
Output level: 2V rms
Output impedance: 10Kohm
1 headphone jack output power: 150mW/RL = 300ohm; 200mW/RL = 100ohm
Headphone jack output power: 300mW/RL = 32ohm
Digital output
Dynamic Range: 140dB
Signal-to-noise ratio (A-weighted): 140dB
Total Harmonic Distortion: 0.0001%
Frequency response (20Hz ~ 20KHz): +-0dB
Other
Input Interface: USB2.0 or USB3.0 voltage greater than 4.5V, current greater than 500mA
Power consumption: <= 2.5W
Color: iron gray
Body Material: Aluminum
Dimensions (housing): 88x67x24 (mm)
Weight: 118g
Interface

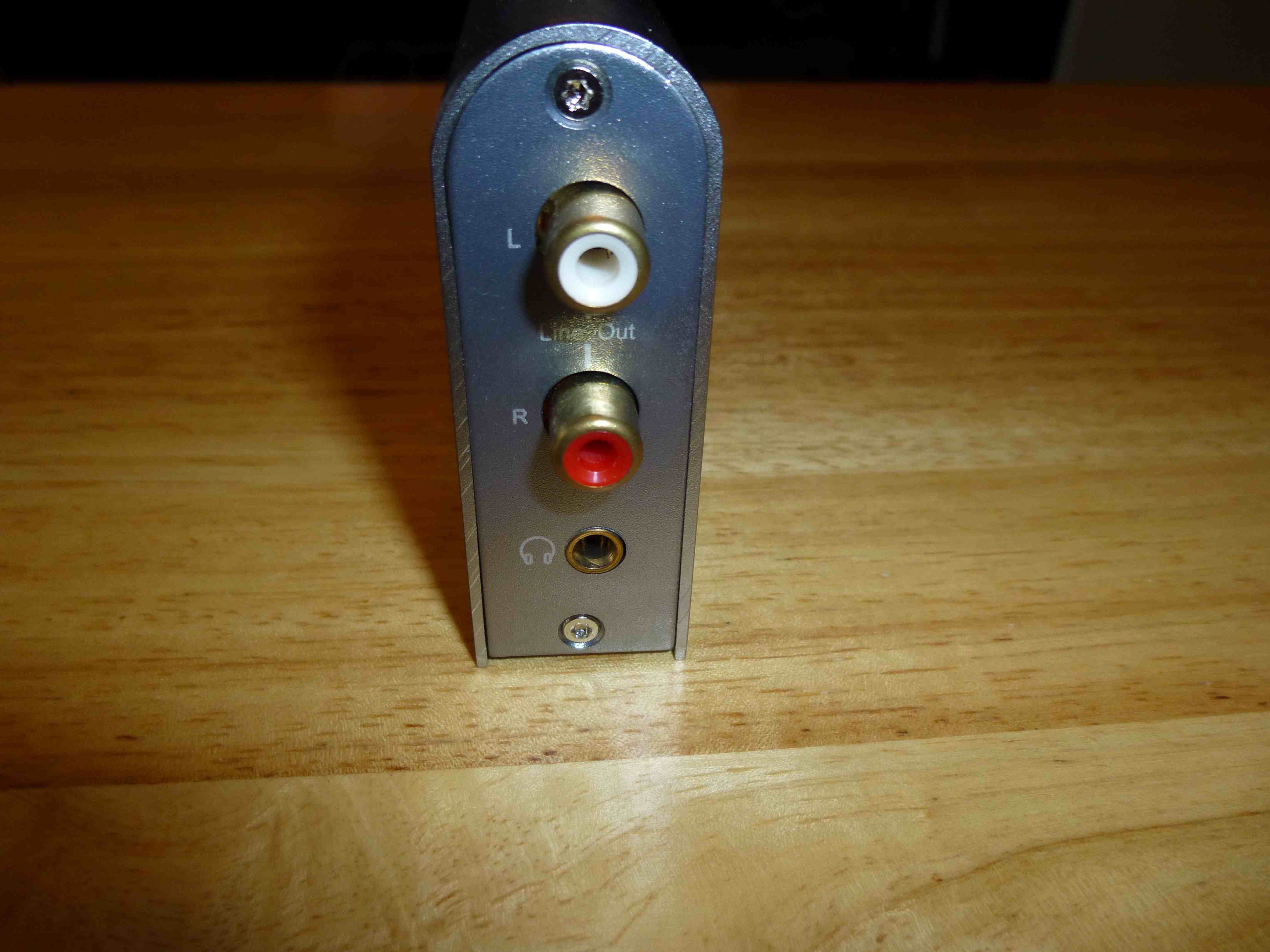

1 pair of RCA line output interface (stereo)
A 3.5mm headphone output interface
A 6.25mm headphone output interface
The one 12mm MULINK output interface
A side port optical digital output interface

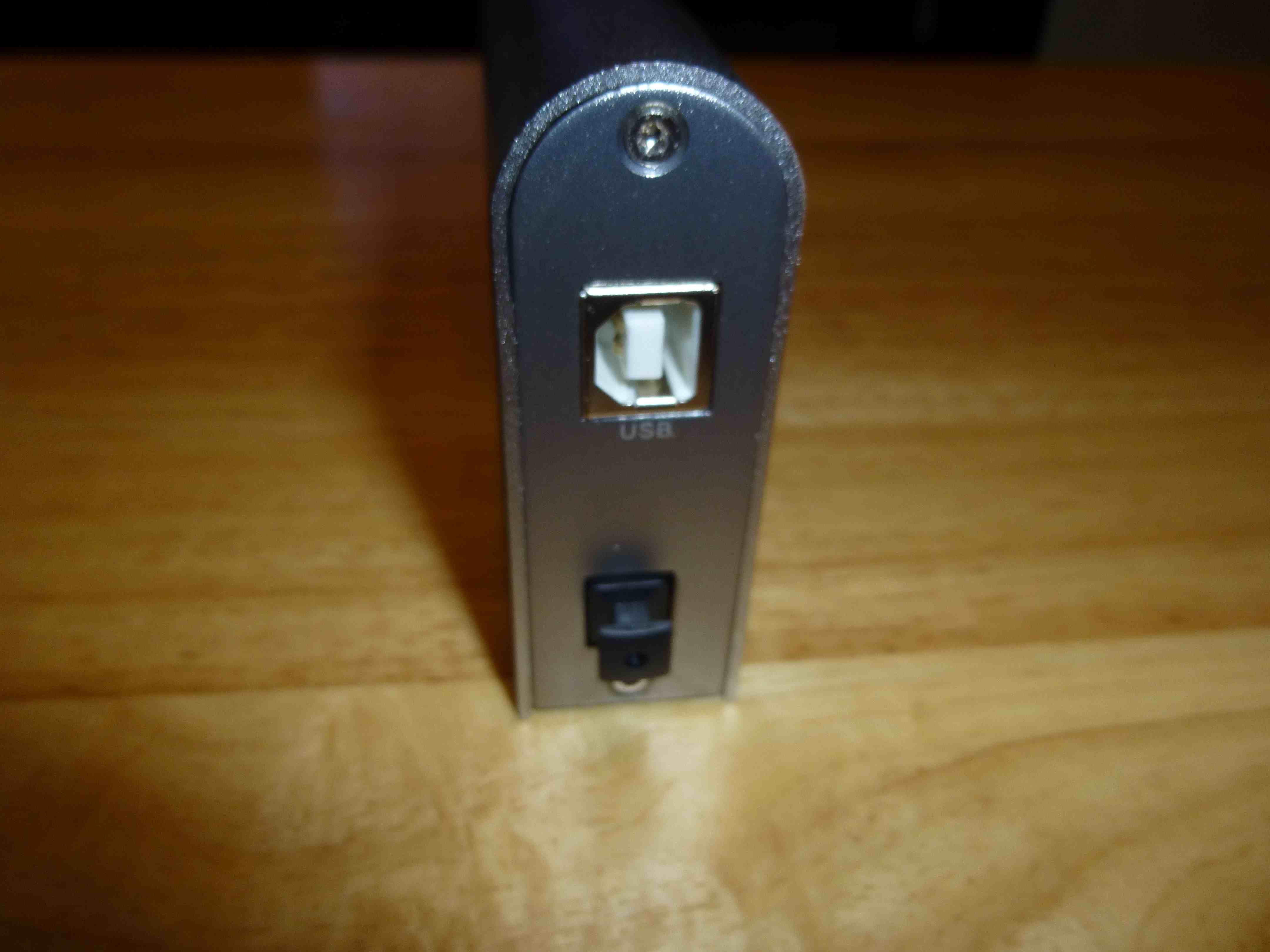

A B-type USB input interface
Key Features
Stereo analog output
USB2.0 high speed transmission
USB3.0 supply
24bit/384kHz analog output
32bit/384kHz digital output
Digital output PCM / Dolby Digital / DTS format
Supports ASIO
To support MUSILAND MMDI interface
Manual setting of the output sampling rate
Headphone and line outputs control panel manually switch
Driver support the Windows XP/2003/VISTA/7/8 system; 32/64Bit
Product Accessories
USB data cable: 2 of USB3.0/USB2.0
Driver CD: 1
Warranty card: 1
Quick Installation Guide.
Analog output
Dynamic range (D / A): 120dB
Signal-to-noise ratio (D / A): 120dB
Total harmonic distortion (D / A): 0.005%
Frequency response (20Hz ~ 20KHz): +-0.1dB
Output level: 2V rms
Output impedance: 10Kohm
1 headphone jack output power: 150mW/RL = 300ohm; 200mW/RL = 100ohm
Headphone jack output power: 300mW/RL = 32ohm
Digital output
Dynamic Range: 140dB
Signal-to-noise ratio (A-weighted): 140dB
Total Harmonic Distortion: 0.0001%
Frequency response (20Hz ~ 20KHz): +-0dB
Other
Input Interface: USB2.0 or USB3.0 voltage greater than 4.5V, current greater than 500mA
Power consumption: <= 2.5W
Color: iron gray
Body Material: Aluminum
Dimensions (housing): 88x67x24 (mm)
Weight: 118g
Interface
1 pair of RCA line output interface (stereo)
A 3.5mm headphone output interface
A 6.25mm headphone output interface
The one 12mm MULINK output interface
A side port optical digital output interface
A B-type USB input interface
Key Features
Stereo analog output
USB2.0 high speed transmission
USB3.0 supply
24bit/384kHz analog output
32bit/384kHz digital output
Digital output PCM / Dolby Digital / DTS format
Supports ASIO
To support MUSILAND MMDI interface
Manual setting of the output sampling rate
Headphone and line outputs control panel manually switch
Driver support the Windows XP/2003/VISTA/7/8 system; 32/64Bit
Product Accessories
USB data cable: 2 of USB3.0/USB2.0
Driver CD: 1
Warranty card: 1
Quick Installation Guide.
Review Site_ (((AudioPursuit)))
Founder/Publisher Affordable$$Audio 2006-13.
Former Staff Member TONEAudio
2 Ch. System
Amplifiers: Parasound Halo P6 pre, Vista Audio i34, Peachtree amp500, Adcom GFP-565 GFA-535ii, 545ii, 555ii
Digital: SimAudio HAD230 DAC, iMac 20in/Amarra,
Speakers: Paradigm Performa F75, Magnepan .7, Totem Model 1's, ACI Emerald XL, Celestion Si Stands. Totem Dreamcatcher sub
Analog: Technics SL-J2 w/Pickering 3000D, SimAudio LP5.3 phono pre
Cable/Wires: Cardas, AudioArt, Shunyata Venom 3
Founder/Publisher Affordable$$Audio 2006-13.
Former Staff Member TONEAudio
2 Ch. System
Amplifiers: Parasound Halo P6 pre, Vista Audio i34, Peachtree amp500, Adcom GFP-565 GFA-535ii, 545ii, 555ii
Digital: SimAudio HAD230 DAC, iMac 20in/Amarra,
Speakers: Paradigm Performa F75, Magnepan .7, Totem Model 1's, ACI Emerald XL, Celestion Si Stands. Totem Dreamcatcher sub
Analog: Technics SL-J2 w/Pickering 3000D, SimAudio LP5.3 phono pre
Cable/Wires: Cardas, AudioArt, Shunyata Venom 3
Post edited by markmarc on
Comments
-
PM sent.
-
soldReview Site_ (((AudioPursuit)))
Founder/Publisher Affordable$$Audio 2006-13.
Former Staff Member TONEAudio
2 Ch. System
Amplifiers: Parasound Halo P6 pre, Vista Audio i34, Peachtree amp500, Adcom GFP-565 GFA-535ii, 545ii, 555ii
Digital: SimAudio HAD230 DAC, iMac 20in/Amarra,
Speakers: Paradigm Performa F75, Magnepan .7, Totem Model 1's, ACI Emerald XL, Celestion Si Stands. Totem Dreamcatcher sub
Analog: Technics SL-J2 w/Pickering 3000D, SimAudio LP5.3 phono pre
Cable/Wires: Cardas, AudioArt, Shunyata Venom 3 -
DAC arrived safe and sound. Very quick shipment.
