Timeframe TF-1000 components
D-sound-R
Posts: 2
DsoundR
online
2 Posts. Joined 5/2013
I had been looking for TF-1000 mid-frequency driver specs because I have a torn cone. This caused me much grief since I just got the 1000s and never got the opportunity to listen to them. Others have said they moved away from the timeframes because there is no tech support. That is a problem...
Well I have found a solution and hopefully insight for others. I want to post the spec but I don't have permission to post the image and I don't know if it is public domain. It list all the components and design loads. The tweeters are Vifa, mid-frequency drivers are Audax, and the woofer is Carbonneau. However, here is a link to a speaker database:
http://www.thielesmall.com/database.asp
online
2 Posts. Joined 5/2013
I had been looking for TF-1000 mid-frequency driver specs because I have a torn cone. This caused me much grief since I just got the 1000s and never got the opportunity to listen to them. Others have said they moved away from the timeframes because there is no tech support. That is a problem...
Well I have found a solution and hopefully insight for others. I want to post the spec but I don't have permission to post the image and I don't know if it is public domain. It list all the components and design loads. The tweeters are Vifa, mid-frequency drivers are Audax, and the woofer is Carbonneau. However, here is a link to a speaker database:
http://www.thielesmall.com/database.asp
Post edited by D-sound-R on
Comments
-
Welcome Derrick!
I think you should be able to post pics. Give me a call and I'll walk you through it.
To the CP members, I've known D-sound-R for many years and he is first rate in every since of the word. I can't wait to hear those 1000s myself!
Steve -

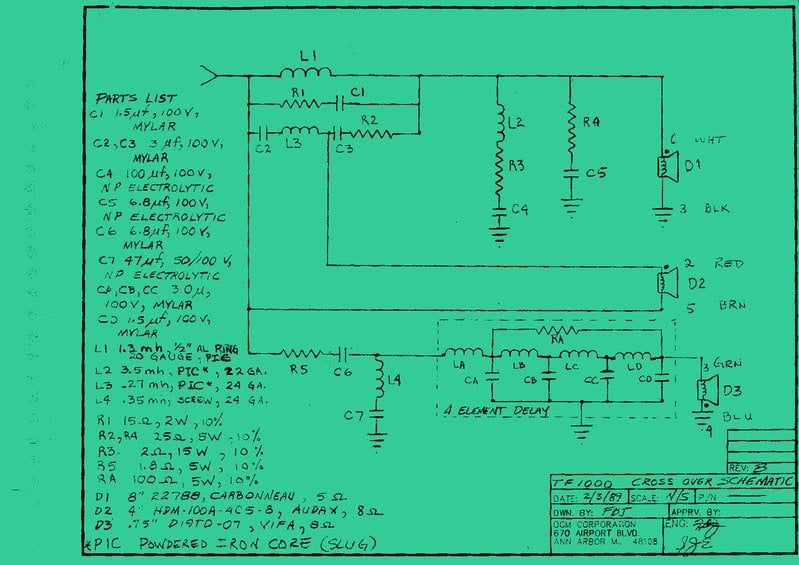

Here is the schematic, is this what you wanted to post?
