Expidit album storage pics

hochpt21
hochpt21 Posts: 5,423
edited April 2013 in DIY, Mods & Tweaks
Hey all, I know there have been a few threads about album storage. I had previously used a two-square by four-square Expidit shelf from IKEA. I really like the look and function, so when we moved to our new house with a bigger living room, we bought a 4x4.

Now if you Google image 'expidit record storage' you can find some pretty nasty pics of these 4x4's coming apart and dumping albums. I don't think this is a common problem, but it obviously has happened.

So just to be on the safe side, I made some modifications to my shelf.

Here are the pics...

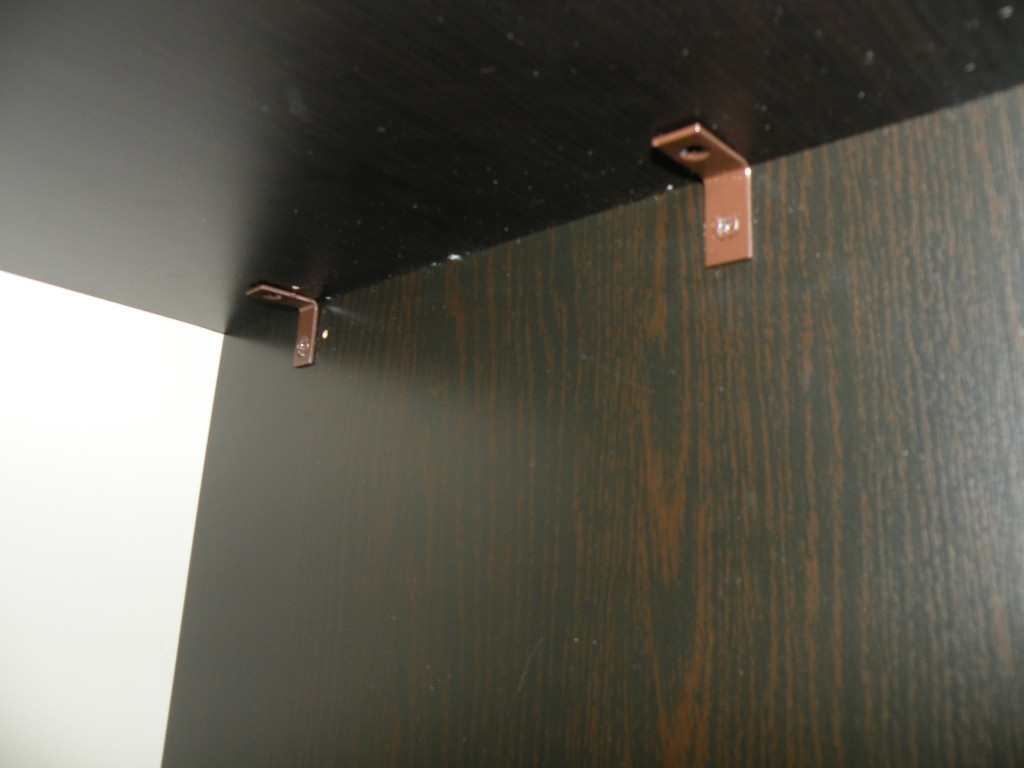

I spray painted some small "L" brackets to match the finish of the shelf and screwed them into the corners of the end shelves that are only otherwise supported by wooden dowels. (the middle shelves are supported by the verticle running boards)

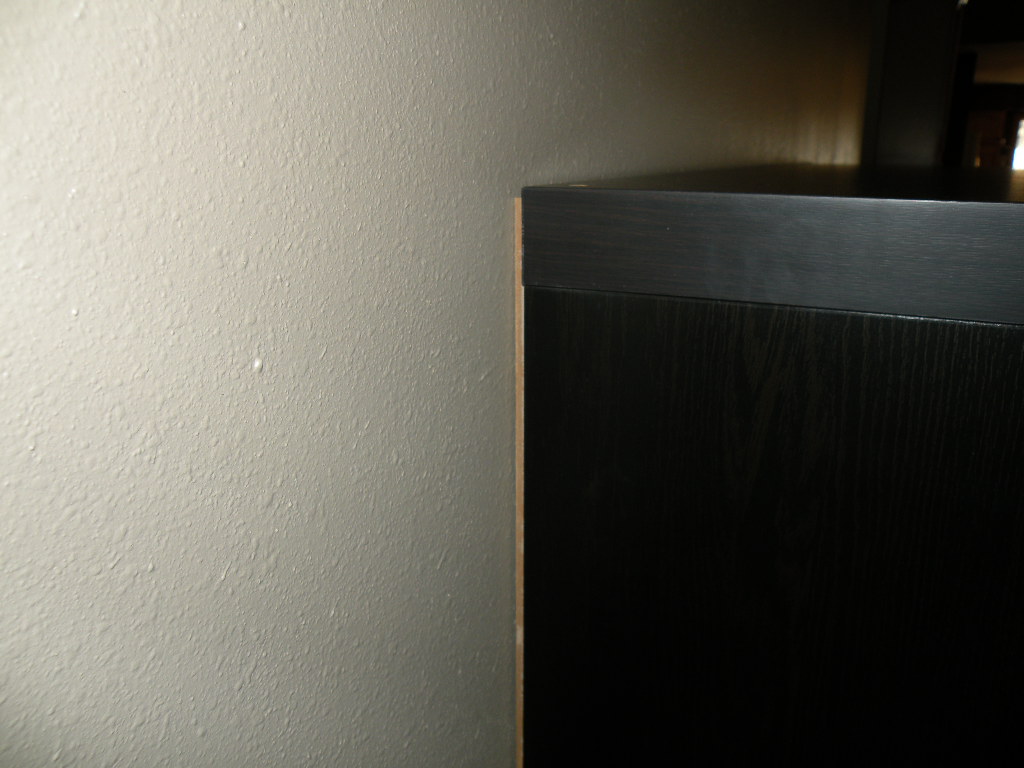

Next, I screwed 1/4" MDF board to the back of the unit to provide additional support from coming apart (reference the images of how the shelf has failed in some cases)

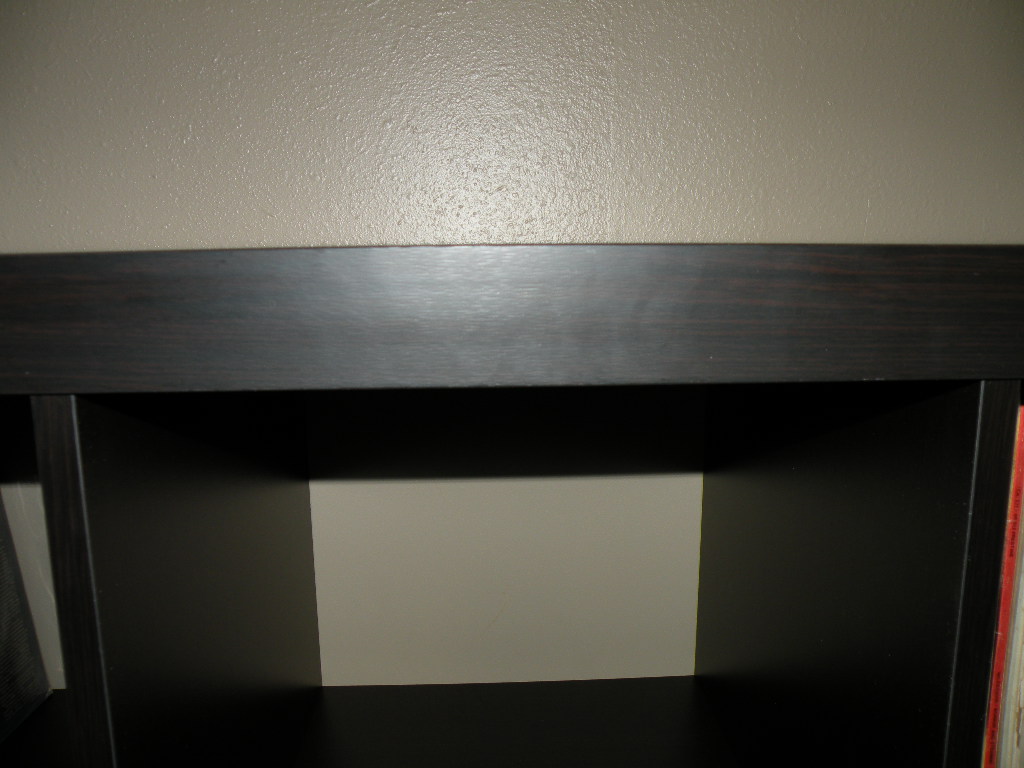

Before I attached the MDF, I painted the side facing the shelves the same color as the wall so we still get the intended effect of the 'see-through' shelf.

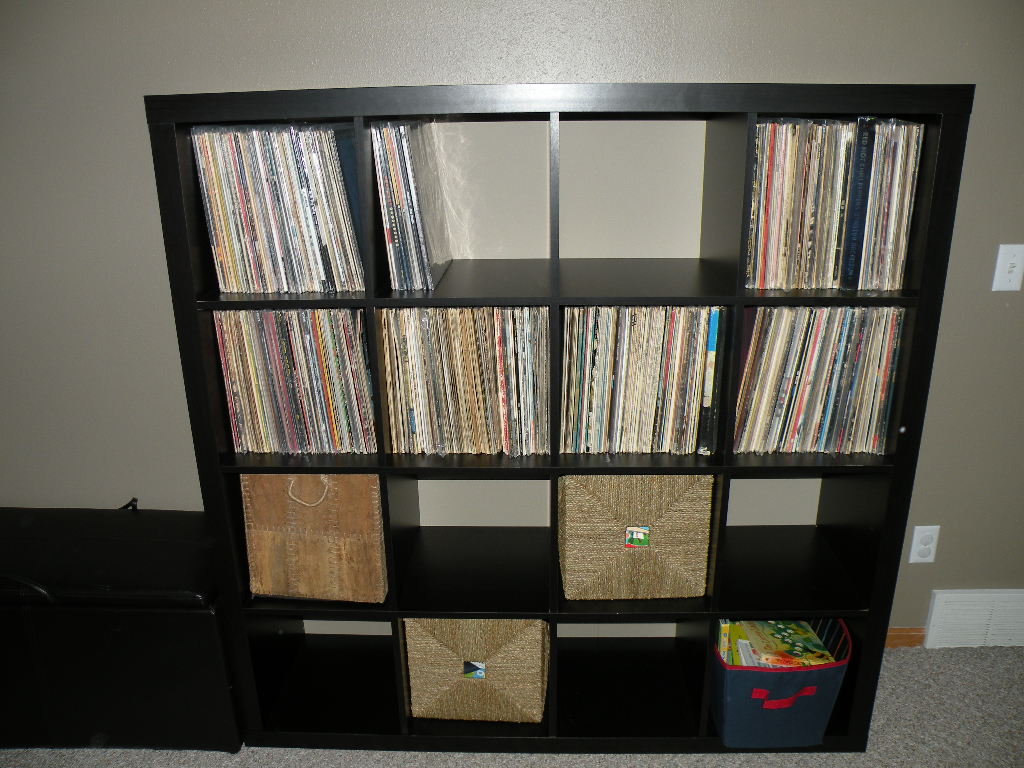

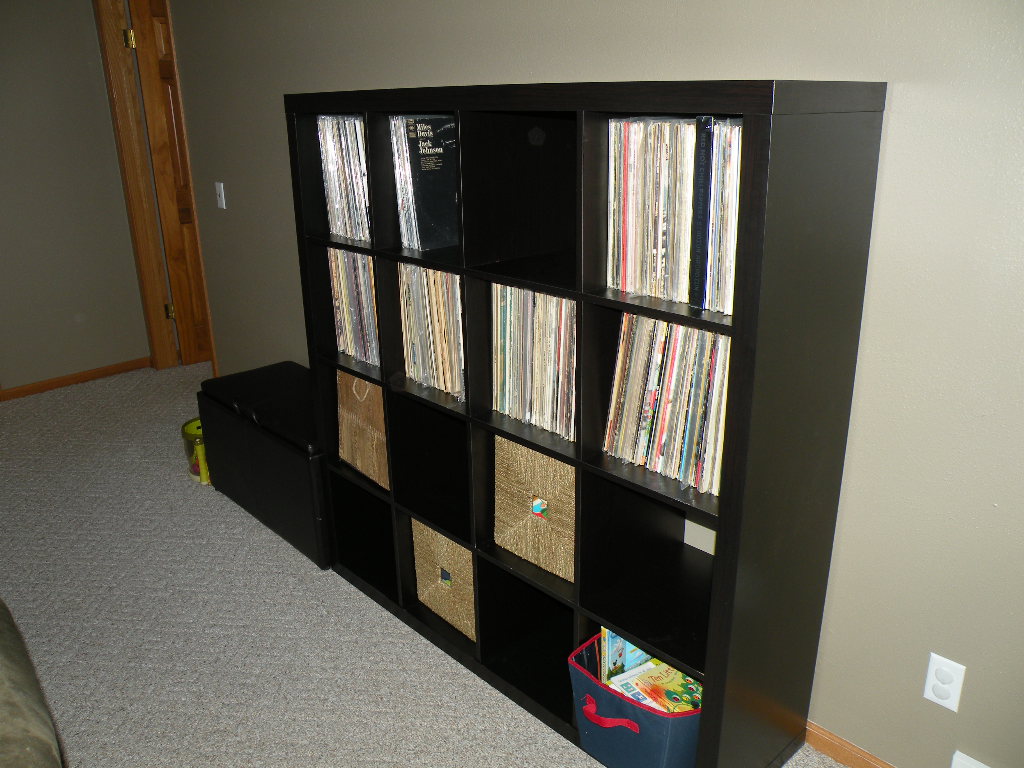

And here are a couple pics of the finished project. Hope you enjoy!
2 ChannelTurntable - VPI Classic 2/Ortofon 2M BlueAmplification - Rogue Audio Cronus Magnum II, Parks Audio Budgie PhonoSpeakers - GoldenEar Triton 17.2 Home TheaterDenon AVR-X3300W; Rotel RMB-1066; Klipsch RP-280F's, Klipsch RP-450C, Polk FXi3's, Polk RC60i; Dual SVS PB 2000's; BenQ HT2050; Elite Screens 120"Man CaveTurntable - Pro-Ject 2.9 Wood/Grado GoldAmplification - Dared SL2000a, McCormack DNA 0.5 DeluxeCD: Cambridge AudioSpeakers - Wharfedale Linton 85th Anniversary; LSiM 703; SDA 2A
Post edited by hochpt21 on
· Share on FacebookShare on Twitter

Comments

  • Mike Reeter
    Mike Reeter Posts: 4,315
    edited April 2013
    Well done! Doubt if you ever get any sag in the shelving, let alone completely falling apart.

    Envious of your number of albums, and the rack. Looks great!
    · Share on FacebookShare on Twitter
  • thsmith
    thsmith Posts: 6,082
    edited April 2013
    Very nice, thank you for sharing.
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
    · Share on FacebookShare on Twitter
  • SCompRacer
    SCompRacer Posts: 8,505
    edited April 2013
    Good 'beef' job! I've seen book shelves fall apart in the same manner. A strong backboard is a big help. Like the wall color touch.
    Salk SoundScape 8's * Audio Research Reference 3 * Bottlehead Eros Phono * Park's Audio Budgie SUT * Krell KSA-250 * Harmonic Technology Pro 9+ * Signature Series Sonore Music Server w/Deux PS * Roon * Gustard R26 DAC / Singxer SU-6 DDC * Heavy Plinth Lenco L75 Idler Drive * AA MG-1 Linear Air Bearing Arm * AT33PTG/II & Denon 103R * Richard Gray 600S * NHT B-12d subs * GIK Acoustic Treatments * Sennheiser HD650 *
    · Share on FacebookShare on Twitter
  • chumlie
    chumlie Posts: 8,658
    edited April 2013
    Nice job.
    · Share on FacebookShare on Twitter
  • EndersShadow
    EndersShadow Posts: 17,593
    edited April 2013
    It looks quite nice I must say. Can't even tell there is a back!

    Only thing I personally might change if I were to do it is to put some L brackets along the corners along the edges instead of the backing and mostly because I have no clue what paint color the apartment complex used lol.

    That and if we moved I would have to repaint the backing.
    "....not everything that can be counted counts, and not everything that counts can be counted." William Bruce Cameron, Informal Sociology: A Casual Introduction to Sociological Thinking (1963)
    · Share on FacebookShare on Twitter
  • hochpt21
    hochpt21 Posts: 5,423
    edited April 2013
    Thanks all!

    No sag in the shelves, that's for sure.

    Matching the paint was easy since we just had the living room painted. I didn't think it would turn out as good as it did, so I am happily surprised.

    I've already started cleaning more vinyl. Everthing on the top shelves is cleaned, and all those on the bottom are in the queue :eek:
    2 ChannelTurntable - VPI Classic 2/Ortofon 2M BlueAmplification - Rogue Audio Cronus Magnum II, Parks Audio Budgie PhonoSpeakers - GoldenEar Triton 17.2 Home TheaterDenon AVR-X3300W; Rotel RMB-1066; Klipsch RP-280F's, Klipsch RP-450C, Polk FXi3's, Polk RC60i; Dual SVS PB 2000's; BenQ HT2050; Elite Screens 120"Man CaveTurntable - Pro-Ject 2.9 Wood/Grado GoldAmplification - Dared SL2000a, McCormack DNA 0.5 DeluxeCD: Cambridge AudioSpeakers - Wharfedale Linton 85th Anniversary; LSiM 703; SDA 2A
    · Share on FacebookShare on Twitter
  • vmaxer
    vmaxer Posts: 5,117
    edited April 2013
    Looks great!!
