Anyone tried a DIY USB cable?

thsmith
thsmith Posts: 6,082
edited December 2012 in DIY, Mods & Tweaks
Been thinking of trying to make my own USB cable for my DAC and Mac Mini. I would not run power leads.

This is about the best connectors I have found. Not sure what cable to use, something silver with teflon cover.

http://www.doublehelixcables.com/store/index.php?main_page=product_info&products_id=68

Any ideas on where to find better connectors and what cable to try?

I want to make my cable as short as possible, probably no more than 8-10 inches.
Speakers: SDA-1C (most all the goodies)
Preamp: Joule Electra LA-150 MKII SE
Amp: Wright WPA 50-50 EAT KT88s
Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
Cables: Mits S3 IC and Spk cables| PS Audio PCs
Post edited by thsmith on
«1

Comments

  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    This 30g silver wire with oversized telflon may be a good start.

    http://www.tempoelectric.com/cables.htm#tubing
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    I ordered the connectors just need to figure what wire to use. I sent Chris a message at VH Audio. We will see what he likes.

    Good thing is I need a pair of about 16"s of wire.

    I had to order 3 USB kits.

    I read that cryro makes a diffence.
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • mantis
    mantis Posts: 17,200
    edited December 2012
    Here's my DIY cable , I plug it in myself.

    http://www.audioquest.com/usb-digital-audio/cinnamon

    Curious why you want to build your own USB cables when there are so many already built one available?
    Dan
    My personal quest is to save to world of bad audio, one thread at a time.
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    mantis wrote: »
    Here's my DIY cable , I plug it in myself.

    http://www.audioquest.com/usb-digital-audio/cinnamon

    Curious why you want to build your own USB cables when there are so many already built one available?

    I have a WW starlight now and have tried the coffee plus many others.

    The reason why ? Why not, bored, something to do, can leave out the power leads, experiment with different wires and because I can.
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • Systems
    Systems Posts: 14,873
    edited December 2012
    Sounds like a cool project to me.
    I say GO FOR IT!
    I have always wanted to make one also, but never got around to it.

    Wonder if there is an advantage to actually running the power wire using some excellent 6N solid core copper/teflon wire?:lol:
    Testing
    Testing
    Testing
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    From what I have been reading and want to see for my self is a shorter USB cable without the power lead sound better than cables costing whole lot more.

    The connectors are $10 each and wire should be $20-$30.
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • mantis
    mantis Posts: 17,200
    edited December 2012
    thsmith wrote: »
    I have a WW starlight now and have tried the coffee plus many others.

    The reason why ? Why not, bored, something to do, can leave out the power leads, experiment with different wires and because I can.
    Whats the deal with leaving the power leads off?
    Dan
    My personal quest is to save to world of bad audio, one thread at a time.
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    Less noise and Interference. Some DACs need and some dont. Mine does not.
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • Systems
    Systems Posts: 14,873
    edited December 2012
    My comment was in reference to using a wall wart power supply.
    I have often wondered if there would be an advantage to good power wire ran in the cable as opposed to a cheap 5mm connector, switching supply, and cheap stranded wire in most wall wart supplies.

    No experience though, so cannot comment on actual results.

    Some day, I may build both just to see.:lol:
    Testing
    Testing
    Testing
  • strider
    strider Posts: 2,568
    edited December 2012
    Interested to see what you come up with. In regards to the wire, if you don't need the power leads, are you looking at a twisted pair for the data and a shield?
    Wristwatch--->Crisco
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    I am going to try just the data pair with a few twist and ground.

    Looks like Maple shades does not use a shield. I can always add it later.
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • Systems
    Systems Posts: 14,873
    edited December 2012
    I think PercyAudio has the silver/teflon wire alot cheaper than your link in post #2.
    He may still have a $40 min. order not sure.
    He has some pretty good sales so I am sure you can find something else to make up the cost :cheesygrin:(he sells teflon tubing, coppershield also I believe).

    I have used alot of 30 ga silver/teflon in the past and avoid it like the plague now!
    It is similar to stripping human hair!:lol:

    28 ga. is about as small as these old eyes can go anymore.

    JHMO, your eyes may be younger than mine.:redface:
    Testing
    Testing
    Testing
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    pepster wrote: »
    I think PercyAudio has the silver/teflon wire alot cheaper than your link in post #2.
    He may still have a $40 min. order not sure.
    He has some pretty good sales so I am sure you can find something else to make up the cost :cheesygrin:(he sells teflon tubing, coppershield also I believe).

    I have used alot of 30 ga silver/teflon in the past and avoid it like the plague now!
    It is similar to stripping human hair!:lol:

    28 ga. is about as small as these old eyes can go anymore.

    JHMO, your eyes may be younger than mine.:redface:

    Thanks, I will check them out.
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • zingo
    zingo Posts: 11,258
    edited December 2012
    I built a USB cables a few years ago using the 4 conductor, Canare L-4E6S signal cable. It worked well, but I also used it to run power.

    If you're interested, I have a 8" (roughly) Nirvana USB cable from Virtue Audio. If you're interested in it to try something different, let me know.

    http://store.virtueaudio.com/product-p/vrtu-usb-nrv.htm

  • Systems
    Systems Posts: 14,873
    edited December 2012
    I have some excellent solid core PURE silver/teflon wire in both 28 and 30ga if you want to try it.
    Just shoot me a pm.

    Considering the small amount you need Smith, I will just send it too ya, freebie.
    Testing
    Testing
    Testing
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    zingo wrote: »
    I built a USB cables a few years ago using the 4 conductor, Canare L-4E6S signal cable. It worked well, but I also used it to run power.

    If you're interested, I have a 8" (roughly) Nirvana USB cable from Virtue Audio. If you're interested in it to try something different, let me know.

    http://store.virtueaudio.com/product-p/vrtu-usb-nrv.htm


    Thanks Zingo, I had these gys make me the same cable without power leads and really liked it. Of the half dozen I tried it was number 2 on my list. Very close to the WireWorld Starlight I kept and I think it was twice the price as the Nirvana .
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    pepster wrote: »
    I have some excellent solid core PURE silver/teflon wire in both 28 and 30ga if you want to try it.
    Just shoot me a pm.

    Considering the small amount you need Smith, I will just send it too ya, freebie.

    Very kewl and thank you ! I will definately shoot you a PM.

    I just ordered some of VHA AirLok UniCrystal Silver 24 AWG OCC Hookup.
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    pepster wrote: »
    I have some excellent solid core PURE silver/teflon wire in both 28 and 30ga if you want to try it.
    Just shoot me a pm.

    Considering the small amount you need Smith, I will just send it too ya, freebie.

    CLear out your inbox :0
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • Systems
    Systems Posts: 14,873
    edited December 2012
    Sorry man, just sent you a pm, did not know I was full!:mrgreen:
    Testing
    Testing
    Testing
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    I know have wire from VH Audio and from Pepster. The Twin Helix USB connectors arrive tomorrow but will not be able to start any work until after Christmas.

    Thanks again Pepster for the wire, looks like some good stuff.

    The wire with white insulation is from VH Audio and clear is from Pepster.

    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • Systems
    Systems Posts: 14,873
    edited December 2012
    Oh....yeah..........Buff Chris's with polish and make mine look like crap!:lol:

    JK!

    I have bought more of Chris's wire than I care to mention, and it is just phenomenal
    wire!

    I have never been more satisfied with a purchase better than Chris's product or service.

    Talked with him a million times, and you just don't get better from anyone on the web.

    Class act!

    I tried to talk him into using US Postal once, telling him how he would sell more, but he convinced me it was not worth it, and sure enough, have always received my products, as quick or quicker using UPS.
    A little $pensive, but reliable.

    (Rubbing hands together) looking forward to this!

    PS: I meant to send you some Mylar shielding but left the whole package (except for the wire) at home and did not realize it until I got to the post office.
    Testing
    Testing
    Testing
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    I agree Paul, Chris is a class act as well as you sir !
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • thsmith
    thsmith Posts: 6,082
    edited December 2012

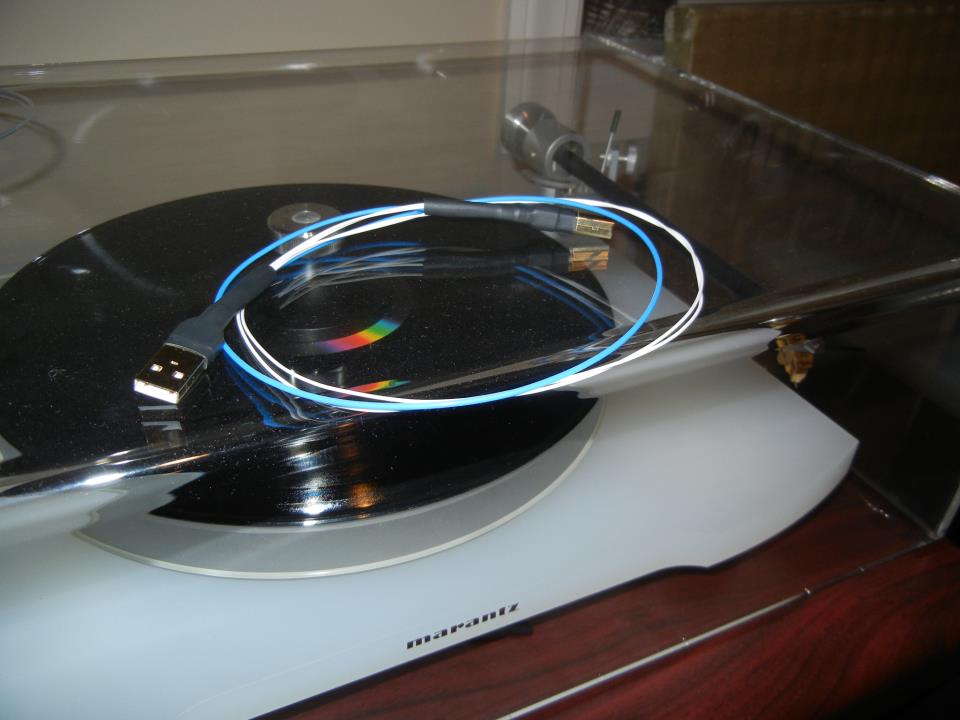

    First cable using wire from Pepster. Burning in and there is a difference in sound. Will compare to WW starlight after 50 hours. 20" in lenght. Next up is some wire from VH Audio.
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • seabeerob213
    seabeerob213 Posts: 1,843
    edited December 2012
    beautiful granite, installed similar in a few houses me and my old man worked on, sorry for changing the topic,
    2 Channel(work in progress):DAC: Schiit modi 2 uberAmp:Parasound 1200 MK IISub:RBH 1010-SEP Speakers: Monitor 5A peerlesscurrently running some krk rokit 3g since the HK pre outs died and i need to start breaking everything down to move in a couple monthsHeadphones:Source: tidalDAC: schiit modius epre: schiit sysAmp: AQ dragonfly black/ schiit magni2 Cans: Velodyne V-True, Grado SR225i, sennheiser x drop gaming headsetPC:DAC: schiit modius e(over spdif)pre: schiit sysspeakers: prenous eris 5 xtSub: Earthquake Sound MiniMe-P63most of my comments are passing on of info, im a noob, im just trying to help how i can, if im wrong or out of place to comment, dont hesitate to let me know :)"WITH WILLING HEARTS AND SKILLFUL HANDS, THE DIFFICULT WE DO AT ONCE, THE IMPOSSIBLE TAKES A BIT LONGER, WITH COMPASSION FOR OTHERS. WE BUILD - WE FIGHT FOR PEACE WITH FREEDOM"Seabee Memorial, Arlington, VA
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    Thank you, it was already in the house when we bought it. Never shopped for it before but we get a lot of compliments.
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • seabeerob213
    seabeerob213 Posts: 1,843
    edited December 2012
    youre welcome, lol, kinda miss working in residential construction now, oh well,
    2 Channel(work in progress):DAC: Schiit modi 2 uberAmp:Parasound 1200 MK IISub:RBH 1010-SEP Speakers: Monitor 5A peerlesscurrently running some krk rokit 3g since the HK pre outs died and i need to start breaking everything down to move in a couple monthsHeadphones:Source: tidalDAC: schiit modius epre: schiit sysAmp: AQ dragonfly black/ schiit magni2 Cans: Velodyne V-True, Grado SR225i, sennheiser x drop gaming headsetPC:DAC: schiit modius e(over spdif)pre: schiit sysspeakers: prenous eris 5 xtSub: Earthquake Sound MiniMe-P63most of my comments are passing on of info, im a noob, im just trying to help how i can, if im wrong or out of place to comment, dont hesitate to let me know :)"WITH WILLING HEARTS AND SKILLFUL HANDS, THE DIFFICULT WE DO AT ONCE, THE IMPOSSIBLE TAKES A BIT LONGER, WITH COMPASSION FOR OTHERS. WE BUILD - WE FIGHT FOR PEACE WITH FREEDOM"Seabee Memorial, Arlington, VA
  • Systems
    Systems Posts: 14,873
    edited December 2012
    Dang, that was quick!:eek:
    You should consider some shielding.
    Testing
    Testing
    Testing
  • thsmith
    thsmith Posts: 6,082
    edited December 2012
    pepster wrote: »
    Dang, that was quick!:eek:
    You should consider some shielding.

    yeah, I made add some later. Maple shades does not use it not does the guys over at computeraudiophile.

    I dont have any right now anyway but can always add it later.

    Sounds great as is.
    Speakers: SDA-1C (most all the goodies)
    Preamp: Joule Electra LA-150 MKII SE
    Amp: Wright WPA 50-50 EAT KT88s
    Analog: Marantz TT-15S1 MBS Glider SL| Wright WPP100C Amperex BB 6er5 and 7316 & WPM-100 SUT
    Digital: Mac mini 2.3GHz dual-core i5 8g RAM 1.5 TB HDD Music Server Amarra (memory play) - USB - W4S DAC 2
    Cables: Mits S3 IC and Spk cables| PS Audio PCs
  • EndersShadow
    EndersShadow Posts: 17,593
    edited December 2012
    thsmith wrote: »
    First cable using wire from Pepster. Burning in and there is a difference in sound. Will compare to WW starlight after 50 hours. 20" in lenght. Next up is some wire from VH Audio.

    I think its USB Roadshow time :wink::razz:.

    I actually would be interested in knowing what parts you used, etc. My headphone rig needs a good USB cable and it doesnt need to power anything, just send the data.... I was looking at the Audioquest Carbon at some point, but if its cheap enough I can do something now...

    However methinks PEPSTER needs to add USB and LOD cables to his repertoire.
    "....not everything that can be counted counts, and not everything that counts can be counted." William Bruce Cameron, Informal Sociology: A Casual Introduction to Sociological Thinking (1963)
