Added these to my Polk collection -- Polk SDA-2B :-)

2»

Comments

  • Conradicles
    Conradicles Posts: 6,081
    edited December 2012
    No disrespect but I must agree from experience...that setup is not ideal for any placement of those speakers.
    · Share on FacebookShare on Twitter
  • Mystery
    Mystery Posts: 2,546
    edited December 2012
    F1nut wrote: »
    That's a horrible room/set up for SDA's and if you are listening to the CRS+'s on top of the other speakers, you'll never hear what they can do.
    Conradicles wrote: »
    No disrespect but I must agree from experience...that setup is not ideal for any placement of those speakers.
    Yes they are not properly setup but can't do nothing in this place.
    Hopefully, in few months, I'll move out to a single family house and will have enough space for proper SDA setup.

    Klipsch RB81, KG3.5, B&W DM602.5, Polk.
    Subwoofers: Klipsch RW10, Triad ProSub Bronze.
    · Share on FacebookShare on Twitter
  • Mystery
    Mystery Posts: 2,546
    edited December 2012
    F1nut wrote: »
    That's a horrible room/set up for SDA's and if you are listening to the CRS+'s on top of the other speakers, you'll never hear what they can do.
    Conradicles wrote: »
    No disrespect but I must agree from experience...that setup is not ideal for any placement of those speakers.

    Yes they are not properly setup but can't do nothing in this place. :sad:
    Hopefully, in few months, I'll move out to a single family house and will have enough space for proper SDA setup.

    Klipsch RB81, KG3.5, B&W DM602.5, Polk.
    Subwoofers: Klipsch RW10, Triad ProSub Bronze.
    · Share on FacebookShare on Twitter
  • newrival
    newrival Posts: 2,017
    edited December 2012
    Mystery wrote: »
    2nd best to the biggest one?
    No, the CRS+ are my favorite, then a tie between the 3.1tl and the 2b. I personally don't like the biggest ones. Sure they have more bass, but they don't sound very good, IMO. Give me the CRS+ and an excellent sub like my REL Stadium III and I'm set. Far more coherent and detailed soundscape in my experience. And I've had or heard them all but the SRS2 and 1a,
    design is where science and art break even.
    · Share on FacebookShare on Twitter
  • michael1947
    michael1947 Posts: 775
    edited December 2012
    Proper placement of SDA's.:rolleyes:
    Main Family Room: Sony 46 LCD, Sony Blue Ray, Sony DVD/VCR combo,Onkyo TXNR 708, Parasound 5250,
    Polk SDS-SRS with mods, CSI 5 center + Klipsch SC2, Polk RT2000P rears, Klipsch KG 1.5's sides, Polk Micro Pro 1000, Polk Micro Pro 2000, Polk SW505, Belkin PF60, Signal Cable Classics,Monster IC's, 2 15 amp circuits & 1 20 amp circuit.

    Living Room: Belkin PF60, Parasound HCA2200, MIT ProlineEXP balanced IC's,Emotiva XDA-1 DAC/Pre,Emotiva ERC2 transport,MIT AVT2, Polk LSI 9's.
    · Share on FacebookShare on Twitter
  • newrival
    newrival Posts: 2,017
    edited December 2012
    tophatjohnny wrote: »
    awesome set up
    don't encourage him. :lol:
    design is where science and art break even.
    · Share on FacebookShare on Twitter
  • Mystery
    Mystery Posts: 2,546
    edited December 2012
    newrival wrote: »
    don't encourage him. :lol:

    LOL...
    The CRS+ are not mine anymore so I'll be only playing with the 2B's placement. :mrgreen:

    Klipsch RB81, KG3.5, B&W DM602.5, Polk.
    Subwoofers: Klipsch RW10, Triad ProSub Bronze.
    · Share on FacebookShare on Twitter
  • Mystery
    Mystery Posts: 2,546
    edited December 2012
    F1nut wrote: »
    That's a horrible room/set up for SDA's and if you are listening to the CRS+'s on top of the other speakers, you'll never hear what they can do.
    Conradicles wrote: »
    No disrespect but I must agree from experience...that setup is not ideal for any placement of those speakers.

    Forget the CRS+ on top as they are there just for safekeeping now.

    But I'll work on getting the 2B's parallel to each other and back wall and move them 3 inches in front of anything else.
    So the audio rack will go out and A400's will go in that corner 3 or more inches behind front baffle of 2B's.
    That way, the left 2B will have around 2.5 feet to side wall and right 2B will have around 3 to the stairs.
    That's the best setup I can think of in that room.

    I also think using a speaker selector is not good for SDA as I think the way speaker selector uses left channel as common channel for all sets does not go well with SDA interconnect.
    So I'll have a dedicated receiver/amp for SDA's that come off of my Marantz A/V receiver's pre-out. Hmm...

    Klipsch RB81, KG3.5, B&W DM602.5, Polk.
    Subwoofers: Klipsch RW10, Triad ProSub Bronze.
    · Share on FacebookShare on Twitter
  • Mystery
    Mystery Posts: 2,546
    edited December 2012

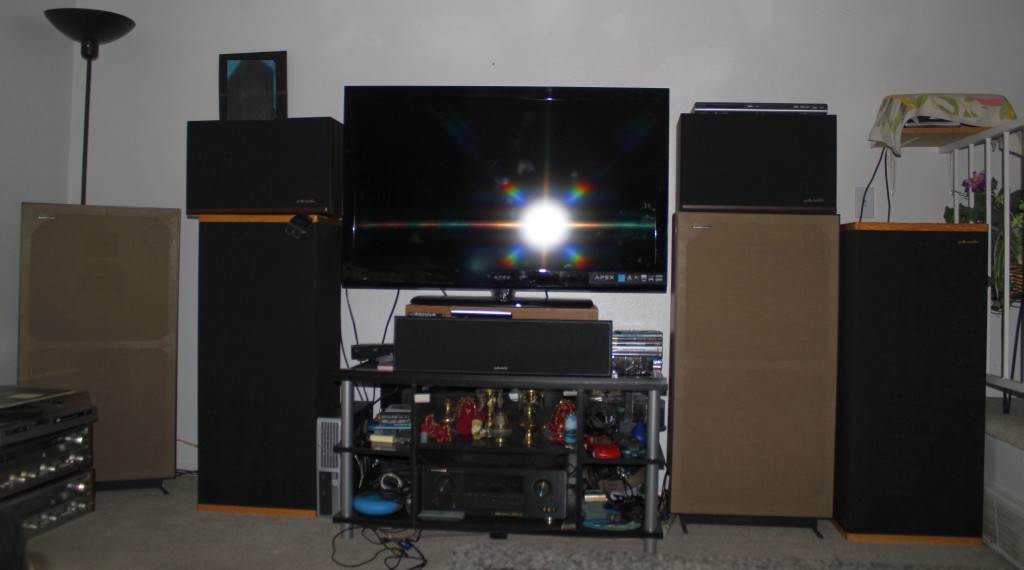

    Okay, this is the best setup in that room I can come up with.
    The only thing that'll be different is the CRS+'s on top will be gone soon.

    I moved the audio rack out from left corner and pushed A400 in there 4 inches behind the baffle of 2B.
    Now both 2B's are 6 inches from back wall and front baffle is 4 inches in front of TV and A400 so they have nothing else in their level as recommended in SDA manual.
    Left speaker has 2.5 feet to side wall and right has over 3 feet to the staircase.
    Distance between the speakers is around 6 feet and my listening position is around 7 feet from each of them.

    Listened to few songs and one song in particular made 3D sound in many parts.
    Some drum beats and strings came in the middle right air space and sometimes extended to the right beyond staircase.
    Effect on left is not as strong as right but it's better than other setup I had.
    Will see what else can I do here but as long as A400's are there, it's pretty much what can be done. :neutral:

    Polk SDA-2B--CRS+--Boston-A400 (9)-small.jpg

    Klipsch RB81, KG3.5, B&W DM602.5, Polk.
    Subwoofers: Klipsch RW10, Triad ProSub Bronze.
    · Share on FacebookShare on Twitter
  • PolkieMan
    PolkieMan Posts: 2,446
    edited December 2012
    Hang that TV to make more room :razz:
    POLK SDA 2.3 TLS BOUGHT NEW IN 1990, Gimpod/Sonic Caps/Mills RDO-198
    POLK CSI-A6 POLK MONITOR 70'S ONKYO TX NR-808 SONY CDP-333ES
    PIONEER PL-510A SONY BDP S5100
    POLK SDA 1C BOUGHT USED 2011,Gimpod/Sonic Caps/Mills RDO-194
    ONKYO HT RC-360 SONY BDP S590 TECHNICS SL BD-1
    · Share on FacebookShare on Twitter
  • leroyjr1
    leroyjr1 Posts: 8,785
    edited December 2012
    I'd run one set of speakers up front at a time. Then just switch them out as desired.
    · Share on FacebookShare on Twitter
  • Mystery
    Mystery Posts: 2,546
    edited December 2012
    leroyjr1 wrote: »
    I'd run one set of speakers up front at a time. Then just switch them out as desired.
    That'd be ideal but not enough space to have them stored anywhere else in this small townhouse.

    Klipsch RB81, KG3.5, B&W DM602.5, Polk.
    Subwoofers: Klipsch RW10, Triad ProSub Bronze.
    · Share on FacebookShare on Twitter
  • Mystery
    Mystery Posts: 2,546
    edited January 2013
    Forgot to ask this question.
    I checked http://www.gimpod.com/sda-id.html and the SDA-2B with real wood tops are from 1989 and supposed to have pin/blade IC.
    Mine have blade/blade.
    What does that tell?
    Polk just used what they find? :confused:

    Klipsch RB81, KG3.5, B&W DM602.5, Polk.
    Subwoofers: Klipsch RW10, Triad ProSub Bronze.
    · Share on FacebookShare on Twitter
  • pglbook
    pglbook Posts: 2,222
    edited January 2013
    I bought a nice pair of SDA 2B TL from forum member bluecomet 3 weeks ago (real wood version) and they do have the pin/blade IC so not sure why yours have blade/blade IC.
    · Share on FacebookShare on Twitter
  • F1nut
    F1nut Posts: 50,559
    edited January 2013
    Mystery wrote: »
    Forgot to ask this question.
    I checked http://www.gimpod.com/sda-id.html and the SDA-2B with real wood tops are from 1989 and supposed to have pin/blade IC.
    Mine have blade/blade.
    What does that tell?
    Polk just used what they find? :confused:

    Yours must not be the 1989 version.
    Political Correctness'.........defined

    "A doctrine fostered by a delusional, illogical minority and rabidly promoted by an unscrupulous mainstream media, which holds forth the proposition that it is entirely possible to pick up a t-u-r-d by the clean end."

    President of Club Polk

    · Share on FacebookShare on Twitter
  • Schurkey
    Schurkey Posts: 2,101
    edited January 2013
    Mystery wrote: »
    I checked http://www.gimpod.com/sda-id.html and the SDA-2B with real wood tops are from 1989 and supposed to have pin/blade IC.
    Mine have blade/blade.
    What does that tell?
    Polk just used what they find? :confused:
    F1nut wrote: »
    Yours must not be the 1989 version.
    Doesn't matter electrically. The shape of the connector is different, but the circuitry is the same except for a missing foot of internal cabinet wire. Yes, apparently Polk used up leftover supplies on early-production units.

    Some 1Cs and some 2Bs (there's a list of serial numbers posted in several threads on this site, for example: http://www.polkaudio.com/forums/showthread.php?131691-2B-and-EARLY-1C-AI-1-modifications ) need to have a foot of wire installed in the cabinet from negative speaker post to the unused connector in the SDA socket. Then they're fully AI-1 compatible except for the shape of the connector--a blade instead of a pin.

    Not that big of a deal. Another--probably better--connection method can be made with aftermarket terminals such as speaker binding posts, or the "Neutrik" connectors, etc. Sky is the limit.
    · Share on FacebookShare on Twitter
  • Mystery
    Mystery Posts: 2,546
    edited January 2013
    F1nut wrote: »
    Yours must not be the 1989 version.
    Okay. This site has 1989 as real wood. http://www.gimpod.com/sda-id.html
    Same with polksda.com.
    I didn't see other year for real wood version.
    Schurkey wrote: »
    Doesn't matter electrically. The shape of the connector is different, but the circuitry is the same except for a missing foot of internal cabinet wire. Yes, apparently Polk used up leftover supplies on early-production units.

    Some 1Cs and some 2Bs (there's a list of serial numbers posted in several threads on this site, for example: http://www.polkaudio.com/forums/showthread.php?131691-2B-and-EARLY-1C-AI-1-modifications ) need to have a foot of wire installed in the cabinet from negative speaker post to the unused connector in the SDA socket. Then they're fully AI-1 compatible except for the shape of the connector--a blade instead of a pin.

    Not that big of a deal. Another--probably better--connection method can be made with aftermarket terminals such as speaker binding posts, or the "Neutrik" connectors, etc. Sky is the limit.
    I haven't opened it to check crossover but it works so no problem.
    I was just curious.
    Thanks

    Klipsch RB81, KG3.5, B&W DM602.5, Polk.
    Subwoofers: Klipsch RW10, Triad ProSub Bronze.
