HELP - CS2 interior wiring

Options
JeffSchools
JeffSchools Posts: 2
edited November 2012 in DIY, Mods & Tweaks
I am a noob and an amateur in all sense of the word. I have had my CS2 for like 7 years now and have loved it! Well I dropped it last night, the housing came apart and unplugged all the wires inside. Everything is in good shape, except the cabinet, which I am sure I can glue back together. What I need is a wiring schematic of some sort to plug the wires back to the speaker parts themselves. Any help would be appreciated. I've attached a couple pix.

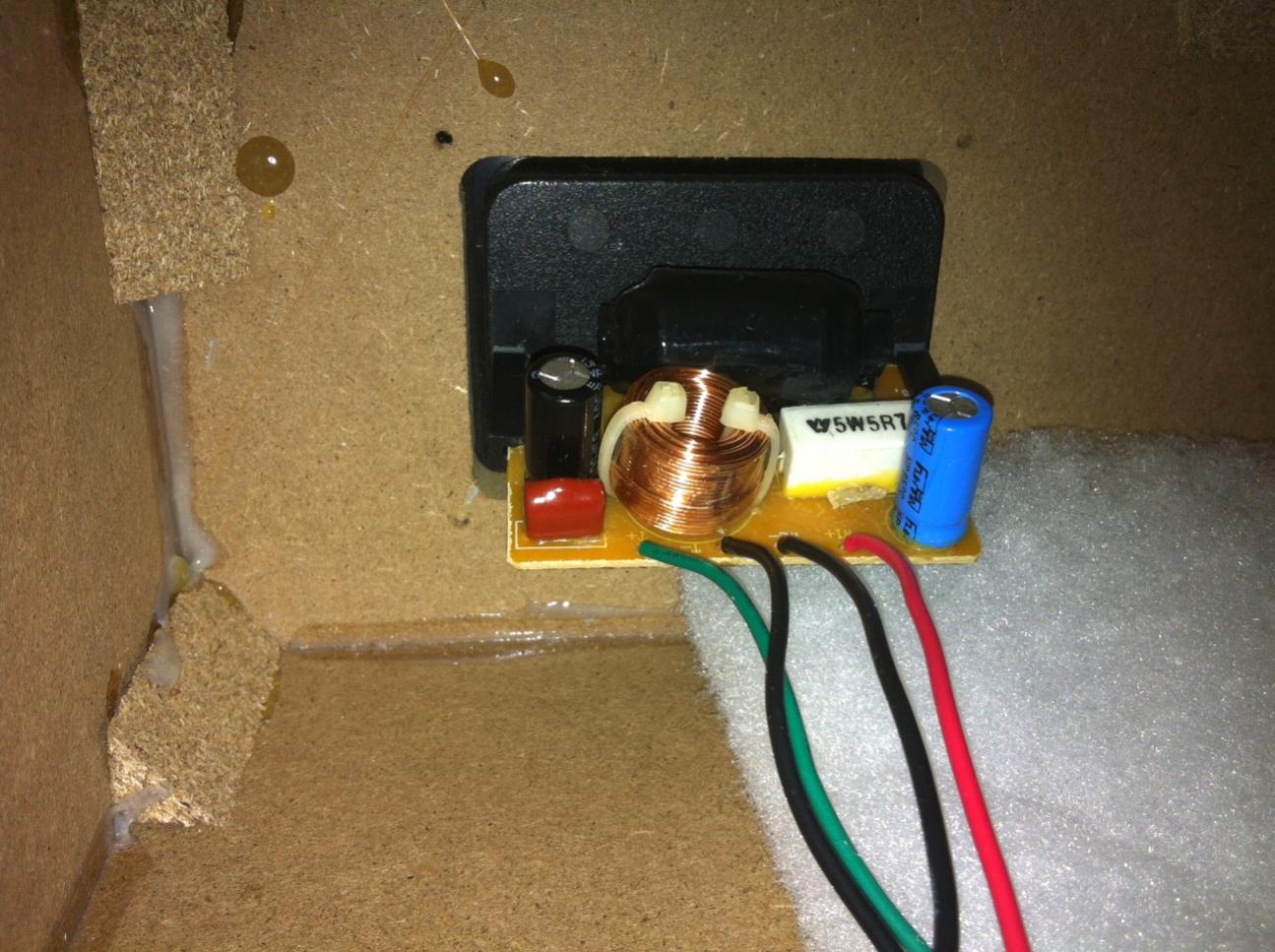

photo (13).jpg

photo (14).JPG

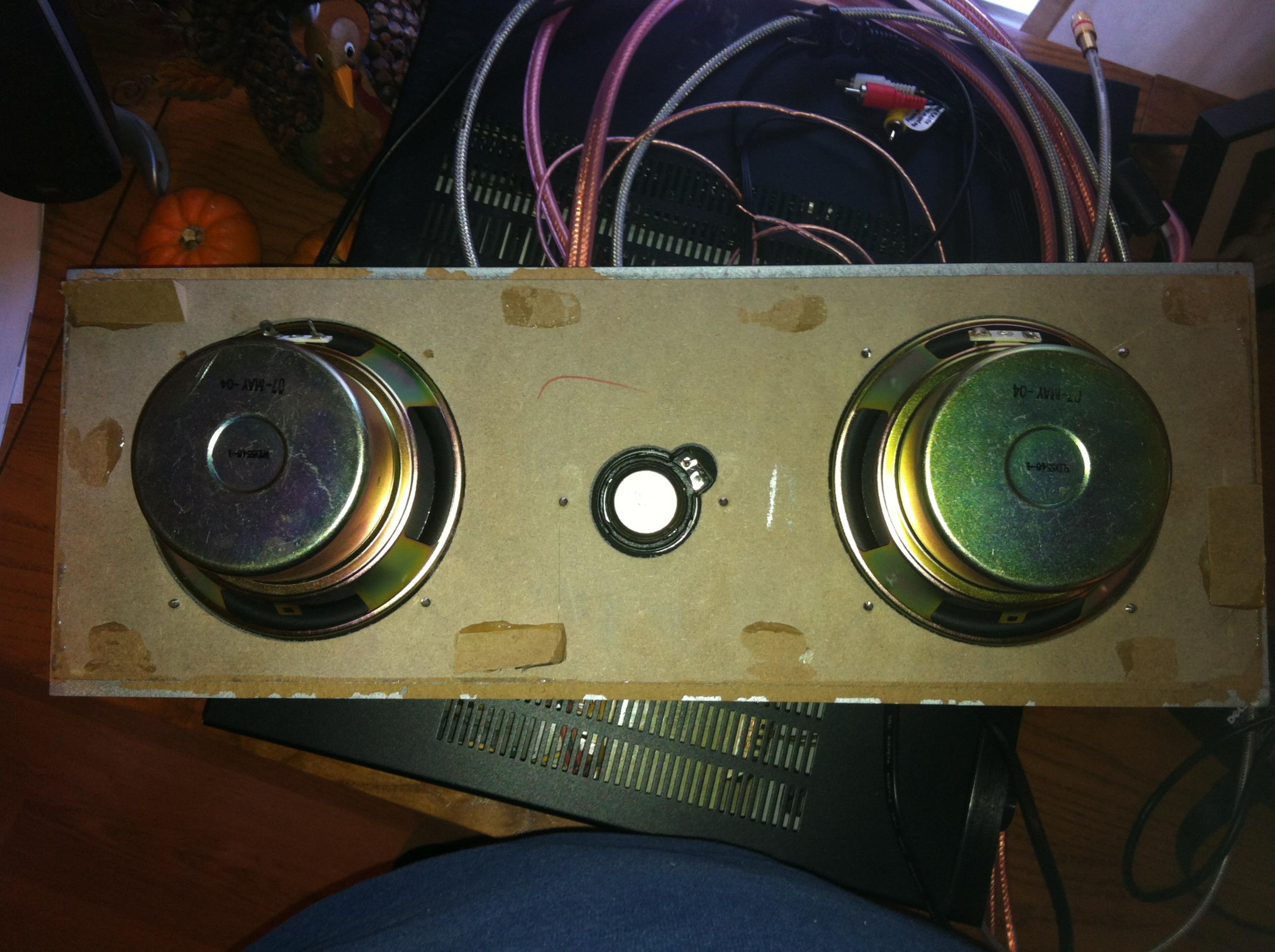

photo (15).jpg

Comments

  • VR3
    VR3 Posts: 29,759
    edited November 2012
    Options
    Look on the crossover...

    T+ is tweeter +, T- to Tweeter minus, the other plugs go to the woofers + and -, and the "link cables" between the woofers go + to + and - to -
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
  • JeffSchools
    JeffSchools Posts: 2
    edited November 2012
    Options
    Worked perfectly! Thanks do much!
