Bi-Amp Speaker Cables

zingo

6ft bi-amp (quad connectors) pair of 12AWG Furez speakers cables from AV-Outlet. These cables are pretty neat, and a nicely dressed up version of a solid, yet basic design. The cables have a nice jacket, aluminum splitters at the breakout of each end, solid terminations, and wires long enough to reach two different amps; these are what I was bi-amping my Klipsch Forte speakers with. The terminations are copper bananas on the amp end, and copper spades on the speaker ends. I can box them and get them in the mail tomorrow for you!

$120 shipped CONUS

zingo

About the Furez Speaker Cable
The primary design features of the Furez Advanced Series Speaker Cable are the use of multiple gauge stranding within a rope lay design of high strand count 99.997% OFHC C10100 Copper and the use of quality foamed polyethylene insulation (FPE). The design yields a clean balanced sound. The cable jacket and conductor insulation are both made thicker thicker than your typical cable to combat physical damage and to provide long lasting protection from oxidation caused by permeation of atmospheric conditions through the insulating materials.

Furez FZ124AS Advanced 12AWG 4 Conductor Speaker Cable Specifications:
-Extremely Flexible 12AWG - 4 Conductor Speaker Cable
-99.997% OFHC C10100 Copper Construction (High Conductivity Oxygen Free Copper)
-7 Bundle Advanced Rope Lay Design - See Conductor Detail
- 6 Outer Bundles of 99.997% OFC 36AWG Strands x 37
- 1 Core Bundle of 99.997% OFC 27AWG Strands x 5
- Total Strand Count - 227 Per Conductor
-DC Resistance: 1.51 Ohm/1000'
-DC Resistance: 0.79 Ohm/1000' (Conductors Paired)
-Rac @ 1KHz: 3.3mOhm/ft
-Rac @ 1KHz: 1.5mOhm/ft (Conductors Paired)
-Capacitance @ 1KHz: 13.9pF/ft
-Capacitance @ 1KHz: 28.0pF/ft (Conductors Paired)
-Inductance @ 1KHz: 0.227uH/ft
-Inductance @ 1KHz: 0.114uH/ft (Conductors Paired)
-0.055" (1.4mm) Thick PVC Outer Jacket
-0.0275" (0.70mm) Foamed Polyethylene (FPE) Insulation
-Internally Twisted Conductors with Molded Round Outer Jacket
-Nominal Outer Cable Diameter - 0.505"
-Weight:0.184lb Per Foot, 46lb per 250'

About the Furez Connectors
The Furez SP8-SB60 series spade speaker connectors are machined from a single solid piece of the highest conductivity copper possible (C11000 101% IACS) ensuring maximum signal transfer is achieved. The SP8-SB60 spade speaker connector is designed with a deep barrel and forward positioned set screws so the insulation of the cable can remain inside the barrel of the connector thus alleviating the issue of exposed bare wire strands. The use of dual T6 Torx set screws provide very secure attachment of speaker cable.

The Furez TST-SB60 series Tensioned Split Tube Banana Plug Speaker connectors provide optimized contact pressure with maximized contact area utilizing a patent pending design that allows for the use of truly high conductivity copper. This is a achieved by using a solid elastomeric tensioning element. This tensioning element provides the spring force required to enable the use of softer high conductivity copper. The TST-SB60 banana speaker cable plug connector is designed with a deep barrel and forward positioned set screws so the insulation of the cable can remain inside the barrel of the connector thus alleviating the issue of exposed bare wire strands. The use of dual T6 Torx set screws provide very secure attachment of speaker cable.

Both the SP8-SB60 series spade speaker cable connectors and TST-SB60 series banana speaker cable plug connectors are offered without plating or with direct silver plating (App. 106% IACS) to suit a variety of installation requirements. Nickel (App. 24%IACS), Rhodium (App. 39% IACS) and Platinum (16% IACS) are not used in our plating schemes because these low conductivity metals only take away from the electrical performance of the connector while adding cost. Hard metals like rhodium really are only advantageous in connectors that require extreme resistance to abrasion from extensive repeated rubbing which is not typically associated with AV connections. IACS (International Annealed Copper Standard) is the standard by which conductivity of copper alloys and metals are compared.

Furez SP8-SB60AG Spade Speaker Connector Specifications:
-Designed for Common 5/16" (8mm) Binding Posts
-Machined from C11000 101% IACS Copper
-Single Piece Electrical Path Construction Maximizes Signal Conductance
-25 Deg Offset Angle
-Deep Barrel and Forward Set Screws Protect Against Shorting
-Dual Torx T6 Set Screws for securing speaker Cable
-Plating Options
- NP- Not Plated - Bare Copper
- Ag - Direct 5um Pure Silver Plated
-Overall Length: 1.81" (45.97mm)
-Weight: 1.2 Ounces Per Pair with out set screws

Furez TST-SB60NP Tensioned Split Tube Banana Plug Connector Specifications:
-Patent Pending Exclusive Design
-Machined from C14500 93% IACS Tellurium Copper
-Single Piece Electrical Path Construction Maximizes Signal Conductance
-Contact Pressure Near Equal that of Locking Banana Plugs
-Maximized Contact Area similar to BFA and Fluted Style Banana Plugs
-Deep Barrel and Forward Set Screws Protect Against Shorting
-Dual Torx T6 Set Screws for securing speaker Cable
-Compatible with Standard 4mm Binding Posts
-Plating Options
- NP- Not Plated - Bare Copper
- Ag - Direct 5um Pure Silver Plated
-Overall Length: 1.565" (39.75mm)
-Weight: 0.75 Ounces Per Pair without set screws

zingo

Price lowered to $100 shipped

falconcry72

zingo wrote: »

Price lowered to $100 shipped

Damn, those bananas/spades would run you close to 100 bucks themselves! GLWTS.

scottyboy76

I so wish 6 feet would reach far enough for me.

Not joking, wouldnt have some longer ones?

zingo

I'll measure them as they may not be exactly 6'.

SolidSqual

What's the word on these cables? They look to have excellent build-quality, but I can't find any reviews online.

zingo

zingo wrote: »

I'll measure them as they may not be exactly 6'.

I didn't get to pull them last night to measure, but I can probably do it tonight.

zingo

SolidSqual wrote: »

What's the word on these cables? They look to have excellent build-quality, but I can't find any reviews online.

The word on these is they are a solid cable in a nice package. IMO, these are the nicest dress-up and terminations, of a standard, four conductor 12AWG copper cable like the Canare 4S11. If you are looking at a quality cable like the Canare, but want something that's finished a little nicer and done custom for you, the AV-Outlet speaker cables are great.

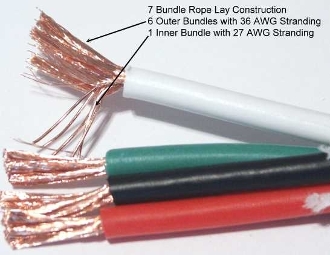

Here's a cross-cut of the wire:

zingo

scottyboy76 wrote: »

I so wish 6 feet would reach far enough for me.

Not joking, wouldnt have some longer ones?

Good news everyone!

I measured the cables and the bodies are about 6ft, but the total length with breakouts is just under 7.5ft; bananas at the amp end and spades at the speaker end.

trav0810

Too bad they are banana/Spade. I need a pair Banana/Banana!

trav0810

Ahhh,,,now I see, those are a larger spade than I was thinking. Will those fit around the binding posts on the SDA's?

SolidSqual

The construction of these cables looks impeccable.

zingo

The spades fit fine on my B&Ws, so SDA binding post shouldn't be a problem. I also really like how low profile the bananas are.

trav0810

Consider them sold. I can pay via paypal by tomorrow at the latest.

zingo

Sale pending. They are already boxed, so I'll pop them in the mail when I receive the paypal.

trav0810

Done deal. Thanks!

zingo

Sold

scottyboy76

congrats to both and trav, be glad i need about 10 feet or they would have been gone earlier, hope the work well for you.

trav0810

Thanks. I think these will work very well for me.
