2 speakers as a center
deronb1
Posts: 5,021
Moved the SM350s from rears to act as one center. Wired them by combining two reds and two blacks at the AVR and then spreading out to each appropriate hook-up on the speakers. Will this mess my AVR up? Have been listening to it for about a half n hour and it sounds really good, but I don't want to screw anything up over the long haul.
Post edited by deronb1 on
Comments
-
IDK your receiver, you might want to check your manual. You want to make sure it is 4 ohm stable, which is what you have made, wiring them in parellel, since the Sm350's are 8 ohm each. IF it isn't, you could wire them in series, for a lesser load (16 ohm) on your receiver.
-
all is well
-
You CANT wire them in series you will crossover the whole set ( say the tweeter is crossover at 2.2hz the whole setup will be ) it will sound bad .
Plus you will find the speakers will cancell each other at 400 hz intervalls ( 400,800,1600) but if your amplifier says it will handle a lower impedance and it sounds good you found a winner there .
I tried it once stuff sounded missing .IDK your receiver, you might want to check your manual. You want to make sure it is 4 ohm stable, which is what you have made, wiring them in parellel, since the Sm350's are 8 ohm each. IF it isn't, you could wire them in series, for a lesser load (16 ohm) on your receiver. -
It has been hooked up this way for about a week now with no issues. Sounds surprisingly good. I set the AVR to 6ohm setting just to be safe, but not going to keep it this way too much longer. Have a CLR 2002 coming soon to use as the center. I want to use the 350s as rears, but they are awfully big for my room. Really, really like the Def Tech sound, just trying to make it jive the best I can.

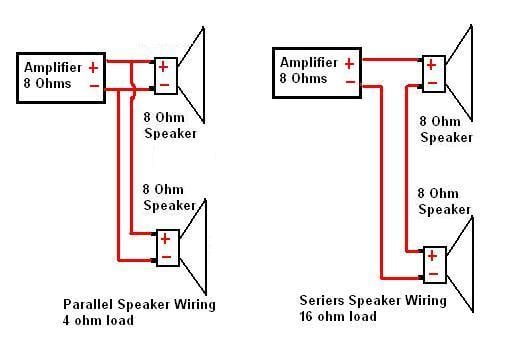

Per the above diagram, It is hooked up in parallel. I havent had it up past -30db, and the AVR doesn't seem to be getting too hot. Goofy hook up I know, but like the timbre matching
