Overnight Sensation Speaker Kit

Obsession18
Obsession18 Posts: 191
edited May 2012 in DIY, Mods & Tweaks

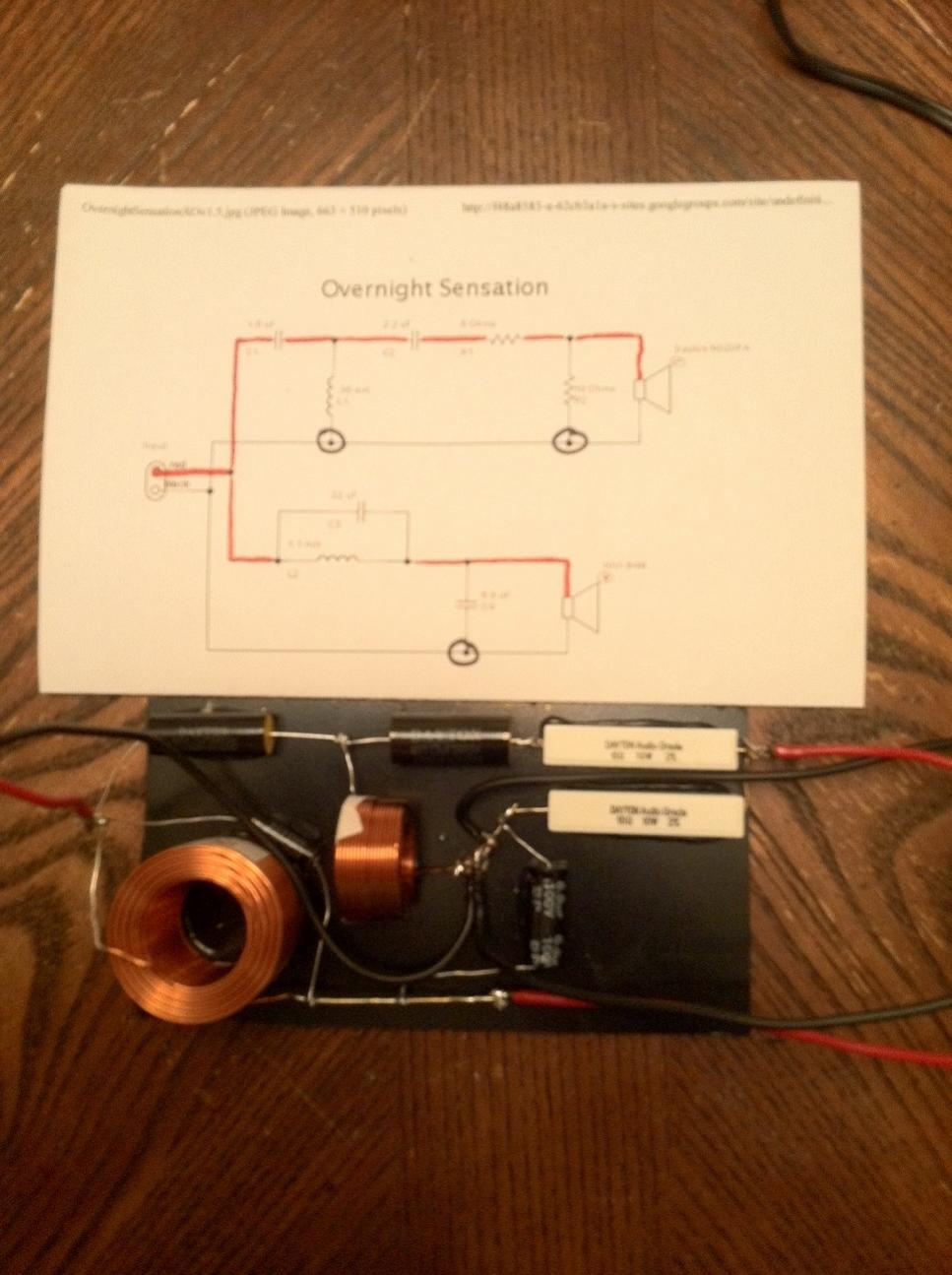

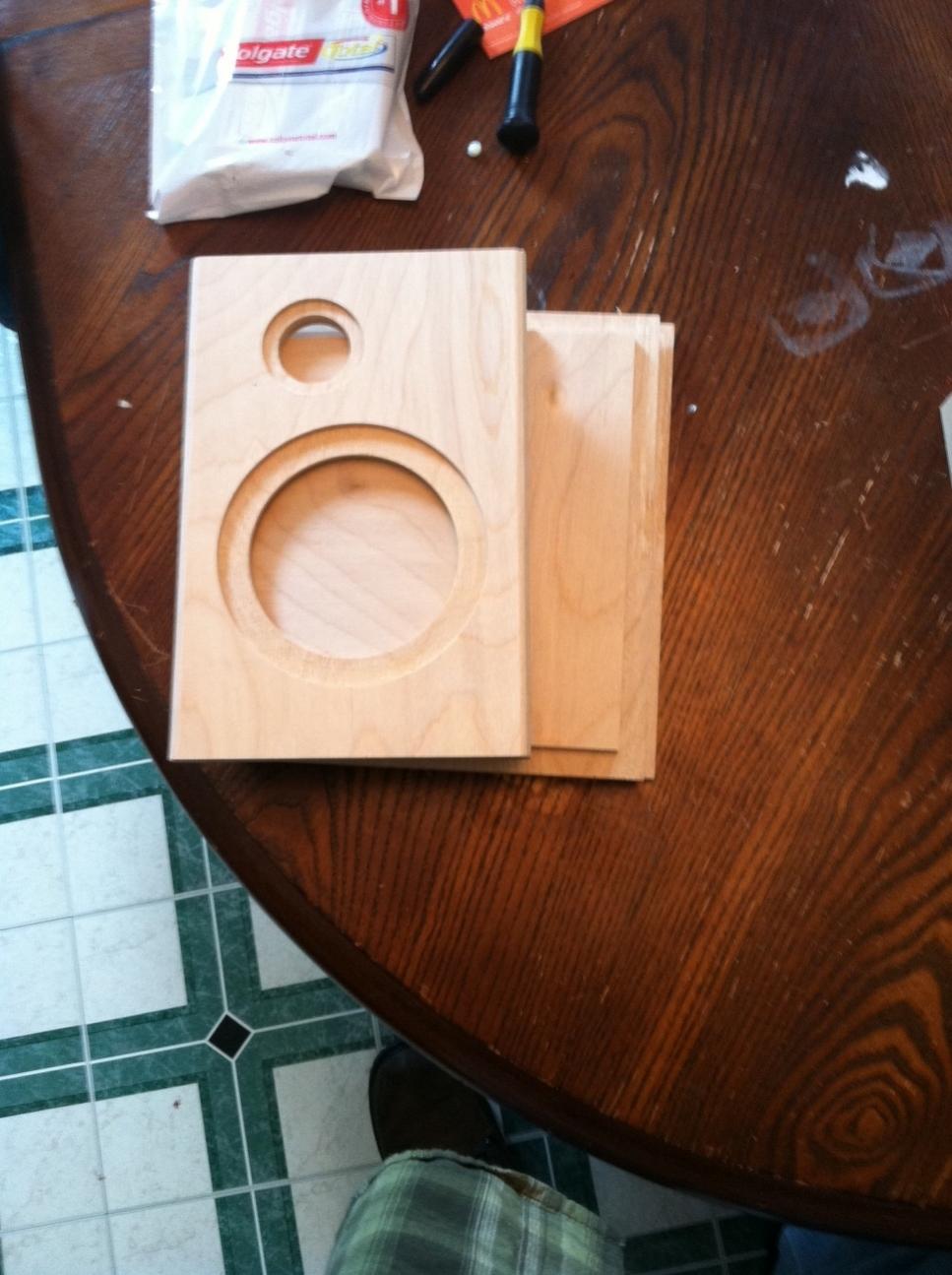

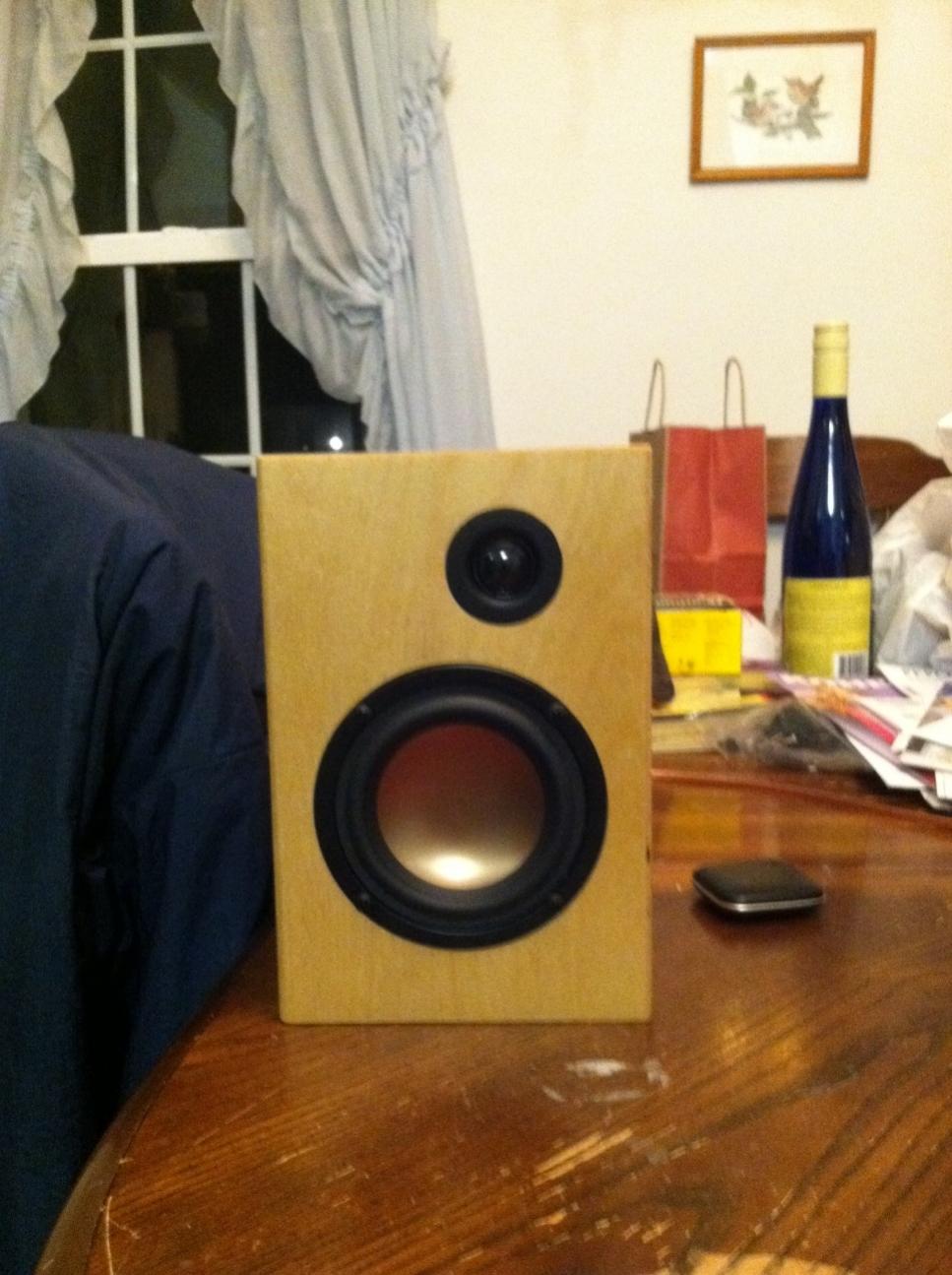

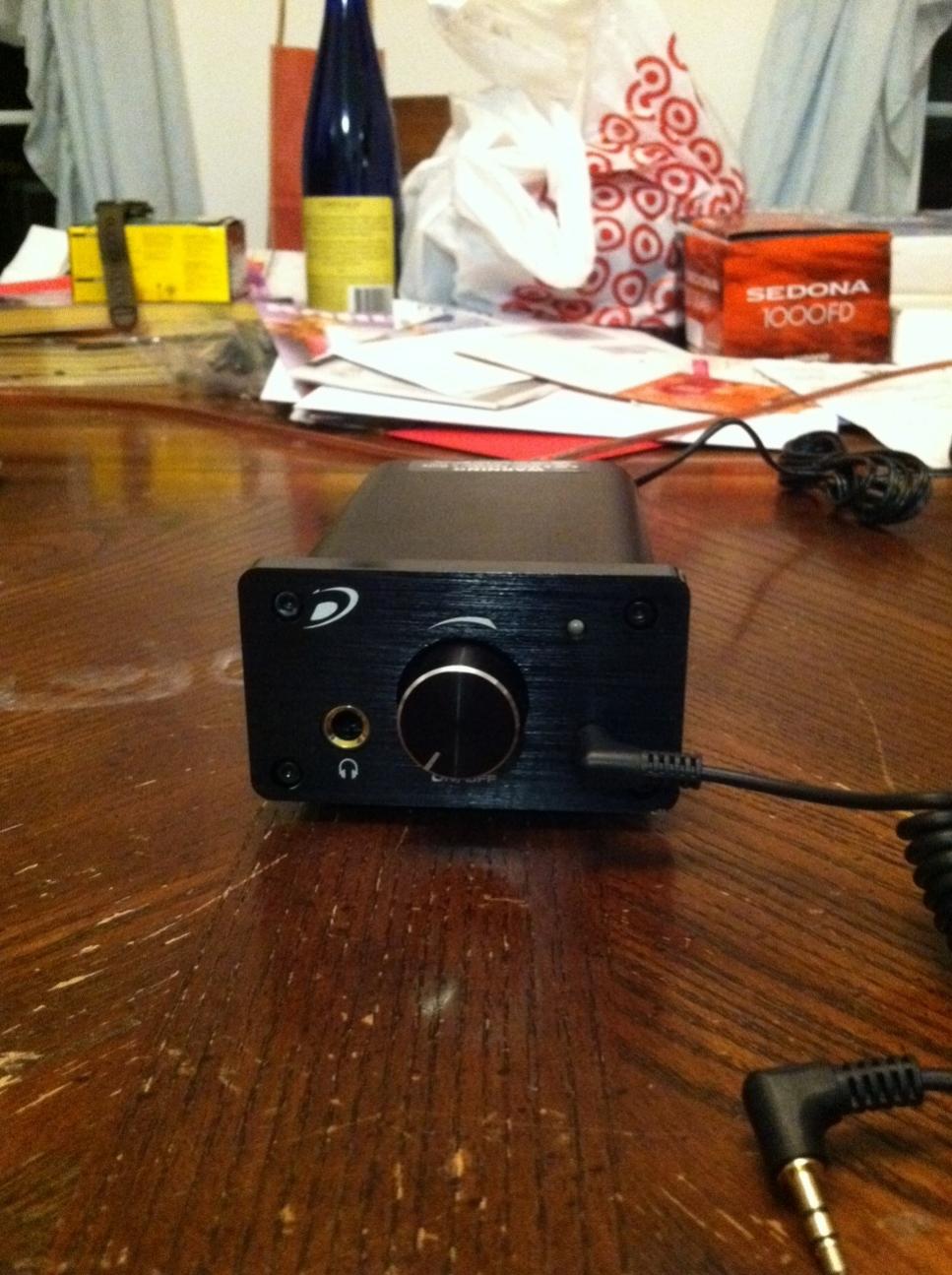

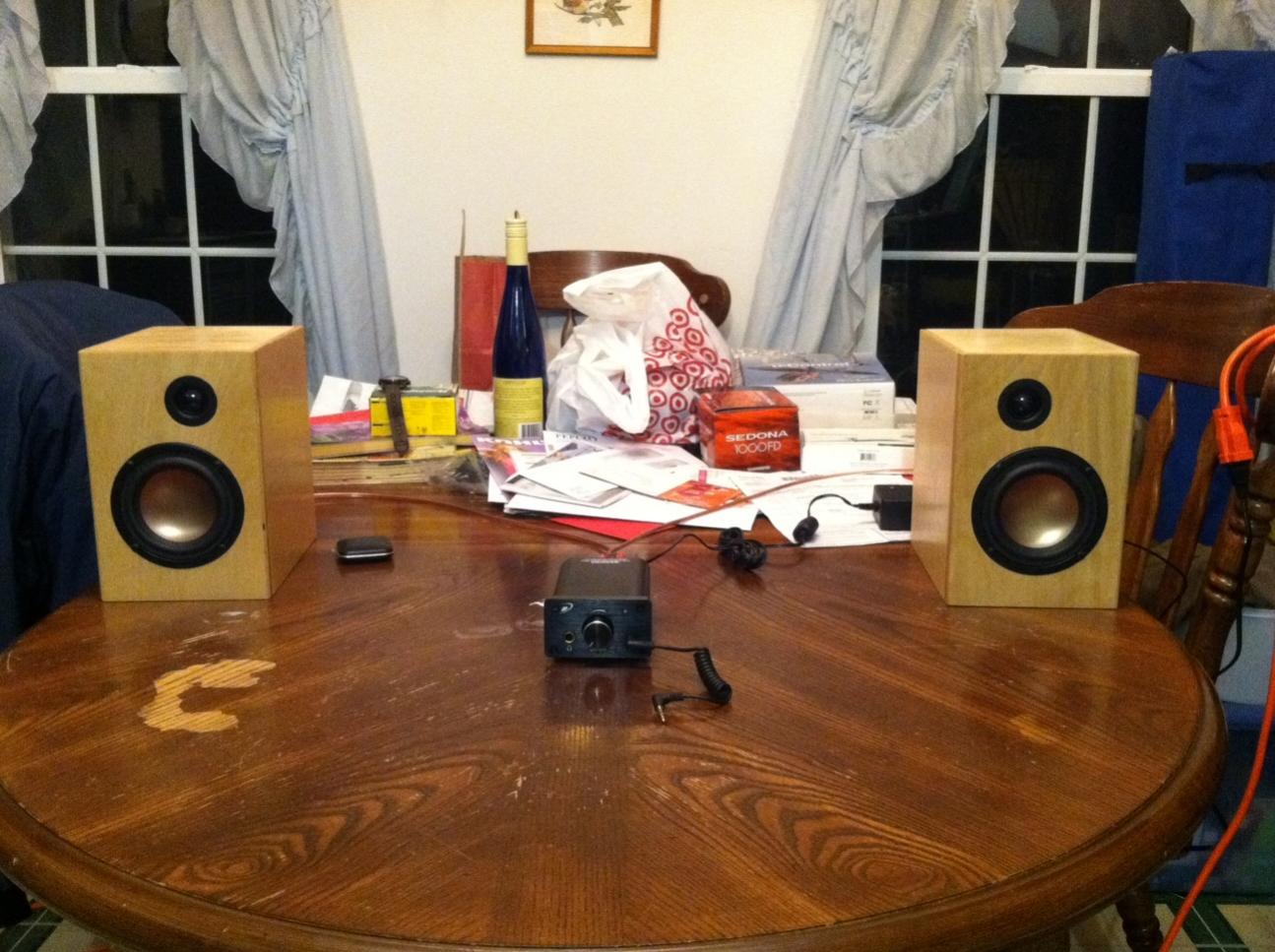

I recently purchased and built a speaker kit available from both Parts Express and DIY Sound Group called the ?Overnight Sensations?. They are a tiny monitor that use a 4? woofer and a 0.75 inch dome tweeter. The kit is first rate, good drivers from HiVi and Dayton audio, quality crossover parts including air-core inductors and polypropylene capacitors in the tweeter circuit and knock-down cabinets. You have to assemble the cabinets which requires little more than some wood glue and masking tape to hold the panels together, plus drilling some holes for the binding posts and driver mounting screws. The cabinets use nice 1/2" Baltic birch plywood which I finished with some wipe-on poly from Minvax. You also have to build the crossover yourself which requires hot gluing the components to a small board and soldering everything up and of course providing leads to the binding posts and drivers. You also need to stuff about two handfuls of poly-fill behind the woofer before you button everything up. I have them in my kitchen driven by a Dayton audio DTA-100 chip amp fed by my iPhone (196kbps mp3).

As for the sound ? they are outstanding particularly the bass response, I just can?t believe that a box that small can put out that kind of bass, they are rated down to 45Hz and I believe it. The midrange and treble is very non-fatiguing and clear, they throw up a sizable sound stage and are quite transparent. For the $128 they are a steal, I put them up against some Polk Monitor 30?s from my bedroom system and it was no-contest, and I?ve always thought the 30?s were great.

For those considering trying some do-it-yourself the ?Overnight Sensations? are a great first step.
2-Channel System
Analog: VPI Traveler TT, Audio Technica 150MLX, Pro-Ject Tube Box DS
CD Player: Jolida JD-100 Preamp: Cambridge 840E Amp: Odyssey Kismet Stereo
Spkrs: Tyler Acoustics Linbrook Signature Systems
Post edited by Obsession18 on

Comments

  • [Deleted User]
    [Deleted User] Posts: 1,225
    edited May 2012
  • Obsession18
    Obsession18 Posts: 191
    edited May 2012
    2-Channel System
    Analog: VPI Traveler TT, Audio Technica 150MLX, Pro-Ject Tube Box DS
    CD Player: Jolida JD-100 Preamp: Cambridge 840E Amp: Odyssey Kismet Stereo
    Spkrs: Tyler Acoustics Linbrook Signature Systems
  • drumminman
    drumminman Posts: 3,396
    edited May 2012
    Very cool little speakers!
    "Science is suppose to explain observations not dismiss them as impossible" - Norm on AA; 2.3TL's w/sonicaps/mills/jantzen inductors, Gimpod's boards, Lg Solen SDA inductors, RD-0198's, MW's dynamatted, Armaflex speaker gaskets, H-nuts, brass spikes, Cardas CCGR BP's, upgraded IC Cable, Black Hole Damping Sheet strips, interior of cabinets sealed with Loctite Power Grab, AI-1 interface with 1000VA A-L transformer
  • skrol
    skrol Posts: 3,436
    edited May 2012
    They look like a nice little project. Are they sealed or ported?
    Stan

    Main 2ch:
    Polk LSi15 (DB840 upgrade), Parasound: P/LD-1100, HCA-1000A; Denon: DVD-2910, DRM-800A; Benchmark DAC1, Monster HTS3600-MKII, Grado SR-225i; Technics SL-J2, Parasound PPH-100.

    HT:
    Marantz SR7010, Polk: RTA11TL (RDO198-1, XO and Damping Upgrades), S4, CS250, PSW110 , Marantz UD5005, Pioneer PL-530, Panasonic TC-P42S60

    Other stuff:
    Denon: DRA-835R, AVR-888, DCD-660, DRM-700A, DRR-780; Polk: S8, Monitor 5A, 5B, TSi100, RM7, PSW10 (DXi104 upgrade); Pioneer: CT-6R; Onkyo CP-1046F; Ortofon OM5E, Marantz: PM5004, CD5004, CDR-615; Parasound C/PT-600, HCA-800ii, Sony CDP-650ESD, Technics SA 5070, B&W DM601
  • heiney9
    heiney9 Posts: 25,384
    edited May 2012
    "Appreciation of audio is a completely subjective human experience. Measurements can provide a measure of insight, but are no substitute for human judgment. Why are we looking to reduce a subjective experience to objective criteria anyway? The subtleties of music and audio reproduction are for those who appreciate it. Differentiation by numbers is for those who do not".--Nelson Pass Pass Labs XA25 | EE Avant Pre | EE Mini Max Supreme DAC | MIT Shotgun S1 | Puritan Audio PSM136 Pwr Condtioner & Classic PC's | Legend L600 | Roon Nucleus 1 w/LPS - Tubes add soul!
  • strider
    strider Posts: 2,568
    edited May 2012
    They also have a kit available at Meniscus Audio, although it doesn't include the cabinets. Nice looking speakers!
    Wristwatch--->Crisco
  • schwarcw
    schwarcw Posts: 7,356
    edited May 2012
    Interesting kit! The Meniscus Audio offers a slightly better tweeter.
    Carl

  • zingo
    zingo Posts: 11,258
    edited May 2012
    Nice little project and seems to be a very high value. Congrats!
