Specs for Monitor 5 stands needed

halo71
halo71 Posts: 4,603
edited January 2011 in Vintage Speakers
So anyone know where I can find this info? Anyone with original stands that could take some measurements?
--Gary--
Onkyo Integra M504, Bottlehead Foreplay III, Denon SACD, Thiel CS2.3, NHT VT-2, VT-3 and Evolution T6, Infinity RSIIIa, SDA1C and a few dozen other speakers around the house I change in and out.
Post edited by halo71 on
· Share on FacebookShare on Twitter

Comments

  • bamark
    bamark Posts: 32
    edited January 2011
    halo71 wrote: »
    So anyone know where I can find this info? Anyone with original stands that could take some measurements?

    I have the original stands with my 5's.
    Unless someone can supply the measurements sooner, I'd be glad to help later this evening when I get home.

    Mark
    Office:
    Pioneer SX-650
    Pioneer RG-1
    BSR EQ-110X
    Technics SL-23
    Polk Monitor 5's
    Samsung DVD M101 (transport)
    Entech Number Cruncher 203.2

    Living Room:
    Pioneer SX-850
    Pioneer SG-9500
    Pioneer HPM-60's
    JVC XL-V161 CD Player
    · Share on FacebookShare on Twitter
  • vstarkwell
    vstarkwell Posts: 328
    edited January 2011
    Try here
    http://www.polkaudio.com/forums/showthread.php?t=24335&highlight=Speaker+Stands
    Monitor 7C's With Tubes
    · Share on FacebookShare on Twitter
  • halo71
    halo71 Posts: 4,603
    edited January 2011
    vstarkwell wrote: »
    Try here
    http://www.polkaudio.com/forums/showthread.php?t=24335&highlight=Speaker+Stands

    I have seen that thread but didn't realize the stands were the same for the 5/7/10 models. I figured the stands for 5's would be a little taller. :confused:

    Bamark, that would be great! Any chance of posting a pic or two?
    --Gary--
    Onkyo Integra M504, Bottlehead Foreplay III, Denon SACD, Thiel CS2.3, NHT VT-2, VT-3 and Evolution T6, Infinity RSIIIa, SDA1C and a few dozen other speakers around the house I change in and out.
    · Share on FacebookShare on Twitter
  • halo71
    halo71 Posts: 4,603
    edited January 2011
    ahh, looks like Mon 5 stands are different. The pdf's in those threads show for 7/10's.
    --Gary--
    Onkyo Integra M504, Bottlehead Foreplay III, Denon SACD, Thiel CS2.3, NHT VT-2, VT-3 and Evolution T6, Infinity RSIIIa, SDA1C and a few dozen other speakers around the house I change in and out.
    · Share on FacebookShare on Twitter
  • DON73
    DON73 Posts: 516
    edited January 2011
    The same basic design should work for the 5s. Just make the column taller.
    Wood Technologies makes a nice stand but they are not cheap. I have an 8" for my ADS L810s and a 12" for my ADS L710s. I bought the ones made from real wood but they also make stands made from mdf.
    TO ERR IS HUMAN. TO FORGIVE IS CANINE.
    · Share on FacebookShare on Twitter
  • halo71
    halo71 Posts: 4,603
    edited January 2011
    bamark wrote: »
    I have the original stands with my 5's.
    Unless someone can supply the measurements sooner, I'd be glad to help later this evening when I get home.

    Mark


    Any luck Mark?
    --Gary--
    Onkyo Integra M504, Bottlehead Foreplay III, Denon SACD, Thiel CS2.3, NHT VT-2, VT-3 and Evolution T6, Infinity RSIIIa, SDA1C and a few dozen other speakers around the house I change in and out.
    · Share on FacebookShare on Twitter
  • bamark
    bamark Posts: 32
    edited January 2011
    halo71 wrote: »
    Any luck Mark?

    I have your measurements. When I purchased these stands, they came with assembly instructions on one side, and a template on the other. The template is used when attaching the 5, 7 or 10 to the metal base that sits on top of the stand. The metal base is already designed to angle the speakers at a 5 (?) degree angle.

    OK, the base (bottom piece) is 15 5/8" wide by 13 5/8" deep by 1" thick.
    It was routered out in the center so that the second piece would slip into it.
    I'll try to scan a picture to show you.

    The pillar in between the upper plate and the base is 7 1/2" tall, 5" square with the corners cut flat to about 12/16". Now at the bottom of this pillar, it is also routered so as to slide into the base for additional stablility. I'm thinking the thickness of the pillar is maybe 3/4" - 7/8".

    There is an 8 1/4" x 1/4" bolt that goes thru the upper plate, the pillar, and screws into the lower base. There is no nut underneath. A metal thread insert is sunk into the center of the base.

    If you see the link that vstarkwell provided, that is exactly wha they look like. The picture that might tie all this together for you would show the routered out section of the base, and how the pillar fits into it.

    Mark
    Office:
    Pioneer SX-650
    Pioneer RG-1
    BSR EQ-110X
    Technics SL-23
    Polk Monitor 5's
    Samsung DVD M101 (transport)
    Entech Number Cruncher 203.2

    Living Room:
    Pioneer SX-850
    Pioneer SG-9500
    Pioneer HPM-60's
    JVC XL-V161 CD Player
    · Share on FacebookShare on Twitter
  • bamark
    bamark Posts: 32
    edited January 2011
    If you need more let me know

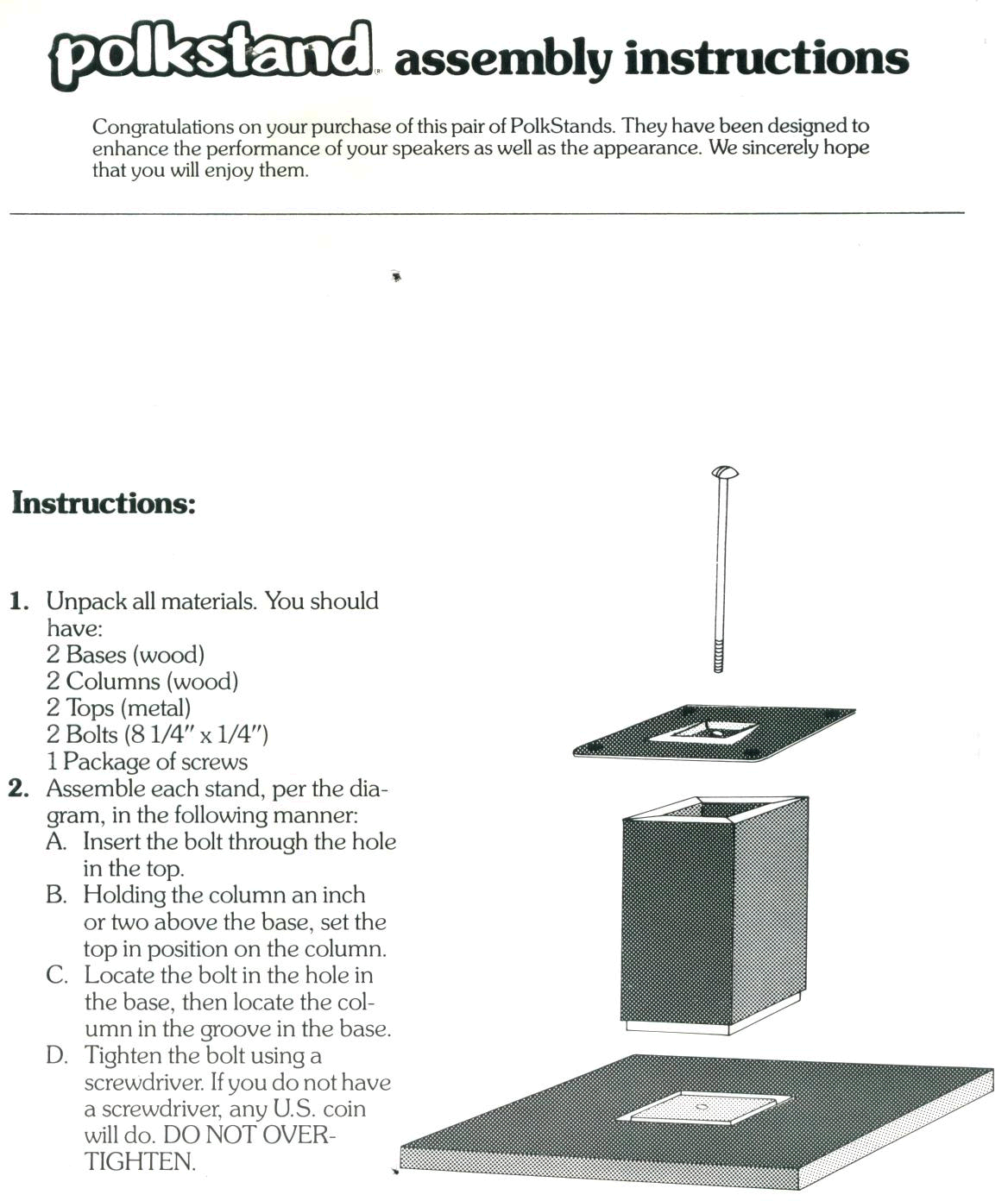

    polk[1] (2).gif




    Mark
    Office:
    Pioneer SX-650
    Pioneer RG-1
    BSR EQ-110X
    Technics SL-23
    Polk Monitor 5's
    Samsung DVD M101 (transport)
    Entech Number Cruncher 203.2

    Living Room:
    Pioneer SX-850
    Pioneer SG-9500
    Pioneer HPM-60's
    JVC XL-V161 CD Player
    · Share on FacebookShare on Twitter
  • halo71
    halo71 Posts: 4,603
    edited January 2011
    Thanks Mark! I was mainly concerned with the height of the center pillar. Figured it would be a little taller than 7/10 stands. A picture of the 5 stands would be sweet! :smile: Thanks for the info!


    EDIT: I see you posted the instructions! Thanks.
    --Gary--
    Onkyo Integra M504, Bottlehead Foreplay III, Denon SACD, Thiel CS2.3, NHT VT-2, VT-3 and Evolution T6, Infinity RSIIIa, SDA1C and a few dozen other speakers around the house I change in and out.
    · Share on FacebookShare on Twitter
  • bamark
    bamark Posts: 32
    edited January 2011
    halo71 wrote: »
    Thanks Mark! I was mainly concerned with the height of the center pillar. Figured it would be a little taller than 7/10 stands. A picture of the 5 stands would be sweet! :smile: Thanks for the info!


    EDIT: I see you posted the instructions! Thanks.

    You're quite welcome. If you need to see what the 5's look like on the stands, let me know. I need to dismantle one to tighten the bolt (after about 22 years or so), so I can also take it apart post pics.
    The only thing I wish I had not done, is attach them to the stands with the 5/8" screws. Sacrilege, I know, but I had little ones running around at the time. Mine have remained in excellent condition, but I would like to see what recapping them would do.
    Currently hooked up to my SX-650, RG-1 and Technics SL-23 TT.
    Office:
    Pioneer SX-650
    Pioneer RG-1
    BSR EQ-110X
    Technics SL-23
    Polk Monitor 5's
    Samsung DVD M101 (transport)
    Entech Number Cruncher 203.2

    Living Room:
    Pioneer SX-850
    Pioneer SG-9500
    Pioneer HPM-60's
    JVC XL-V161 CD Player
    · Share on FacebookShare on Twitter
  • dorokusai
    dorokusai Posts: 25,577
    edited January 2011
    Hasn't this already been worked out years ago in the previous thread? The template is the same for all 3 loudspeakers using the same stand. What's different here? There were 3 versions of these stands.
    CTC BBQ Amplifier, Sonic Frontiers Line3 Pre-Amplifier and Wadia 581 SACD player. Speakers? Always changing but for now, Mission Argonauts I picked up for $50 bucks, mint.
    · Share on FacebookShare on Twitter
  • halo71
    halo71 Posts: 4,603
    edited January 2011
    ^ Sorry! :tongue:

    I was thinking since the Mon5 was a smaller speaker than the 7 and 10 the stand would be a little taller. Guess not.
    --Gary--
