DYI Isolators for little $$

TrashyTrucker
TrashyTrucker Posts: 225
edited September 2010 in DIY, Mods & Tweaks
Hey all,

Just an update... Have somewhere close to 50 hrs or so on the XO's and WOW! I cant believe the difference! My system is sounding the best I have probabally ever heard it before. It is simply amazing. Only thing is... is now the bass makes my cdp skip. Talked with a custom stereo sound room salesman and found out my cdp is too close to the speakers and I NEEDED some dampening feet.
So since you guys are all about DYI? I made something and wanted to share something I made. (perhaps it may or may not help someone)

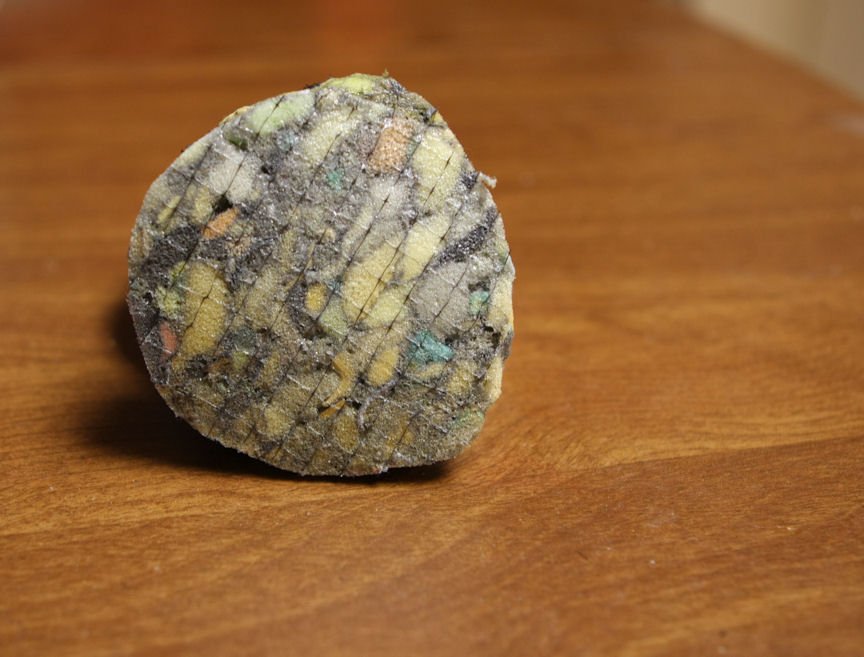

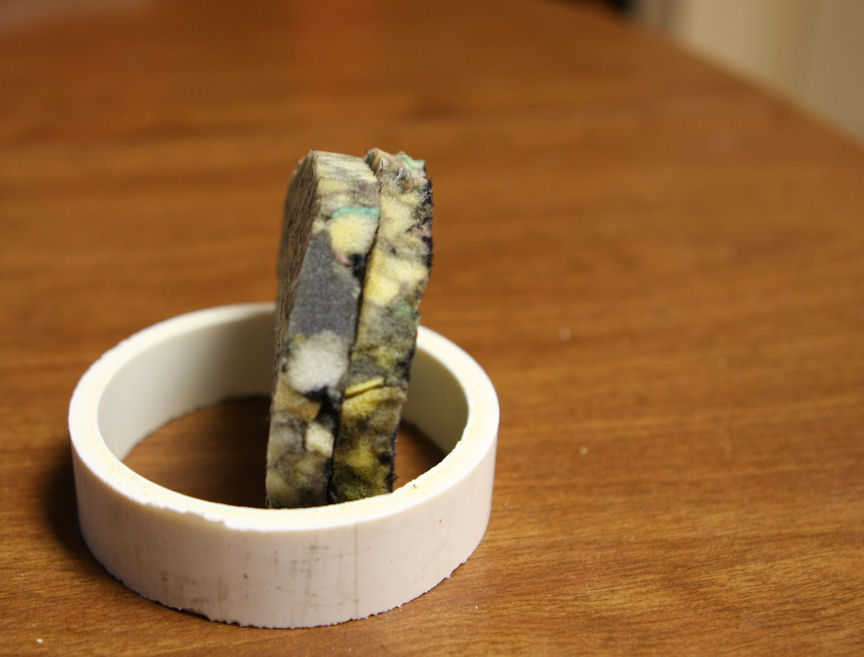

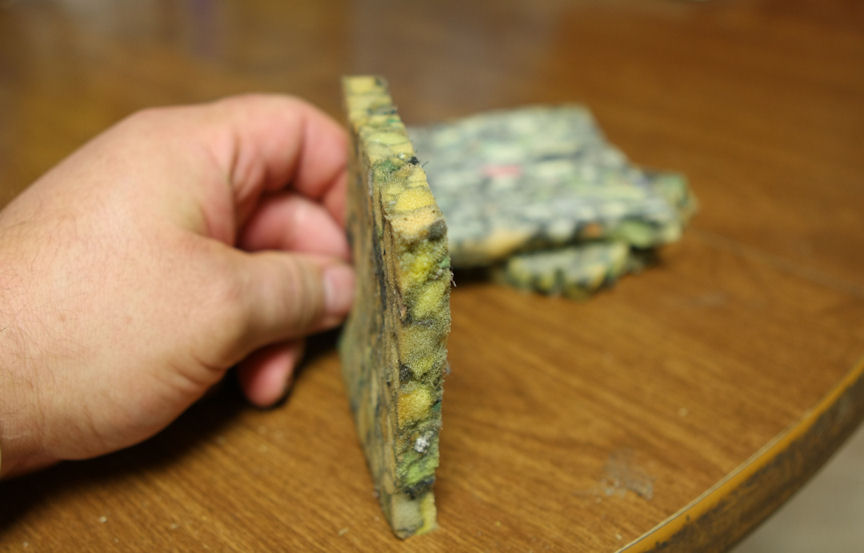

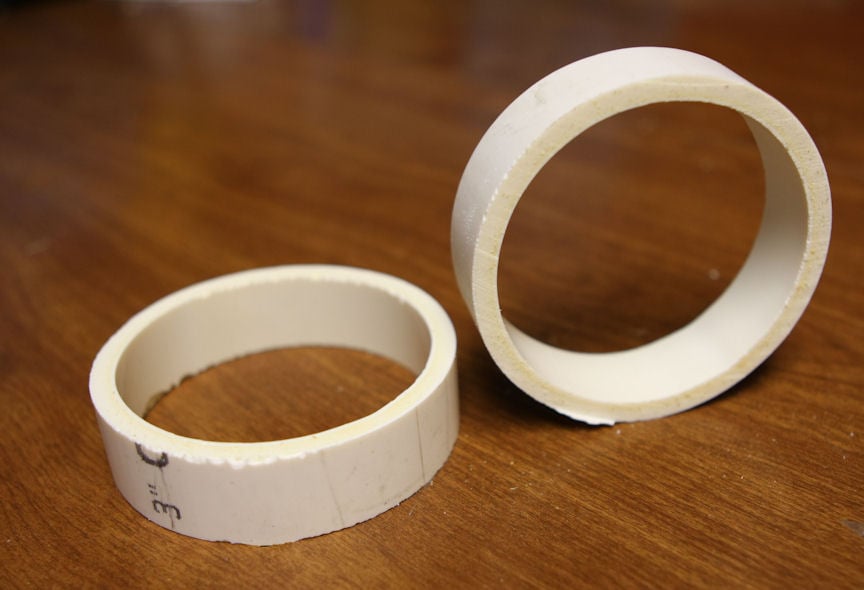

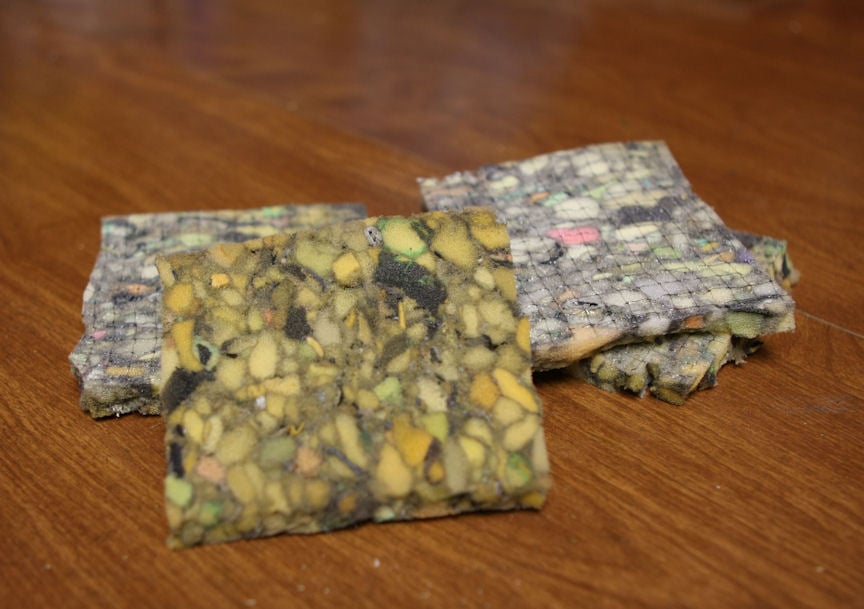

I know it will sound cheezy, but here goes. I first took some 8lb. carpet padding and cut 8 squares. Then I took some 3" schedule 40 PVC pipe and cut them with a cutoff saw to make them square/even cuts. I Cut 4 pieces of pipe at 7/8" these are now isolators. I then marked the pads from the inside of the 4 isolators, I cut the pads to now fit inside the isolators (pipe).
Since stacking 2 pads together gave an overall thickness of 1", that is why I cut the pipe to 7/8" to allow for compression of the cdp when resting on top of them.

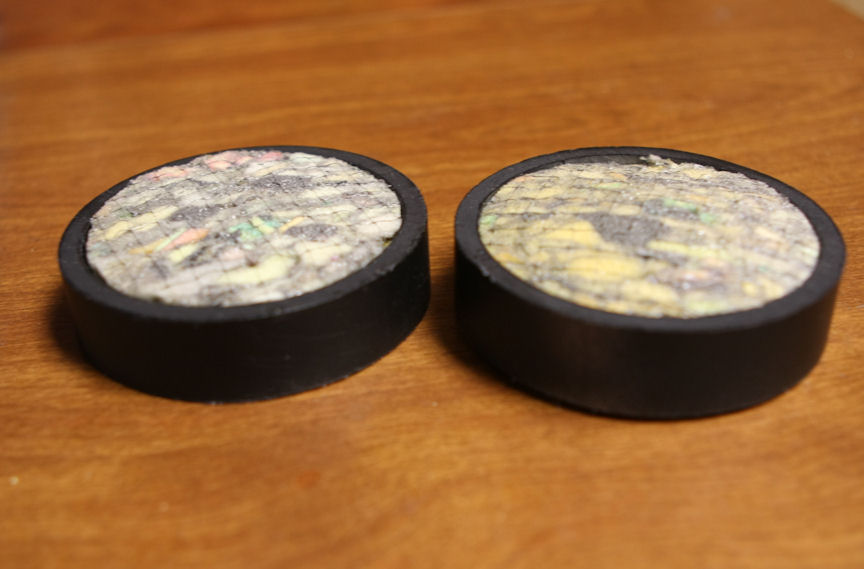

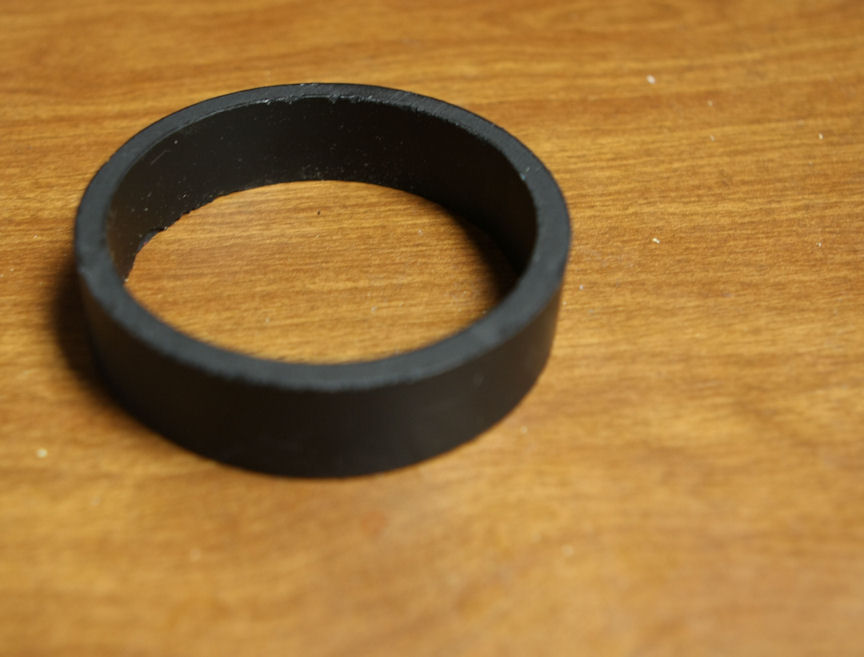

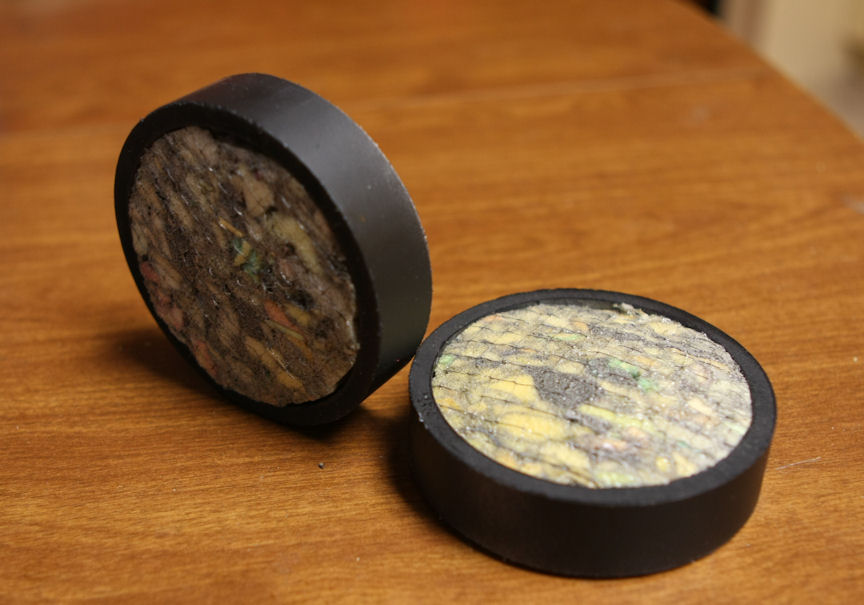

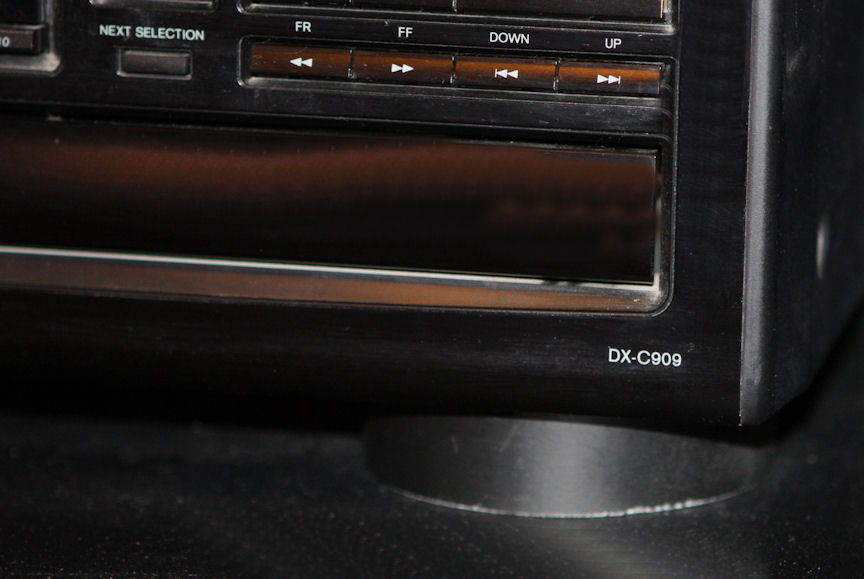

I painted the isolators flat black to match the rest of my system and here is the finished report:
Works like expensive isolators! No skippage, can turn volume at twelve oclock now! Wow! unbelieveable! You guys can tell me what you think!
Thanks guys.

Enjoy!
Matt :D











Integra DTR 50.2 used as a preamp
Rotel RCD 1520 cdp
AudioQuest Jaguar 72v dbs ic's
AudioQuest type 8 wire
biamped to:
2-Hafler 9500 trans nova's
AudioQuest NRG-3 power cable's
dedicated AC line for
Tesla Plex 20a duplex receptacle
Panamax Max 7500 pro surge/line conditioner
SDA SRS 3.1 TL's modded...
spikes, rdo's, rings, dynamat, sonicaps, mills & aeon
Panasonic Viera G20 50" plasma


...SDA's are just like candy for your ears...
Post edited by TrashyTrucker on

Comments

  • TrashyTrucker
    TrashyTrucker Posts: 225
    edited September 2010
    Yet more pics.









    Enjoy,
    Matt :D
    Integra DTR 50.2 used as a preamp
    Rotel RCD 1520 cdp
    AudioQuest Jaguar 72v dbs ic's
    AudioQuest type 8 wire
    biamped to:
    2-Hafler 9500 trans nova's
    AudioQuest NRG-3 power cable's
    dedicated AC line for
    Tesla Plex 20a duplex receptacle
    Panamax Max 7500 pro surge/line conditioner
    SDA SRS 3.1 TL's modded...
    spikes, rdo's, rings, dynamat, sonicaps, mills & aeon
    Panasonic Viera G20 50" plasma


    ...SDA's are just like candy for your ears...
  • fishbones
    fishbones Posts: 947
    edited September 2010
    Look pretty good!

    Are you placing them under the feet of the unit?

    I'm curious if you noticed a sonic difference?
    ..... ><////(*>
  • TrashyTrucker
    TrashyTrucker Posts: 225
    edited September 2010
    Yes they are under the feet. and yes I can tell a sonic difference. The error tracking/correcting system is freed up to play more info. It is amazing with all the mods I have done
    I can hear viritually everything now. Its breathtaking.

    Matt :D
    Integra DTR 50.2 used as a preamp
    Rotel RCD 1520 cdp
    AudioQuest Jaguar 72v dbs ic's
    AudioQuest type 8 wire
    biamped to:
    2-Hafler 9500 trans nova's
    AudioQuest NRG-3 power cable's
    dedicated AC line for
    Tesla Plex 20a duplex receptacle
    Panamax Max 7500 pro surge/line conditioner
    SDA SRS 3.1 TL's modded...
    spikes, rdo's, rings, dynamat, sonicaps, mills & aeon
    Panasonic Viera G20 50" plasma


    ...SDA's are just like candy for your ears...
  • TrashyTrucker
    TrashyTrucker Posts: 225
    edited September 2010
    LOL,
    Hey admin.
    I just noticed that I titled this thread DYI
    Edit: It should have read "DIY" can you possibally change that?

    Thanks,
    Matt
    Integra DTR 50.2 used as a preamp
    Rotel RCD 1520 cdp
    AudioQuest Jaguar 72v dbs ic's
    AudioQuest type 8 wire
    biamped to:
    2-Hafler 9500 trans nova's
    AudioQuest NRG-3 power cable's
    dedicated AC line for
    Tesla Plex 20a duplex receptacle
    Panamax Max 7500 pro surge/line conditioner
    SDA SRS 3.1 TL's modded...
    spikes, rdo's, rings, dynamat, sonicaps, mills & aeon
    Panasonic Viera G20 50" plasma


    ...SDA's are just like candy for your ears...
  • schutz2106
    schutz2106 Posts: 115
    edited September 2010
    Looks good, saves money
    Klipsch RF7-II
    Klipsch RC64-II
    Klipsch RC62-II

    Onkyo TX-SR805
    Dish 722 dvr
    Sony BDPS370 Blue Ray
    Samsung 52b750 LCD Tv
    Panasonic DVD Recorder
