Active MTMs in front doors
Options
gixxer11
Posts: 3
What's up everybody!? Wasn't happy with my last arrangement and after doing some research on here (thank you!), I pulled it all out and am starting over. I'm working with:
Clarion CZ500 H.U.
2x Momo MM6 components
2x Power Acoustik LT960-4
1 2ch/bridged mode- LP 3500@18db to drive woofers in series for 8ohm load
1 4ch mode- 2ch HP 3500hz@18db driving tweets, 2ch LP 2500hz@12db driving 4 ohm 8" polk woofers (still need to get) in rear.
Power Acoustik LT1440-2 bridged mono
RE Audio SX12D2 in 2.2 cu/ft slot ported box tuned @33hz
Nothing to brag about but I have too many hobbies as it is, so I've got to make this stuff work! Most of it is used, aside from the H.U. which I had to buy because one of my RCA crimp-ons (RG-59) fell off and hit the positive on my battery in the hatch and took out my old H.U.:mad:
Any way, here's how it was:

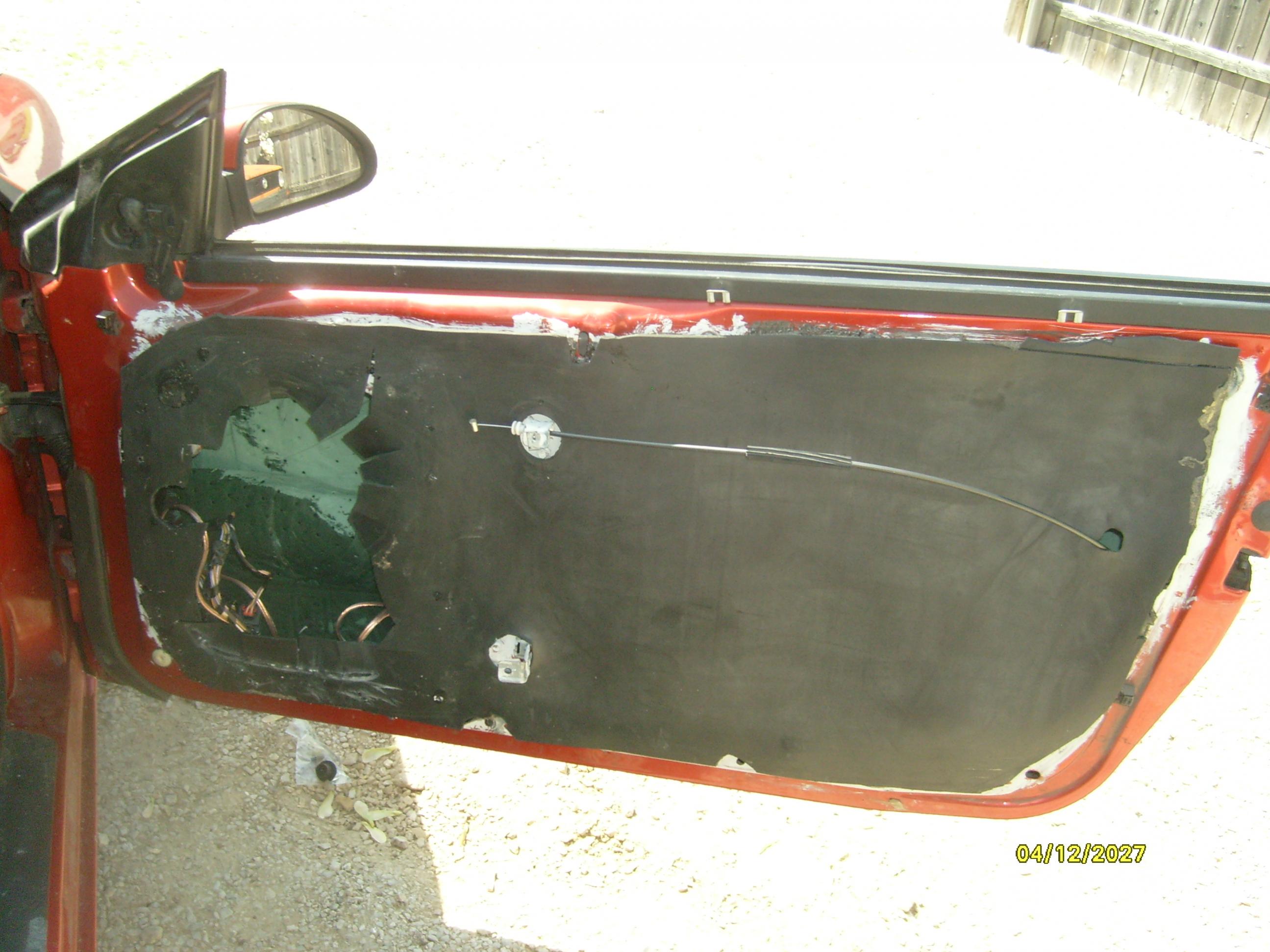

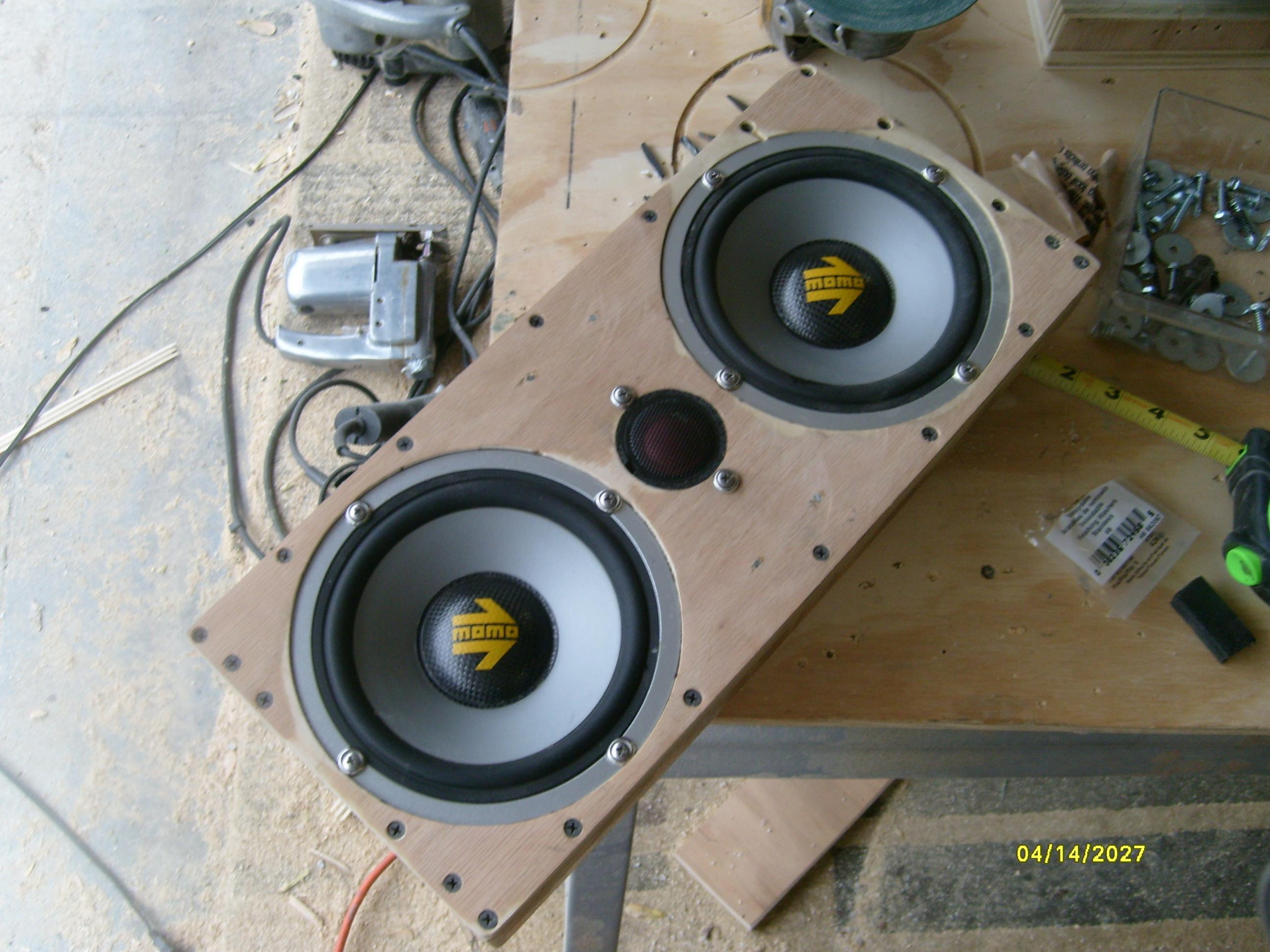

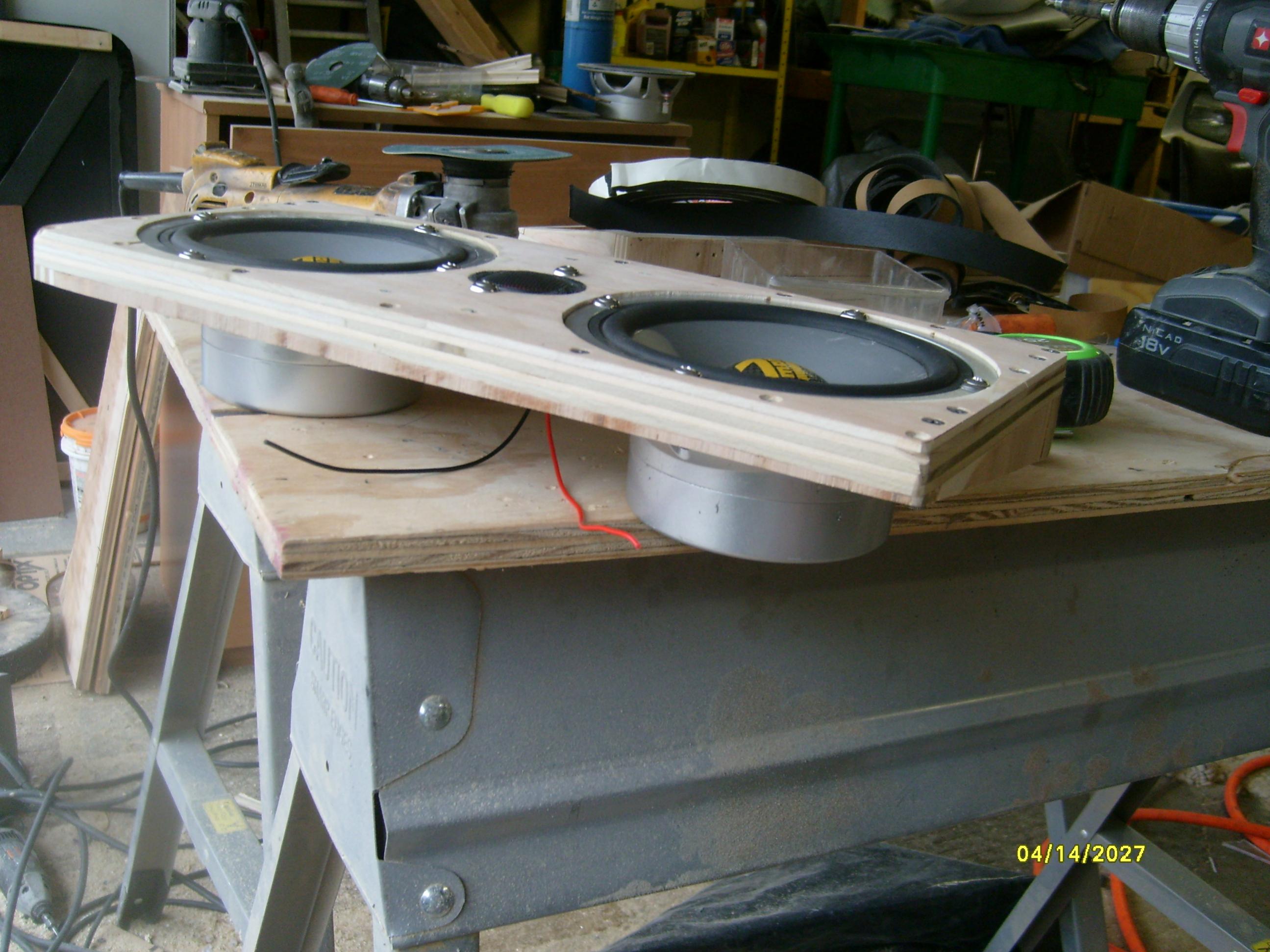

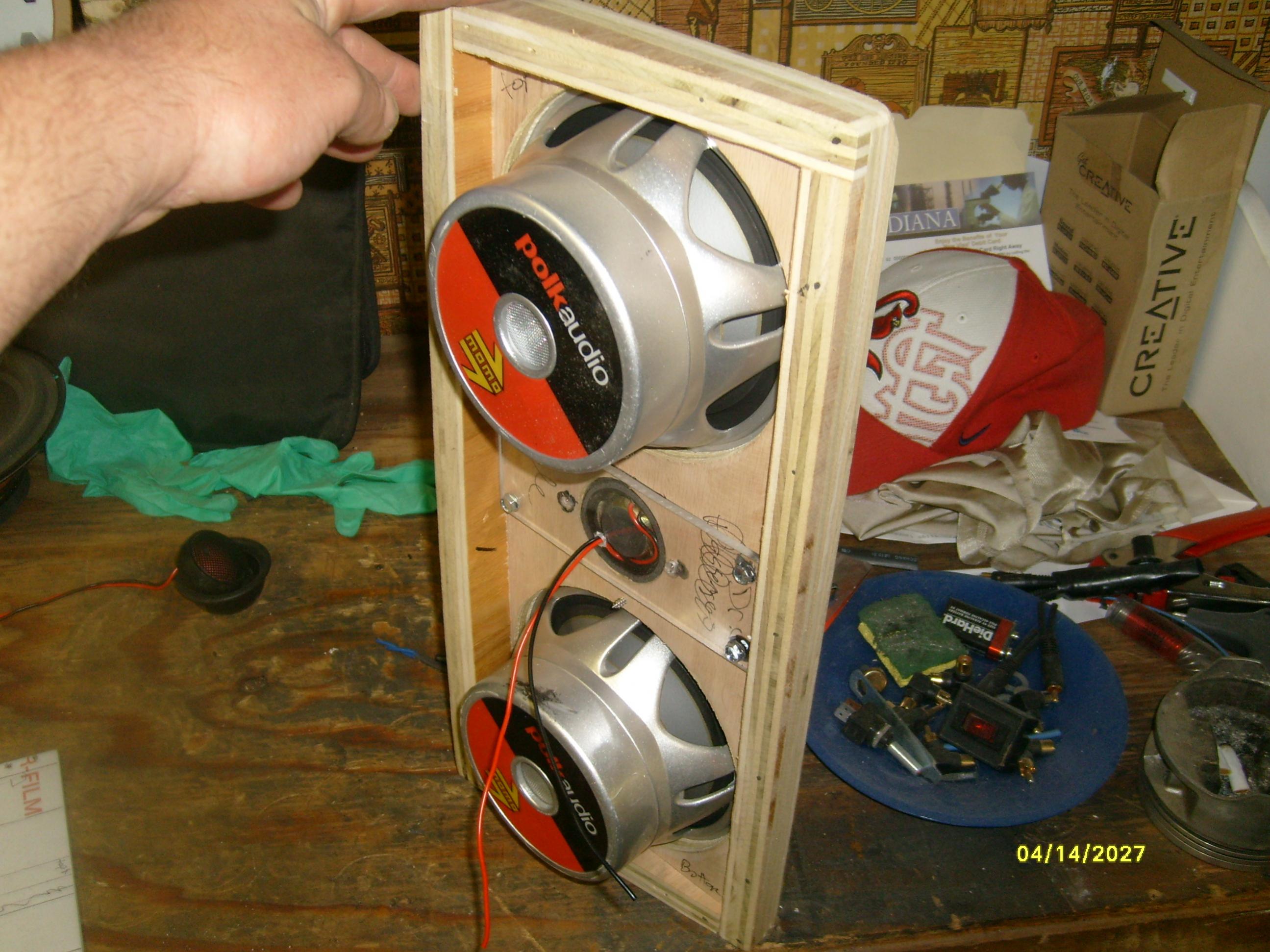

Here's some of what I've done so far:
Going to weld in new inner door panels next week because to make it all fit I had to cut them out. Any suggestions on my planned setup?
Clarion CZ500 H.U.
2x Momo MM6 components
2x Power Acoustik LT960-4
1 2ch/bridged mode- LP 3500@18db to drive woofers in series for 8ohm load
1 4ch mode- 2ch HP 3500hz@18db driving tweets, 2ch LP 2500hz@12db driving 4 ohm 8" polk woofers (still need to get) in rear.
Power Acoustik LT1440-2 bridged mono
RE Audio SX12D2 in 2.2 cu/ft slot ported box tuned @33hz
Nothing to brag about but I have too many hobbies as it is, so I've got to make this stuff work! Most of it is used, aside from the H.U. which I had to buy because one of my RCA crimp-ons (RG-59) fell off and hit the positive on my battery in the hatch and took out my old H.U.:mad:
Any way, here's how it was:
Here's some of what I've done so far:
Going to weld in new inner door panels next week because to make it all fit I had to cut them out. Any suggestions on my planned setup?
