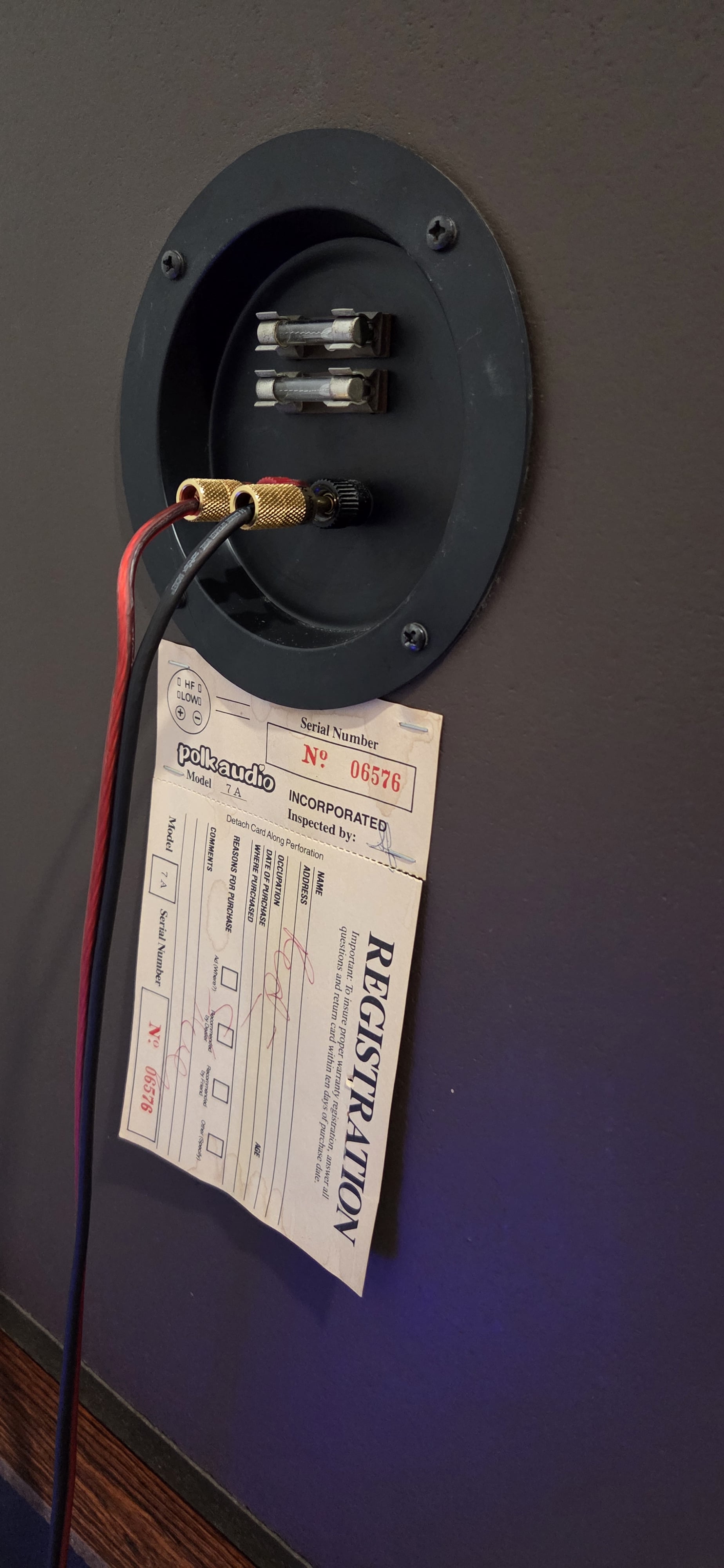

New to the forum but not Polk. I was just looking to find out if there is a member or members that rebuild M7A and M10 crossovers. Both sets of speakers are in very nice shape and the 7's still have the registration tags stapled to the back. Please let me know and thank you in advance...Tony in NC

Answers

  • VR3
    VR3 Posts: 29,672
    Options
    Would be glad to help, please send a pm

    Thanks!
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
  • TLOC
    TLOC Posts: 12
    Options

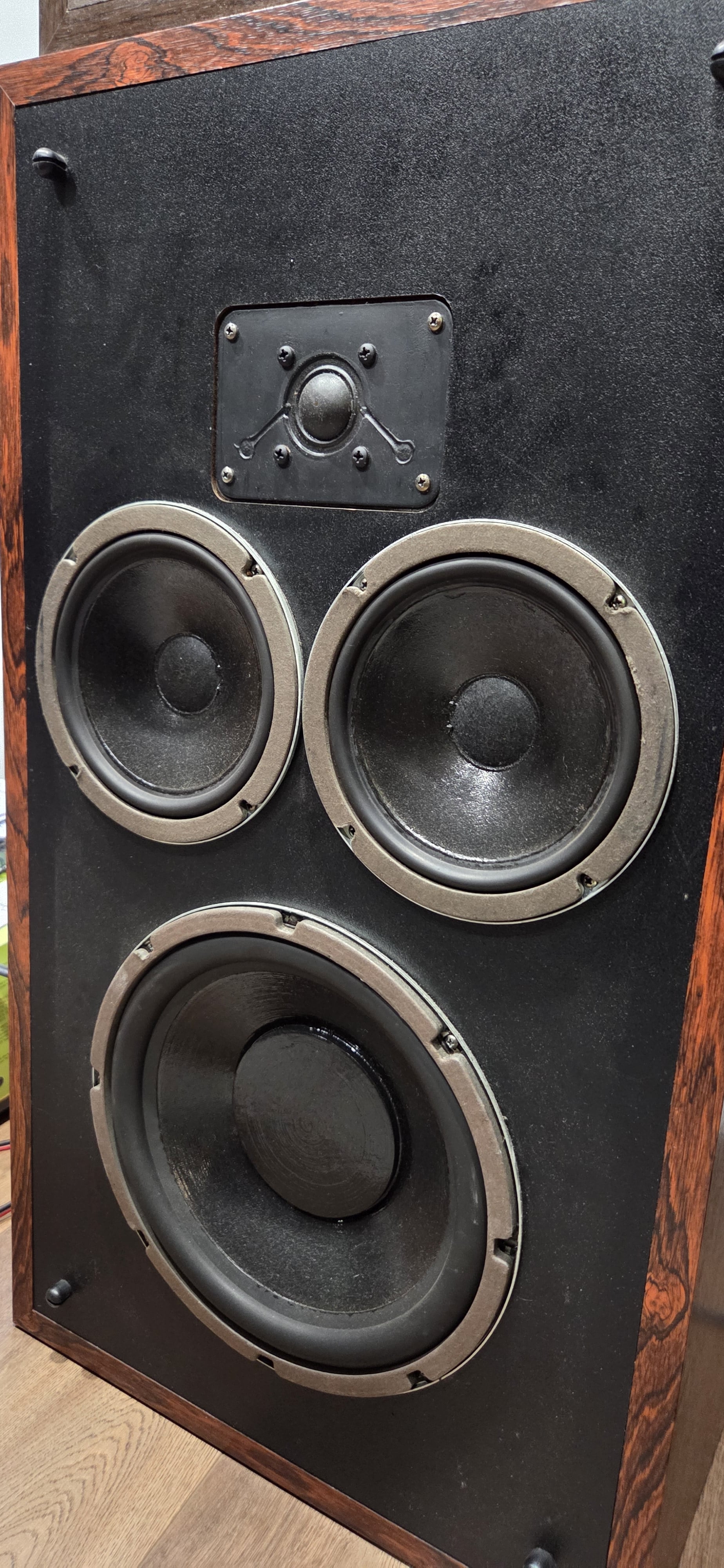

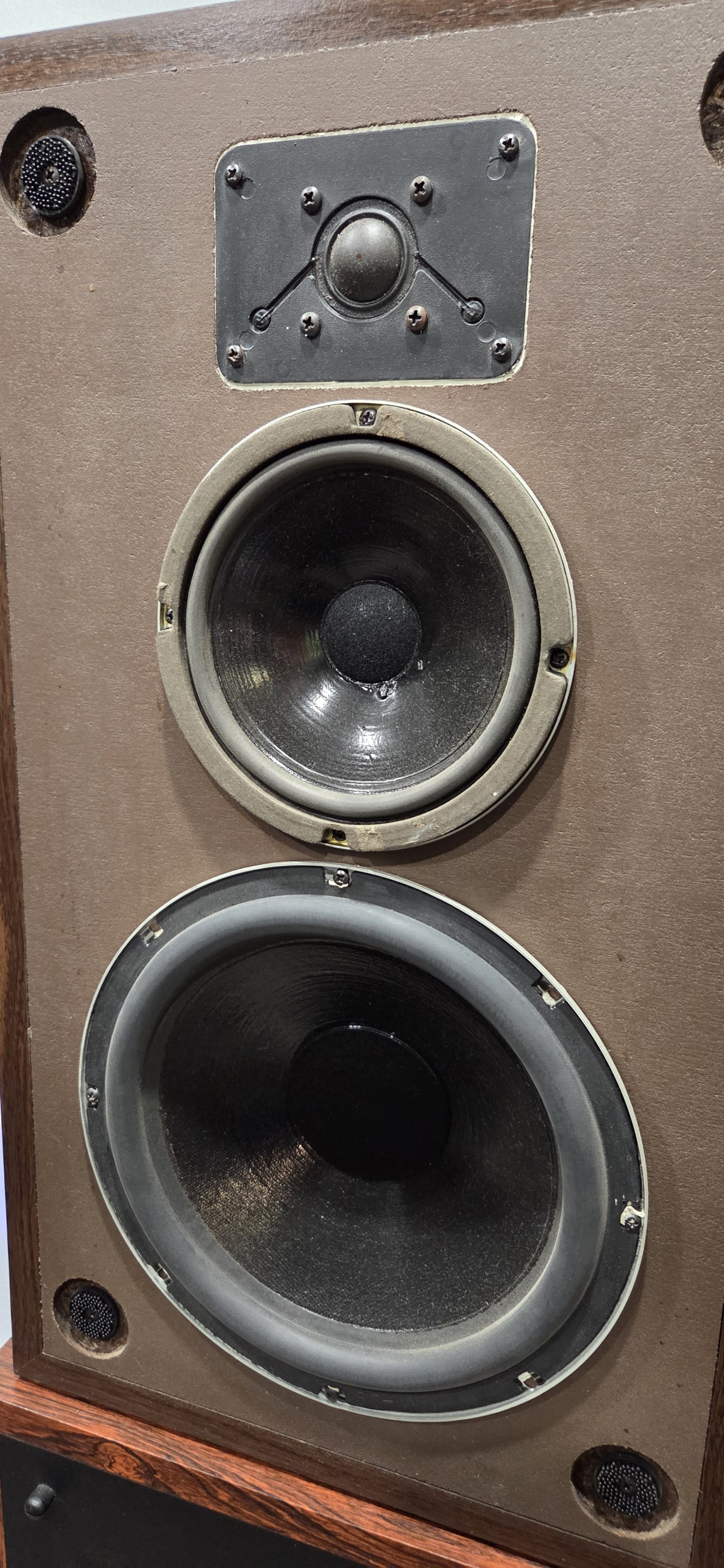

    Anyone else have any more info on crossover help for these vintage speakers? Both sets are in very nice shape, all original and actually sound really good. I can see where they created such a following but wondering how much better they can sound...thanks again and no worries either way, I always figure it out in the end... 012xt7b0lvho.jpg
  • Gardenstater
    Gardenstater Posts: 4,869
    Options
    Kinda vague. Whadya wanna know exactly? Many have rebuilt by following what is there and replacing components.
    George / NJ

    Polk 7B main speakers, std. mods+ (1979, orig owner)
    Martin Logan Dynamo sub w/6ft 14awg Power Cord
    Onkyo A-8017 integrated
    Logitech Squeezebox Touch Streamer w/EDO applet
    iFi nano iDSD DAC
    iPurifier3
    iDefender w/ iPower PS
    Custom Steve Wilson 1m UPOCC Interconnect
    iFi Mercury 0.5m OFHC continuous cast copper USB cable
    Custom Ribbon Speaker Cables, 5ft long, 4N Copper, 14awg, ultra low inductance
    Custom Vibration Isolation Speaker Stands and Sub Platform
  • bcwsrt
    bcwsrt Posts: 2,625
    Options
    Kinda vague. Whadya wanna know exactly …

    … that @VR3 could not answer?!

    Brian

  • VR3
    VR3 Posts: 29,672
    Options
    I spoke to TLOC. I showed him some of the options I have for the monitor series and he simply didn't see the value in my offerings, nothing personal for sure.

    I am sure there is someone who will be able to assist or he may decide to do DIY?

    All the best :)

    Thanks
    - Not Tom ::::::: Any system can play Diana Krall. Only the best can play Limp Bizkit.
  • SCompRacer
    SCompRacer Posts: 9,236
    edited August 2
    Options
    VR3 is the guru for xover rebuilds.

    Anyway, as Gardenstater said Many have rebuilt by following what is there and replacing components. Pop the xover out, note values of components needed. Sometimes you'll find a 34uf capacitor and can only get a 33uf. That is well within the tolerance range. It tweeter cap isn't marked, there are schematics here that can help. Extreme builds will replace inductors, wiring and binding posts. Dynamat driver and passive radiator baskets.

    You can spend a little or a lot on capacitor upgrades. It's worth it to improve quality over what you are removing. You use Bipolar (non-polarized) capacitors. There are plenty of threads here in the DIY section and capacitor comparisons done on web sites to help one choose. Mills or better 1% tolerance resistors are typically used to replace the old ones. When purchasing capacitors/resistors, spend the extra buck or two per pair for matching. That way the values used in each speaker are closely matched.

    Folks will typically remove the tweeter protection poly-switch and increase resistor value by .5 ohm to compensate for its removal. Tweeter upgrades are commonly done to replace SL2000 and other tweeters. Keep the Peerless tweeters. Some will remove fuses, just jumper with a soldered wire, or bypass them.

    If you DIY take pics before disassembling noting wire colors, polarity. For example, you find only black and white wires will be connected to both the tweeter and driver. Wrap a piece of tape around wires and note what it connects to. You can also figure it out by where wires attach to xover/capacitor value. Drivers will typically have a color dot on basket for positive. You'll want to connect all wires properly upon reassembly.
    Post edited by SCompRacer on
    Salk SoundScape 8's * Audio Research Reference 3 * Bottlehead Eros Phono * Park's Audio Budgie SUT * Krell KSA-250 * Harmonic Technology Pro 9+ * Signature Series Sonore Music Server w/Deux PS * Roon * Gustard R26 DAC / Singxer SU-6 DDC * Heavy Plinth Lenco L75 Idler Drive * AA MG-1 Linear Air Bearing Arm * AT33PTG/II & Denon 103R * Richard Gray 600S * NHT B-12d subs * GIK Acoustic Treatments * Sennheiser HD650 *
  • Striker2237
    Striker2237 Posts: 126
    Options
    I and my friend have stuff from VR3 and it's fantastic, I also had a diy style sonic/mills rebuilt pair of speakers and there is a noticeable gap between that and the VR3 stuff.

    Anything is a huge improvement over stock components though as these speakers are all so old they aren't operating within even base factory specs anymore
