I bought a yaqin mc10l today

polkfarmboy
polkfarmboy Posts: 5,703
edited September 2010 in Electronics
Silly question but what do you have to do a setup a tube amp?

I have heard the bias word but dont have a clue what it means

Will I have to buy some kinda volt meter for this bias?
Post edited by polkfarmboy on
«13

Comments

  • michaeljhsda2
    michaeljhsda2 Posts: 2,200
    edited September 2010
    Yes, you will need a voltmeter.
    Did you buy the latest version where the bias adjustments are on the outside?
    SDA SRS 2.3TL's
    Silk Audio MS-90-BT integrated tube amp
    Yaqin MS-20L integrated tube amp
    SDA 2B TL's
  • heiney9
    heiney9 Posts: 25,429
    edited September 2010
    Also if it's new do NOT trust that it came from the factory biased properly. If you bought it used I wouldn't believe the previous owner either unless you get the sense in corresponding with him that he does know what he's doing and set it properly.

    I listened to the previous owner of one of my tube amps when he said the bias didn't need to be adjusted and I ended up burning out a tube up. The tube was not a cheap Chinese tube either, but a fairly expensive 50's RCA 6V6 blackplate that was part of a matched quad of power tubes.

    Also never power up a tube amp without a load hooked up, meaning speakers. You can damage the transformers if you run a tube amp with out speakers hooked up or if you're familiar with electronics you can configure a "dummy" load in place of the speakers. Sometimes this is easier when you want to bias a tube amp. In your case if you bought the newer version it won;t be necessary to make a dummy load because accessing the bias points are easy.

    One of my tube amps needs to biased from the bottom with the bottom plate removed. Meaning I have to turn it upside down and rest it on the tube cage to make bias measurements and adjustments. I'd say when it's new check the bias initially maybe once a week for a month and after that perhaps every 6 months depending on use. Always check the bias when rolling tubes and adjust accordingly.

    H9
    "Appreciation of audio is a completely subjective human experience. Measurements can provide a measure of insight, but are no substitute for human judgment. Why are we looking to reduce a subjective experience to objective criteria anyway? The subtleties of music and audio reproduction are for those who appreciate it. Differentiation by numbers is for those who do not".--Nelson Pass Pass Labs XA25 | EE Avant Pre | EE Mini Max Supreme DAC | MIT Shotgun S1 | Puritan Audio PSM136 Pwr Condtioner & Classic PC's | Legend L600 | Roon Nucleus 1 w/LPS - Tubes add soul!
  • heiney9
    heiney9 Posts: 25,429
    edited September 2010
    One of the nice things about a manual bias amp is it's not necessary to buy power tubes that are closely matched because you can set the bias for each individual tube. A fixed bias amp needs to use closely matched tubes for best performance because there is no way to compensate for tubes that aren't matched.

    In the end this can mean buying tubes to roll is cheaper since a closely matched quad or pair usually is more expensive. Of course it doesn't hurt to get them all matched if you're not paying a premium to do so.

    H9
    "Appreciation of audio is a completely subjective human experience. Measurements can provide a measure of insight, but are no substitute for human judgment. Why are we looking to reduce a subjective experience to objective criteria anyway? The subtleties of music and audio reproduction are for those who appreciate it. Differentiation by numbers is for those who do not".--Nelson Pass Pass Labs XA25 | EE Avant Pre | EE Mini Max Supreme DAC | MIT Shotgun S1 | Puritan Audio PSM136 Pwr Condtioner & Classic PC's | Legend L600 | Roon Nucleus 1 w/LPS - Tubes add soul!
  • polkfarmboy
    polkfarmboy Posts: 5,703
    edited September 2010
    my tube amps being deliverd today and my wife doesnt know it!!!! lol
  • zingo
    zingo Posts: 11,258
    edited September 2010
    Your amp should come with biasing instructions and how-to, and posting pictures can let us help you out better. It's a pretty easy process, and it makes amps more fun and interactive for me. Good luck!
  • polkfarmboy
    polkfarmboy Posts: 5,703
    edited September 2010
    tnx Z

    I will post pics as soon as the ups guy drops it off and have you guys to help me through it

    Even though its not a million dollar amp I'm still very excited to have a listen .Tube amps are sexy looking so its gona be awesome to have it sitting out on my rack
  • steveinaz
    steveinaz Posts: 19,545
    edited September 2010
    You can't post pics cause the wife don't know yet, huh?...LOL Kidding man, I kid because I care.
    Source: Bluesound Node 2i - Preamp/DAC: Benchmark DAC2 DX - Amp: Parasound Halo A21 - Speakers: MartinLogan Motion 60XTi - Shop Rig: Yamaha A-S501 Integrated - Source: Rotel CD14MkII CD Player - Speakers: Elac Debut 2.0 B5.2
  • michaeljhsda2
    michaeljhsda2 Posts: 2,200
    edited September 2010
    The instructions that came with my MC-10L are very brief, however, biasing the amp is very simple. Attach speakers to the amp and power the amp on. After a few minutes check V1 first. The reading should be between 350 to 400 millivolts. Then check V2, V3 and V4. Use the supplied allen wrench to make adjustments. Turning the allen wrench clockwise increases the voltage. It doesn't take much of a turn, perhaps an 1/8 of a turn, to get a change in voltage. The front 4 tubes do not get biased.
    SDA SRS 2.3TL's
    Silk Audio MS-90-BT integrated tube amp
    Yaqin MS-20L integrated tube amp
    SDA 2B TL's
  • polkfarmboy
    polkfarmboy Posts: 5,703
    edited September 2010
    steveinaz wrote: »
    You can't post pics cause the wife don't know yet, huh?...LOL Kidding man, I kid because I care.

    I took a holiday today and the wifes on her lunch break right now so I'm frieking out incase the door goes get a loud knock from the ups guy holding a package lol

    She'l be gone in 25 minutes and it seems like hours .I'm sweating like a ****
  • steveinaz
    steveinaz Posts: 19,545
    edited September 2010
    Married men all over this great country know your pain, and sympathize. Might I suggest reminding her how much you love her?
    Source: Bluesound Node 2i - Preamp/DAC: Benchmark DAC2 DX - Amp: Parasound Halo A21 - Speakers: MartinLogan Motion 60XTi - Shop Rig: Yamaha A-S501 Integrated - Source: Rotel CD14MkII CD Player - Speakers: Elac Debut 2.0 B5.2
  • zingo
    zingo Posts: 11,258
    edited September 2010
    Send it to your work; Problem solved. :D
  • polkfarmboy
    polkfarmboy Posts: 5,703
    edited September 2010
    All clear !! The enemy has left the target zone
  • polkfarmboy
    polkfarmboy Posts: 5,703
    edited September 2010
    The slinky fox is in the hole lol

    Nice sturdy packaging foam with treasure inside
  • zingo
    zingo Posts: 11,258
    edited September 2010
    Looks good! What will you be powering with it? Does it come with a remote?
  • polkfarmboy
    polkfarmboy Posts: 5,703
    edited September 2010
  • zingo
    zingo Posts: 11,258
    edited September 2010

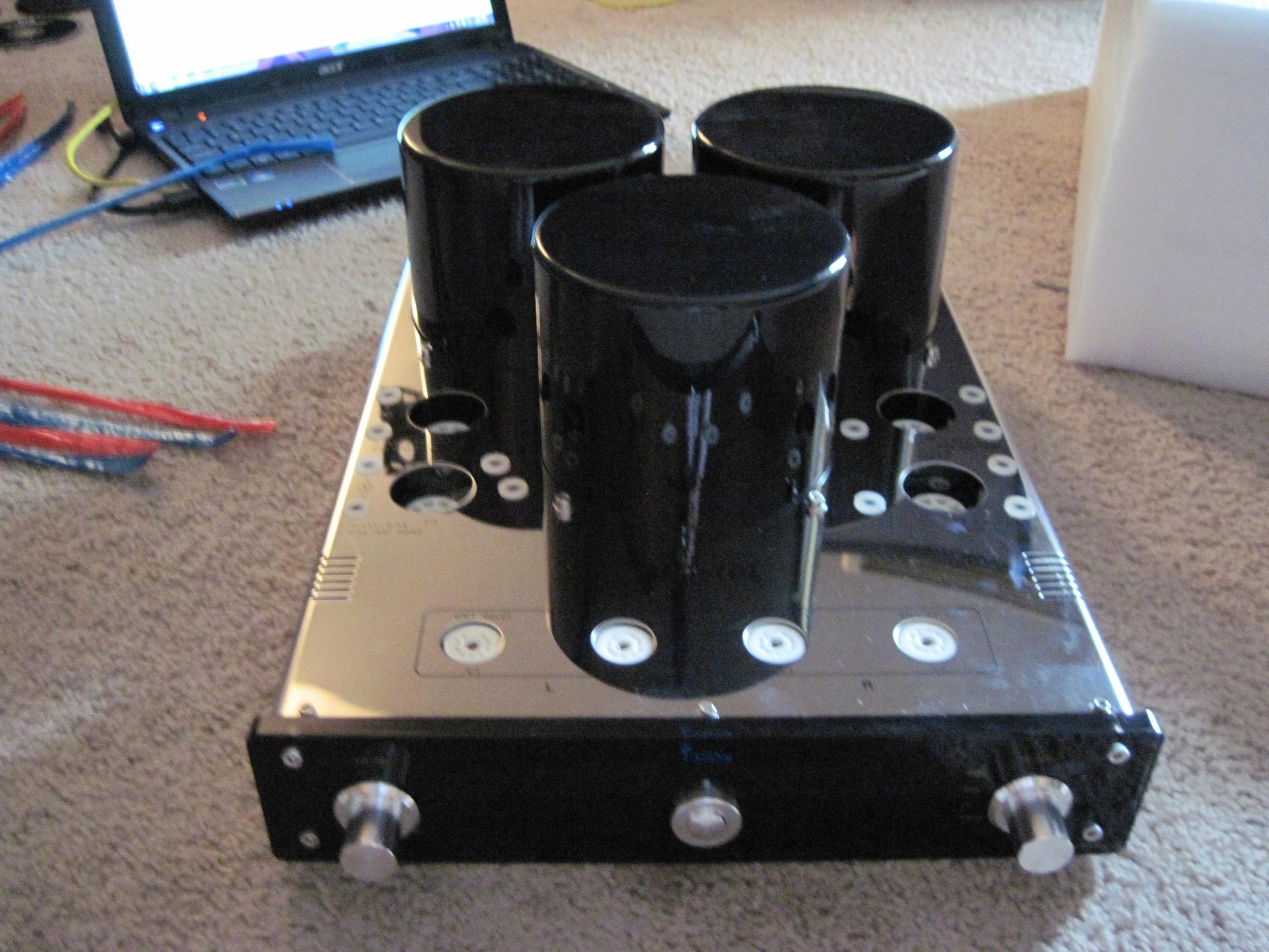

    Yaqin makes good looking products.
  • polkfarmboy
    polkfarmboy Posts: 5,703
    edited September 2010

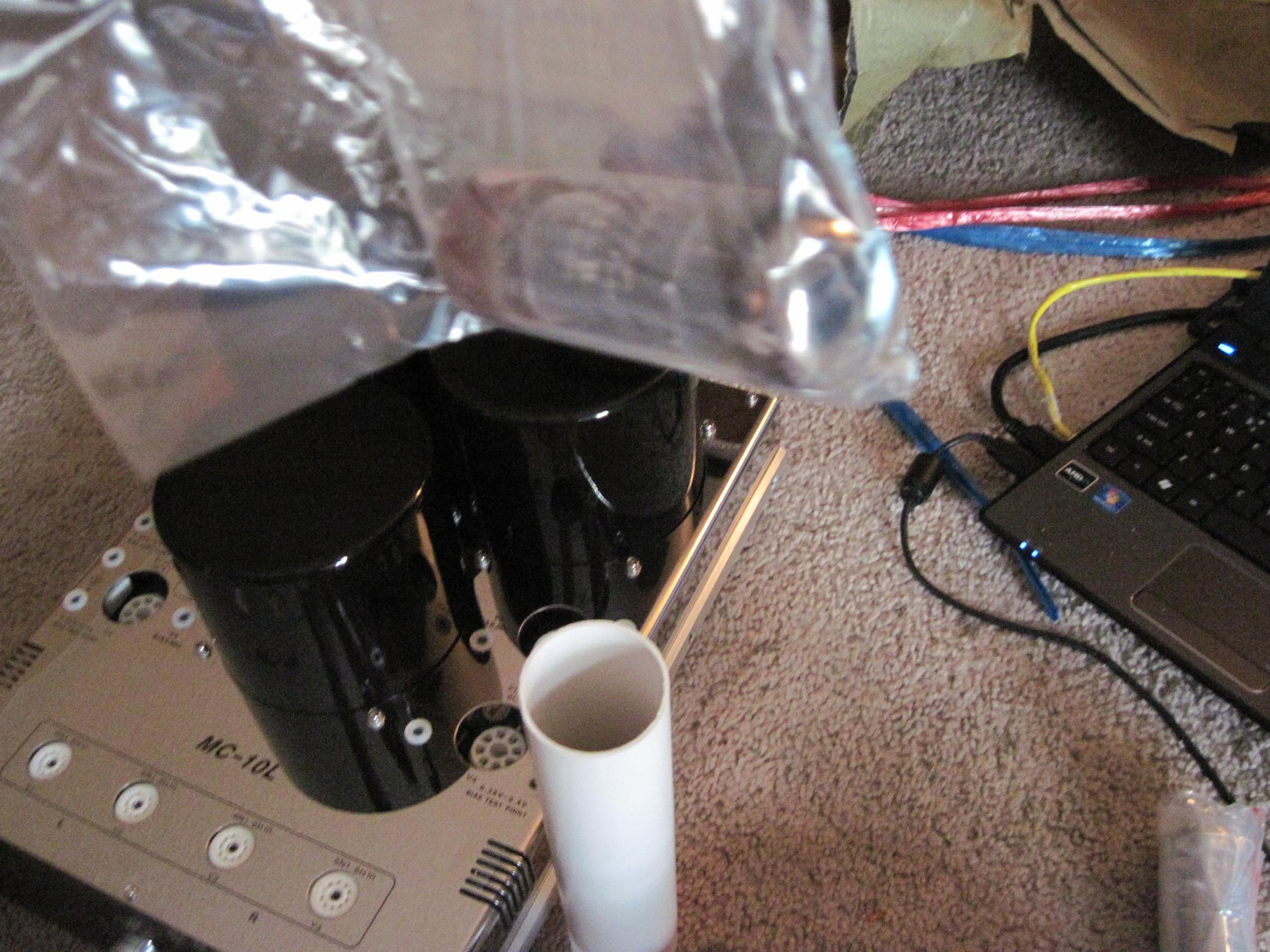

    Tubes came nice and secure inside plastic pvc pipe...I remember being told no touching the tubes with bare fingers......am all excited here guys:)
  • polkfarmboy
    polkfarmboy Posts: 5,703
    edited September 2010

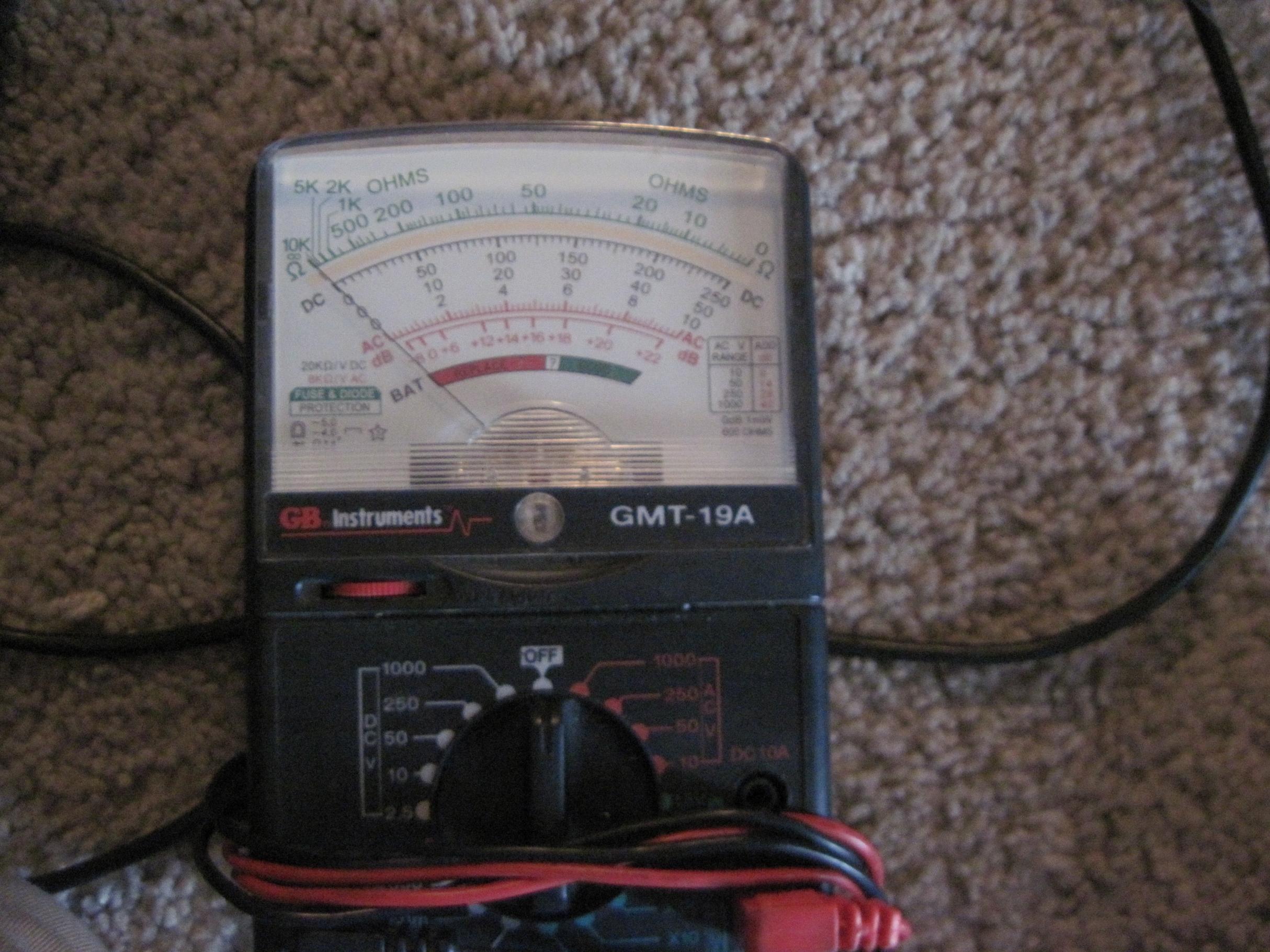

    :eek: The yaqin doesnt have an instuction manual and all I have is this sh*ty volt meter
  • michaeljhsda2
    michaeljhsda2 Posts: 2,200
    edited September 2010
    What's the ohm rating on your speakers?
    SDA SRS 2.3TL's
    Silk Audio MS-90-BT integrated tube amp
    Yaqin MS-20L integrated tube amp
    SDA 2B TL's
  • polkfarmboy
    polkfarmboy Posts: 5,703
    edited September 2010
    To test it I will be using 8ohm polks rti8 for starters then when I'm confident with it being setup I will be using my 6 ohm martin logan source
  • michaeljhsda2
    michaeljhsda2 Posts: 2,200
    edited September 2010
    For the ML's the 4 ohm taps might sound better but try it on the 4 and the 8 ohm and see if you can tell any diff. I use the 4 ohm taps on the SDA 1C's and the 8 ohm taps for the 1.2TL's.
    SDA SRS 2.3TL's
    Silk Audio MS-90-BT integrated tube amp
    Yaqin MS-20L integrated tube amp
    SDA 2B TL's
  • polkfarmboy
    polkfarmboy Posts: 5,703
    edited September 2010
    I'm scared that I might bust the connectors for the tubes .....do you have to realy force them down?
  • nikolas812
    nikolas812 Posts: 2,915
    edited September 2010
    Yeah. A little. There virgins at this point. They'll loosen up over time.;)



    Nik
  • polkfarmboy
    polkfarmboy Posts: 5,703
    edited September 2010
    Well everythings hooked up ....should I power it up or do I have to check stuff with the volt meter?
  • polkfarmboy
    polkfarmboy Posts: 5,703
    edited September 2010

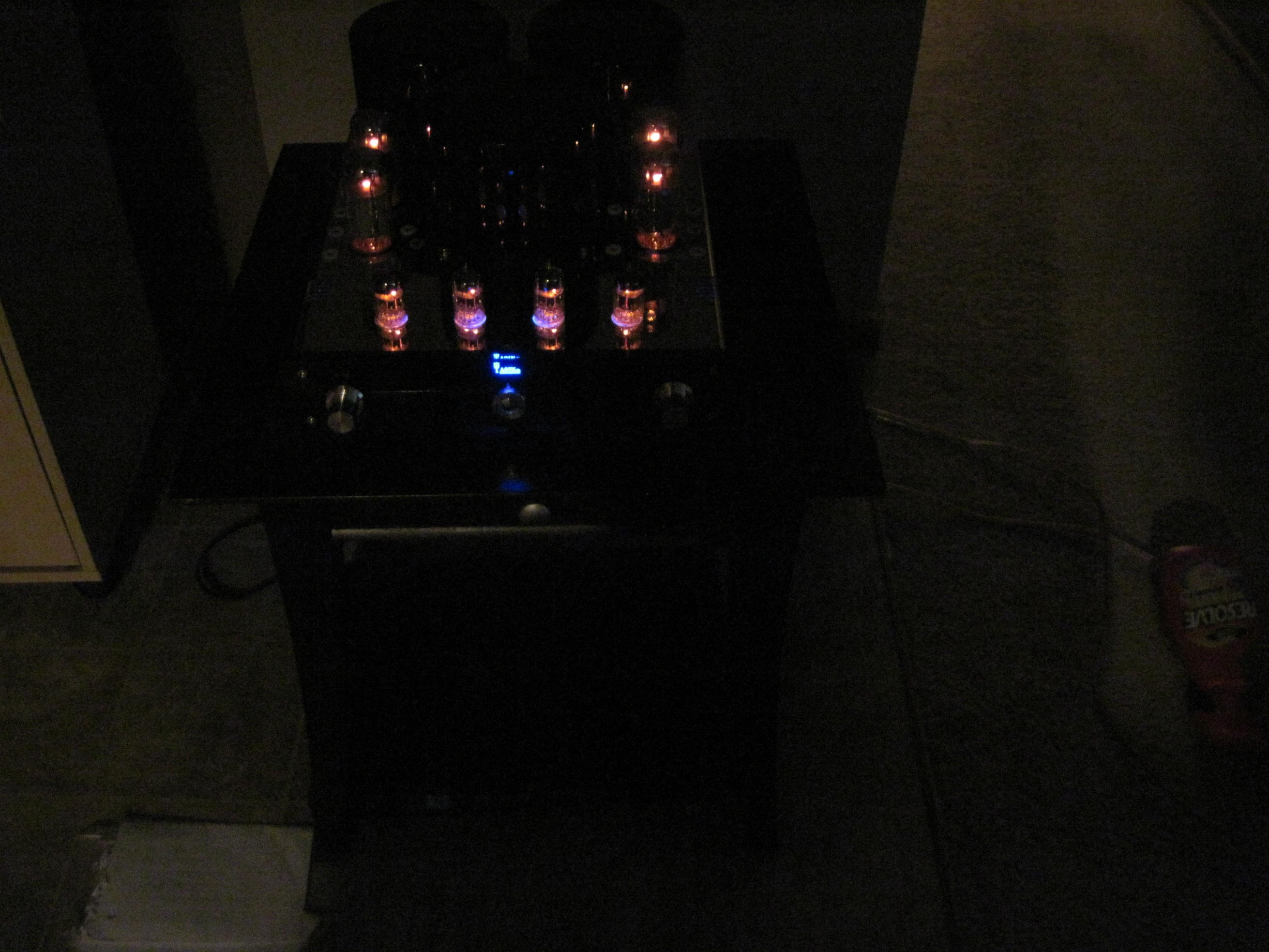

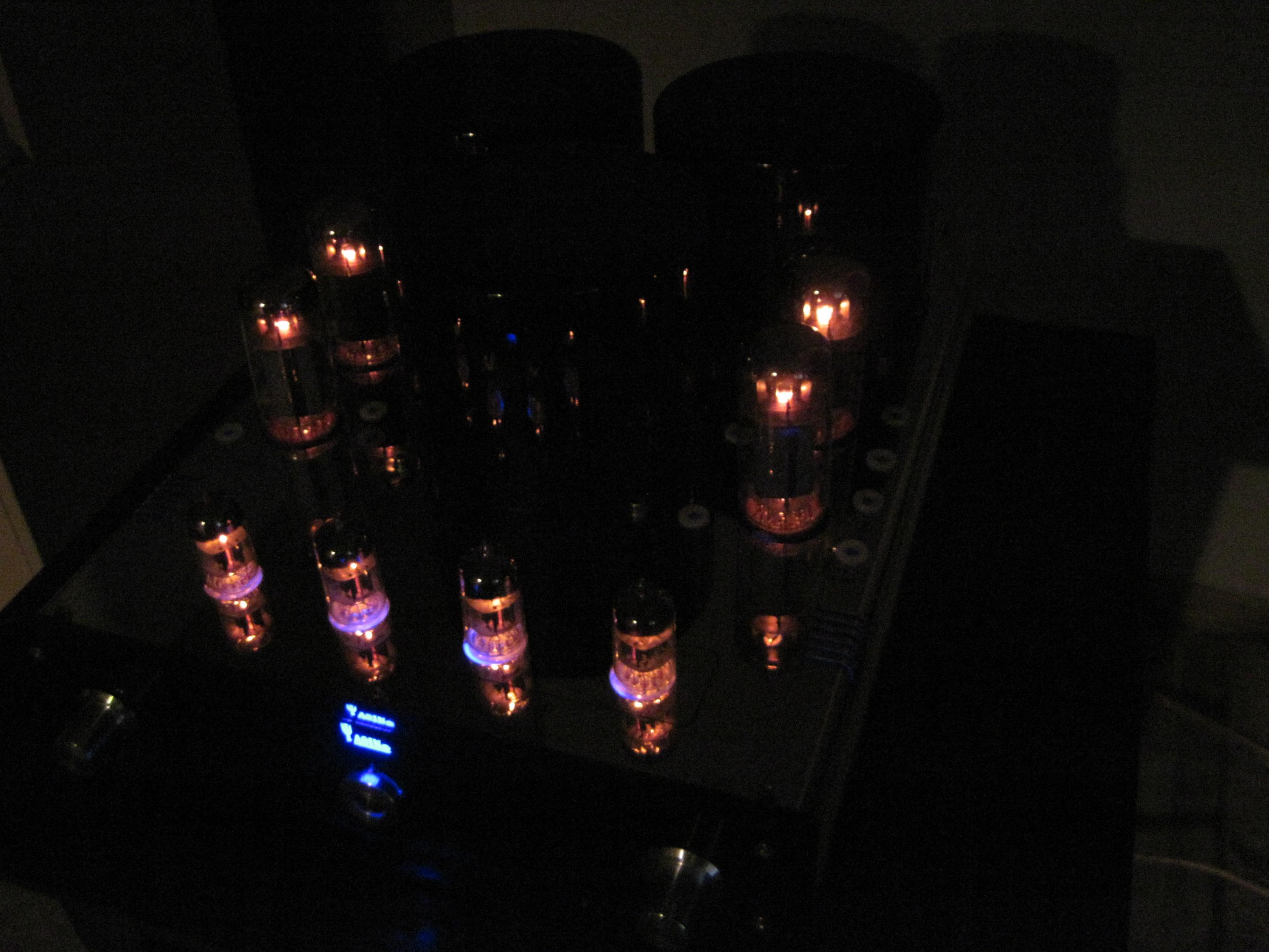

    :D Wow !!!!!!!!!!!!!!! This aint even broken in yet and I can just tell its got way more authority than the onkyo 607 lol(obviously) . I feel that my reciever has robbed me of my audio childhood

    The yaqin started up wierd ....Just clicked into my head that the tubes warm up:):D:D:D:D:D:D:D:D

    Holy **** .....Theres so much slam as Ive gone through some tecno music
  • michaeljhsda2
    michaeljhsda2 Posts: 2,200
    edited September 2010
    :D Wow !!!!!!!!!!!!!!! This aint even broken in yet and I can just tell its got way more authority than the onkyo 607 lol(obviously) . I feel that my reciever has robbed me of my audio childhood

    The yaqin started up wierd ....Just clicked into my head that the tubes warm up:):D:D:D:D:D:D:D:D

    Holy **** .....Theres so much slam as Ive gone through some tecno music

    That was my reaction when I had it running the 1.2TL's. :) I'm really impressed with these amps.
    SDA SRS 2.3TL's
    Silk Audio MS-90-BT integrated tube amp
    Yaqin MS-20L integrated tube amp
    SDA 2B TL's
  • michaeljhsda2
    michaeljhsda2 Posts: 2,200
    edited September 2010
    Shuguang EL34's come with the newest version of the Yaqin MC-10L...not a bad tube at all IMO. One day I might replace them with the Shuguang Treasure series. I did replace the 6N1's with NOS Russian military 6N1P's but I haven't noticed any improvement or degradation in sound quality.
    SDA SRS 2.3TL's
    Silk Audio MS-90-BT integrated tube amp
    Yaqin MS-20L integrated tube amp
    SDA 2B TL's
  • zingo
    zingo Posts: 11,258
    edited September 2010
    Looks like we have another believer, and I may have to consider buying the 300B Yaqin amp... I've only heard good things about their line-up so far.

    Congrats on the great amp! How's the biasing coming?
  • zingo
    zingo Posts: 11,258
    edited September 2010
    Shuguang tubes are pretty decent tubes, and the best of the Chinese stock tubes that I've found. I was real happy with my old EL34 amp leaving the Shuguang output EL34 and swapping out the signal tubes.
    Shuguang EL34's come with the newest version of the Yaqin MC-10L...not a bad tube at all IMO. One day I might replace them with the Shuguang Treasure series.

    The Shuguang Treasure 6CA7-Z tube is a great performer and that whole line of tubes makes me second guess buying popular NOS tubes.
  • michaeljhsda2
    michaeljhsda2 Posts: 2,200
    edited September 2010
    Congrats on the new amp. Glad to hear you're happy with it. Just make sure you are playing her type of music when she walks through the door.
    SDA SRS 2.3TL's
    Silk Audio MS-90-BT integrated tube amp
    Yaqin MS-20L integrated tube amp
    SDA 2B TL's
