Tandberg TL 5010 Speakers

Got a pair of these local and really dig the cabinet and design. Crossover PCB is superb for the year these were manufactured (around 1971 - 1974). This is going to be a winter project with new capacitors, new seals for the drivers, new mounting hardware, possibly new binding posts and a lite sand and shine for the cabinets.

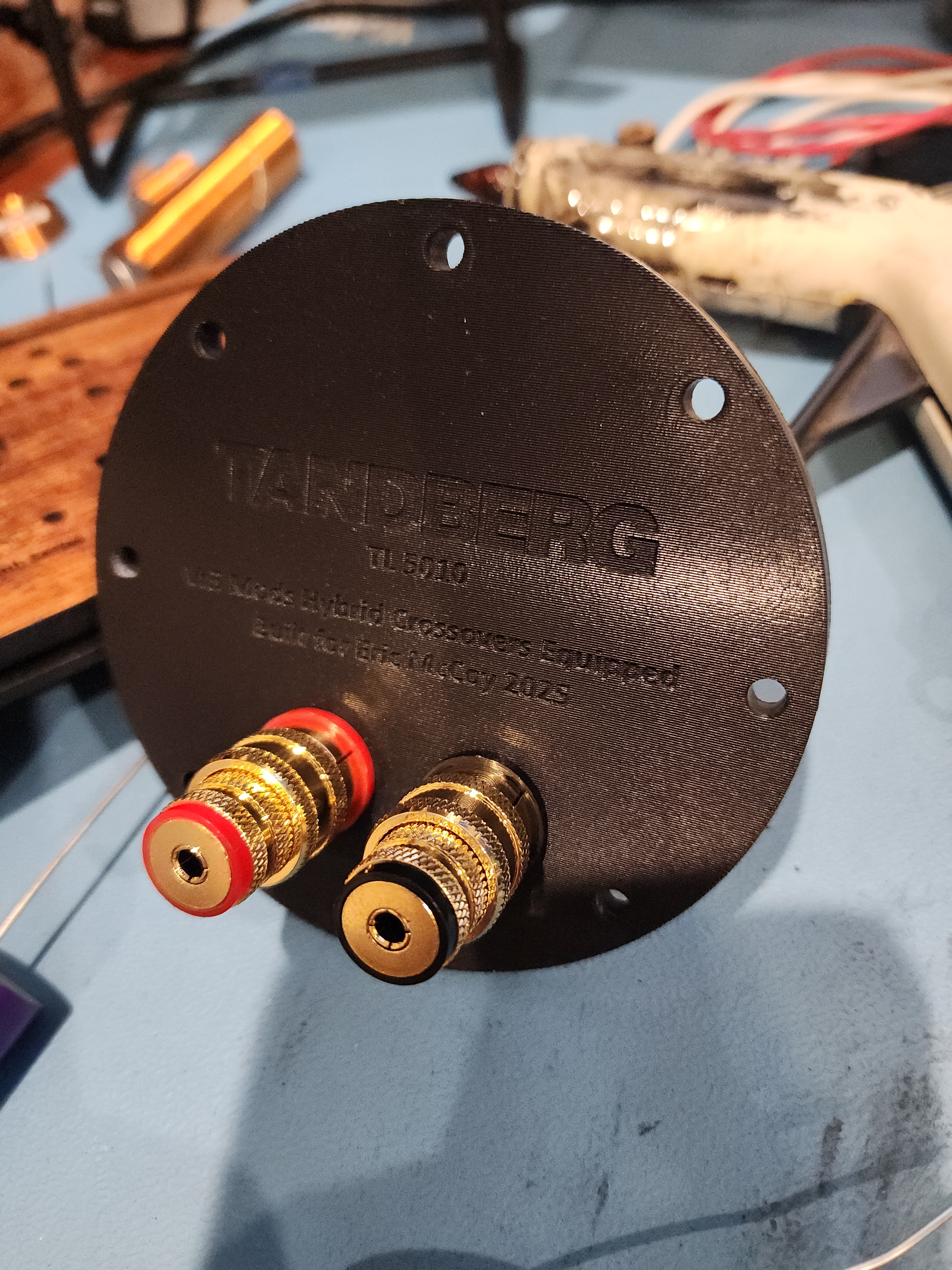

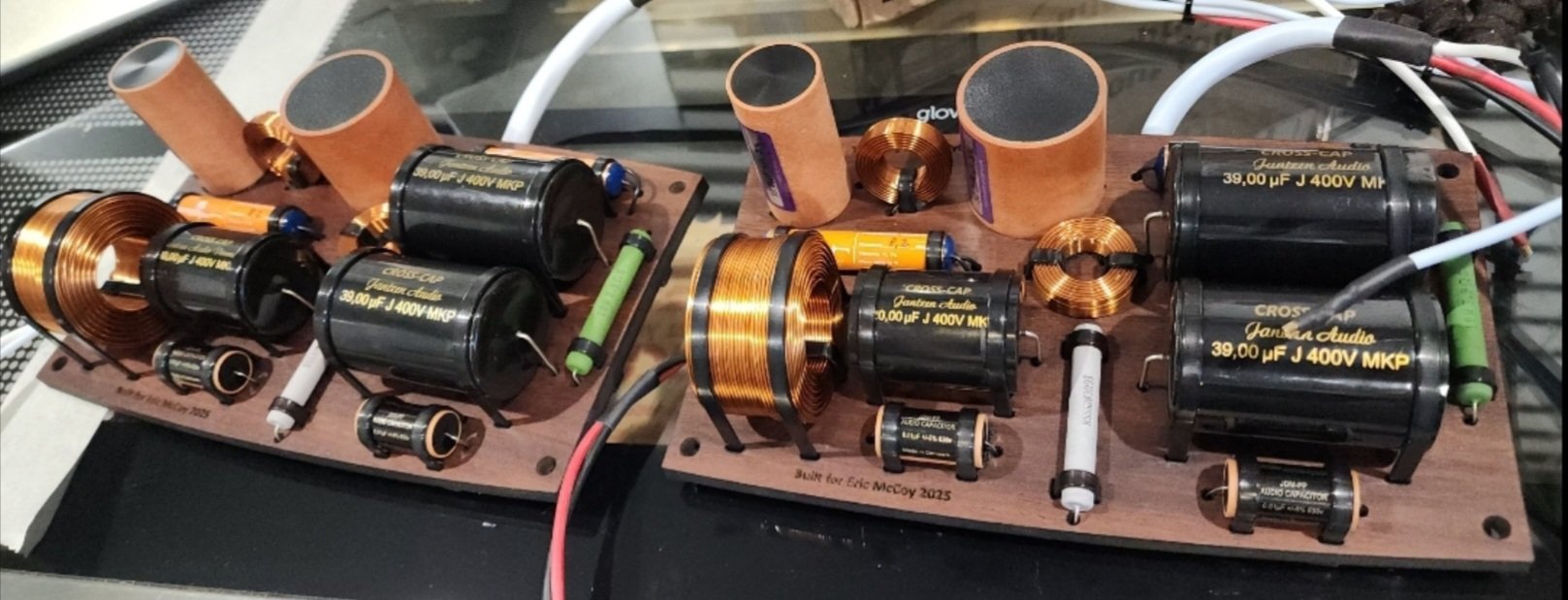

Ongoing thread, and here are a few pictures:







«1

Comments

  • ConradiclesConradicles Posts: 5,437

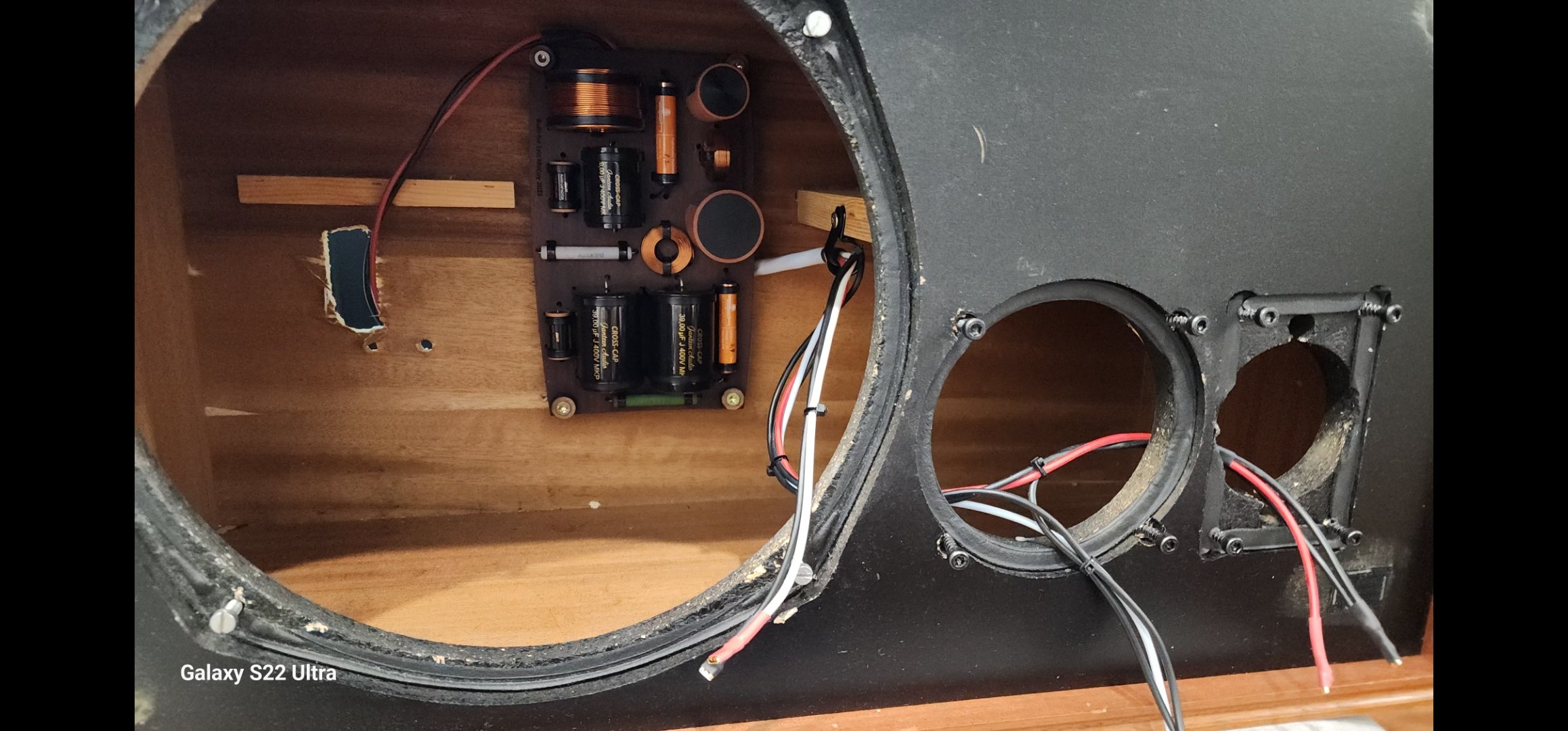

    Not mine, but here is a pic of the speakers with grill removed:




  • westmassguywestmassguy Posts: 5,768
    Nice. Looks like a fun project
    Home Theater/2 Channel:
    Front: SDA-2ATL forum.polkaudio.com/discussion/143984/my-2as-finally-finished-almost/p1
    Center: Custom Built forum.polkaudio.com/discussion/150760/my-center-channel-project/p1
    Surrounds & Rears: Custom Built forum.polkaudio.com/discussion/151647/my-surround-project/p1
    Sonicaps, Mills, RDO-194s-198s, Dynamat, Hurricane Nuts, Blackhole5
    Pioneer Elite VSX-72TXV, Carver PM-350, SVS PB2-Plus Subwoofer
    Cables: Speaker: Furez 10/2 with GLS Locking Banana Plugs
    Interconnect: Furez 10/2 with SpeakONs
    ICs: Custom Furez by Douglas Connections
    Den:
    Bose 901 Series II Continentals Restored, Re-Built Equalizer with Elna Silmic IIs, Sonicaps, and Silver Mica Caps
    Carver CT-3 Pre, Carver PM-600

    dhsspeakerservice.com/
    Now Carrying Gimpod's Custom SDA Circuit Boards

    "And keep her under 70, would you, huh? Betty likes a slow ride"
  • mhardy6647mhardy6647 Posts: 15,060
    Not something one sees every day -- probably not even in Norway at this late date ;)

    In case the OP's not aware of it, there is a website with a smattering of Tandberg literature & catalogs (not all in English, not surprisingly).

    http://www.kallhovde.com/Njord Noatun's Vintage Audio Resources.html
    the specific link for Tandberg stuff is:
    http://sportsbil.com/tandberg/

    "Some amps run on self bias, some amps run on fixed bias. But his amps run on confirmation bias." -- seen on audioasylum

  • mhardy6647mhardy6647 Posts: 15,060


    found 'em in 71-72 (Norwegian) catalog:
    http://sportsbil.com/tandberg/1971-72-cat.pdf
    "Some amps run on self bias, some amps run on fixed bias. But his amps run on confirmation bias." -- seen on audioasylum

  • Dang. Stuff like that is not available around here.
    How do they sound now? Really nice pickup!
    Studio 2 equipment;
    Yamaha a-s2100 Amp, CD-2100 CD player, T-S500 tuner
    Loudspeakers: Harbeth p3esr, Polk RT7
    Cables: Aural Harmony Sonnet Interconnect II, WireWorld Equinox 7 speaker,
    Black Cat silverstar 75 ohm digital, Signal Digital Power Cord, PS Audio Perfect Wave AC-3,
    Pangea SE14, Voltz supplied interconnects
    Optional: Arcam DV88 DVD/CD (HDCD) player, Polk SDS-400 speakers
  • DaveHoDaveHo Posts: 1,531
    mhardy6647 wrote: »
    Not something one sees every day -- probably not even in Norway at this late date ;)

    In case the OP's not aware of it, there is a website with a smattering of Tandberg literature & catalogs (not all in English, not surprisingly).

    http://www.kallhovde.com/Njord Noatun's Vintage Audio Resources.html
    the specific link for Tandberg stuff is:
    http://sportsbil.com/tandberg/

    You are a walking encyclopedia of all things audio. We are all better for it. Thanks!
  • mhardy6647mhardy6647 Posts: 15,060
    edited September 12
    I have no life ;)

    De nada.
    "Some amps run on self bias, some amps run on fixed bias. But his amps run on confirmation bias." -- seen on audioasylum

  • soundfreak1soundfreak1 Posts: 2,705
    The tanbergs I've seen are TEAK cabs, beautiful wood. Never had my ears on them but would like too. Nice find!
    Main Rig:
    Krell KAV 250a biamped to mid/highs
    Parasound HCA1500A biamped to lows
    Nakamichi EC100 Active xover
    MIT exp 1 ic's
    Perreaux SA33 class A preamp
    AQ kingcobra ic's
    YAMMY cdp
    Lehmann audio black cube SE phono pre, Audioquest phono wire (ITA1/1)
    Denon DP-1200 TT. AToc9ML MC cart.
    Monster HTS 3600 power conditioner
    ADS L1590/2 Biamped
    MIT exps2 speaker cable
  • mhardy6647mhardy6647 Posts: 15,060
    Scandinavian loudspeakers, by and large, very niceto listen to, IME/IMO.

    -- am I stereotyping? :blush:
    "Some amps run on self bias, some amps run on fixed bias. But his amps run on confirmation bias." -- seen on audioasylum

  • ConradiclesConradicles Posts: 5,437
    The tanbergs I've seen are TEAK cabs, beautiful wood. Never had my ears on them but would like too. Nice find!

    They are beautiful cabinets.
  • ConradiclesConradicles Posts: 5,437
    Thanks for the information mhardy!
  • Viking64Viking64 Posts: 477
    mhardy6647 wrote: »
    Scandinavian loudspeakers, by and large, very niceto listen to, IME/IMO.

    -- am I stereotyping? :blush:


    A friend of mine bought some Jamo speakers back in 1984. They sounded good, but my baseline at the time was, shall we say, "relatively low". :p They were the type that had what looked like louvers over the tweeter.
    Polk SDA SRS 2.3TL
    Silk Audio MS38SE Tube Amp
    Yamaha DSP A-1 AV Amp
    Panasonic TC-P65S2 Plasma TV
  • soundfreak1soundfreak1 Posts: 2,705
    Word to the wise! If doing any sanding on teak wood wear a filter mask as teak dust can make you very sick. Learned this in the boat building busines as a young teen building yachts. There is an OIL in them that is somewhat poisonous.
    Main Rig:
    Krell KAV 250a biamped to mid/highs
    Parasound HCA1500A biamped to lows
    Nakamichi EC100 Active xover
    MIT exp 1 ic's
    Perreaux SA33 class A preamp
    AQ kingcobra ic's
    YAMMY cdp
    Lehmann audio black cube SE phono pre, Audioquest phono wire (ITA1/1)
    Denon DP-1200 TT. AToc9ML MC cart.
    Monster HTS 3600 power conditioner
    ADS L1590/2 Biamped
    MIT exps2 speaker cable
  • ConradiclesConradicles Posts: 5,437
    Word to the wise! If doing any sanding on teak wood wear a filter mask as teak dust can make you very sick. Learned this in the boat building busines as a young teen building yachts. There is an OIL in them that is somewhat poisonous.

    Great information! Thanks!
  • corticocortico Posts: 316
    edited September 12
    Got a pair of these local and really dig the cabinet and design. Crossover PCB is superb for the year these were manufactured (around 1971 - 1974). This is going to be a winter project with new capacitors, new seals for the drivers, new mounting hardware, possibly new binding posts and a lite sand and shine for the cabinets.

    Ongoing thread, and here are a few pictures:







    Tandberg made excellent receivers as well. The drivers on this speakers look phenomenal, the crossovers look really clean too. I would test the components before replacing anything... you may find that their still under spec.
  • Hmmm,

    Frequency Response: 35Hz to 22kHz
    Power Handling: 45W (max continuous)
    Crossover Frequency: 700, 2000Hz
    Impedance: 4Ω-8Ω
    Xover 700hz,2000hz

    I'd replace the resistors at least with some Mills...
    Better inductors too if the old are not hand wound...

    The Xover diagram is at hifiengine.

    Studio 2 equipment;
    Yamaha a-s2100 Amp, CD-2100 CD player, T-S500 tuner
    Loudspeakers: Harbeth p3esr, Polk RT7
    Cables: Aural Harmony Sonnet Interconnect II, WireWorld Equinox 7 speaker,
    Black Cat silverstar 75 ohm digital, Signal Digital Power Cord, PS Audio Perfect Wave AC-3,
    Pangea SE14, Voltz supplied interconnects
    Optional: Arcam DV88 DVD/CD (HDCD) player, Polk SDS-400 speakers
  • mhardy6647mhardy6647 Posts: 15,060
    edited September 13
    FWIW the only thing I'd be looking (hard) at are those capacitors. I cannot tell what they are based on the photo. If (????) they're NP electrolytics, that's what I'd change.

    They may well not be -- but I ain't sure.

    PS are all y'all cool with the protective used of the light bulb? ;)
    I mean, it's a valid thing that's been done in many loudspeaker designs -- but it seems a little... inelegant, doesn't it?
    "Some amps run on self bias, some amps run on fixed bias. But his amps run on confirmation bias." -- seen on audioasylum

  • westmassguywestmassguy Posts: 5,768
    mhardy6647 wrote: »
    FWIW the only thing I'd be looking (hard) at are those capacitors. I cannot tell what they are based on the photo. If (????) they're NP electrolytics, that's what I'd change.

    They may well not be -- but I ain't sure.

    PS are all y'all cool with the protective used of the light bulb? ;)
    I mean, it's a valid thing that's been done in many loudspeaker designs -- but it seems a little... inelegant, doesn't it?

    Those tin cans should all be checked. The lamps were used quite often by many manufacturers. They do exactly what they're supposed to. If you have a ported system, being driven hard, you will frequently see them glow.
    Not sure how they affect the audio signal. They could be replaced with a resistor, but you give up protection. In my opinion, much less intrusive than Polyswitches. I usually replace them with new, equivalent "Festoon" lamps.
    Home Theater/2 Channel:
    Front: SDA-2ATL forum.polkaudio.com/discussion/143984/my-2as-finally-finished-almost/p1
    Center: Custom Built forum.polkaudio.com/discussion/150760/my-center-channel-project/p1
    Surrounds & Rears: Custom Built forum.polkaudio.com/discussion/151647/my-surround-project/p1
    Sonicaps, Mills, RDO-194s-198s, Dynamat, Hurricane Nuts, Blackhole5
    Pioneer Elite VSX-72TXV, Carver PM-350, SVS PB2-Plus Subwoofer
    Cables: Speaker: Furez 10/2 with GLS Locking Banana Plugs
    Interconnect: Furez 10/2 with SpeakONs
    ICs: Custom Furez by Douglas Connections
    Den:
    Bose 901 Series II Continentals Restored, Re-Built Equalizer with Elna Silmic IIs, Sonicaps, and Silver Mica Caps
    Carver CT-3 Pre, Carver PM-600

    dhsspeakerservice.com/
    Now Carrying Gimpod's Custom SDA Circuit Boards

    "And keep her under 70, would you, huh? Betty likes a slow ride"
  • mhardy6647mhardy6647 Posts: 15,060
    Oh, there's no doubt that using a light bulb in series (like the so-called "dim bulb tester") does what it's supposed to do. I'm just not sure how audibly unobtrusively it does it.
    "Some amps run on self bias, some amps run on fixed bias. But his amps run on confirmation bias." -- seen on audioasylum

  • pitdogg2pitdogg2 Posts: 7,806
    It could add a certain "brightness" to the treble?

    hahaahahaah

  • Viking64Viking64 Posts: 477
    It could add a certain "brightness" to the treble?

    I know WATT you mean. Or were you just trying to make LIGHT of the situation? EDISON the phone. I'll ask his opinion. Although maybe he will just LAMPoon it as you did. SOCKET to me, Ed.
    Polk SDA SRS 2.3TL
    Silk Audio MS38SE Tube Amp
    Yamaha DSP A-1 AV Amp
    Panasonic TC-P65S2 Plasma TV
  • mhardy6647mhardy6647 Posts: 15,060
    And we get all this banter for free!
    Lordy, I love this place!

    ;)

    "Some amps run on self bias, some amps run on fixed bias. But his amps run on confirmation bias." -- seen on audioasylum

  • la2vegasla2vegas Posts: 2,015
    mhardy6647 wrote: »
    And we get all this banter for free!
    Lordy, I love this place!

    ;)

    It's free for now. It might be $400 a year in the not too distant future.
    2.3TL, 3.1TL, SDA II, 7B, 7C, 7 series 2, 10B, 5JR+, 5JR, 5A, 4.5, RTA 11T X2, RTA 8T, LSI9, LSI7, RTI A7, RTI A3, CSI A4, CSI A6, F/XI A4, RTI4. That's all for now.
  • Yep2Yep2 Posts: 778
    mhardy6647 wrote: »
    And we get all this banter for free!
    Lordy, I love this place!

    ;)

    Oh yeah, its all fun & games till we get the "Light Bill" in the mail. ;)
  • KennethSwaugerKennethSwauger Moderator Posts: 6,018
    In days of yore Polk made an on-wall type speaker that used the same tweeter protection device. Sometimes owners would telephone us asking about the light they could see blinking at them from the speaker.
    Anyone remember a British speaker that used a small light to help with speaker positioning?
    "Passion is inversely proportional to the amount of real information available", G. Benfield
  • mhardy6647mhardy6647 Posts: 15,060
    edited September 14
    I'm thinking the top modules on the KEF 105, but Google's not backin' me up on that :/



    PS If any of youse guyses happens to have a surplus pair of KEF 105s collectin' dust... shoot me a PM ;)
    "Some amps run on self bias, some amps run on fixed bias. But his amps run on confirmation bias." -- seen on audioasylum

  • mhardy6647mhardy6647 Posts: 15,060
    Heh -- I think I was very close :)


    One-oh-five... point two.
    source: http://www.kef.com/uploads/files/en/museum_pdf/70s/Reference_Series_Model_105_2_r.pdf

    "Some amps run on self bias, some amps run on fixed bias. But his amps run on confirmation bias." -- seen on audioasylum

  • KennethSwaugerKennethSwauger Moderator Posts: 6,018
    You are correct, the listener turned the upper section until they could see the small light in each speaker. The light had a very narrow dispersion so it would "blink" on. Great sounding speakers! There was a pair on CL a few months ago near DC that looked in great shape.
    "Passion is inversely proportional to the amount of real information available", G. Benfield
  • mhardy6647mhardy6647 Posts: 15,060
    Yeah, I always liked 'em.
    "Some amps run on self bias, some amps run on fixed bias. But his amps run on confirmation bias." -- seen on audioasylum
